#1
chris123d

chris123d

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
Hi guys
I have today managed to get mavericks to install on my pc. I have one problem though is that i cannot find them drivers for my msi z87 g55 motherboard
I have searched google upside down and cannot find a driver for this
Spec:
I7 4770k
Msi z87-g55 mobo
6950/6970 unlocked
8gb 1333 ram
500gb hdd
650watt corsair psu
H100

If anyone could point me in the right direction of which drivers to install the would be great.

Thanks
Chris

#2
HUSABER

HUSABER

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 869 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:HusabergFC-600 FourStroke,KTM500 TwoStroke,TM300 TwoStroke
    Free Time-My Hackintosh&Ap...

Hi guys
I have today managed to get mavericks to install on my pc. I have one problem though is that i cannot find them drivers for my msi z87 g55 motherboard
I have searched google upside down and cannot find a driver for this
Spec:
I7 4770k
Msi z87-g55 mobo
6950/6970 unlocked
8gb 1333 ram
500gb hdd
650watt corsair psu
H100

If anyone could point me in the right direction of which drivers to install the would be great.

Thanks
Chris

Realy?

Why no seek more? :hysterical:

  • Specifications
    • Mfr Part Number: Z87-G55
    • CPU: LGA1150
      • Supports 4th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
      • FSB 100MHz
    • Chipset: Intel Z87 Express
    • Memory: 4x DDR3-3000(OC)/ 2800/ 2666/ 2600/ 2400/ 2200/ 2133/ 2000/ 1866/ 1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
    • Slots: 3x PCI-Express 3.0 x16 Slots (run at x16/x0/x0, x8/x8/x0 or x8/x4/x4), 4x PCI-Express 2.0 x1 Slots
    • Multi-Graphics: Supports AMD 3-Way CrossFireX and NVIDIA 2-Way SLI Technology
    • SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10; 1x mSATA3 Port
    • Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC
    • LAN: Realtek 8111G Gigabit Ethernet Controller
    • Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x PS/2 Keyboard/Mouse Combo Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x Coaxial S/PDIF Out, 1x Optical S/PDIF Out, 1x RJ45 LAN Port, Audio I/O Jacks
    • Power Connector: 1x 24pin ATX Power Connector, 1x 8pin ATX 12V Power Connector
    • Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm

http://en.lmgtfy.com...Controller kext

http://en.lmgtfy.com...tek ALC892 kext

:hysterical: :hysterical: :hysterical: :hysterical: :hysterical: :hysterical: :hysterical: :hysterical: :hysterical:



#3
chris123d

chris123d

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
Thanks alot mate
Coudnt really decided what driver i was searching for originally

#4
HUSABER

HUSABER

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 869 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:HusabergFC-600 FourStroke,KTM500 TwoStroke,TM300 TwoStroke
    Free Time-My Hackintosh&Ap...

Thanks alot mate
Coudnt really decided what driver i was searching for originally

for ethernet chip use this kext,but from audio try you... :hysterical:

Attached Files



#5
chris123d

chris123d

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts

ok cheers mate  :thumbsup_anim:



#6
chris123d

chris123d

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
Ok so i installed both of the kext's with kext wizard and after i have restarted the computer many times and still there is no network connection or sound

Any ideas?

#7
PimentelX86

PimentelX86

    InsanelyMac Deity

  • Local Moderators
  • 2,045 posts
  • Gender:Male
  • Location:Area 51

Hello



Welcome

Look, doens't have drive for any mobo... isn't as windows... to hack has kexts, and if the system will work native or not just will depend of your hardware...



did you install OSX? What method did you use to intall? and wich bootloader are you using?



Configure your bios: http://olarila.com/f....php?f=2&t=1804



The last, but not the lastest: Read carefully an try undestand... :)



#8
chris123d

chris123d

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
Hi

I have installed OSX mavericks installed

I used this guide
http://www.insanelym...-for-mavericks/

And i am using Chameleon bootloader

Also my bios is confiugured

Thanks
Chris

#9
HUSABER

HUSABER

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 869 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:HusabergFC-600 FourStroke,KTM500 TwoStroke,TM300 TwoStroke
    Free Time-My Hackintosh&Ap...

Hi

I have installed OSX mavericks installed

I used this guide
http://www.insanelym...-for-mavericks/

And i am using Chameleon bootloader

Also my bios is confiugured

Thanks
Chris

you configure network in system pref?add new interface?



#10
chris123d

chris123d

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
I tried to use the assist me in system pref>network>assist me>assistant.

But all the options are greyed, like the internet cable isnt plugged in but it is

#11
HUSABER

HUSABER

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 869 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:HusabergFC-600 FourStroke,KTM500 TwoStroke,TM300 TwoStroke
    Free Time-My Hackintosh&Ap...

I tried to use the assist me in system pref>network>assist me>assistant.

But all the options are greyed, like the internet cable isnt plugged in but it is


only 3 steps,if you dont see Ethernet,need to try another kext



#12
chris123d

chris123d

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
I have run into a problem now. Everytime i try to boot with most bootflags i ge kernel panic corresponding to currnet thread:kextd

Edit: got into OS X
I tried what you said. There is no ethernet connection choice

#13
HUSABER

HUSABER

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 869 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:HusabergFC-600 FourStroke,KTM500 TwoStroke,TM300 TwoStroke
    Free Time-My Hackintosh&Ap...

I have run into a problem now. Everytime i try to boot with most bootflags i ge kernel panic corresponding to currnet thread:kextd

Edit: got into OS X
I tried what you said. There is no ethernet connection choice

boot with -v and post here kernel panic image :thumbsup_anim:



#14
chris123d

chris123d

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts

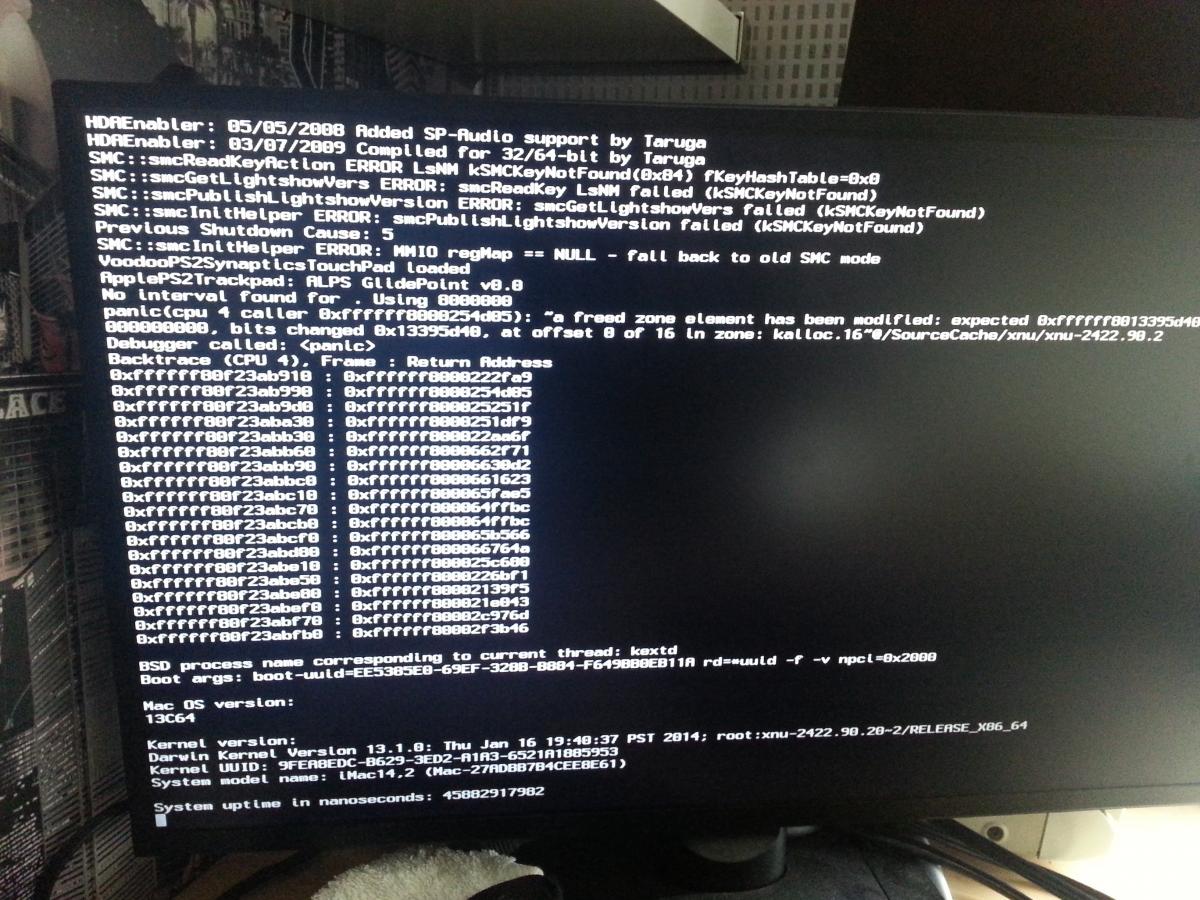

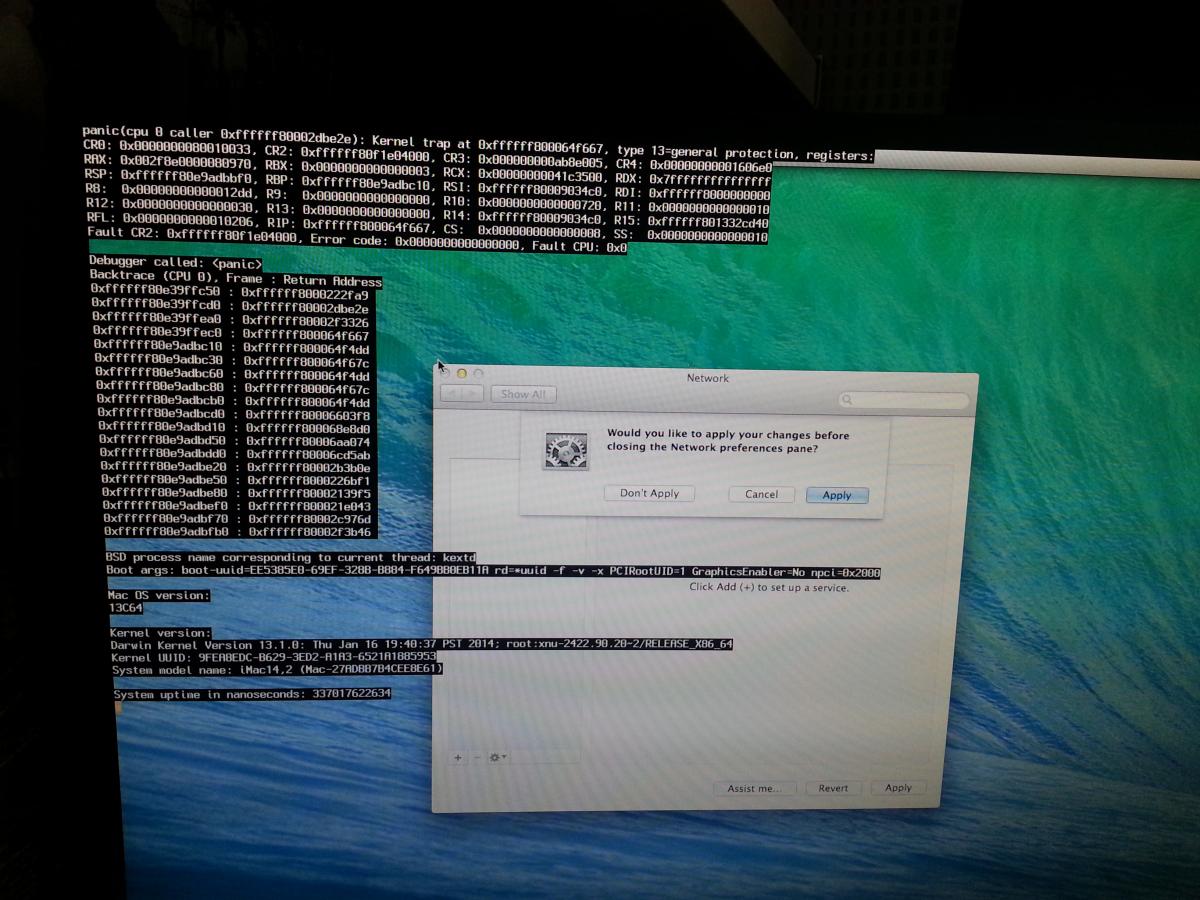

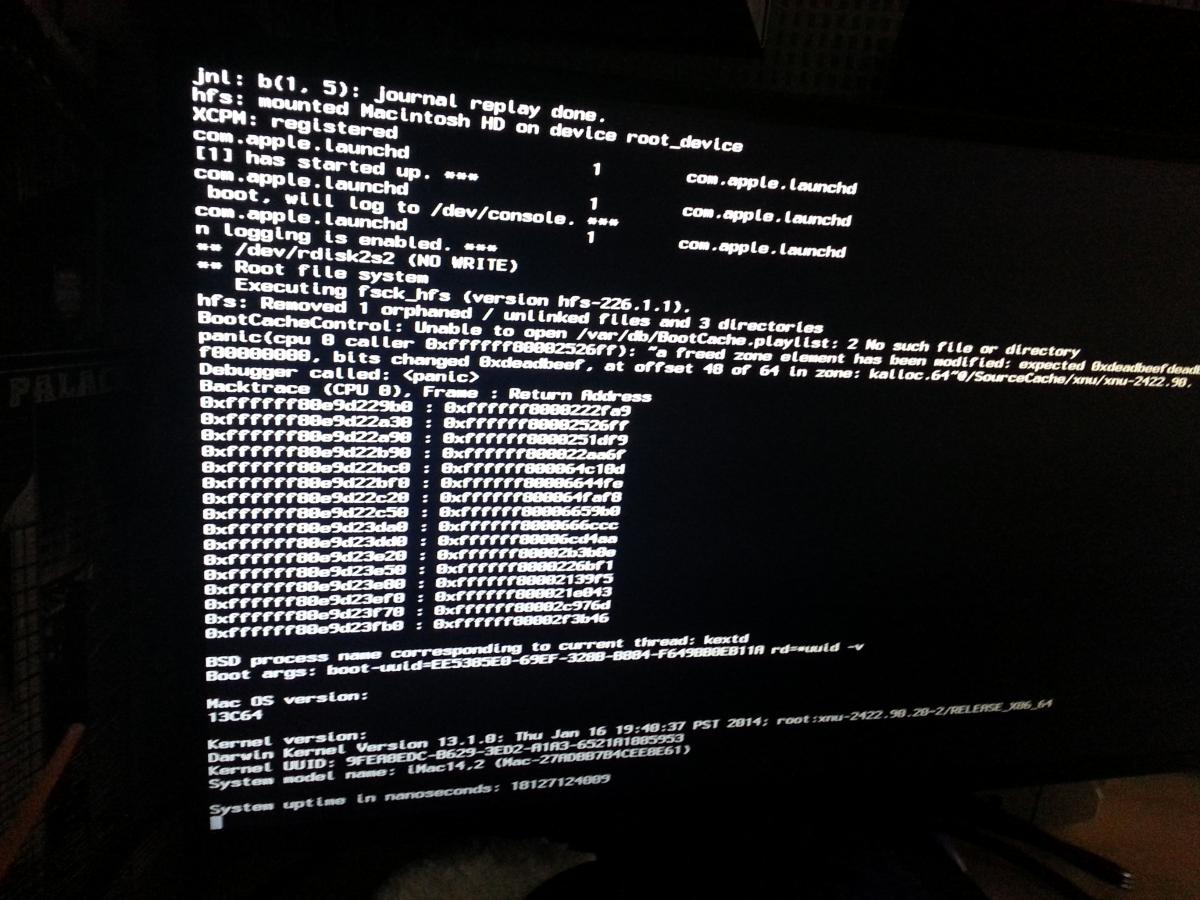

This panic looks the same tbh and the one that has happened when i put my bootflags in
I have never expirianced a kernel panic in the os
It has the same error kextdAttached File  20140425_101727.jpg   155.69KB   0 downloadsAttached File  20140425_103247.jpg   196.5KB   0 downloadsAttached File  20140425_120155.jpg   149.46KB   0 downloads

#15
HUSABER

HUSABER

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 869 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:HusabergFC-600 FourStroke,KTM500 TwoStroke,TM300 TwoStroke
    Free Time-My Hackintosh&Ap...

This panic looks the same tbh and the one that has happened when i put my bootflags in
I have never expirianced a kernel panic in the os
It has the same error kextdattachicon.gif20140425_101727.jpgattachicon.gif20140425_103247.jpgattachicon.gif20140425_120155.jpg

install those 2 kext on system/library/extension(dont reboot)

open terminal and run this:

sudo kextcache -system-prelinked-kernel -all-loaded

Now reboot

Attached Files



#16
chris123d

chris123d

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
Do you no what the optimal bootflags will be able to boot with as when i boout with -x in that is the only bootflag i can boot os x with. I cannot use the command above while in safe boot

#17
HUSABER

HUSABER

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 869 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:HusabergFC-600 FourStroke,KTM500 TwoStroke,TM300 TwoStroke
    Free Time-My Hackintosh&Ap...

Do you no what the optimal bootflags will be able to boot with as when i boout with -x in that is the only bootflag i can boot os x with. I cannot use the command above while in safe boot

boot in Verbose...or -v

http://www.macbreake...t-flags_29.html



#18
chris123d

chris123d

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
Ok so when i use -v it goes to the white screen after the apple logo, i assume this is because i have a 6950 gpu?

#19
HUSABER

HUSABER

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 869 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:HusabergFC-600 FourStroke,KTM500 TwoStroke,TM300 TwoStroke
    Free Time-My Hackintosh&Ap...

Ok so when i use -v it goes to the white screen after the apple logo, i assume this is because i have a 6950 gpu?

if you use -v...you never see Apple logo..... :wink_anim: what is wrong here? :hysterical:



#20
chris123d

chris123d

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
Ohh sorry my bad there
After -v has done it boots onto a whitescreen and i cannot do anything from there on, no cursor just a white screen
