Haswell + ALC892 anyone?


  • Please log in to reply
15 replies to this topic

#1
Musicode

Musicode

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 147 posts
  • Gender:Male

Is there anybody out there with a haswell system and an ALC892 codec who has any success with the sound?

I stopped using my hack because of all the sound glitches im getting.And i have tried everything.



1 Different browser  - flash plug in

2 Different smbios (imac14.2 atm)

3 Different versions of applehda and different ways to inject my sound (dsdt or ssdt or injector.kext)

4 Different sound quality (in midi settings)



If there is anyone who can help me on that matter i would be greatful and i cant be using the black jack since im multibooting with windows 7.





solved http://www.insanelym...sound-problems/



#2
slemblod

slemblod

    InsanelyMac Protégé

  • Members
  • PipPip
  • 89 posts
  • Gender:Not Telling

I use this and it works for me, in combination with the Clover boot loader, which I use to patch the binary and inject LayoutID=1.



The binary should be patched from

ixnUEQ==

to

kgjsEA==

If you are having issues, you can try my automated script for creating a bootable Clover USB, and when it asks you which disk to install to, enter your hackintosh's drive (usually disk0). Then use the tool by pikeralpha (the first link).



#3
Musicode

Musicode

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 147 posts
  • Gender:Male

i use the same method but with chameleon. i dont think clover will do any difference.



#4
slemblod

slemblod

    InsanelyMac Protégé

  • Members
  • PipPip
  • 89 posts
  • Gender:Not Telling

Are you sure you are using the right LayoutID? E.g. 0, 1, 2...



Have you patched the binary? This is usually done with perl.



#5
Musicode

Musicode

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 147 posts
  • Gender:Male

My sound is working but after a couple of minutes it gets really annoying,

Are you telling me that you have 0 sound glitches while playing videos on youtube or watching a movie?

If yes can you give me more detail about your system? Like OS ver, dsdt ssdt?



#6
slemblod

slemblod

    InsanelyMac Protégé

  • Members
  • PipPip
  • 89 posts
  • Gender:Not Telling
Yes, working flawlessly. Clover is the best. (v2652)

OS X 10.9.2
No DSDT (though Clover patches some things on-the-fly)
No SSDT (though Clover patches some things on-the-fly)
Other system specs see my signature.

#7
Musicode

Musicode

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 147 posts
  • Gender:Male

Well i tried clover and i got the same exact problems.

After a couple of minutes my sound gets jerky and sometimes its lost completely.



0 sound problems in windows.



#8
slemblod

slemblod

    InsanelyMac Protégé

  • Members
  • PipPip
  • 89 posts
  • Gender:Not Telling

I am using the ports directly on the motherboard (the green IIRC). Maybe try them? And/or my config.plist (attached).

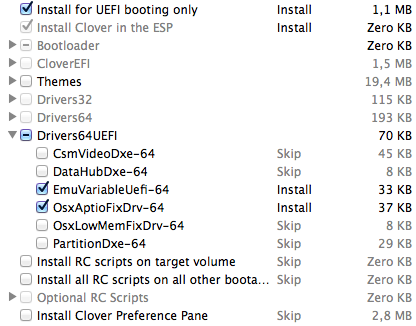

And I configured Clover like this:

Attached File  Screen Shot 2014-04-19 at 07.49.44.png   52.51KB   6 downloads

Attached Files



#9
Musicode

Musicode

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 147 posts
  • Gender:Male

Thanks mate i will give it another try :)

Can you also tell me which bios you are using?



#10
slemblod

slemblod

    InsanelyMac Protégé

  • Members
  • PipPip
  • 89 posts
  • Gender:Not Telling

At the moment I am using version F8, but the new version F9 is out (have not tried it). Both can be downloaded from here.



#11
Musicode

Musicode

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 147 posts
  • Gender:Male

im using f9 already :)



#12
slemblod

slemblod

    InsanelyMac Protégé

  • Members
  • PipPip
  • 89 posts
  • Gender:Not Telling

That might be the issue. Try reinstalling F8 maybe? Though I do not know if that is even possible…



#13
Musicode

Musicode

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 147 posts
  • Gender:Male

nah i had same issues with F8 as well..im gonna try a clean install with clover and your config.



#14
Musicode

Musicode

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 147 posts
  • Gender:Male

well i tried everything..

- new install with clover or chameleon

- chrome or firefox

- changed from back panel to front panel (to make sure its not a jack detection issue)

   also changed from read green to black

- custom dsdt-ssdt or auto generated

- different sound inject methods

- different AppleHDA versions

- iMac14.2 or MapPro6.1 with patched plist

- F8 and F9 bios



In any case i end up wtih sound glitches and interruptions.

In 10.8.5 i can watch flash videos but while i do that my friends on skype are complaining about my voice.

Same thing happens when i download something or transfer data from one HD to another or over my lan network.

My voice will instantly get back to normal once i change something in the midi settings panel.

In 10.9 i cant even watch flash videos they just stop playing.



It has to do with power management.I cant find any other reason.

I have 0 sound problems in windows.



#15
slemblod

slemblod

    InsanelyMac Protégé

  • Members
  • PipPip
  • 89 posts
  • Gender:Not Telling

Hmm. I just found this. I do not think it will make any difference, but who knows?



Been trying to use it myself, but the instructions are confusing… According to some Russian forum I Google Translated, you should:

  • Place the realtekALC.kext in /Volumes/EFI/EFI/CLOVER/kexts/10.9/
  • Download toleda's ALC892 files and extract layout1.xml.zlib and Platforms.xml.zlib
  • Rename them to layout1.zml.zlib and Platforms.zml.zlib and move them to /S/L/E/AppleHDA.kext/Contents/Resources/
  • Add a section to the KernelAndKextPatches section of Clover's config.plist (assuming your EFI partition is mounted at /Volumes/EFI/):
    1. config=/Volumes/EFI/EFI/CLOVER/config.plist
    2. /usr/libexec/PlistBuddy -c "Add :KernelAndKextPatches:KextsToPatch:1 dict" $config
    3. /usr/libexec/PlistBuddy -c "Add :KernelAndKextPatches:KextsToPatch:1:Comment string 'AppleHDA Patch xml>zml'" $config
    4. /usr/libexec/PlistBuddy -c "Add :KernelAndKextPatches:KextsToPatch:1:Name string AppleHDA" $config
    5. /usr/libexec/PlistBuddy -c "Add :KernelAndKextPatches:KextsToPatch:1:Find data eG1sLnps" $config
    6. /usr/libexec/PlistBuddy -c "Add :KernelAndKextPatches:KextsToPatch:1:Replace data em1sLnps" $config
    7. perl -pi -e 's/ZUcxc0xucHM=/eG1sLnps/g' $config
    8. perl -pi -e 's/ZW0xc0xucHM=/em1sLnps/g' $config

  • This should (if I am understanding it correctly) patch the vanilla AppleHDA binary to load the .zml.zlib files, and prevent Apple from overwriting them with updates.


#16
Musicode

Musicode

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 147 posts
  • Gender:Male

I tried that already and i had the same result.i just found a temp solution and it is related to power management.

When i use a haswell smbios like iMac14.2 i get all those glitches with my audio.

When i use MacPro3.1 or 6.1 i have no audio problems besides the jack detection issue.(i will edit my AppleHDA for that one np)



Haswell power management gives me all the glitches i mentioned above.

......In 10.8.5 i can watch flash videos but while i do that my friends on skype are complaining about my voice.

Same thing happens when i download something or transfer data from one HD to another or over my lan network.

My voice will instantly get back to normal once i change something in the midi settings panel.

In 10.9 i cant even watch flash videos they just stop playing.
