Acer Aspire V3-571g Graphics Problem

Intel HD 4000 problem

  • Please log in to reply
8 replies to this topic

#1
MJKhaani

MJKhaani

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
  • Gender:Male

Hi Everyone.

I have acer aspire V3-571g with this specification:



CPU: Intel Core i7-3632QM 2.2 GHz Ivy Bridge

Internal Graphic: Intel HD 4000

PCIx Graphic: Nvidia Geforce 710M 2GB

Wifi: AR9462 Network Wireless Adapter

Ethernet: NetLink BCM57785

Audio: Realtek ALC269

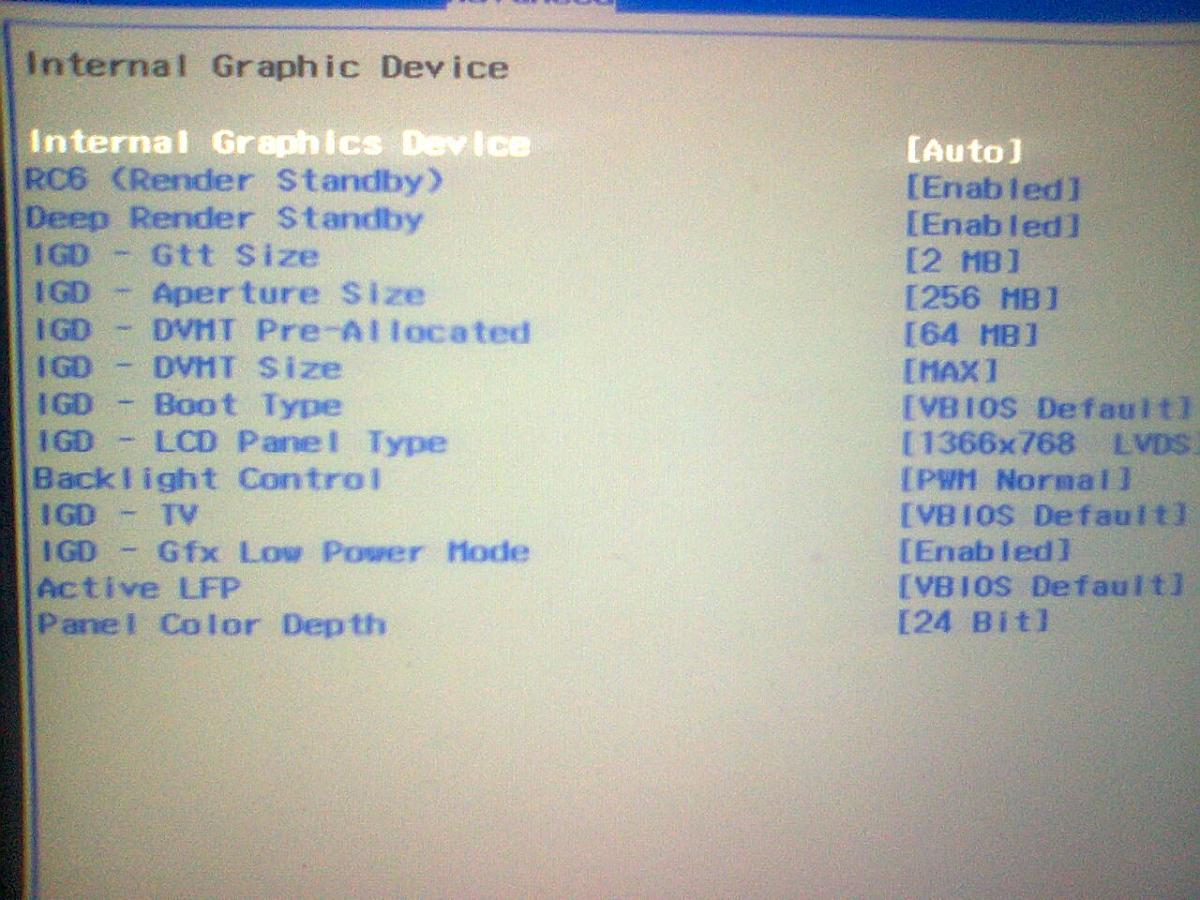

It took me 6 month to be able to boot mac os x installation, because of my BIOS ( BIOS version 2.12). To boot Mac OS X Installation i must set my internal graphic memory to 64MB and my BIOS haven’t have that option, So i ask and wait until now. Here is my internal graphic memory config:

Attached File  Photo0108.jpg   145.5KB   4 downloads

Now I have problem with my graphics card. I've read that a lot of guys get their Intel HD 4000 to working with same DevID as mine by using EFI String or using Chameleon boot loader flags (GraphicsEnabler=Yes IntelCapriFB=[0 to 11]).

But none of them worked for me.



I have option to disable my internal graphic, So by that Can i use Geforce 710M in Mac?



Attached Files



#2
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain

this NVDA CARD Optimus not have support in MAC OS X, delete all Graphics kexts NVDA* repairpermissions with Kext Wizard/reboot



Tarjetas gráficas GeForce GT Serie 700M | Gráficos para portátiles | NVIDIA



#3
MJKhaani

MJKhaani

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
  • Gender:Male

this NVDA CARD Optimus not have support in MAC OS X, delete all Graphics kexts NVDA* repairpermissions with Kext Wizard/reboot



Tarjetas gráficas GeForce GT Serie 700M | Gráficos para portátiles | NVIDIA

 I've already did that to enable HD4000.

I've delete all intel and nv kexts and boot with GE=Yes and result  is

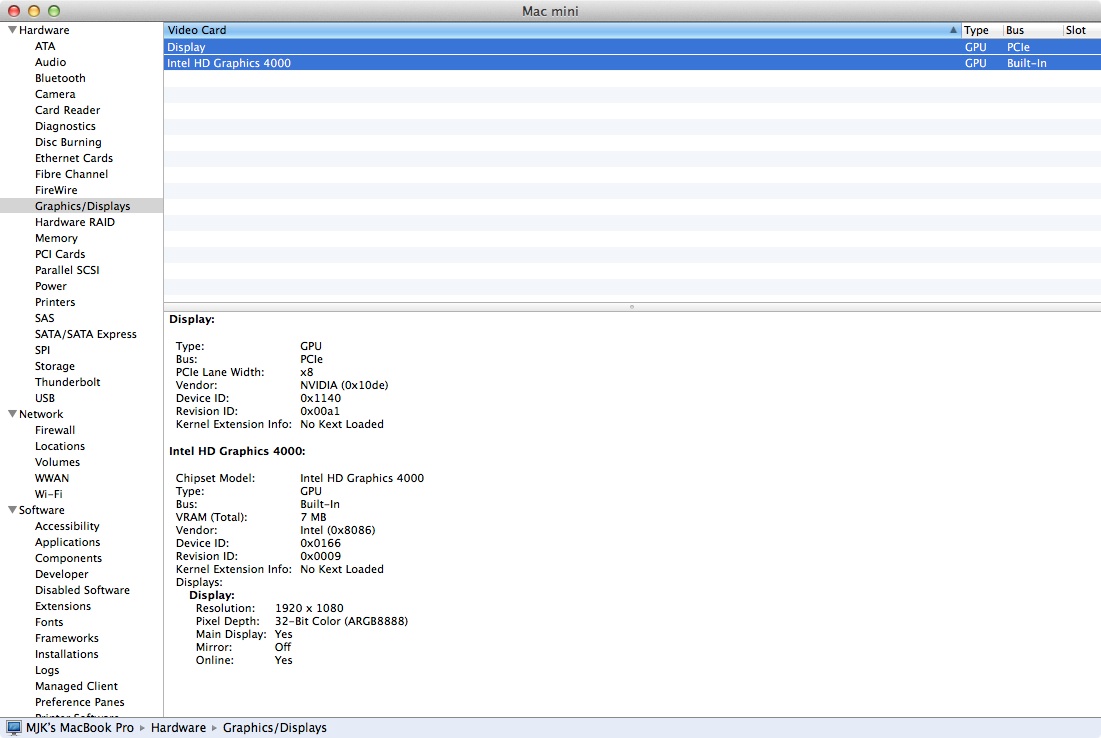

Attached File  Untitled.jpg   152.58KB   5 downloads

I think something wrong with my VRAM size, Why 7MB?

If i install Intel* i stuck with after DSMOS arrived.



#4
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain

in the photo HD4000 I can see no kext loaded , seems what not load all kexts INTELHD, like you said here: I've delete all intel and nv kexts and boot with GE=Yes and result  is



if you have deleted the IntellHD like you want put this to work ?



#5
MJKhaani

MJKhaani

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
  • Gender:Male

in the photo HD4000 I can see no kext loaded , seems what not load all kexts INTELHD, like you said here: I've delete all intel and nv kexts and boot with GE=Yes and result  is



if you have deleted the IntellHD like you want put this to work ?

I not noob you know. I've deleted intelhd* kexts to see what chameleon doing? :lol:

It detect my intel hd with total RAM 7M

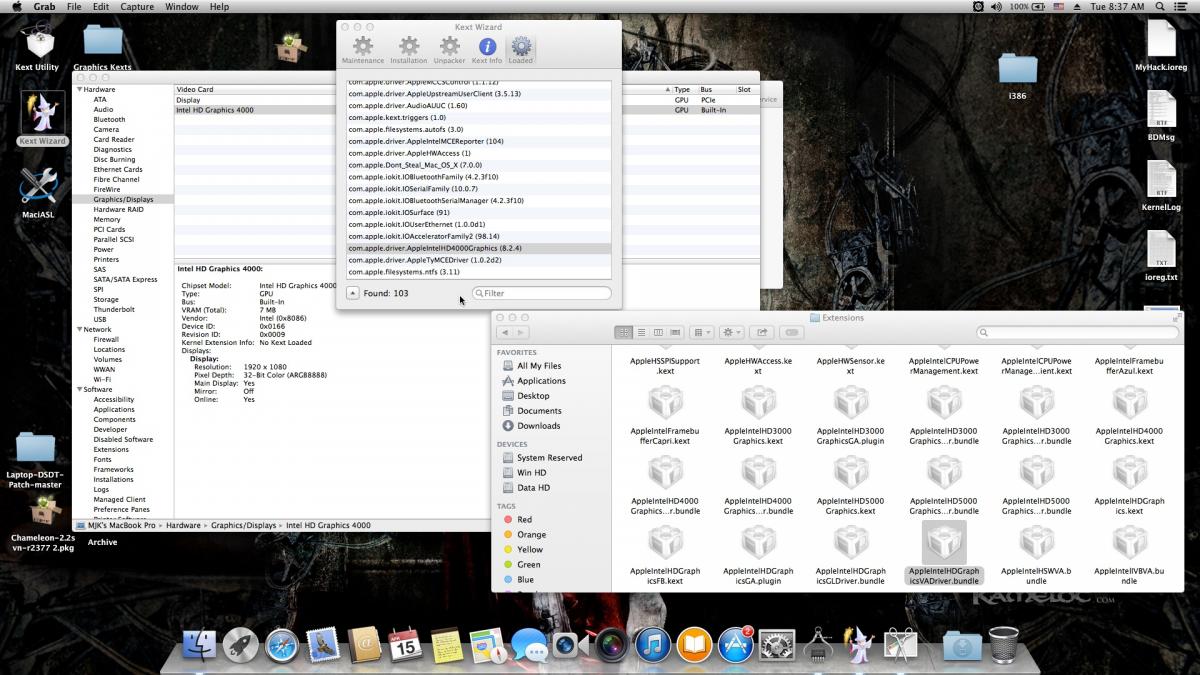

and  here is with kexts installed

Attached File  SC.jpg   135.34KB   5 downloads

Attached Files



#6
MJKhaani

MJKhaani

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
  • Gender:Male

I've what you said but no change

Attached File  SC.jpg   135.34KB   5 downloads



#7
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain

try this in the boot.plist, put your resuluttion in the boot.plist   snapback.pngIntel HD 4000 Mobile (128 VRAM Bios !!!) - OS X 10.9 Mavericks - OSx86.net Hackintosh



<key>EnableDualLink</key>

<string>Yes</string>

<key>Graphics Mode</key>

<string>1600x900x32</string>

<key>GraphicsEnabler</key>

<string>Yes</string>

<key>IntelCapriFB</key>

<string>4</string>



#8
marugby123

marugby123

    InsanelyMac Sage

  • Local Moderators
  • 303 posts
  • Gender:Male
  • Location:USA, East Coast
  • Interests:All technology, computers, network security, iOS app dev, etc

Moving to proper forum: notebooks.



Marugby123

InsanelyMac Netbook Moderator



#9
Tuning

Tuning

    InsanelyMac Protégé

  • Members
  • PipPip
  • 54 posts
  • Gender:Male
  • Location:Germany

inject device properties in chameleon (look for proper Ports on your pc and choose one), disable all graphics enabler. delete only the nvidia kext, keep intel hd kext and patch appleintelCPUPowermanagement kext.

No Nvidia (Optimus) support, so don't try to get it working it doesn't. if your nvidia is primary you will end up black screen after chameleon boot.

This is how i did it. I don't guarantee that this will work for you as it does for me. But i have the same cpu+gpu si it might work



!!! Dont Disable internal Graphics on Bios it will brick your Notebook on acer aspire V3 !!!
