AppleHDA 2.6.0f1 broken ALC662 (Rev1)

alc662 applehda

Best Answer thiagomorales, 06 June 2014 - 03:03 PM

Justing reporting... I found the culprit: AppleACPIPlatform.kext

There wasn't problem with AppleHDA patch.. I just rollback the AppleACPIPlatform to 1.6 version (ML version), and magically it works.



Anyway, thanks for efforts.

Regards.

Go to the full post


  • Please log in to reply
11 replies to this topic

#1
thiagomorales

thiagomorales

    Think different...

  • Members
  • PipPipPip
  • 121 posts
  • Gender:Male
  • Location:Brazil - Rio de Janeiro

Hi fellows.



First all, since from Mountain Lion i have been patching AppleHDA in this computer (that uses ALC662 Rev1 codec - 0x10EC0662) without problems.

Until 10.9.1 i was injecting LayoutID = 12 in DSDT, then using my PathMaps (Platforms), my Layout12.xml and my corrected verbs (Info.plist), everything was fine.



With 10.9.2 release, i have patched the new AppleHDA as "normal" way. But it unexpectedly not worked. I have double checked everything...

I got an 'clean' AppleHDA and did all changes again, step by step.. Tried to change LayoutID to 1 (on both DSDT and files, of course).. Can't get it to work.



Tried to rollback to 2.5.3 version (working in 10.9.1), and for my surprise... Didn't worked.

I have only AppleACPIPlatform.kext (with vanilla i get stuck at boot) and AMDRadeonX3000.kext (for QE on ATI 5430 mobility) patched in my install. But these kexts have been patched since Mountain Lion.. So i guess that it's not causing this trouble.



Well, i have no idea what Apple changed in this release, that broken my sound.

Recently, i have updated to 10.9.3 to try with new kexts, but the version of AppleHDA is the same... Same results on tests.



Anyone has an idea?

Thanks in advance.



Ps: I have bin patched with bcc9 script (patch-hda - last version)

Ps2: In System Information and Sound settings i get NO DEVICES.

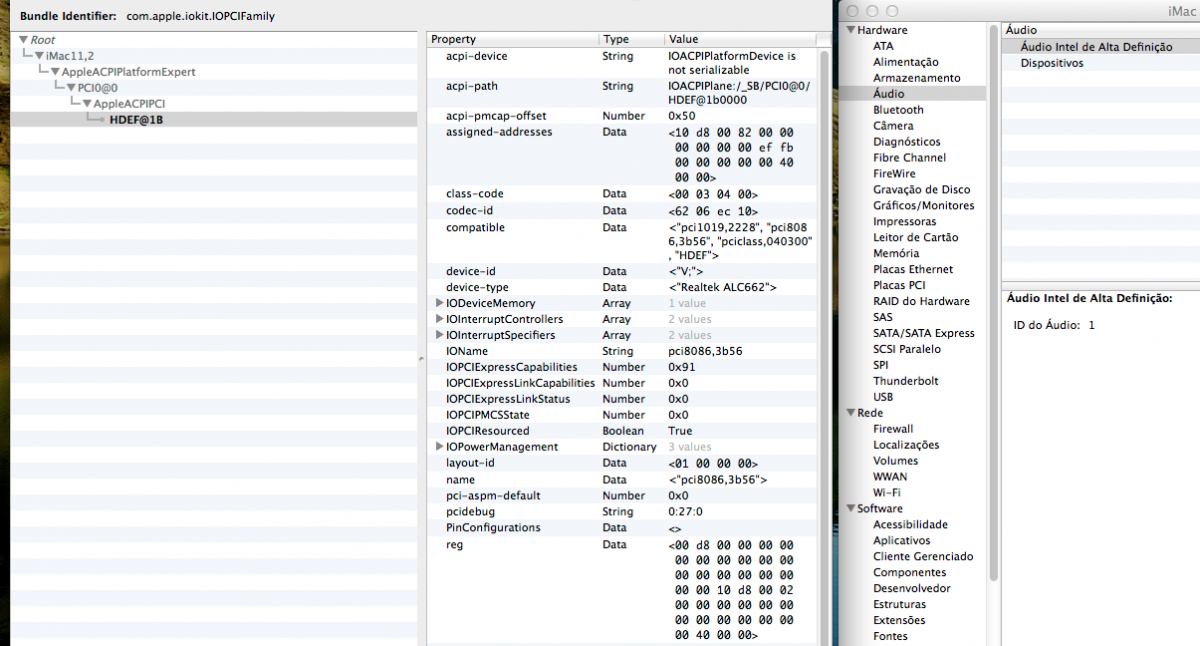

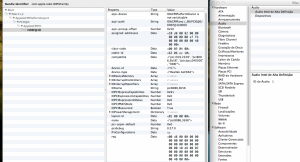

Ps3: HDEF infos are injected as well. (DSDT) - See IOREG attached.



Attached File  Captura de Tela 2014-03-12 s 18.09.43.png   560.55KB   2 downloads



#2
toleda

toleda

    InsanelyMac Legend

  • Gurus
  • 956 posts
  • Gender:Male

IOREG attached.

10.9.2 AppleHDA binary changed, however, all edits are the same as 10.9 and 10.9.1.  No IOReg/HDEF/pin configs; the kext was installed improperly or layout/CodecID and/or Info.plist/ConfigData are wrong.



#3
thiagomorales

thiagomorales

    Think different...

  • Members
  • PipPipPip
  • 121 posts
  • Gender:Male
  • Location:Brazil - Rio de Janeiro

Thanks for reply @toleda.

Well, i was using the same edits from 10.9.1 and it was worked in this version. (Pinconfigs in DSDT 'always' was 'zero'),

In 10.9.1 (working version with AppleHDA 2.5.3) i was using layoutID = 12 and CodecID = 283.903.586 (0x10EC0662 hex), the verbs (ConfigData) was corrected using the svg from codecgraph and verbit, and 'checked' using 'PinConfigurator.app'.



The ConfigData/LayoutID/PathMaps are the same that was used in 10.9.1 (working version).



I guess that is a problem with binpatch. I saw that ALC662 have been patched using ALC885 address.. I will try to patch with another codec address manually in hex editor...

Have any idea?



Thanks.

Regards.



#4
toleda

toleda

    InsanelyMac Legend

  • Gurus
  • 956 posts
  • Gender:Male

Well, i was using the same edits from 10.9.1 and it was worked in this version. (Pinconfigs in DSDT 'always' was 'zero'),

In 10.9.1 (working version with AppleHDA 2.5.3) i was using layoutID = 12 and CodecID = 283.903.586 (0x10EC0662 hex), the verbs (ConfigData) was corrected using the svg from codecgraph and verbit, and 'checked' using 'PinConfigurator.app'.

Looking in the wrong places.  dsdt/pinconfigs aren't the problem.  The IOReg shows layout-id 1.  info.plist/,,/ConfigData must have layout 1 for the correct codec and layout1 must have the same codec. Correct pinconfigs show regardless of the bin patch. Incorrect pinconfigs and correct patch will fail. Verify pinconfigs first.



#5
thiagomorales

thiagomorales

    Think different...

  • Members
  • PipPipPip
  • 121 posts
  • Gender:Male
  • Location:Brazil - Rio de Janeiro

Something is very strange.. I have double checked my pinconfig. (Same used earlier 10.8.5-10.9.1, corrected by verbit)

I already have tested with another codecdata  (from AppleHDA 10.9.2 patched to ALC662 - from osx86.net).. Not works too, shows none in System Profiler.



I reverted to layoutID 12 to test.. Same results.

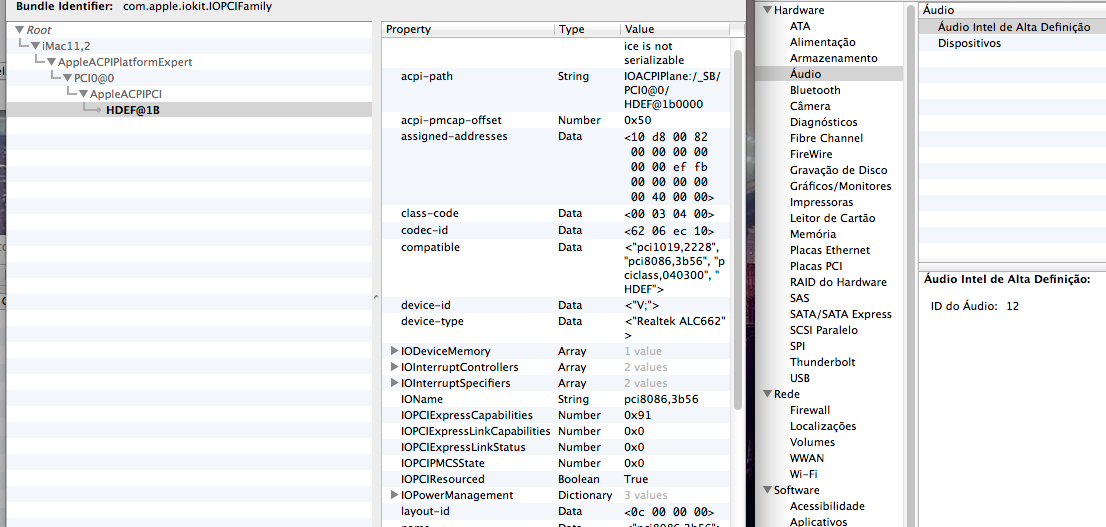

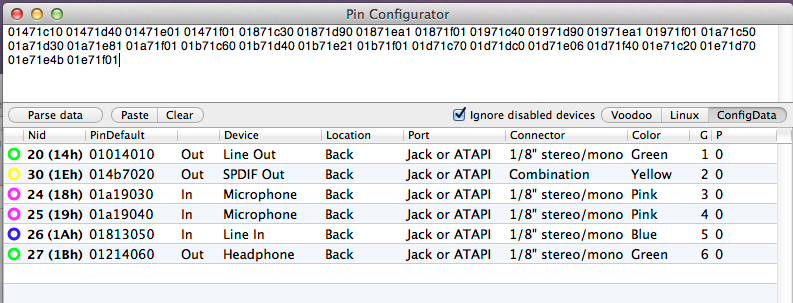

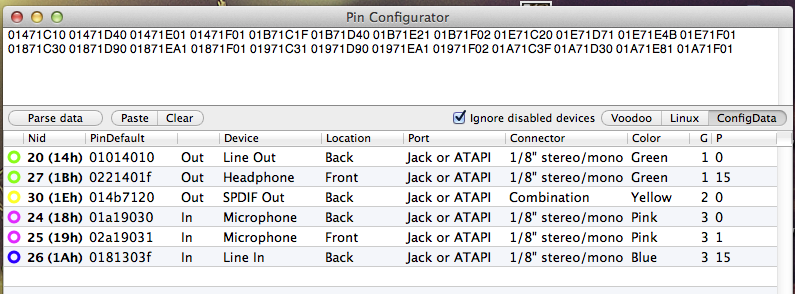

I'm attaching verbit.



Attached File  Captura de Tela 2014-03-13 s 14.18.06.png   86.12KB   3 downloads



Attached File  Captura de Tela 2014-03-13 s 14.31.21.png   80.32KB   3 downloads



Attached File  Captura de Tela 2014-03-13 s 14.29.18.png   152.64KB   3 downloads



Another idea?

Thanks.

Attached Files



#6
toleda

toleda

    InsanelyMac Legend

  • Gurus
  • 956 posts
  • Gender:Male

Another idea?

I agree.  No edits required to pin configs for 10.9.2. Have you installed the working 10.9.1 AppleHDA.kext in 10.9.2?



#7
thiagomorales

thiagomorales

    Think different...

  • Members
  • PipPipPip
  • 121 posts
  • Gender:Male
  • Location:Brazil - Rio de Janeiro

Yes.. And for my surprise, it didn't worked! :(

I didn't have modified no other kexts from 10.9.1 in 10.9.2 (since 10.8.x i have only these modified kexts: AppleHDA, ACPIPlatform and AMDRadeonX3000), so it seems to me that in 10.9.2 Apple has changed something else in AppleHDA that broken audio.



I'm guessing two alternatives:



- Apple has modified the way that HDA binary has been patched. (Since Lion until 10.9.1)

- Another system kext is causing problem... (IOAudioFamily maybe?)



I have no more idea with AppleHDA. Everything is 'right'. :/

I will try with VoodooHDA, only for tests.



Regards,



#8
toleda

toleda

    InsanelyMac Legend

  • Gurus
  • 956 posts
  • Gender:Male

- Apple has modified the way that HDA binary has been patched. (Since Lion until 10.9.1)

- Another system kext is causing problem... (IOAudioFamily maybe?)

As stated earlier, the 10.9.2 binary changed, however, there is no change to any of the patches/files that worked in 10.9 and/or 10.9.1. Did you verify pinconfigs with the 10.9.1 AppleHDA.kext in 10.9.2?



#9
thiagomorales

thiagomorales

    Think different...

  • Members
  • PipPipPip
  • 121 posts
  • Gender:Male
  • Location:Brazil - Rio de Janeiro

Yes, i verified pinconfigs and used what was used in 10.9.1, but it don't works. :(



#10
thiagomorales

thiagomorales

    Think different...

  • Members
  • PipPipPip
  • 121 posts
  • Gender:Male
  • Location:Brazil - Rio de Janeiro

Best Answer

Justing reporting... I found the culprit: AppleACPIPlatform.kext

There wasn't problem with AppleHDA patch.. I just rollback the AppleACPIPlatform to 1.6 version (ML version), and magically it works.



Anyway, thanks for efforts.

Regards.



#11
nyolc8

nyolc8

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 802 posts
  • Gender:Male
  • Location:Budapest, Hungary

I use the same audio codec, and patched applehda in all 10.9.x versions like this:

8508ec10 -> 6206ec10
8408ec10 -> 6106ec10

I never had to rollback any other kexts. Always worked. It works even on 10.9.3 too.



#12
thiagomorales

thiagomorales

    Think different...

  • Members
  • PipPipPip
  • 121 posts
  • Gender:Male
  • Location:Brazil - Rio de Janeiro

Yes, there wasn't wrong with AppleHDA..

The problem was caused by AppleACPIPlatform. (Since 2.0+ version i get a KP with stock version. If i use the patched AppleACPIPlatform version, i can boot normally, but its break Audio.)

I had to rollback to AppleACPIPlatform from ML (1.6), and everything worked.



Atm i'm using 10.9.4 (13E9a) - AppleHDA (2.6.2f2) normally. (With AppleACPIPlatform 1.6)



Regards.
