[HELP]How to disable ATI Radeon 8730m by patching dsdt from ssdts?

disable ATI Radeon DSDT/SSDT

  • Please log in to reply
5 replies to this topic

#1
orsngepzr

orsngepzr

    InsanelyMac Protégé

  • Members
  • Pip
  • 3 posts
Hello everyone,a hacker from China;),so sorry for my bad English.
After working days and nights for 3 months,i have installed 10.9 successfully and make the most part of it work perfectly!
However,the f**king double Graphic Card design made it very hard for my OS X to get a long life without charger and alow temperature.
I have tried a lot,i know the codes to disable Radeon 8730m is Method(SGOF) in ssdt-3 and Method(_OFF) in ssdt-4.But i just don't know how to use it...
Here's my Hacking project:
Product Name:      SAMSUNG 730U3E/740U3E
Operate System:    Windows 8.1 Professonial X64( DirectX 11 )+OS X10.9
CPU:                     i5-3337U @ 1.80GHz
MotherBoard:        SAMSUNG_NP1234567890 (Ivy Bridge - HM76)
Memory:              6 GB ( SAmSUNG DDR3 1333MHz )
Hard Disk:            Samsung MZMTD128HAFV-000
Graphic:              AMD Radeon HD 8500M/8700M(device ID:0x6601)+HD 4000(work perfectly by clover)
Display:                CMN1343 (12.7inch)
Sound Card:          ALC269VC
Netwok Card:         RTL8168E+AR9285

I have already made a DSDT and patched some necessary codes such as DTGP、SHUTDOWN etcs.
There's no option in the BIOS to disable ATI.
Thanks a lot if anyone can give any advics or help!



Attached Files



#2
pokenguyen

pokenguyen

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 434 posts
  • Gender:Male
Copy all the files to your /EFI/Clover/ACPI/patched folder (if you have Clover). Set dropOEM SSDT=true in config.plist, then install kexts here:
https://bitbucket.or...river/downloads
https://bitbucket.or...light/downloads

Attached Files



#3
orsngepzr

orsngepzr

    InsanelyMac Protégé

  • Members
  • Pip
  • 3 posts

Copy all the files to your /EFI/Clover/ACPI/patched folder (if you have Clover). Set dropOEM SSDT=true in config.plist, then install kexts here:
https://bitbucket.or...river/downloads
https://bitbucket.or...light/downloads

Thanks a lot.i can't download the kextes cause i am in China.....But it ddoesn't matter cause i have already sloved the brightness.

The big problem is that i can't boot with your dsdt,ssdt,ssdt-1,ssdt-2,it shutdown suddenly in -v mode.Then i replaced your ssdts by my own ssdt,then it stopped at AppleLMUController:smcReadKey received error 0x84 when reading key MSLD.i will change the SMBIOS to MBA5,2(MBP8,3 currently) then try again.



#4
pokenguyen

pokenguyen

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 434 posts
  • Gender:Male
What is your ig-platform-id? I changed it to 0x16600003.

#5
orsngepzr

orsngepzr

    InsanelyMac Protégé

  • Members
  • Pip
  • 3 posts

What is your ig-platform-id? I changed it to 0x16600003.

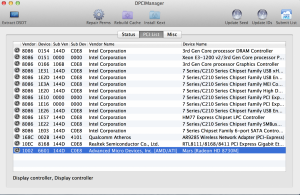

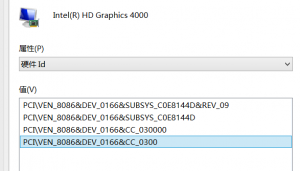

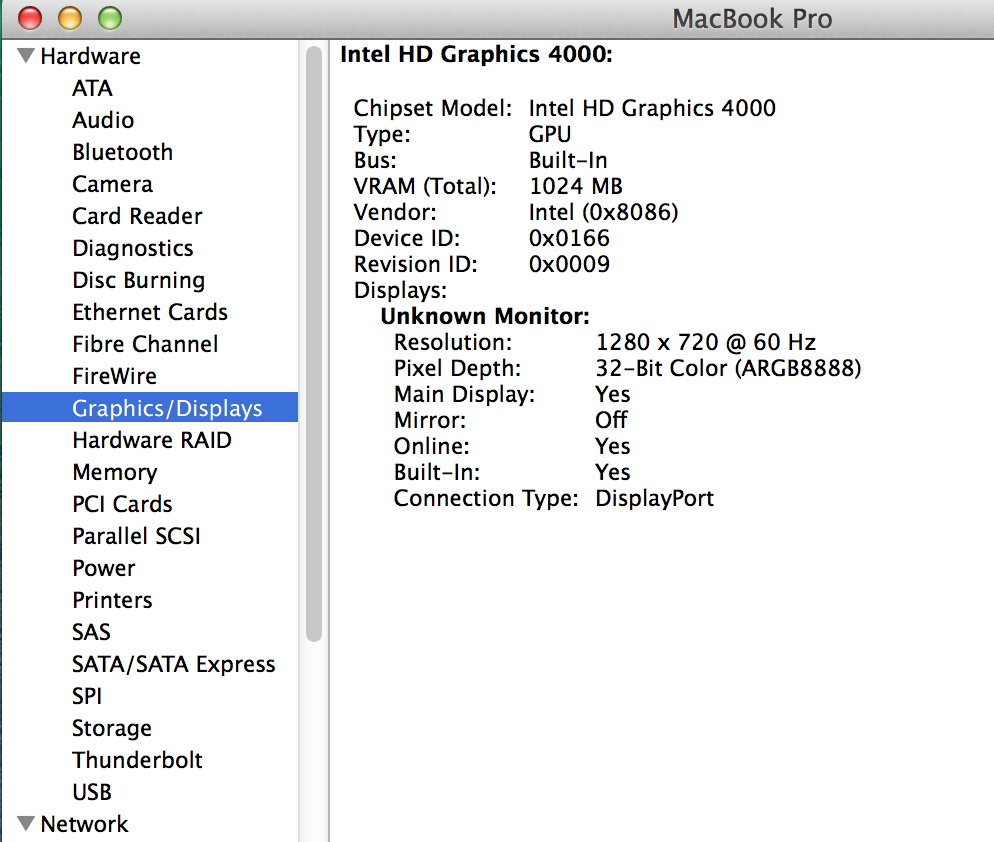

Look at the picture blew.i think id is 03,but i just set INJECT INTEL=true in Clover,and the HD4000 working(QE/CI ).

Attached Files



#6
daxuexinsheng

daxuexinsheng

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts

Hey,Why don't you post to YuanJing forum?



Well,I have done these jobs:



1.I remove the associational PEGP code to dsdt.

      So,you shouldn't use original ssdts now.Just because I remove necessary code to dsdt.

      You can use another way for power management. eg,CState and PState,or ssdtPRGen.sh.



2.Then,I call _OFF Method in Methond(_INI) and Method(_WAK).Usually,it should be worked.



3.I use ACPI 4.0 compiler to compile it.



4.And I think you shouldn't use dsdt to inject your HD4000.Just because your Method(_DSM) in Device (GFX0) is complex.



其实你在远景发帖也可以吧。 :-)

Attached Files
