Ati Firepro v4800 Help


  • Please log in to reply
9 replies to this topic

#1
zerokool75

zerokool75

    InsanelyMac Protégé

  • Members
  • Pip
  • 14 posts

I need help to install Ati firepro v4800 on MAVERICKS 10.9.1.

Any help would be granted.



#2
iFIRE

iFIRE

    InsanelyMacaholic

  • Moderators
  • 3,769 posts
  • Gender:Male
  • Location:Bcn-Spain

hi, i not know any report or notice that this card work in 10.9.1 Hackintosh, what is the problem that you have ? have installed the system ? more info about this is always welcome :P



#3
Laberlohe

Laberlohe

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 218 posts
  • Gender:Male
  • Location:Frankfurt (Home of the Woscht)

Hi,



the FirePro v4800 is a RV830 based graphics card. HD5670 is quite comparable except of a slightly slower video memory (1800 vs. 2000 MHz). I'd guess the FirePro will work, but will need some help.



If using Clover: I read of possibility to mimic a supported card. So you would have to know vendor and device id of HD5670.



Else: You will have to add the vendor/device id of your card to the HD5xxx related kexts (in the sections with HD5670 or HD5570). I don't have a graphics card of this generation, so I'm not sure which kexts to edit. But I think iFire can help?



Good luck!



#4
zerokool75

zerokool75

    InsanelyMac Protégé

  • Members
  • Pip
  • 14 posts

Thank you.

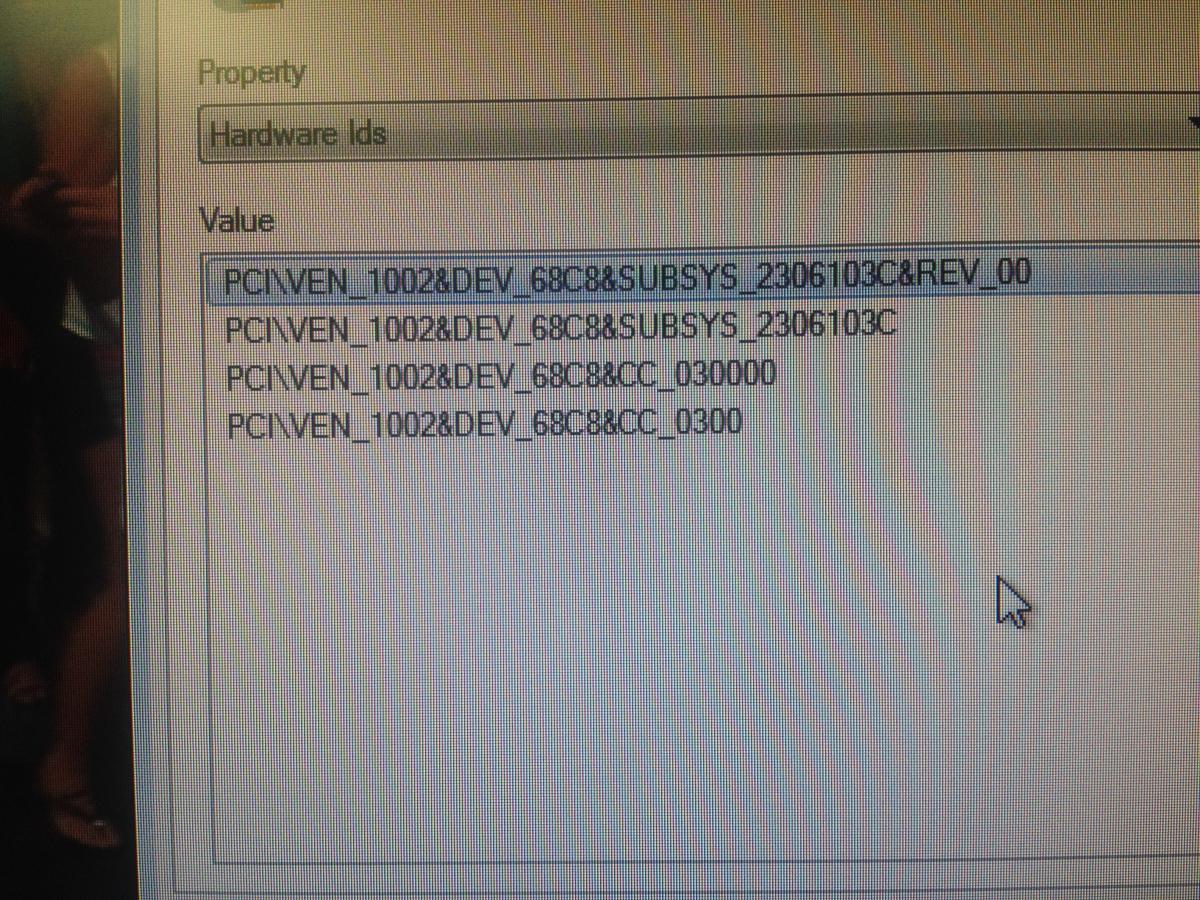

The vendor ID=68C8 (1002). I have a pic with the information, I just need you tell me which kext I will have to edit.



The method I use was the  BOOT USB DVD OS X Mavericks AMD V3.pkg v3



Attached Files



#5
Laberlohe

Laberlohe

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 218 posts
  • Gender:Male
  • Location:Frankfurt (Home of the Woscht)

I think you have to add the device id in the following kexts (backup them before editing):



- AMDRadeonAccelerator.kext

- ATI5000Controller.kext

- ATISupport.kext

- ATIFramebuffer.kext



Do secondary click on the kext and select "Show Content". Open the info.plist with TextEdit (or any other editor) and look for device id "68D8" (this is HD5670). Replace it with your id (68C8).



Maybe you will have edit the driver itself. If so open the file inside the "macos"-folder with an hex-editor (e.g. 0xED) and replace like above.



Good luck!



PS: If you are getting kernel panics/screw up graphics boot with flag "-x" for safe mode...



#6
zerokool75

zerokool75

    InsanelyMac Protégé

  • Members
  • Pip
  • 14 posts

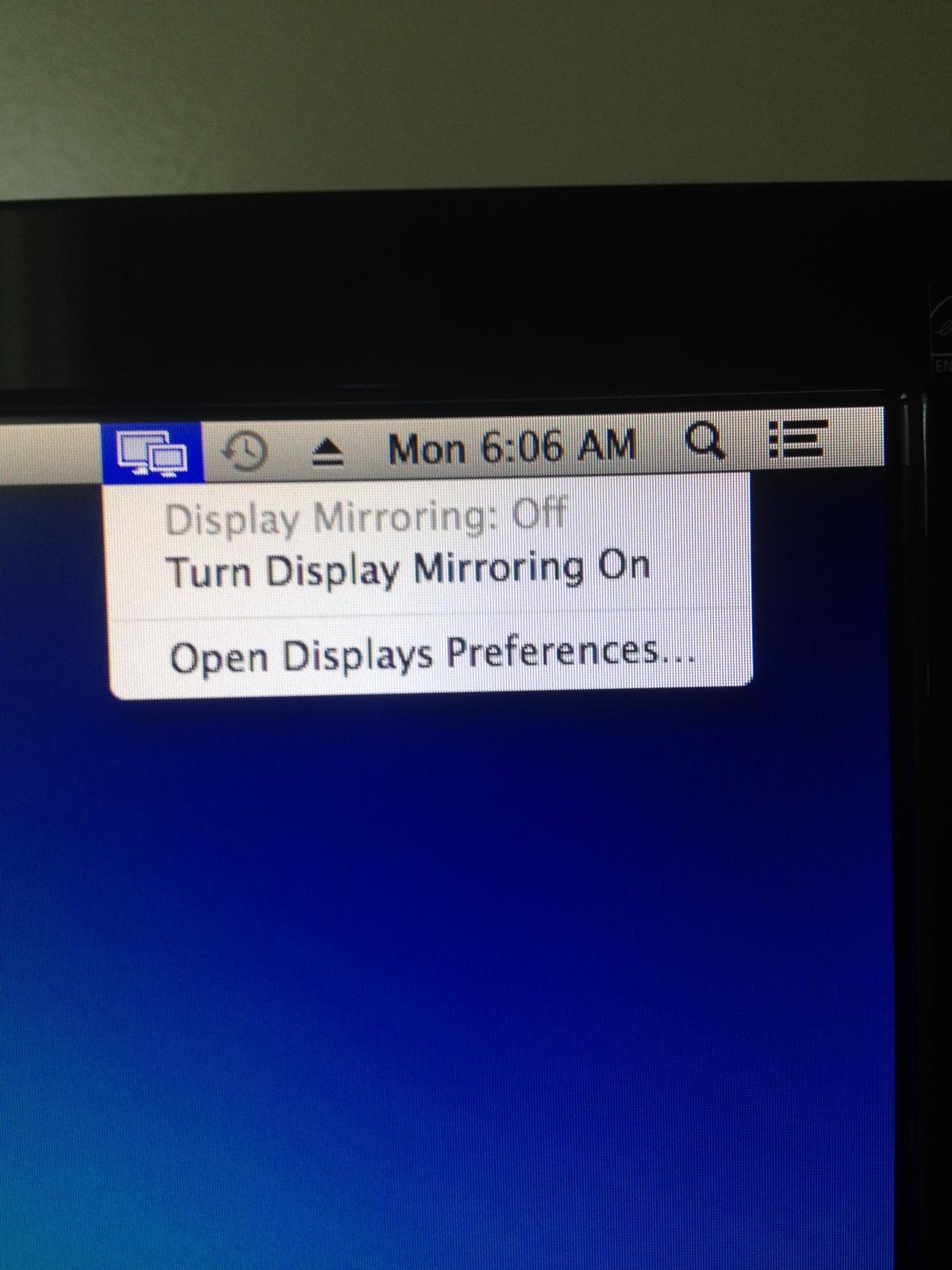

Thank you for all the information. I could install the Firepro, but when starting up the pc comes the screw up graphics. I can go on just with the -x, when the pc starts Its come with the Grey and only work if I turn on the tv to see what is going on. from there I can switch to the monitor. I dont know what to do to put the graphic card to work directly with the monitor, instead of the TV. I will post some pic maybe you can help me. Thank you for your support.

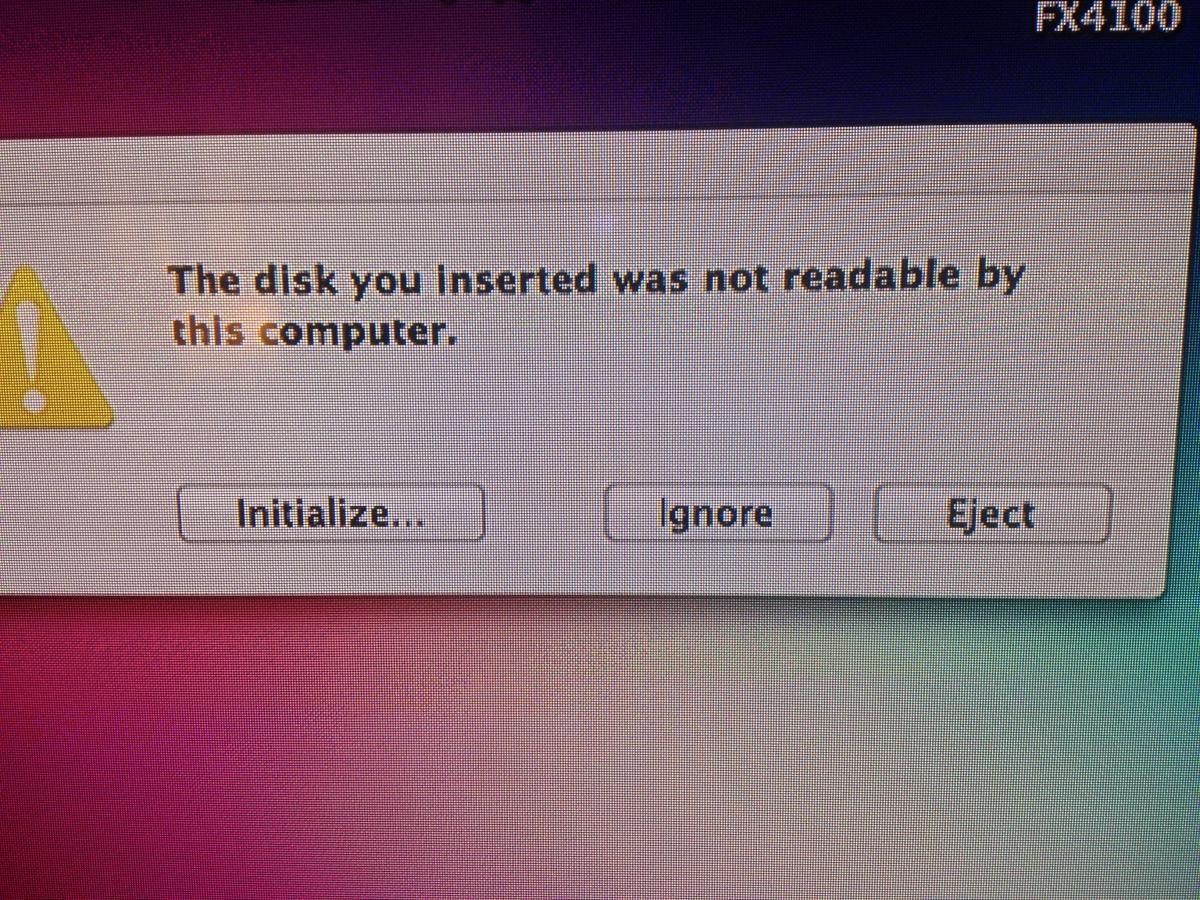

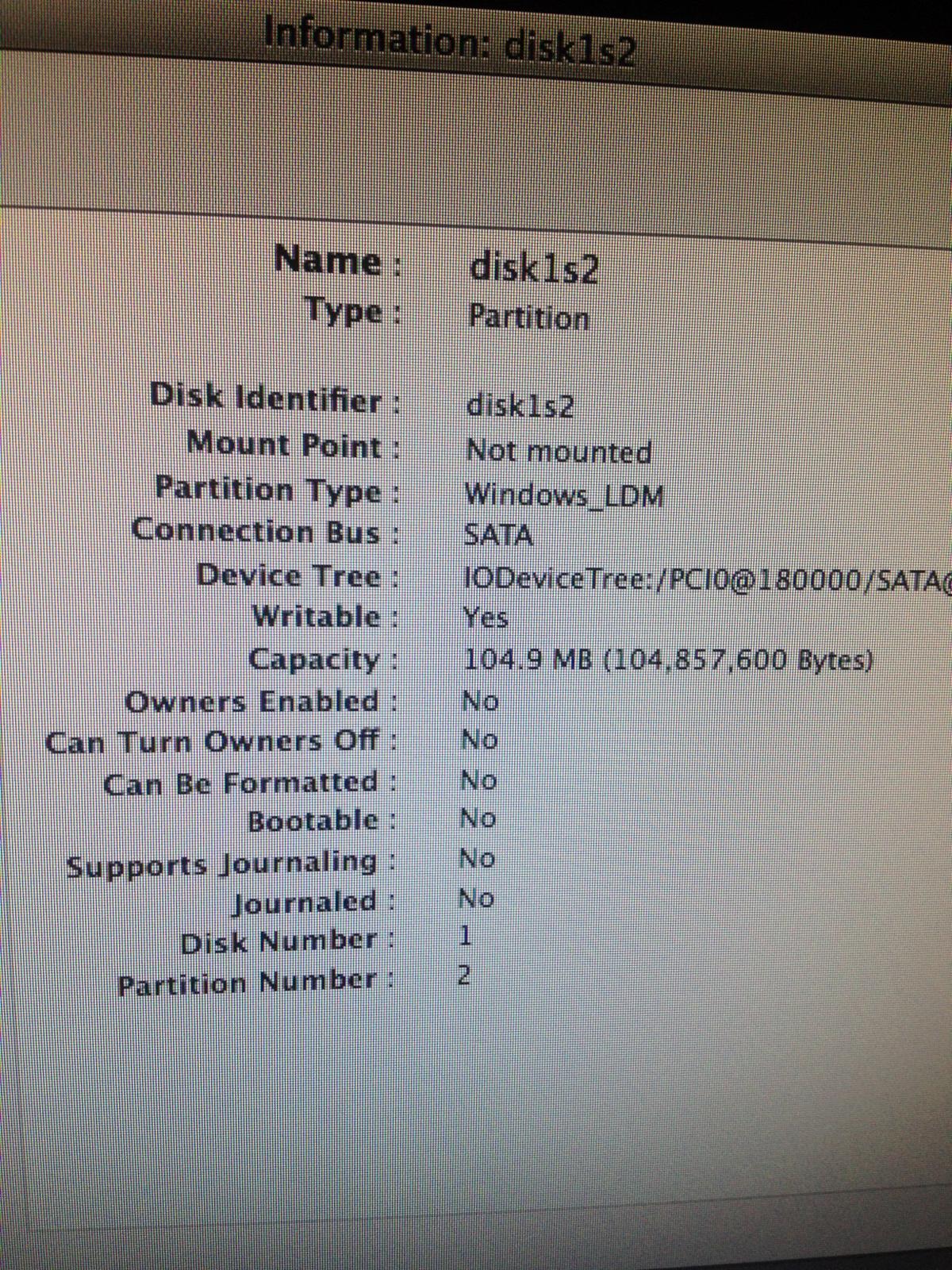

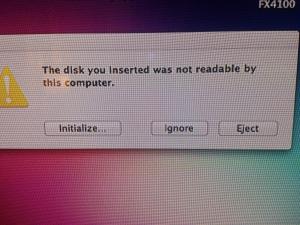

another problem is that I have windows in another HDD, but whe the OS starts bring a massage errror. that the disk you inserted was not readable by this computer. The disk have 3 partition or 4, it is 1 giga.

Attached Files



#7
Laberlohe

Laberlohe

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 218 posts
  • Gender:Male
  • Location:Frankfurt (Home of the Woscht)

I'd guess that OSX chooses a wrong framebuffer.



You can assign a different FB with Chameleon and it's org.chameleon.boot.plist, but I don't the names for the framebuffers of that generation...



#8
smx

smx

    InsanelyMac Protégé

  • Members
  • Pip
  • 33 posts
  • Gender:Male
  • Location:Italy

I may be wrong, but that looks a problem with personalities.
You can try other personalities with Chameleon Wizard.

Otherwise it may need patching. See here http://www.insanelym...radeon-hd45xxx/



#9
zerokool75

zerokool75

    InsanelyMac Protégé

  • Members
  • Pip
  • 14 posts

Hi, and thanks for the info. I installed as you said and now is recognized as firepro v4800. But the video is so slow, when I try to see a video on youtube is very slow. I installed flash player and all updates. any help?



#10
AkimoA

AkimoA

    AMD

  • Local Moderators
  • 212 posts
  • Gender:Male
  • Location:Black Forest (GER)

have a look and find out if all the necessary Kexts are actually loaded



(list them here )





also have a peak into this topic wich is pretty similiar to your little project



good luck
