Joni_78 Posted December 13, 2013 Share Posted December 13, 2013 I installed Mavericks (Clover) on my laptop and everything seems to work fine except GPU. My laptop has both HD4000 and AMD Radeon HD 7570M, but unfortunately laptop manufacturer hasn't added any options to disable Radeon from BIOS, so my only option is to get drivers for Mobility 7570 working. GPU kind of works, but seems to stutter slightly for example when launching launchpad or moving windows. Safari has a lot of flickering. I wonder if I have the right kexts in use, what kexts should I edit from Mavericks that might work for Mobility Radeon? Also what causes that flicker? AMD Mobility Radeon HD 7570M: Thames [Radeon HD 7550M/7570M/7650M] Ven ID 1002 Dev ID 6841 Link to comment Share on other sites More sharing options...
artur_pt Posted December 13, 2013 Share Posted December 13, 2013 hello the problem is not the kext for the ati.. is the switching between cards.. intel hd > ati only works intel hd.. so for now forget the ati good hack Link to comment Share on other sites More sharing options...
pokenguyen Posted December 13, 2013 Share Posted December 13, 2013 Your HD4000 does not work properly, did you remove any kexts after install OS X? Link to comment Share on other sites More sharing options...
Joni_78 Posted December 13, 2013 Author Share Posted December 13, 2013 The problem is that this laptop has no option to use HD4000. They removed it so that there is only 7570M. So it's impossible to get Mobility Radeon cards to work? Link to comment Share on other sites More sharing options...
freeuser16 Posted December 16, 2013 Share Posted December 16, 2013 I think it's possible. Post here your video bios dump. Link to comment Share on other sites More sharing options...
Joni_78 Posted December 16, 2013 Author Share Posted December 16, 2013 @freeuser16Thanks for wanting to help . I've made some progress with this, though it wasn't easy as HP likes to add VGA BIOS in system BIOS and it can't be dumped with Clover or CPU-Z.I managed to extract VGA BIOS from my HP Insyde BIOS but i'm little lost with this.This is from BIOS decoder. It shows 5 connectors. ATOM BIOS Rom: SubsystemVendorID: 0x103c SubsystemID: 0x179d IOBaseAddress: 0x0000 Filename: BR42926.004 BIOS Bootup Message: HP/IEC Clavin/Casper Thames Pro GDDR5 128Mx16 64bit 500e/600m 0.9V PCI ID: 1002:6841 Connector at index 0 Type [@offset 44650]: LVDS (7) Encoder [@offset 44654]: INTERNAL_UNIPHY (0x1e) i2cid [@offset 44760]: 0x90, OSX senseid: 0x1 Connector at index 1 Type [@offset 44660]: DisplayPort (10) Encoder [@offset 44664]: INTERNAL_UNIPHY1 (0x20) i2cid [@offset 44783]: 0x94, OSX senseid: 0x5 Connector at index 2 Type [@offset 44670]: DisplayPort (10) Encoder [@offset 44674]: INTERNAL_UNIPHY1 (0x20) i2cid [@offset 44810]: 0x91, OSX senseid: 0x2 Connector at index 3 Type [@offset 44680]: DisplayPort (10) Encoder [@offset 44684]: INTERNAL_UNIPHY2 (0x21) i2cid [@offset 44837]: 0x92, OSX senseid: 0x3 Connector at index 4 Type [@offset 44690]: VGA (1) Encoder [@offset 44694]: INTERNAL_KLDSCP_DAC1 (0x15) i2cid [@offset 44864]: 0x97, OSX senseid: 0x8 With ATI personalities tool I get this on Mavericks. It shows personalities with only 3 connectors. I had to edit this tool though to make it work on Maverics, so i'm not 100% sure it works correctly. Kext /System/Library/Extensions/AMD2400Controller.kext/Contents/MacOS/AMD2400Controller Personality: Iago ConnectorInfo count in decimal: 0 Disk offset in decimal 539520 Kext /System/Library/Extensions/AMD2600Controller.kext/Contents/MacOS/AMD2600Controller Personality: Hypoprion ConnectorInfo count in decimal: 0 Disk offset in decimal 539488 Personality: Lamna ConnectorInfo count in decimal: 0 Disk offset in decimal 539520 Kext /System/Library/Extensions/AMD3800Controller.kext/Contents/MacOS/AMD3800Controller Personality: Megalodon ConnectorInfo count in decimal: 0 Disk offset in decimal 539472 Personality: Triakis ConnectorInfo count in decimal: 0 Disk offset in decimal 539520 Kext /System/Library/Extensions/AMD4600Controller.kext/Contents/MacOS/AMD4600Controller Personality: Flicker ConnectorInfo count in decimal: 0 Disk offset in decimal 535312 Personality: Gliff ConnectorInfo count in decimal: 0 Disk offset in decimal 535360 Personality: Shrike ConnectorInfo count in decimal: 0 Disk offset in decimal 535408 Kext /System/Library/Extensions/AMD4800Controller.kext/Contents/MacOS/AMD4800Controller Personality: Cardinal ConnectorInfo count in decimal: 0 Disk offset in decimal 531248 Personality: MotMot ConnectorInfo count in decimal: 0 Disk offset in decimal 531280 Personality: Quail ConnectorInfo count in decimal: 0 Disk offset in decimal 531312 Kext /System/Library/Extensions/AMD5000Controller.kext/Contents/MacOS/AMD5000Controller Personality: Douc ConnectorInfo count in decimal: 0 Disk offset in decimal 635296 Personality: Langur ConnectorInfo count in decimal: 0 Disk offset in decimal 635344 Personality: Uakari ConnectorInfo count in decimal: 0 Disk offset in decimal 635392 Personality: Zonalis ConnectorInfo count in decimal: 0 Disk offset in decimal 635456 Personality: Alouatta ConnectorInfo count in decimal: 0 Disk offset in decimal 635552 Personality: Hoolock ConnectorInfo count in decimal: 0 Disk offset in decimal 635616 Personality: Vervet ConnectorInfo count in decimal: 0 Disk offset in decimal 635664 Personality: Baboon ConnectorInfo count in decimal: 0 Disk offset in decimal 635728 Personality: Eulemur ConnectorInfo count in decimal: 0 Disk offset in decimal 635776 Personality: Galago ConnectorInfo count in decimal: 0 Disk offset in decimal 635824 Personality: Colobus ConnectorInfo count in decimal: 0 Disk offset in decimal 635872 Personality: Mangabey ConnectorInfo count in decimal: 0 Disk offset in decimal 635920 Personality: Nomascus ConnectorInfo count in decimal: 0 Disk offset in decimal 635968 Personality: Orangutan ConnectorInfo count in decimal: 0 Disk offset in decimal 636048 Kext /System/Library/Extensions/AMD6000Controller.kext/Contents/MacOS/AMD6000Controller Personality: Pithecia ConnectorInfo count in decimal: 0 Disk offset in decimal 648896 Personality: Bulrushes ConnectorInfo count in decimal: 0 Disk offset in decimal 648928 Personality: Cattail ConnectorInfo count in decimal: 3 Disk offset in decimal 649024 0000000 02 00 00 00 40 00 00 00 29 05 00 00 00 00 00 05 0000010 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 0000020 00 04 00 00 00 01 00 00 00 09 10 00 21 03 02 02 0000030 Personality: Hydrilla ConnectorInfo count in decimal: 0 Disk offset in decimal 649088 Personality: Duckweed ConnectorInfo count in decimal: 0 Disk offset in decimal 649168 Personality: Fanwort ConnectorInfo count in decimal: 3 Disk offset in decimal 649232 0000000 02 00 00 00 40 00 00 00 29 05 00 00 00 00 00 04 0000010 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 0000020 00 04 00 00 00 01 00 00 00 09 10 00 21 03 02 02 0000030 Personality: Elodea ConnectorInfo count in decimal: 0 Disk offset in decimal 649296 Personality: Kudzu ConnectorInfo count in decimal: 0 Disk offset in decimal 649376 Personality: Gibba ConnectorInfo count in decimal: 0 Disk offset in decimal 649408 Personality: Lotus ConnectorInfo count in decimal: 0 Disk offset in decimal 649488 Personality: Ipomoea ConnectorInfo count in decimal: 0 Disk offset in decimal 649536 Personality: Muskgrass ConnectorInfo count in decimal: 0 Disk offset in decimal 649584 Personality: Juncus ConnectorInfo count in decimal: 0 Disk offset in decimal 649648 Personality: Osmunda ConnectorInfo count in decimal: 0 Disk offset in decimal 649712 Personality: Pondweed ConnectorInfo count in decimal: 0 Disk offset in decimal 649776 Personality: Spikerush ConnectorInfo count in decimal: 3 Disk offset in decimal 649824 0000000 02 00 00 00 40 00 00 00 29 05 01 00 00 00 00 05 0000010 00 04 00 00 04 03 00 00 00 01 02 00 11 02 01 01 0000020 00 04 00 00 00 01 00 00 00 09 02 00 21 03 02 02 0000030 Personality: Typha ConnectorInfo count in decimal: 0 Disk offset in decimal 649888 Kext /System/Library/Extensions/AMD7000Controller.kext/Contents/MacOS/AMD7000Controller Personality: Aji ConnectorInfo count in decimal: 0 Disk offset in decimal 662624 Personality: Buri ConnectorInfo count in decimal: 0 Disk offset in decimal 662688 Personality: Chutoro ConnectorInfo count in decimal: 0 Disk offset in decimal 662752 Personality: Dashimaki ConnectorInfo count in decimal: 0 Disk offset in decimal 662832 Personality: Ebi ConnectorInfo count in decimal: 0 Disk offset in decimal 662896 Personality: Gari ConnectorInfo count in decimal: 0 Disk offset in decimal 662976 Personality: Futomaki ConnectorInfo count in decimal: 0 Disk offset in decimal 663056 Personality: Hamachi ConnectorInfo count in decimal: 0 Disk offset in decimal 663120 Personality: OPM ConnectorInfo count in decimal: 0 Disk offset in decimal 663184 Personality: Ikura ConnectorInfo count in decimal: 0 Disk offset in decimal 663280 Personality: IkuraS ConnectorInfo count in decimal: 0 Disk offset in decimal 663296 Personality: Junsai ConnectorInfo count in decimal: 0 Disk offset in decimal 663392 Personality: Kani ConnectorInfo count in decimal: 0 Disk offset in decimal 663488 Personality: KaniS ConnectorInfo count in decimal: 0 Disk offset in decimal 663504 Personality: DashimakiS ConnectorInfo count in decimal: 0 Disk offset in decimal 663600 Personality: Maguro ConnectorInfo count in decimal: 0 Disk offset in decimal 663664 Personality: MaguroS ConnectorInfo count in decimal: 0 Disk offset in decimal 663680 When I google personalities, I see Cattail has 4 connectors not 3. I think this is from Lion. Personality: Cattail ConnectorInfo count in decimal: 4 Disk offset in decimal 500668 0000000 02 00 00 00 40 00 00 00 29 05 00 00 00 00 00 05 0000010 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 0000020 00 04 00 00 00 01 00 00 00 01 00 00 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 01 00 00 12 04 03 03 0000040 I'm not quite sure what personality should I use.Also, if I edit Cattail like this: 0000000 02 00 00 00 40 00 00 00 29 05 00 00 00 00 00 01 0000010 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 05 0000020 00 04 00 00 00 01 00 00 00 01 00 00 21 03 02 02 0000030 00 04 00 00 00 01 00 00 00 01 00 00 12 04 03 03 I get picture on laptop but it has weird colours like pink and green. I still see the text and all and it shows QE/CI is enabled. If I use Ipomoea and edit it's VGA line like this: 10000000100000000001000000000008 I get perfect picture on the external monitor trough VGA and QE/CI is enabled.What am I doing wrong with the laptop internal monitor? Link to comment Share on other sites More sharing options...
freeuser16 Posted December 17, 2013 Share Posted December 17, 2013 Set encoder of LVDS to 1 instead of 0, it should fix weird colours. However, you might get a problem with reduced colour depth. It's necessary to check it with some tool, fe. this one http://www.lagom.nl/lcd-test/gradient.php There is no difference what personality you edit. Even if it has less connectors than your video bios dump, it only means that some of them won't work. Maybe it's a bit better to patch personality which is designed for mobile cards (the ones that originally have LVDS connector). Link to comment Share on other sites More sharing options...
Joni_78 Posted December 17, 2013 Author Share Posted December 17, 2013 Set encoder of LVDS to 1 instead of 0, it should fix weird colours. However, you might get a problem with reduced colour depth. It's necessary to check it with some tool, fe. this one http://www.lagom.nl/lcd-test/gradient.php There is no difference what personality you edit. Even if it has less connectors than your video bios dump, it only means that some of them won't work. Maybe it's a bit better to patch personality which is designed for mobile cards (the ones that originally have LVDS connector). Thanks Strange I got it working about the same time you posted this. http://www.insanelymac.com/forum/topic/277042-amd-radeon-hd-6650m-graphics-enabler-dsdt-hdmi-audio-acer-aspire-7750g-2674g50mnkk-gradients-fixed/page-38?do=findComment&comment=1976677 Didn't know why it worked though until I saw your post. It' working now but the gradients are bad like you said, especially on launchpad. Any way to fix it? Link to comment Share on other sites More sharing options...
freeuser16 Posted December 18, 2013 Share Posted December 18, 2013 Read the thread starting from this post: http://www.insanelymac.com/forum/topic/277042-amd-radeon-hd-6650m-graphics-enabler-dsdt-hdmi-audio-acer-aspire-7750g-2674g50mnkk-gradients-fixed/?p=1933143 You have to create a new EDID for your monitor with FixEDID and modify it a bit if I remember correctly. Link to comment Share on other sites More sharing options...
Joni_78 Posted December 20, 2013 Author Share Posted December 20, 2013 Read the thread starting from this post: http://www.insanelymac.com/forum/topic/277042-amd-radeon-hd-6650m-graphics-enabler-dsdt-hdmi-audio-acer-aspire-7750g-2674g50mnkk-gradients-fixed/?p=1933143 You have to create a new EDID for your monitor with FixEDID and modify it a bit if I remember correctly. Thanks, i'll try that later. Link to comment Share on other sites More sharing options...
Joni_78 Posted December 21, 2013 Author Share Posted December 21, 2013 Read the thread starting from this post: http://www.insanelymac.com/forum/topic/277042-amd-radeon-hd-6650m-graphics-enabler-dsdt-hdmi-audio-acer-aspire-7750g-2674g50mnkk-gradients-fixed/?p=1933143 You have to create a new EDID for your monitor with FixEDID and modify it a bit if I remember correctly. I got some time to try this today. I got my original EDID and I edited it. I've been trying to find what would be the best way to replace the old EDID. Is it DSDT or? Link to comment Share on other sites More sharing options...
Slice Posted December 21, 2013 Share Posted December 21, 2013 I got some time to try this today. I got my original EDID and I edited it. I've been trying to find what would be the best way to replace the old EDID. Is it DSDT or? … or Clover Link to comment Share on other sites More sharing options...

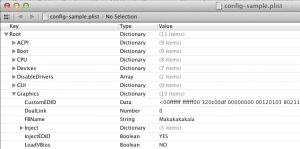

Joni_78 Posted December 21, 2013 Author Share Posted December 21, 2013 … or Clover Screen Shot 2013-12-21 at 23.16.31.png I was going to ask you about this. I tested it last night and didn't get it to work. This is the EDID of my LVDS from ioreg -l (I checked and it's the same on Windows) 00FFFFFFFFFFFF0030E458020000000000150104802313780A1BE59E595098260E505400000001010101010101010101010101010101643240B8628424304060354059C210000019982140B8628424304060354059C21000001900000000000000000000000000000000000000000002000C49FF0A3C64292D4164000000001F I changed first bit of basic params like this according to freeuser16's discovery. 00FFFFFFFFFFFF0030E458020000000000150104902313780A1BE59E595098260E505400000001010101010101010101010101010101643240B8628424304060354059C210000019982140B8628424304060354059C21000001900000000000000000000000000000000000000000002000C49FF0A3C64292D4164000000001F Added CustomEDID into config.plist (converted EDID into data field with PlistEdit Pro) <key>Graphics</key> <dict> <key>CustomEDID</key> <data> AP///////wAw5FgCAAAAAAAVAQSQIxN4ChvlnllQmCYOUFQAAAABAQEBAQEB AQEBAQEBAQEBZDJAuGKEJDBAYDVAWcIQAAAZmCFAuGKEJDBAYDVAWcIQAAAZ AAAAAAAAAAAAAAAAAAAAAAAAAAAAAgAMSf8KPGQpLUFkAAAAAB8= </data> <key>FBName</key> <string>Elodea</string> <key>Inject</key> <true/> <key>LoadVBios</key> <true/> <key>PatchVBios</key> <false/> </dict> Then rebooted and checked ioreg, but the first bit of the basic params was still 8. Any ideas why it didn't work? Link to comment Share on other sites More sharing options...
