MSI GTX 560ti Hawk no AGPM


  • Please log in to reply
No replies to this topic

#1
notsnsone

notsnsone

    InsanelyMac Protégé

  • Members
  • Pip
  • 10 posts

Hello.



My setup is as follows:



Gigabyte B75M-D2V

Intel i3-3220

8GB Ram

MSI GTX 560ti Hawk.

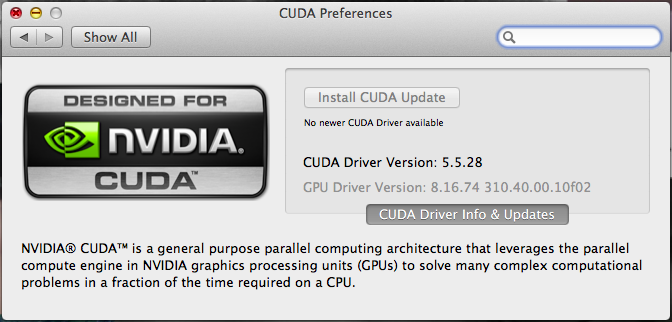

Running on Mac Os X 10.8.5, nothing custom, just sound from ##### 5.5.5. I installed latest Cuda and Nvidia drivers:

Attached File  Screen Shot 2013-12-06 at 9.46.08 AM.png   98.19KB   1 downloads

Also, I'm running Clover EFI, lastest version, and i have these lines for SMBIOS and Graphics (tried to load the card's rom as you can see, but it doesn't want to load it)

	<key>SMBIOS</key>
	<dict>
		<key>ProductName</key>
		<string>MacPro5,1</string>
		<key>SmUUID</key>
		<string>00000000-0000-1000-8000-94de803cea56</string>
		<key>BoardSerialNumber</key>
		<string>C02032361R56R741Y</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<true/>
		</dict>
               <key>LoadVBios</key>
               <true/>
	</dict>

I managed to get rid of the random freezes with freeze fix app, the only thing I'm having trouble with is that the system doesn't want to load AGPM kext no matter what.. here is the only modification i did to the kext:

				<key>MacPro5,1</key>
				<dict>
					<key>Vendor10deDevice0640</key>
					<dict>
						<key>Heuristic</key>
						<dict>
							<key>ID</key>
							<integer>0</integer>
							<key>IdleInterval</key>
							<integer>250</integer>
							<key>SensorOption</key>
							<integer>1</integer>
							<key>SensorSampleRate</key>
							<integer>4</integer>
							<key>TargetCount</key>
							<integer>5</integer>
							<key>Threshold_High</key>
							<array>
								<integer>93</integer>
								<integer>93</integer>
								<integer>93</integer>
								<integer>100</integer>
							</array>
							<key>Threshold_Low</key>
							<array>
								<integer>0</integer>
								<integer>97</integer>
								<integer>97</integer>
								<integer>97</integer>
							</array>
						</dict>
						<key>LogControl</key>
						<integer>0</integer>
						<key>control-id</key>
						<integer>18</integer>
					</dict>
					<key>Vendor10deDevice1200</key>
					<dict>
						<key>Heuristic</key>
						<dict>
							<key>ID</key>
							<integer>0</integer>
							<key>IdleInterval</key>
							<integer>250</integer>
							<key>SensorOption</key>
							<integer>1</integer>
							<key>SensorSampleRate</key>
							<integer>4</integer>
							<key>TargetCount</key>
							<integer>5</integer>
							<key>Threshold_High</key>
							<array>
								<integer>55</integer>
								<integer>75</integer>
								<integer>90</integer>
								<integer>100</integer>
							</array>
							<key>Threshold_Low</key>
							<array>
								<integer>0</integer>
								<integer>75</integer>
								<integer>90</integer>
								<integer>100</integer>
							</array>
						</dict>
						<key>LogControl</key>
						<integer>0</integer>
						<key>control-id</key>
						<integer>18</integer>
					</dict>
					<key>default-control-id</key>
					<integer>18</integer>
				</dict>

I have no fans at the moment, system won't load the kext no matter what smbios i use, any suggestions? thanks in advance

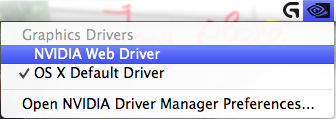

ps: i don't know if this is relevant or not, but the nvidia aren't loaded anyway, using the switch in the menu bar, when I select Nvidia Web Drivers, after restert it goes back to OS X Default Driver.

Attached File  Screen Shot 2013-12-06 at 10.09.27 AM.png   30.63KB   0 downloads

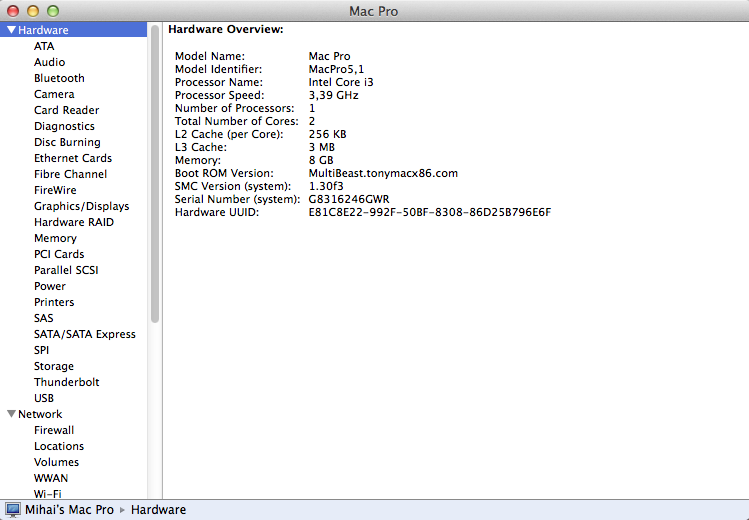

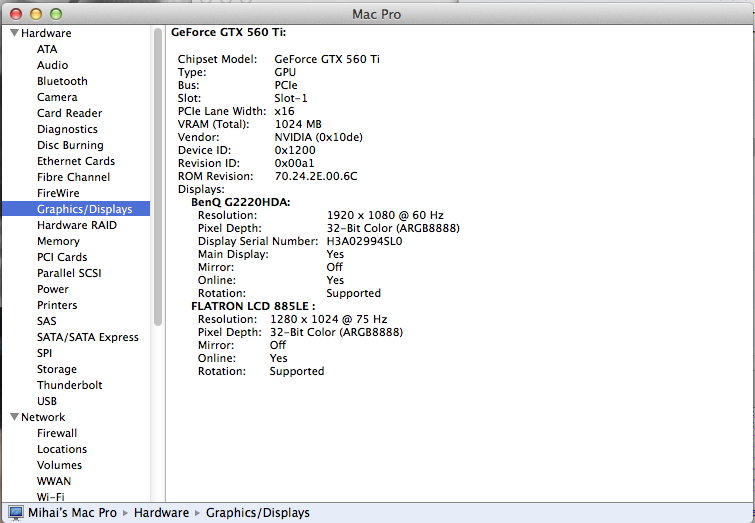

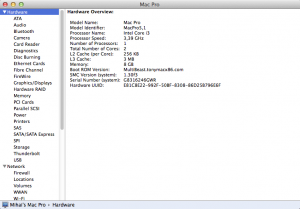

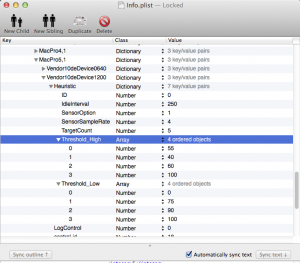

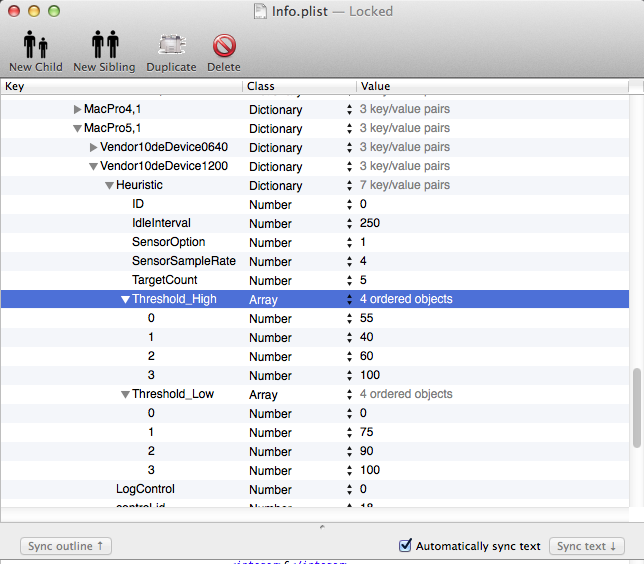

edit: upgraded to 10.9, AGPM gets loaded this time, but still fans won't work. Here are some helpful screenshots:

Attached File  Screen Shot 2013-12-06 at 23.54.54.png   73.06KB   0 downloads

Attached File  Screen Shot 2013-12-06 at 23.55.33.png   93.46KB   0 downloads

Attached File  Screen Shot 2013-12-06 at 23.55.22.png   101.93KB   0 downloads
