My QUO Motherboard build

- - - - - QUO BUILD

  • Please log in to reply
3 replies to this topic

#1
BALDY_MAN

BALDY_MAN

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 269 posts
  • Gender:Male
  • Location:uk

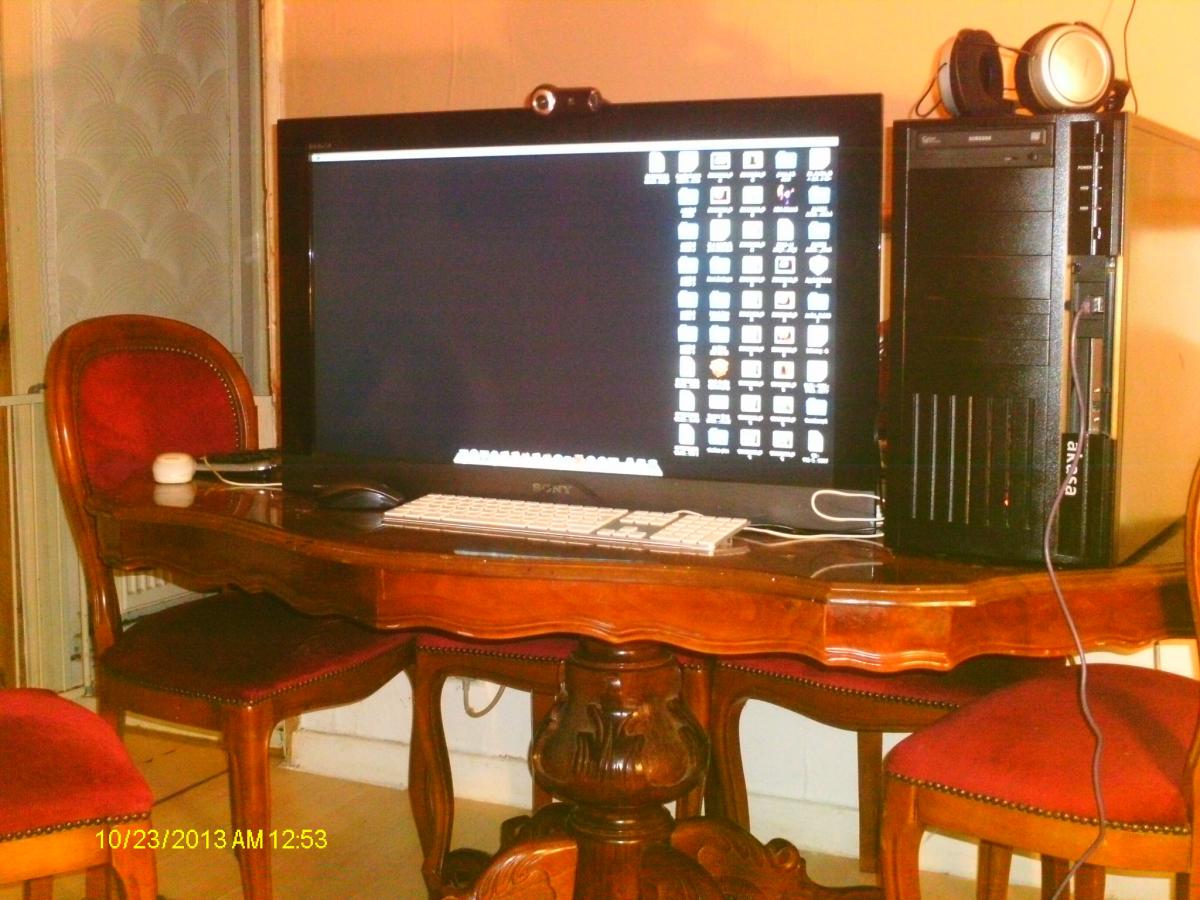

this is just my budget build. i hope you like it even though theres not mutch to it.

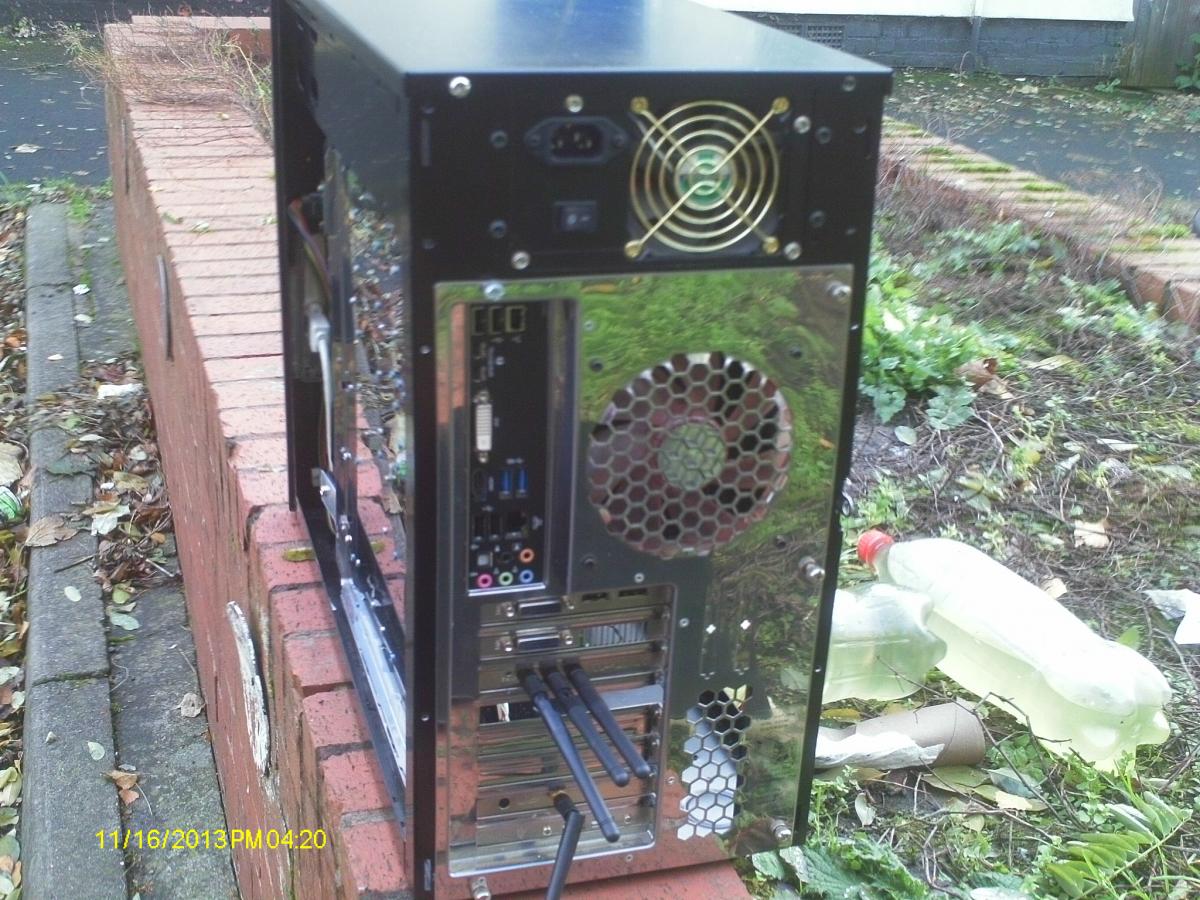

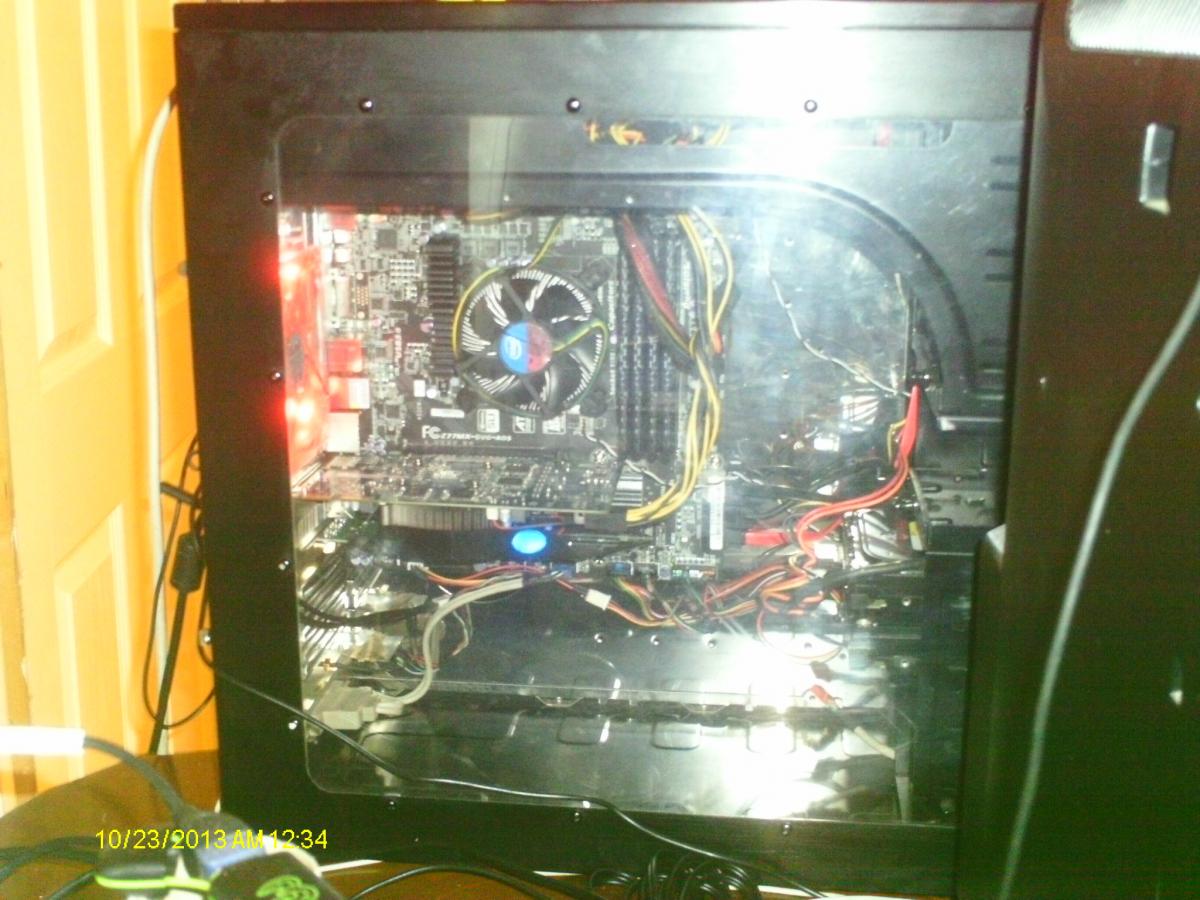

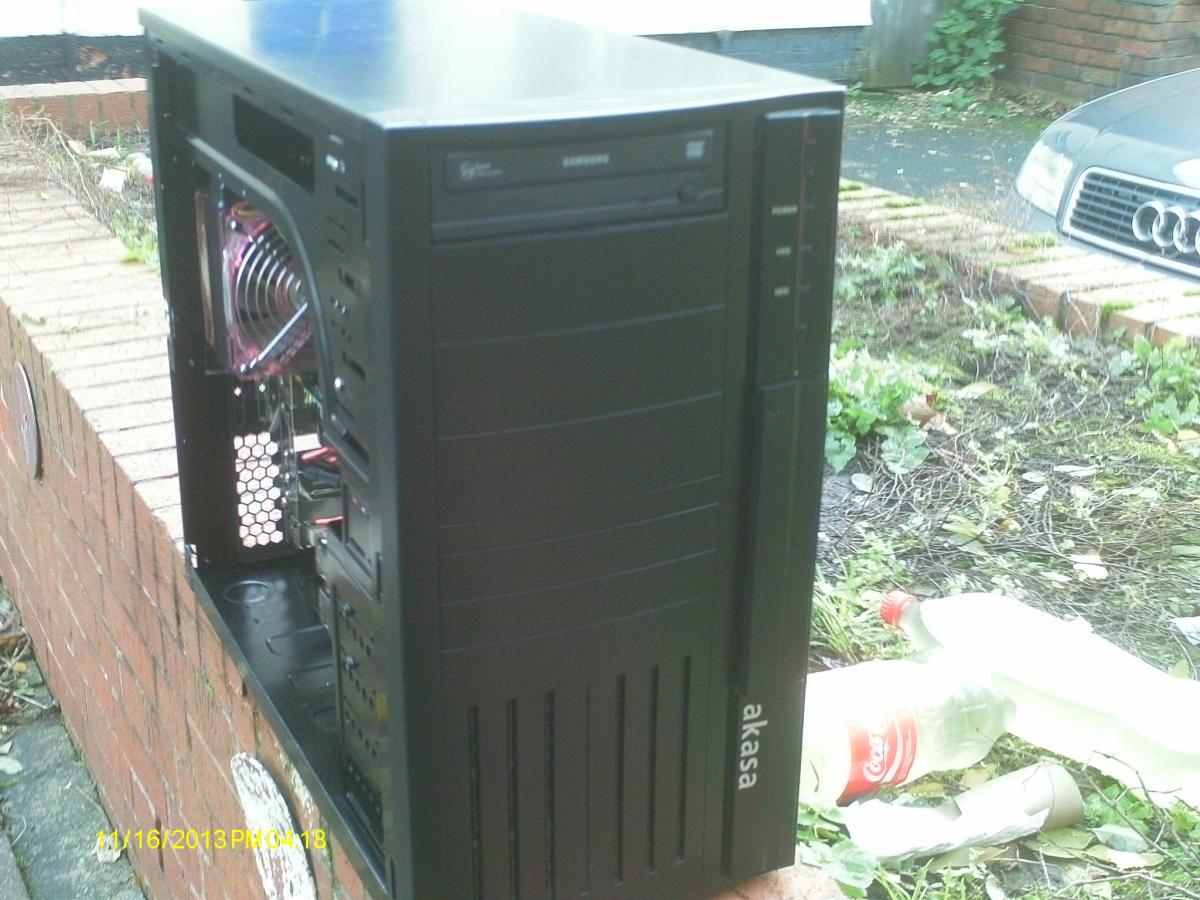

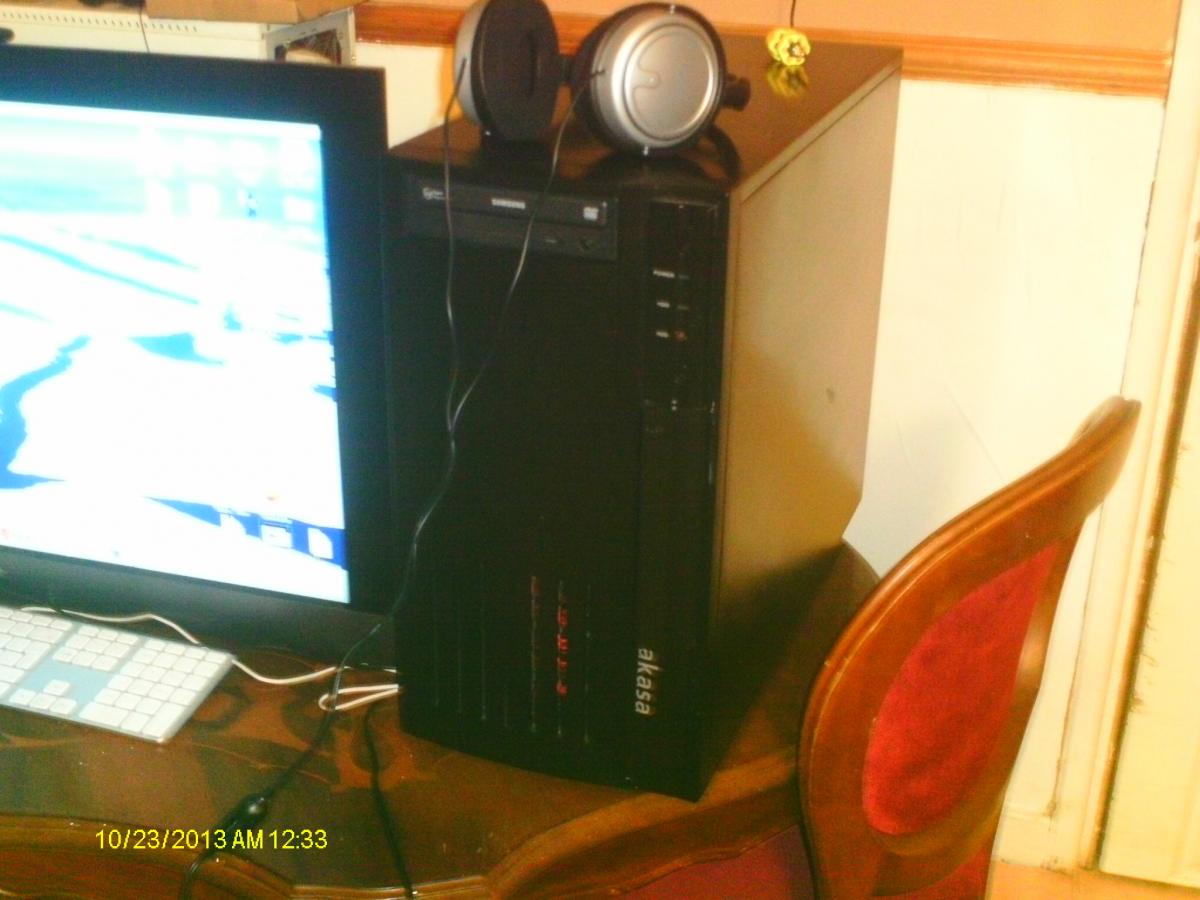

Akasa case and 600watt psu.   gpu sapphire 5770 vaper-x  cpu 3770k. home made usb bluetooth adapter to-link 4800 wifi card two wd raptor hard drives samsung duel layer dvd player

Attached Files



#2
BALDY_MAN

BALDY_MAN

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 269 posts
  • Gender:Male
  • Location:uk

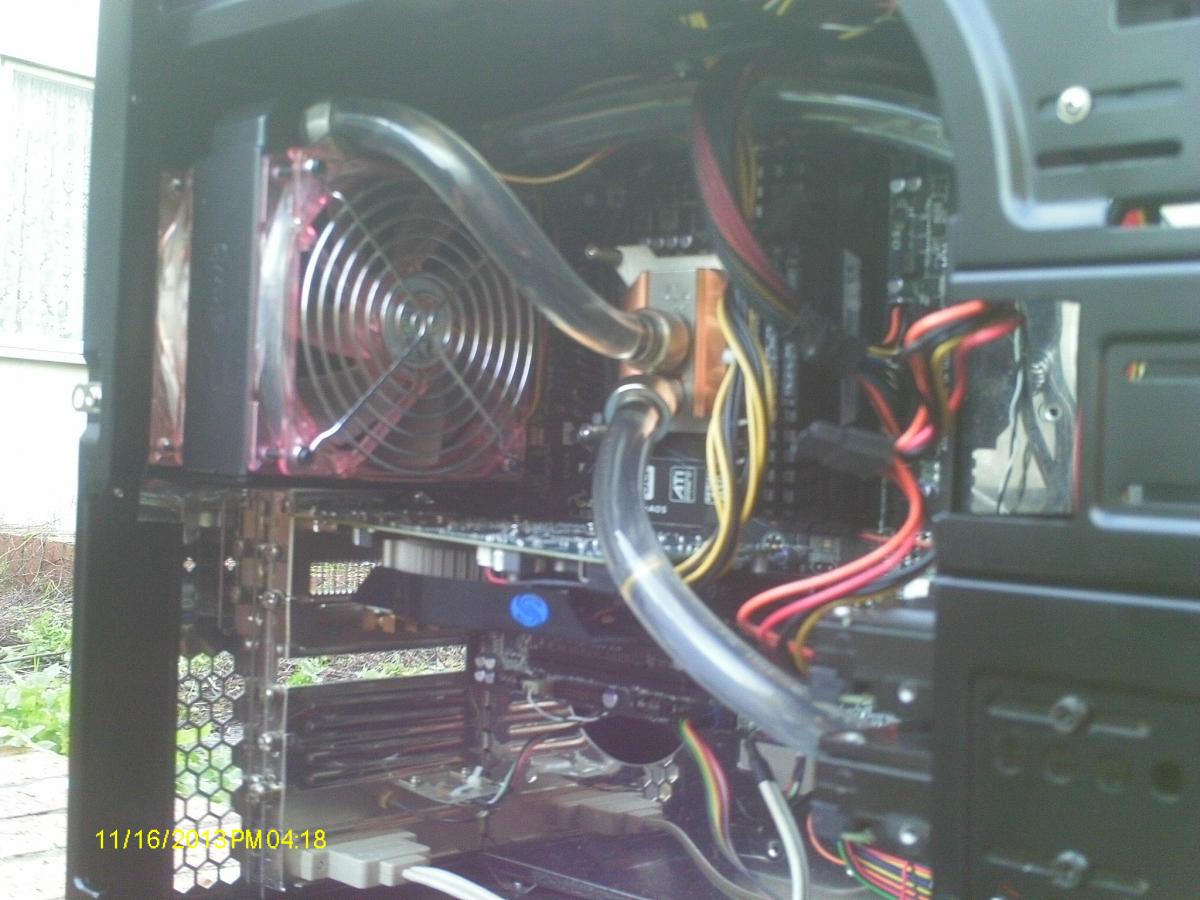

i just thought i would show the quo motherboard  water-cooled

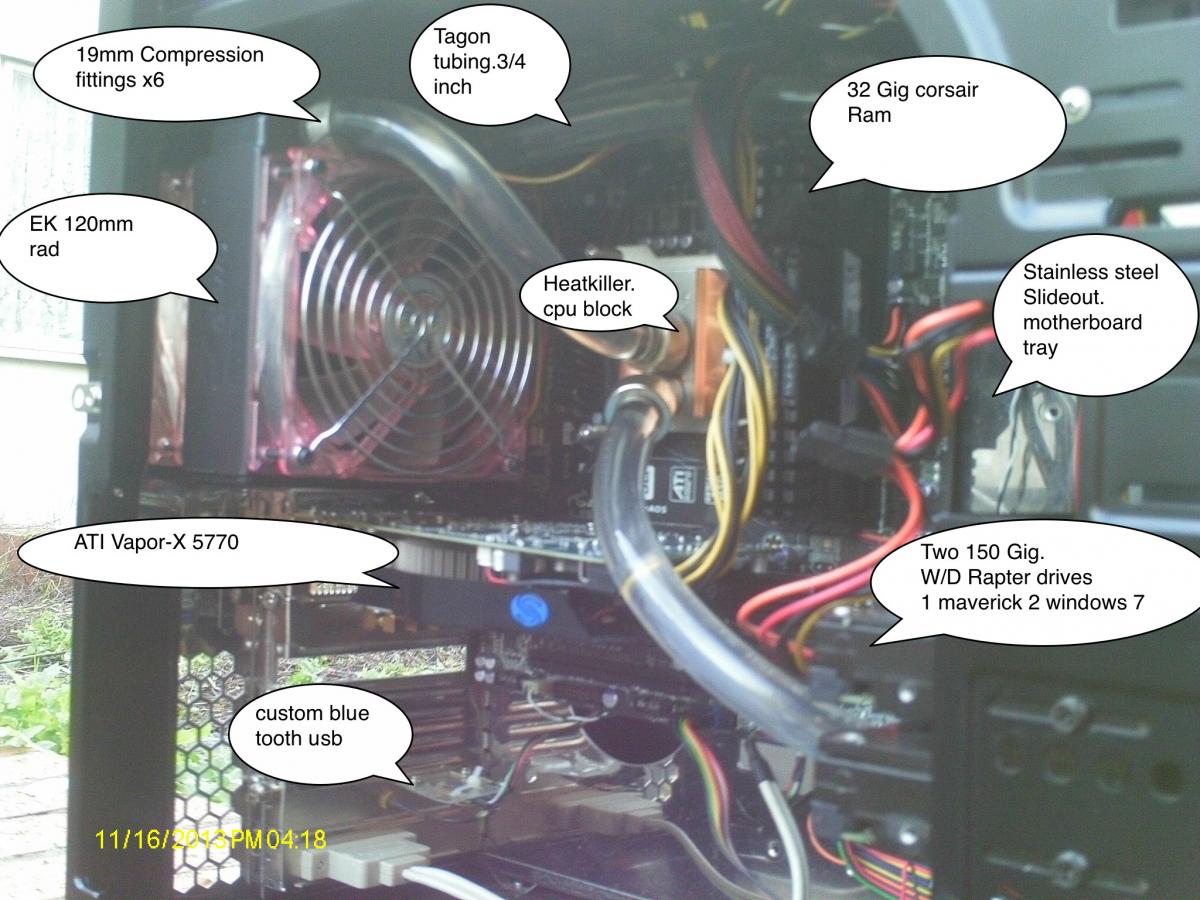

Parts used

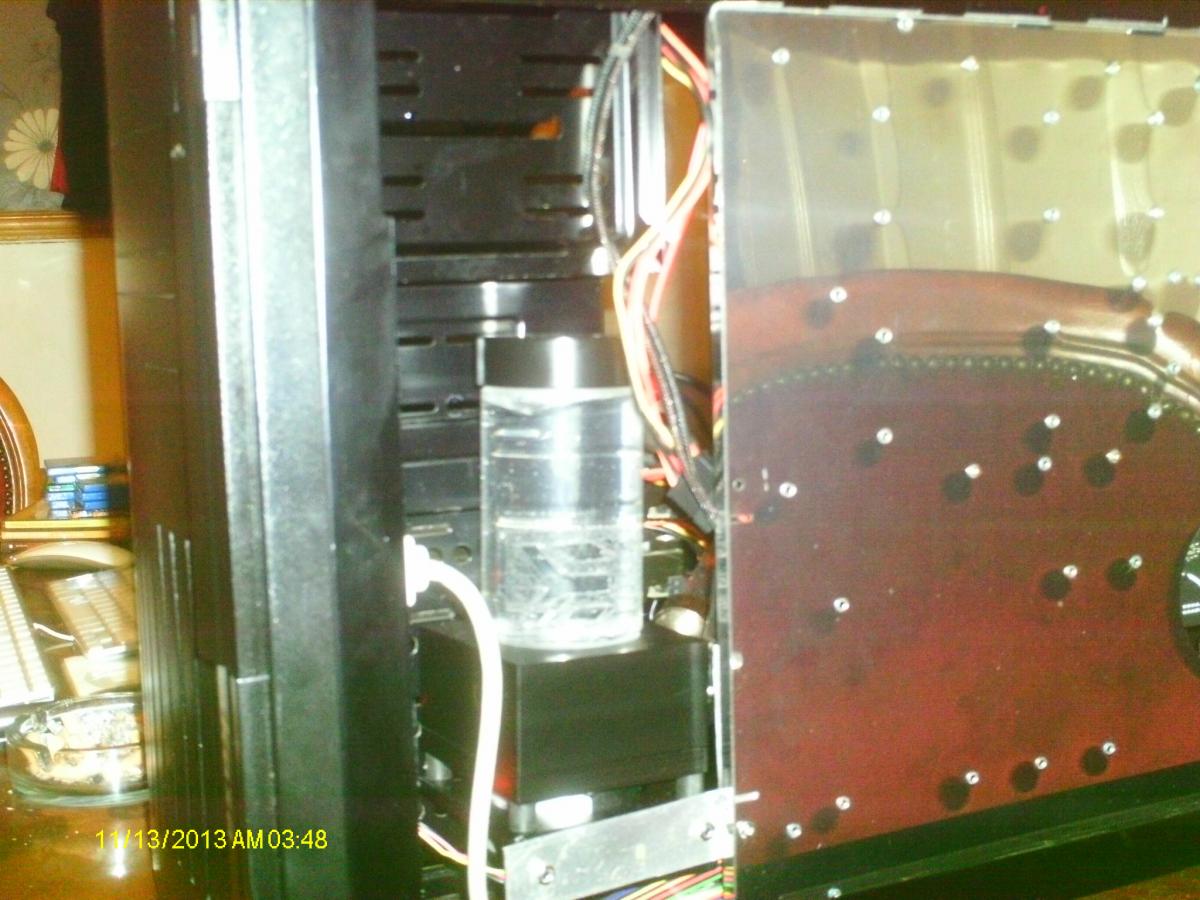

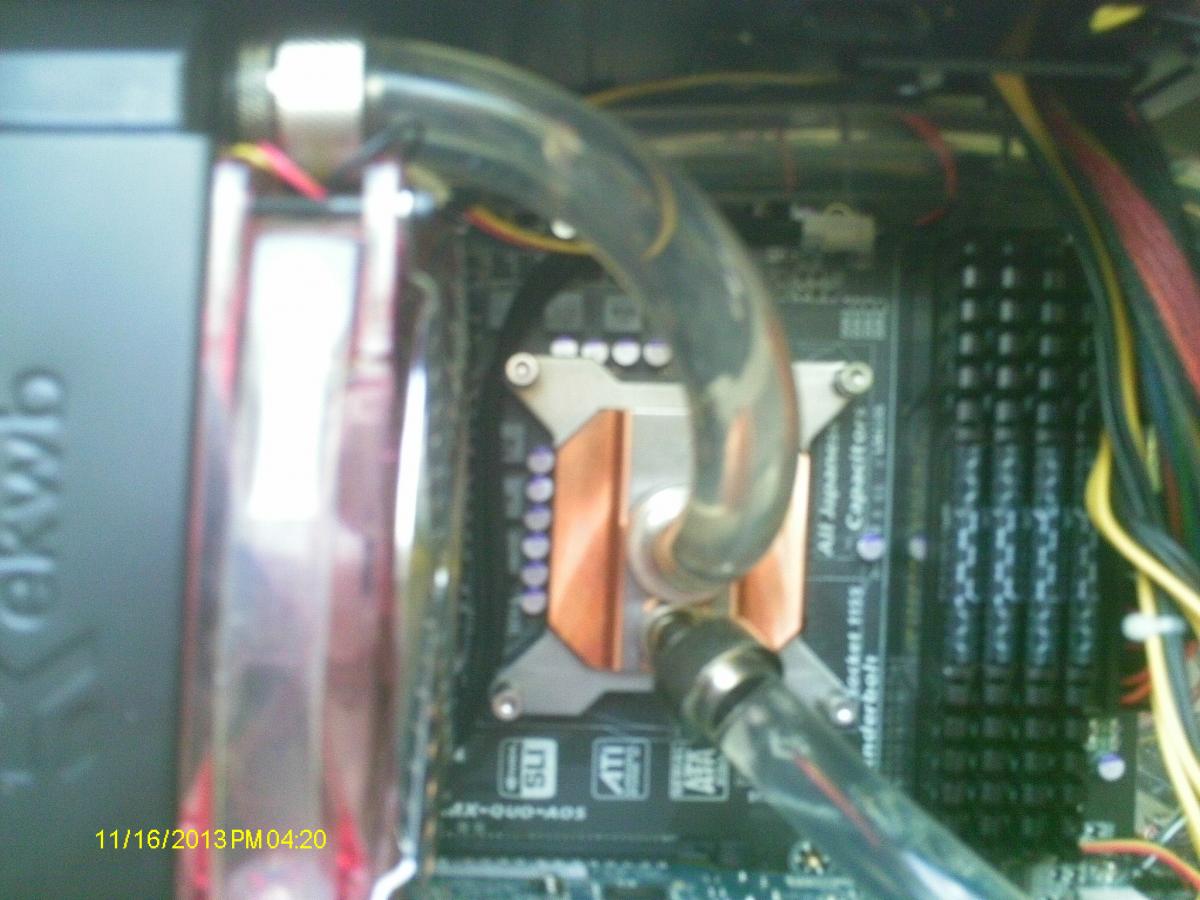

EK 120 rad. Heat killer version 3/4 inch.Targon tubing swifttec D5pump with EK.140mm combo top custom brackit  to mount pump six 19mm compression fittings

All the water-cooling is fitted to a slide out motherboard tray so its easy to work on . CHANGED to better pics

hope you like them and please comment

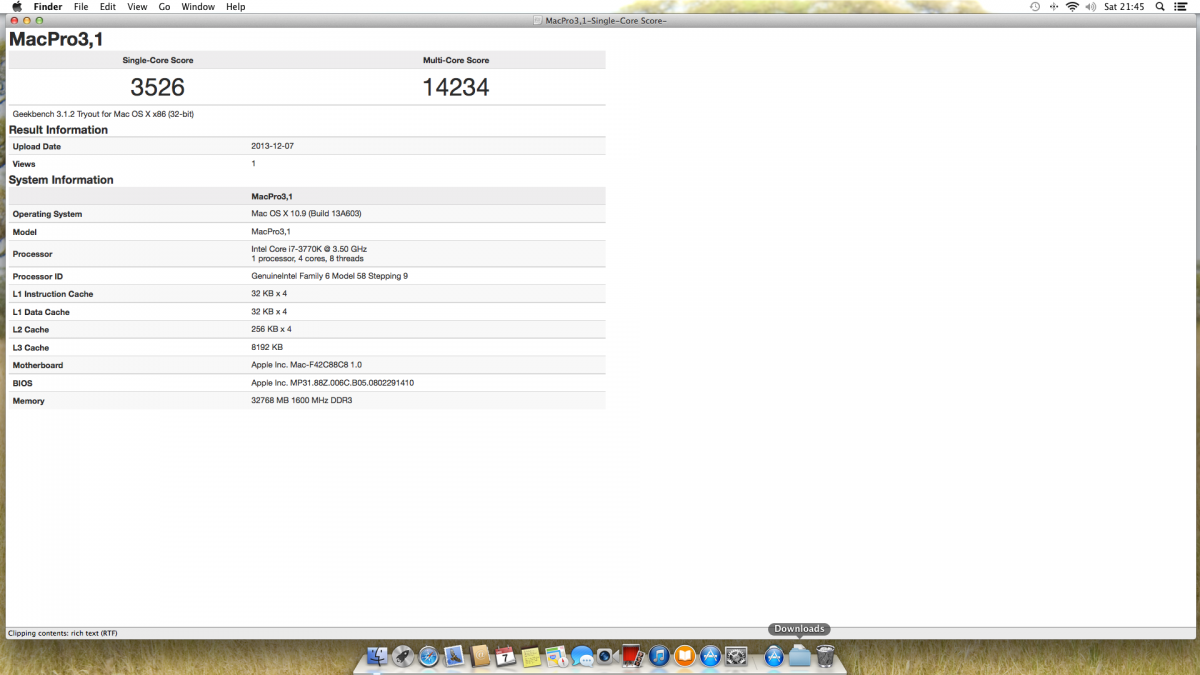

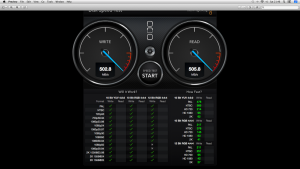

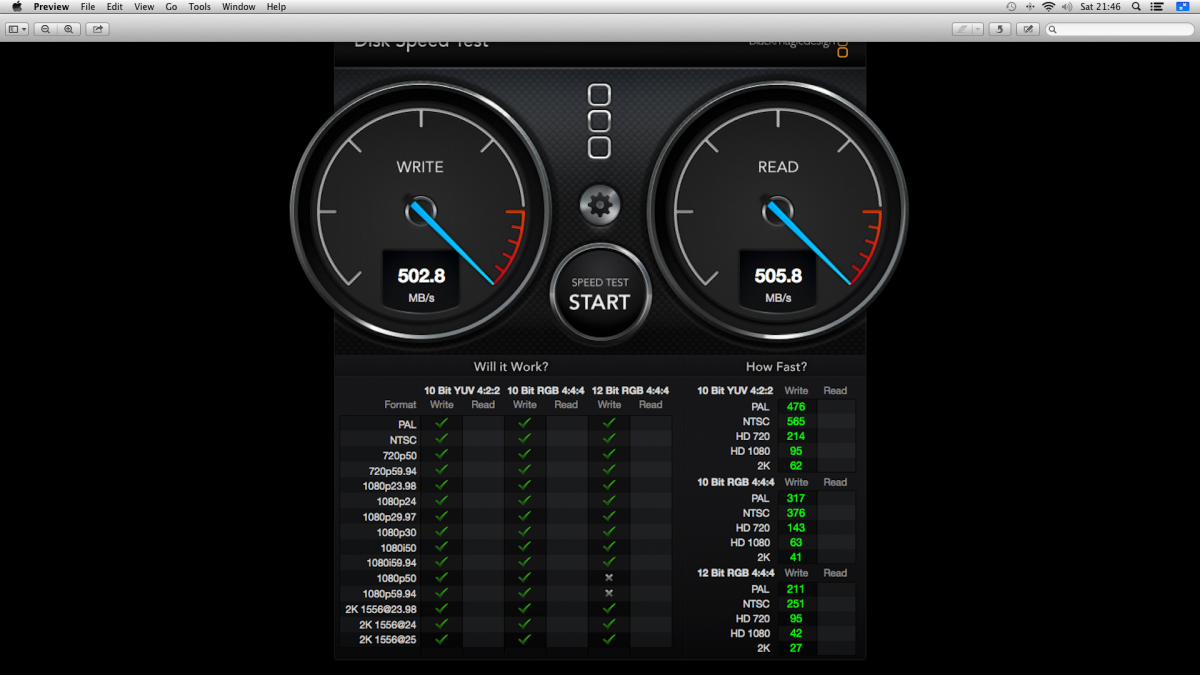

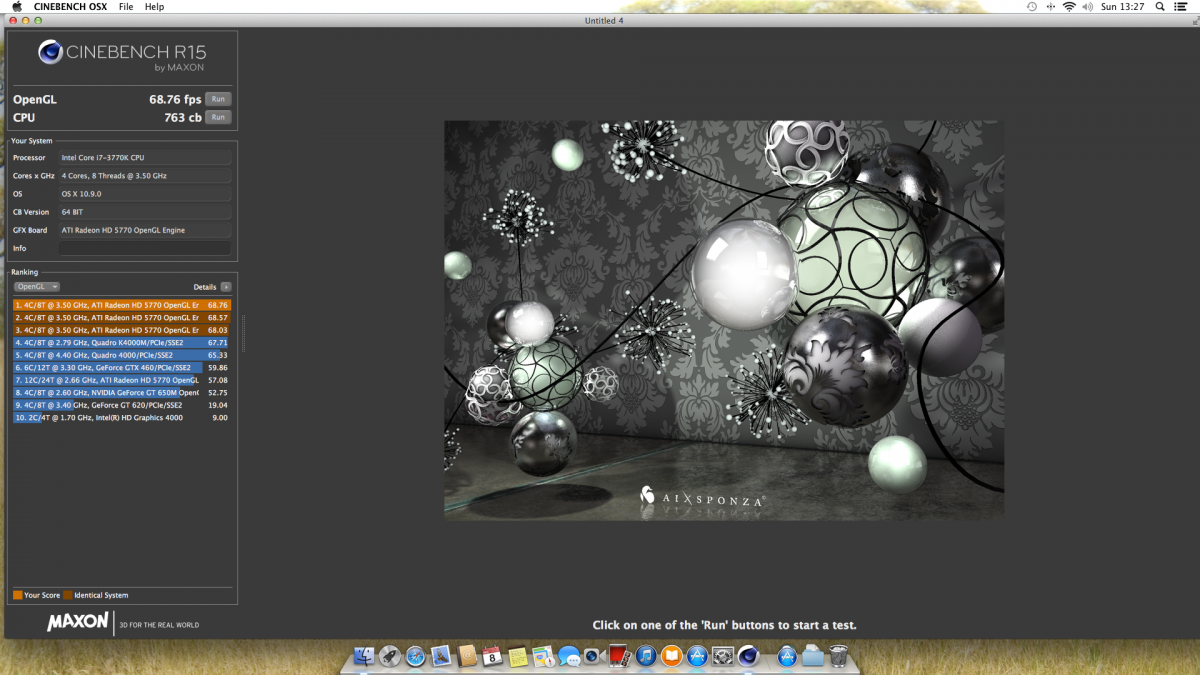

Added a few bench marks

Attached Files



#3
Zanthros

Zanthros

    InsanelyMac Protégé

  • Donators
  • 23 posts
  • Gender:Male
  • Location:Flori duh! USA

Nice build Baldy_Man! Have you  run any benchies overclocked? It has some good numbers to start with and has potential. :)



#4
BALDY_MAN

BALDY_MAN

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 269 posts
  • Gender:Male
  • Location:uk

 @ Zanthros. no i haven't over clocked it. as i have a 2012 asus motherboard for that.

Though i seem to use this pc more lately.

it is for me the Easiest Hackintosh build I've done so far  not problem with updates

and the build is on a slide out motherboard tray as easy to work. on so I'm pleased with the build

thanks for the like
