Qe Ci on Microsoft Surface Pro


Best Answer JahStories, 11 October 2013 - 04:39 PM

Ok i've got QECI!! dual screen too

would like to thanks iFire and those who helped ;) you are great, love this community <3



To do that i had to reinstall kexts from basesystem.dmg

and then add this on the config.plist under graphics,



<key>ig-platform-id</key>

<string>0x0166000A</string>



Writing a guide on the installation, everything works, audio and mic (voodooHda), webcam oob, dual screen qeci, pen works but its not calibrated, same thing for touch, it works without calibration but only if you place four finger on the screen... :/ NOWIFI Marvel Avastar 88w8798

Go to the full post


  • Please log in to reply
39 replies to this topic

#1
JahStories

JahStories

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 654 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...

Folks,

i've been able to install 10.9Gm on my surface pro using clover r2165 as boot loader and installing NullCpuPM, fakesmc, genericusbxhci kexts.

BUT :) i can reach the desktop only in safe mode

if i try to boot without the -x flag i get stuck'd in this screen




#2
dcai777

dcai777

    I'd rather not talk about it...

  • Members
  • PipPipPipPipPipPipPip
  • 506 posts
  • Gender:Male
  • Location:San Jose, CA
  • Interests:Hackintoshing, Python, Java

delete all bluetooth-related kexts in S/L/E... It looks like that's where its freezing.



#3
nyolc8

nyolc8

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 723 posts
  • Gender:Male
  • Location:Budapest, Hungary

I think the problem is related with those "SuperIODevice [fatal] unsupported chip" messages.



#4
theconnactic

theconnactic

    Stubborn AMD user

  • Local Moderators
  • 2,531 posts
  • Gender:Male

No and no: it's graphics. The Intel HD4000 would be supported OOB, but i don't know how it is with the Surface Pro...



#5
JahStories

JahStories

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 654 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...

i think that it's graphic related since when i boot in safe mode those bluetooth errors shows up but are irrelevant... cause it reaches the desktop



#6
JahStories

JahStories

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 654 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...

i've deleted all ATI NVIDIA AMD graphic kext and now i can boot without safe mode but no qe ci and system info says: no kext loaded

any idea?



#7
JahStories

JahStories

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 654 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...

please i've loosed all the day any idea?

is it possible that qe ci works in ML and it's broken in Mavericks?



#8
theconnactic

theconnactic

    Stubborn AMD user

  • Local Moderators
  • 2,531 posts
  • Gender:Male

I think you must patch the AppleIntelFramebufferCapri.kext or inject something via DSDT. I repeat, i don't know how the Surface works, but the issues you're experiencing reminds me of folks trying to run Mountain Lion with a monitor plugged in the VGA port of the HD4000. I also think this - the Surface running OSX - was posted about on InsanelyMac some time ago, so you better use the forum's search tool to see if you can find any useful info.



All the best!



#9
JahStories

JahStories

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 654 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...

Thanks, but i've been searching online and in the forum but i can't find nothing related patching the fb or injecting dsdt patches specifically for the surface pro not even for Mountain Lion :/



isn't around there any surface pro hackintosh folk like me on insanelymac?!? i can't belive it.



#10
Shaneee

Shaneee

    AMD Dev Tester

  • Local Moderators
  • 1,002 posts
  • Gender:Male
  • Location:Scotland
  • Interests:Web Design. OS X. Music.

Are you using GraphicsInjector on Clover?

Patch the FB,



sudo perl -pi -e 's|\x00.{1}\x10\x07\x00\x00\x10\x07|\x00\x??\x10\x07\x00\x00\x10\x07|g' ~/Desktop/AppleIntelFramebufferCapri.kext/Contents/MacOS/AppleIntelFramebufferCapri

Change ?? to desired amount of VRAM,

10 = 256MB of RAM
18 = 384MB of RAM
20 = 512MB of RAM
30 = 768MB of RAM
40 = 1024MB of RAM



#11
JahStories

JahStories

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 654 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...

it seems effectless



#12
insanelyChris

insanelyChris

    InsanelyMac Protégé

  • Members
  • Pip
  • 4 posts

try



-f npci=0x2000 GraphicsEnabler=Yes



#13
JahStories

JahStories

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 654 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...

GraphicsEnabler=Yes and -f are chameleon's flags, i'm using clover and i'm injecting intel,  tried to patch the fb thx to shane but it always boots without accelleration or kext loaded i've tried injecting various platform id from clover but the only difference notificable is that with ids system see the card as a 7 mb card instead of 64 shared...



#14
iFIRE

iFIRE

    InsanelyMacaholic

  • Moderators
  • 3,553 posts
  • Gender:Male
  • Location:Bcn-Spain

post a Darwin Dumper report



#15
JahStories

JahStories

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 654 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...

as soon as i click dump on darwin dumper my surface reboots  :(


ARGGGh XD



#16
iFIRE

iFIRE

    InsanelyMacaholic

  • Moderators
  • 3,553 posts
  • Gender:Male
  • Location:Bcn-Spain

 don´t check  all the box , look if work



Edit: install lspci.kext, then repair permissions reboot, then this  from Terminal app





sudo dmesg  > ~/Desktop/boot.text





kextstat > ~/Desktop/kext.txt





ioreg -lw0 | grep AAPL,ig-platform-id > ~/Desktop/ig.text





sudo kextstat | grep -i AppleIntelHD > ~/Desktop/Intel.txt



#17
JahStories

JahStories

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 654 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...

witch box should be checked? i was trying without checking anything



#18
iFIRE

iFIRE

    InsanelyMacaholic

  • Moderators
  • 3,553 posts
  • Gender:Male
  • Location:Bcn-Spain

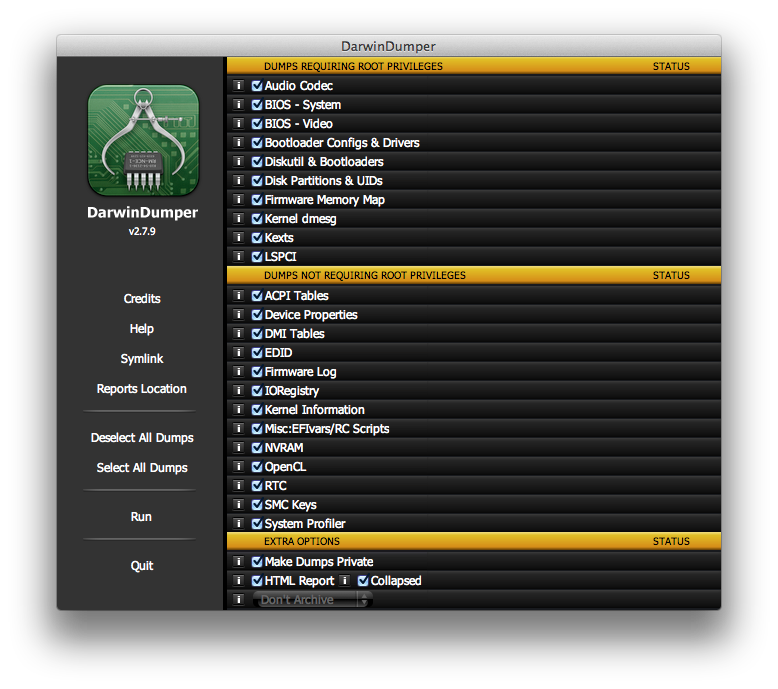

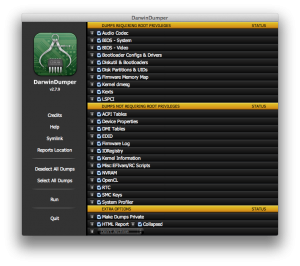

Attached File  i6e59s.jpg.png   164.59KB   6 downloads



#19
JahStories

JahStories

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 654 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...

Dump attached, the intel text comed out empty :/


i'm using an older version of Darwin Dumper, the 2.4.9


tried with the new Darwin Dumper same result, it reboots.

Attached Files



#20
iFIRE

iFIRE

    InsanelyMacaholic

  • Moderators
  • 3,553 posts
  • Gender:Male
  • Location:Bcn-Spain

not read any AppleIntelHD kext, secure that you have the kexts installed? or can be a problem Permissions and caches, try this script, wait for end , then reboot





Attached File  iRepair.zip   255.3KB   3 downloads





the boot log is very clean, 0 problem
