ALC269 I have devices is Audio setting but no sound


  • Please log in to reply
5 replies to this topic

#1
Vahids

Vahids

    InsanelyMac Protégé

  • Members
  • PipPip
  • 59 posts
  • Gender:Male

hi

I'm trying to use AppleHDA and I removed VoodooHDA.kext but I have Voodoo setting in Setting that not working and it's ok



I have Device in sound setting and It will change to headphone when I connect the headphone.



But there is not sound on Speaker and Headphone.



U know what's wrong ?













I Use HDAEnabler dylib by ERMAC (chameleon wizard app)

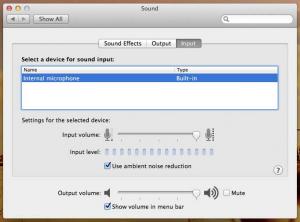

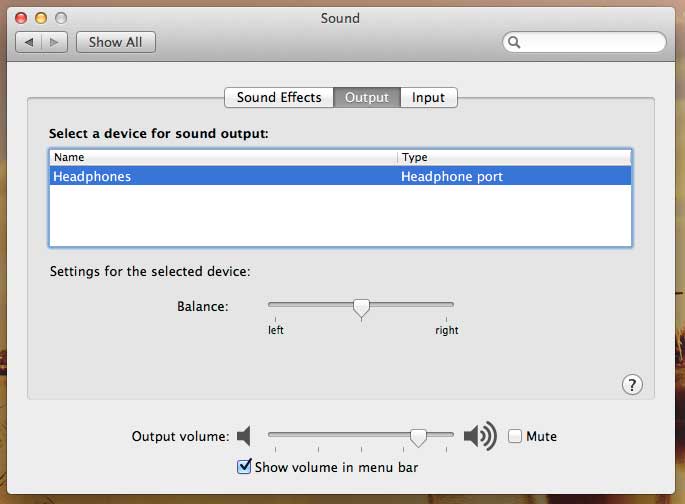

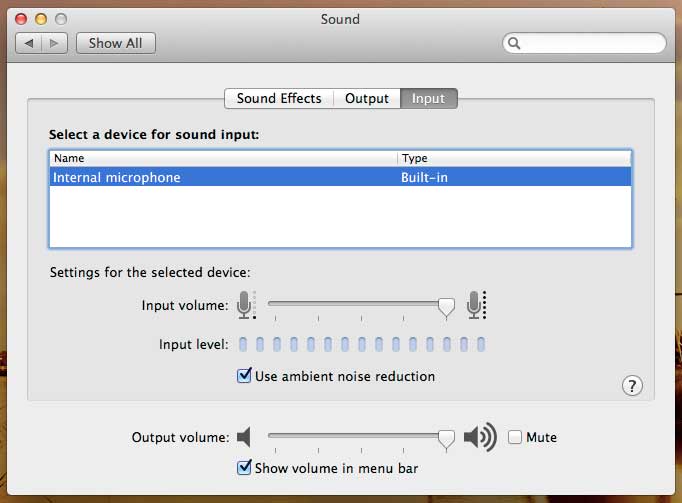

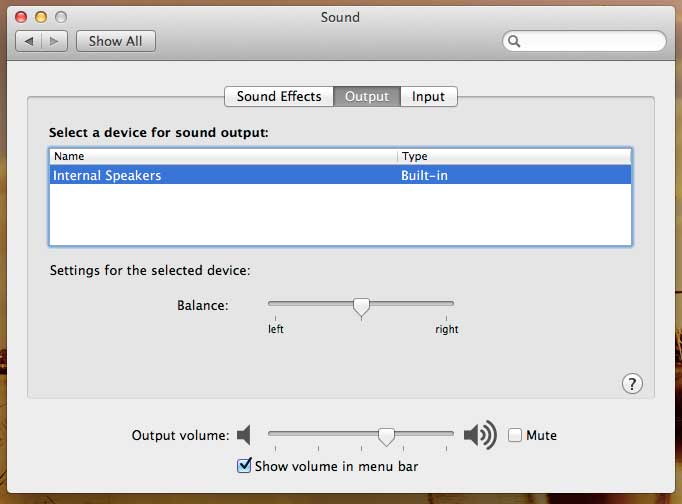

Screen shots attached

Help me.

Attached Files

  • Attached File  1.jpg   26.55KB   6 downloads
  • Attached File  2.jpg   26.08KB   2 downloads
  • Attached File  3.jpg   29.17KB   2 downloads


#2
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain

you need HDEF for ALC269 in DSDT.aml



#3
Vahids

Vahids

    InsanelyMac Protégé

  • Members
  • PipPip
  • 59 posts
  • Gender:Male

I have already!

Device (HDEF)
        {
            Name (_ADR, 0x001B0000)
            OperationRegion (HDAR, PCI_Config, 0x4C, 0x10)
            Field (HDAR, WordAcc, NoLock, Preserve)
            {
                DCKA,   1,
                Offset (0x01),
                DCKM,   1,
                    ,   6,
                DCKS,   1,
                Offset (0x08),
                    ,   15,
                PMES,   1
            }
            Method (_DSM, 4, NotSerialized)
            {
                Store (Package (0x16)
                    {
                        "AAPL,slot-name",
                        Buffer (0x09)
                        {
                            "built-in"
                        },
                        "codec-id",
                        Buffer (0x04)
                        {
                             0x69, 0x02, 0xEC, 0x10
                        },
                        "built-in",
                        Buffer (One)
                        {
                             0x00
                        },
                        "name",
                        Buffer (0x0F)
                        {
                            "Realtek ALC269"
                        },
                        "model",
                        Buffer (0x10)
                        {
                            "Realtek ALC271X"
                        },
                        "device-type",
                        Buffer (0x25)
                        {
                            "High Definition Audio Controller"
                        },
                        "layout-id",
                        Buffer (0x04)
                        {
                             0x1C, 0x00, 0x00, 0x00
                        },
                        "device_type",
                        Buffer (0x06)
                        {
                            "Sound"
                        },
                        "subsystem-vendor-id",
                        Buffer (0x04)
                        {
                             0x86, 0x80, 0x00, 0x00
                        },
                        "hda-gfx",
                        Buffer (0x0A)
                        {
                            "onboard-2"
                        },
                        "PinConfigurations",
                        Buffer (Zero) {}
                    }, Local0)
                DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                Return (Local0)
            }
            Method (_PRW, 0, NotSerialized)
            {
                Return (Package (0x02)
                {
                    0x0D,
                    0x05
                })
            }
        }

:(



#4
ameris cyning

ameris cyning

    Boycott the apostrophe

  • Donators
  • 1,033 posts
  • Gender:Male
  • Location:My apartment
  • Interests:OSx86, Deutschland, electronic music, Clover EFI

Remove HDAEnabler dylib completely and update your boot loader to the latest version.



HDAEnabler dylib has been merged into Chameleon and Chameleon based boot loaders



#5
Mr.KiLLeR

Mr.KiLLeR

    InsanelyMac Protégé

  • Members
  • PipPip
  • 61 posts

Remove HDAEnabler dylib completely and update your boot loader to the latest version.



HDAEnabler dylib has been merged into Chameleon and Chameleon based boot loaders



Hi,

I am using Chimera as my bootloader ... i have same issue... shall i just install the latest version of Chameleon .. I am afraid it will just mess up my Intel HD4000 ?



I am on 10.8.5 by the way.. :)



EDIT : TRIED THE ABOVE METHOD BUT IT DIDNT WORK AS MY INTEL HD4000 WONT WORK THEN LOL AND IT JUST STUCK WHEN I AM USING GE=NO..





ANY SOLUTIONS  YET PLEASE ???



#6
fantomas1

fantomas1

    InsanelyMacaholic

  • Supervisors
  • 3,075 posts
  • Gender:Male

hi



try this: http://www.insanelym...applehda-audio/
