Need Help Intel HD4600 mobile with Clover


  • Please log in to reply
2 replies to this topic

#1
slayer2333

slayer2333

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 175 posts

Hi everyone, i need some help or guidance in properly injecting my Intel HD4600 (laptop GT70-1763 with 780m GTX optimus) using clover bootloader.  So far i could get it working 100% using chameleon (without DSDT and IntelAzulFB=11 ) but when i switched to UEFI boot with clover i am stuck at boot logo and i am not very experiencing with it.

Attached my ioreg from the working chameleon boot, can anyone please give me a hand on this?

Attached File  Ioreg GT70.zip   404.51KB   26 downloads



#2
artur-pt

artur-pt

    InsanelyMacaholic

  • Local Moderators
  • 4,385 posts
  • Gender:Male
  • Location:Portugal
  • Interests:TechManiaco

hello

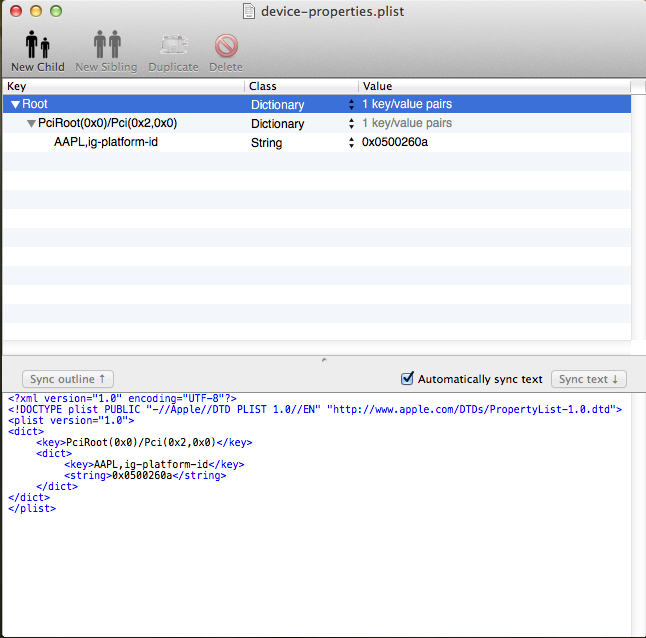

must inject the platform in device properties in clover



Attached File  Captura de Tela 2013-09-14 s 17.46.58.png   82.21KB   47 downloads



Attached File  device-properties.plist.zip   413bytes   103 downloads



must insert it in efi string





Attached File  gfxutil.zip   30.59KB   76 downloads





Run the command gfxutil -i xml -o hex device-properties.plist device-properties.hex to generate a file .hex in the user folder. Copy the generate key from file .hex



and insert it in the proper place in clover config file plist



good hack





#3
slayer2333

slayer2333

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 175 posts

Unfortunately it is not working, also removed the graphic kext to confirm that it is the source of the problem, and yes i could boot without them.  Attached my config.plist, what im i doing wrong?

Attached File  config.zip   1.11KB   56 downloads
