How to launch ATI-card by DSDT


  • Please log in to reply
103 replies to this topic

#1
Alex Auditore

Alex Auditore

    InsanelyMac Legend

  • Donators
  • 700 posts
  • Gender:Male

Hello! Today I want to narrate how to inject ATI-card by DSDT.
First of all, we need in Windows and AIDA64 to receive video-bios.
1) We should take it with the help of AIDA64. And make it as it is shown at the screenshot.(Just to click right key of mouse at the left lower corner of AIDA64)

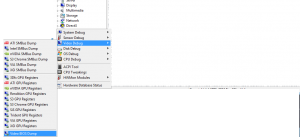

Attached File  Screen Shot 2013-04-18 at 7.41.49 PM.png   52.25KB   255 downloads
2) After that we should rename our file called vgabios.dmp to vgabios.bin
3)The next step will be to convert our video-bios with the help of the program named rom_dsdt_converter.exe.
4)Now go to the DSDT and to correct this deal for it. I try to explain it on my example.
I prescribe it at the Device (DP)

Device (DP)
{
Name (_ADR, 0x0220)
Method (_DCS, 0, NotSerialized)
{
If (DP0A)
{
Return (0x1F)
}
Else
{
Return (0x1D)
}
}
Method (_DGS, 0, NotSerialized)
{
If (DP0A)
{
Return (One)
}
Else
{
Return (Zero)
}
}
Method (_DSS, 1, NotSerialized)
{
Store ("DP -- _DSS", Debug)
}
}
Method (_DSM, 4, NotSerialized)
{
Store (Package (0x6A)
{
"@0,HasPanel",
Buffer (0x04)
{
0x01, 0x00, 0x00, 0x00
},
"@0,Haslid",
Buffer (0x04)
{
0x01, 0x00, 0x00, 0x00
},
"@0,display-link-component-bits",
Buffer (0x04)
{
0x06, 0x00, 0x00, 0x00
},
"@0,display-pixel-component-bits",
Buffer (0x04)
{
0x06, 0x00, 0x00, 0x00
},
"@0,display-dither-support",
Buffer (0x04)
{
0x00, 0x00, 0x00, 0x00
},
"@0,backlight-control",
Buffer (0x04)
{
0x01, 0x00, 0x00, 0x00
},
"@0,VRAM,memsize",
Buffer (0x08)
{
/* 0000 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x40
},
"@0,compatible",
Buffer (0x0D)
{
"ATY,Alouatta"
},
"@0,name",
Buffer (0x0D)
{
"ATY,Alouatta"
},
"@0,built-in",
Buffer (One)
{
0x01
},
"@0,AAPL,boot-display",
Buffer (0x04)
{
0x01, 0x00, 0x00, 0x00
},
"@1,VRAM,memsize",
Buffer (0x08)
{
/* 0000 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x40
},
"@1,compatible",
Buffer (0x0D)
{
"ATY,Alouatta"
},
"@1,name",
Buffer (0x0D)
{
"ATY,Alouatta"
},
"@2,VRAM,memsize",
Buffer (0x08)
{
/* 0000 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x40
},
"@2,compatible",
Buffer (0x0D)
{
"ATY,Alouatta"
},
"@2,name",
Buffer (0x0D)
{
"ATY,Alouatta"
},
"@3,VRAM,memsize",
Buffer (0x08)
{
/* 0000 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x40
},
"@3,compatible",
Buffer (0x0D)
{
"ATY,Alouatta"
},
"@3,name",
Buffer (0x0D)
{
"ATY,Alouatta"
},
"AAPL,overwrite_binimage",
Buffer (One)
{
0x01
},
"AAPL,aux-power-connected",
Buffer (0x04)
{
0x01, 0x00, 0x00, 0x00
},
"AAPL,backlight-control",
Buffer (0x04)
{
0x01, 0x00, 0x00, 0x00
},
"AAPL00,InverterFrequency",
Buffer (0x04)
{
0x08, 0x52, 0x00, 0x00
},
"AAPL00,Dither",
Buffer (0x04)
{
0x00, 0x00, 0x00, 0x00
},
"AAPL00,DualLink",
Buffer (0x04)
{
0x01, 0x00, 0x00, 0x00
},
"AAPL00,blackscreen-preferences",
Buffer (0x04)
{
0x00, 0x00, 0x00, 0x00
},
"AAPL01,Coherency",
Buffer (0x04)
{
0x02, 0x00, 0x00, 0x00
},
"AAPL01,blackscreen-preferences",
Buffer (0x04)
{
0x00, 0x00, 0x00, 0x00
},
"AAPL,slot-name",
Buffer (0x07)
{
"Slot-1"
},
"ATY,Card#",
Buffer (0x0E)
{
"109-B77101-00"
},
"ATY,Copyright",
Buffer (0x32)
{
"Copyright AMD Inc. All Rights Reserved. 2005-2009"
},
"ATY,EFICompileDate",
Buffer (0x0C)
{
"Jan 26 2009"
},
"ATY,EFIDispConfig",
Buffer (0x08)
{
/* 0000 */ 0x0D, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
},
"ATY,EFIDriverType",
Buffer (One)
{
0x02
},
"ATY,EFIEnabledMode",
Buffer (One)
{
0x01
},
"ATY,EFIHWInitStatus",
Buffer (0x08)
{
/* 0000 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
},
"ATY,EFIOrientation",
Buffer (0x02)
{
0x08
},
"ATY,EFIVersion",
Buffer (0x0A)
{
"01.00.318"
},
"ATY,EFIVersionB",
Buffer (0x14)
{
"113-SBSJ1G04-00R-02"
},
"ATY,EFIVersionE",
Buffer (0x0F)
{
"113-B7710A-318"
},
"ATY,MCLK",
Buffer (0x04)
{
0x01, 0x38, 0x73, 0x00
},
"ATY,MemRevisionID",
Buffer (0x02)
{
0x03, 0x00
},
"ATY,MemVendorID",
Buffer (0x02)
{
0x02, 0x00
},
"ATY,PlatformInfo",
Buffer (0x80)
{
/* 0000 */ 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0008 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0010 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0018 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0020 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0028 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0030 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0038 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0040 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0048 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0050 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0058 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0060 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0068 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0070 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
/* 0078 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
},
"ATY,Rom#",
Buffer (0x0F)
{
"113-B7710C-176"
},
"ATY,SCLK",
Buffer (0x04)
{
0xF4, 0x1F, 0x00, 0x00
},
"ATY,VendorID",
Buffer (0x02)
{
0x02, 0x10
},
"device_type",
Buffer (0x13)
{
"ATY,AlouattaParent"
},
"model",
Buffer (0x1C)
{
"ATI Mobility Radeon HD 5850"
},
"name",
Buffer (0x13)
{
"ATY,AlouattaParent"
},
"hda-gfx",
Buffer (0x0A)
{
"onboard-1"
},
"ATY,bin_image",
Buffer (0xEE00)
{
......................................


}, Local0)
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
Return (Local0)
}
}
I think many of this parameters are understandable for many people. Therefore I will tell about how to paste video-bios correctly(Don't tell about patching of Framebuffer and the other things).
"ATY,bin_image",
Buffer (Here should be empty)
{
Here we put down our video-bios
}
Afterwards, it will take time to past video-bios to DSDT in the program DSDTSE. After that, we will see very long line. Don't worry, it's OK. It will be adjusted after compilation. And as a result, the last step of that affair is to click on the button called "Compile DSDT"
Hope that my little manual will hope to somebody!

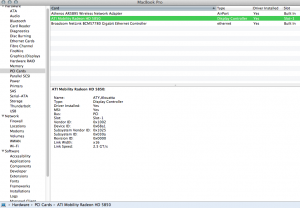

Attached File  Screen Shot 2013-04-19 at 3.04.41 PM.png   87.33KB   221 downloads
Another ready solution for AMD Radeon HD 6650M
http://www.insanelym...t/#entry1910121

Inject for ATI7XXX

http://www.insanelym...dsdt/?p=1938946

Attached Files


Edited by Alex Auditore, 15 August 2013 - 08:24 AM.


#2
plsh2me

plsh2me

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 179 posts
  • Gender:Male
  • Location:Bangladesh
I will check it and let you know :moil:
Thanks


N.B. Converted video-vios, got something unorganized !!! Added (Attached File  ATY_Bin_to_DSDT.txt   310KB   61 downloads) see if it is normal. One more thing, on dsdt also need to edit one's own graphics frame buffer ?

#3
Alex Auditore

Alex Auditore

    InsanelyMac Legend

  • Donators
  • 700 posts
  • Gender:Male

I will check it and let you know :moil:
Thanks

Awaiting your response. :) Don't forget to set up GraphicsInjector on No(Clover), InjectAMD=0(XPC), GraphicsEnabler=No(Chameleon)

#4
Alex Auditore

Alex Auditore

    InsanelyMac Legend

  • Donators
  • 700 posts
  • Gender:Male

I will check it and let you know :moil:
Thanks


N.B. Converted video-vios, got something unorganized !!! Added (Attached File  ATY_Bin_to_DSDT.txt   310KB   61 downloads) see if it is normal. One more thing, on dsdt also need to edit one's own graphics frame buffer ?

It's Ok. Now press ctrl+a and ctrl+c. After go to DSDTSE and open your dsdt. Afterwards past your dsdt in the necessary place(ctrl+v)
Yes, of course. You need to patch your framebuffer as well. My method is substitution of bootloader's injection. But it is better as with this method working "Display Sleep".

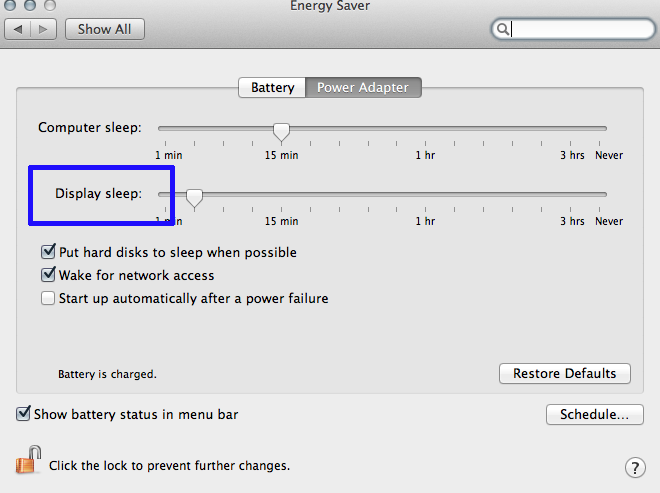

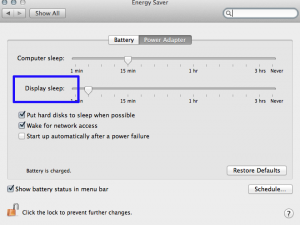

Sometimes, there is only way to start up the function of "Display Sleep"
Attached File  Screen Shot 2013-04-19 at 1.09.49 AM.png   55.08KB   33 downloads

#5
plsh2me

plsh2me

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 179 posts
  • Gender:Male
  • Location:Bangladesh
Check out my edited dsdt, it is ok or not ?
All things added under the method _DSM, cause as like you method _DCS, _DGS, _DSS not present on my DSDT. So not added device _DP & What was under method _DSM assigned as normal.
Thank you
Palash

Attached Files



#6
Rampage Dev

Rampage Dev

    InsanelyMac Deity

  • Local Moderators
  • 1,991 posts
  • Gender:Male
Wow. Very hardcore.

#7
k3nny

k3nny

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 538 posts
  • Gender:Male

I think many of this parameters are understandable for many people.

I don't think so. Can you please explain what they stand for and what each one of them does or changes?

#8
Alex Auditore

Alex Auditore

    InsanelyMac Legend

  • Donators
  • 700 posts
  • Gender:Male

Check out my edited dsdt, it is ok or not ?
All things added under the method _DSM, cause as like you method _DCS, _DGS, _DSS not present on my DSDT. So not added device _DP & What was under method _DSM assigned as normal.
Thank you
Palash

And did you try your DSDT that you had compiled?
If it doesn't work, try to put Device (GFX0) into Device (PEG0)(See ATY_Dsts_sample)
You can test it on such bootloaders as Chameleon or XPC(on USB stick). It's comfortable to test new things on Mac. But we can also use Clover for it but I think it has a little inconvenience(editing config.plist, choosing DSDT for testing and so on)

I don't think so. Can you please explain what they stand for and what each one of them does or changes?

Year, I will try to make a manual which is more exatly. We didn't have to change all of the parameters. I should understand how it works, not only my computer, on other computers as well.

Attached Files



#9
plsh2me

plsh2me

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 179 posts
  • Gender:Male
  • Location:Bangladesh
Tried different framebuffer(Shrike, Gliff) system not boot with DSDT !!!
Even I tried Cyrus the Great's method (using my bin image) - http://www.insanelym...650-in-shrike/.
Cause my card is a renamed version of 4650 & also dev_ven. are same.

No way to get boot with DSDT,When I tried to inject graphics (without graphics injection on dsdt everything goes normal).

Thanks
Palash

Attached Files

  • Attached File  DSDT.zip   57.86KB   12 downloads


#10
manor

manor

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 318 posts
  • Gender:Male
I have 2x6950(dual video cards).I was setup GraphicsEnabler=yes openGL extensions test high but if set dsdt in 2x cards its very low. why its low with dsdt? can you look my dsdt ple.
thankyou.

Attached Files



#11
Alex Auditore

Alex Auditore

    InsanelyMac Legend

  • Donators
  • 700 posts
  • Gender:Male

Tried different framebuffer(Shrike, Gliff) system not boot with DSDT !!!
Even I tried Cyrus the Great's method (using my bin image) - http://www.insanelym...650-in-shrike/.
Cause my card is a renamed version of 4650 & also dev_ven. are same.

No way to get boot with DSDT,When I tried to inject graphics (without graphics injection on dsdt everything goes normal).

Thanks
Palash

Please, give me your dsdt where video-bios is not pasted. I will try to fix it.
I think we need some time for it.(We should experiment)
PS you should choose framebuffer where it works with Graphics Enabler. In other words don't change your working framebuffer.

I have 2x6950(dual video cards).I was setup GraphicsEnabler=yes openGL extensions test high but if set dsdt in 2x cards its very low. why its low with dsdt? can you look my dsdt ple.
thankyou.

Sorry, that I can't help you right now. I look it into.
Is information correct in "about this mac"?

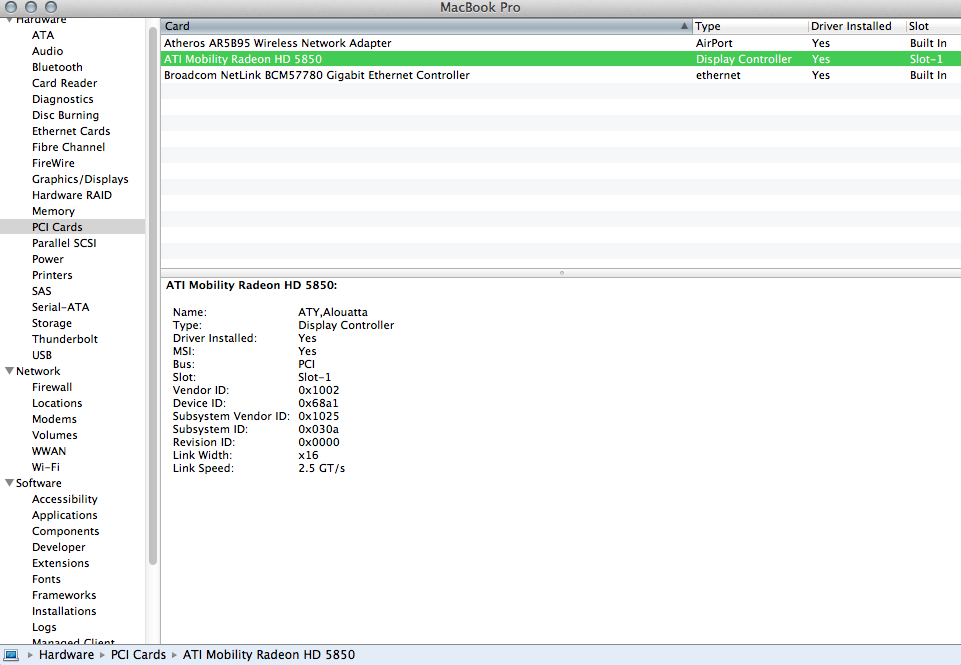

It should something like this
ATI Mobility Radeon HD 5850:
Chipset Model: ATI Mobility Radeon HD 5850
Type: GPU
Bus: PCIe
Slot: Slot-1
PCIe Lane Width: x16
VRAM (Total): 1024 MB
Vendor: ATI (0x1002)
Device ID: 0x68a1
Revision ID: 0x0000
ROM Revision: 113-B7710C-176
EFI Driver Version: 01.00.318
Displays:
Color LCD:
Resolution: 1920 x 1080
Pixel Depth: 32-Bit Color (ARGB8888)
Main Display: Yes
Mirror: Off
Online: Yes
Built-In: Yes
Do DVDPlayer, Geek-bench, and heavy games work with DSDT where it is put two video-bioses.

There is example dsdt of 6670 and as we can see

Tried different framebuffer(Shrike, Gliff) system not boot with DSDT !!!
Even I tried Cyrus the Great's method (using my bin image) - http://www.insanelym...650-in-shrike/.
Cause my card is a renamed version of 4650 & also dev_ven. are same.

No way to get boot with DSDT,When I tried to inject graphics (without graphics injection on dsdt everything goes normal).

Thanks
Palash

Try to put video-bios to the second Device (PEGP). You pasted it in first.

#12
manor

manor

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 318 posts
  • Gender:Male
both same video cards.xfx 2x6950 please fix my dsdt thank you


8] Chipset Model: AMD Radeon HD 6950

8] Type: GPU

8] Bus: PCIe

8] Slot: PCI Slot 1

8] PCIe Lane Width: x16

8] VRAM (Total): 2048 MB

8] Vendor: ATI (0x1002)

8] Device ID: 0x6719

8] Revision ID: 0x0000

8] ROM Revision: 113-B7710C-176

8] EFI Driver Version: 01.00.318

8] Displays:

9]SDM-HS95P:

9] Resolution: 1280 x 1024

9] Pixel Depth: 32-Bit Color (ARGB8888)

9] Display Serial Number: 6389000

9] Mirror: Off

9] Online: Yes

9] Rotation: Supported

2]S27A950D:

2] Resolution: 1920 x 1080 @ 120 Hz

2] Pixel Depth: 32-Bit Color (ARGB8888)

2] Main Display: Yes

2] Mirror: Off

2] Online: Yes

2] Rotation: Supported

2] Connection Type: DisplayPort

Attached Files



#13
plsh2me

plsh2me

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 179 posts
  • Gender:Male
  • Location:Bangladesh

Try to put video-bios to the second Device (PEGP). You pasted it in first.


Exactly where you are indicating is not clear to me :( .
Anyway I have prepared a texts of my graphics info, also added ioreg and dsdt (without any graphics edition) Attached File  Files.zip   772.45KB   15 downloads- try to control.
If you can correct it and add it to my dsdt or indicate me where to put the method.

Thank you
Palash

#14
Alex Auditore

Alex Auditore

    InsanelyMac Legend

  • Donators
  • 700 posts
  • Gender:Male

Exactly where you are indicating is not clear to me :( .
Anyway I have prepared a texts of my graphics info, also added ioreg and dsdt (without any graphics edition) Attached File  Files.zip   772.45KB   15 downloads- try to control.
If you can correct it and add it to my dsdt or indicate me where to put the method.

Thank you
Palash

Hello. Try this please and disable everything that injects your bootloader for Graphics.
Now I think video bios was placed in correct place. But it may contain some mistakes with some of the parameters.
See second Device (DVI)
Don't forget to paste video-bios to ATY,bin_image",
--------
Buffer (Zero) {}, And you have to delete "zero".
PS I attach my IOReg to the top of this thread just in case.

both same video cards.xfx 2x6950 please fix my dsdt thank you


8] Chipset Model: AMD Radeon HD 6950

8] Type: GPU

8] Bus: PCIe

8] Slot: PCI Slot 1

8] PCIe Lane Width: x16

8] VRAM (Total): 2048 MB

8] Vendor: ATI (0x1002)

8] Device ID: 0x6719

8] Revision ID: 0x0000

8] ROM Revision: 113-B7710C-176

8] EFI Driver Version: 01.00.318

8] Displays:

9]SDM-HS95P:

9] Resolution: 1280 x 1024

9] Pixel Depth: 32-Bit Color (ARGB8888)

9] Display Serial Number: 6389000

9] Mirror: Off

9] Online: Yes

9] Rotation: Supported

2]S27A950D:

2] Resolution: 1920 x 1080 @ 120 Hz

2] Pixel Depth: 32-Bit Color (ARGB8888)

2] Main Display: Yes

2] Mirror: Off

2] Online: Yes

2] Rotation: Supported

2] Connection Type: DisplayPort

Give me your ioger please with GraphicEnabler=Yes and without video-bios in DSDT.
--------------------------
I've decided to attach another ready solution for AMD Radeon HD 6650M
Original Ipomoea:
00040000040300000001000012040105
00080000040200000001000011020403
10000000100000000001000000000002
Patch
02000000400000000901000010010003
00080000000200000001000011020401
10000000100000000001000000000105
Device (PEGP)                     {                             Name (_ADR, Zero)                             Name (_PRW, Package (0x02)                             {                                     0x09,                                     0x04                             })                             Method (_DSM, 4, NotSerialized)                             {                                     Store (Package (0x54)                                             {                                                     "@0,AAPL,boot-display",                                                     Buffer (0x04)                                                     {                                                             0x01, 0x00, 0x00, 0x00                                                     },                                                     "@0,ATY,EFIDisplay",                                                     Buffer (0x05)                                                     {                                                             "LVDS"                                                     },                                                     "@0,compatible",                                                     Buffer (0x0C)                                                     {                                                             "ATY,Ipomoea"                                                     },                                                     "@0,device_type",                                                     Buffer (0x08)                                                     {                                                             "display"                                                     },                                                     "@0,built-in",                                                     Buffer (One)                                                     {                                                             0x01                                                     },                                                     "@0,display-dual-link",                                                     Buffer (0x04)                                                     {                                                             0x01, 0x00, 0x00, 0x00                                                     },                                                     "@0,display-type",                                                     Buffer (0x04)                                                     {                                                             "LCD"                                                     },                                                     "@0,name",                                                     Buffer (0x0C)                                                     {                                                             "ATY,Ipomoea"                                                     },                                                     "@1,device_type",                                                     Buffer (0x08)                                                     {                                                             "display"                                                     },                                                     "@1,compatible",                                                     Buffer (0x0C)                                                     {                                                             "ATY,Ipomoea"                                                     },                                                     "@1,connector-type",                                                     Buffer (0x04)                                                     {                                                             0x00, 0x08, 0x00, 0x00                                                     },                                                     "@1,display-type",                                                     Buffer (0x05)                                                     {                                                             "HDMI"                                                     },                                                     "@1,name",                                                     Buffer (0x0C)                                                     {                                                             "ATY,Ipomoea"                                                     },                                                     "@2,device_type",                                                     Buffer (0x08)                                                     {                                                             "display"                                                     },                                                     "@2,compatible",                                                     Buffer (0x0C)                                                     {                                                             "ATY,Ipomoea"                                                     },                                                     "@2,connector-type",                                                     Buffer (0x04)                                                     {                                                             0x10, 0x00, 0x00, 0x00                                                     },                                                     "@2,display-type",                                                     Buffer (0x04)                                                     {                                                             "VGA"                                                     },                                                     "@2,name",                                                     Buffer (0x0C)                                                     {                                                             "ATY,Ipomoea"                                                     },                                                     "AAPL,backlight-control",                                                     Buffer (0x04)                                                     {                                                             0x00, 0x00, 0x00, 0x00                                                     },                                                     "AAPL00,DualLink",                                                     Buffer (0x04)                                                     {                                                             0x01, 0x00, 0x00, 0x00                                                     },                                                     "AAPL,EMC-Display-List",                                                     Buffer (0x40)                                                     {                                                             /* 0000 */ 0x03, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0008 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0010 */ 0x06, 0x10, 0x00, 0x00, 0x1B, 0x92, 0x00, 0x00,                                                             /* 0018 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0020 */ 0x06, 0x10, 0x00, 0x00, 0x1C, 0x92, 0x00, 0x00,                                                             /* 0028 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0030 */ 0x06, 0x10, 0x00, 0x00, 0x21, 0x92, 0x00, 0x00,                                                             /* 0038 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00                                                     },                                                     "AAPL,aux-power-connected",                                                     Buffer (0x04)                                                     {                                                             0x01, 0x00, 0x00, 0x00                                                     },                                                     "ATY,bin_image",                                                     Buffer ()                                                     {                                                     Here you have got to past your video-bios.                                                     },                                                     "ATY,Card#",                                                     Buffer (0x0E)                                                     {                                                             "109-B77101-00"                                                     },                                                     "ATY,Copyright",                                                     Buffer (0x33)                                                     {                                                             "Copyright AMD Inc. All Rights Reserved. 2005-2012"                                                     },                                                     "ATY,EFICompileDate",                                                     Buffer (0x0C)                                                     {                                                             "Apr 19 2012"                                                     },                                                     "ATY,EFIDriverType",                                                     Buffer (One)                                                     {                                                             0x02                                                     },                                                     "ATY,EFIEnabledMode",                                                     Buffer (One)                                                     {                                                             0x02                                                     },                                                     "ATY,EFIHWInitStatus",                                                     Buffer (0x08)                                                     {                                                             /* 0000 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00                                                     },                                                     "ATY,EFIOrientation",                                                     Buffer (0x02)                                                     {                                                             0x00, 0x01                                                     },                                                     "ATY,EFIVersion",                                                     Buffer (0x0B)                                                     {                                                             "01.00.3180"                                                     },                                                     "ATY,EFIVersionB",                                                     Buffer (0x0F)                                                     {                                                             "113-B77101-012"                                                     },                                                     "ATY,EFIVersionE",                                                     Buffer (0x0F)                                                     {                                                             "113-B7710A-318"                                                     },                                                     "ATY,MemRevisionID",                                                     Buffer (0x02)                                                     {                                                             0x09, 0x00                                                     },                                                     "ATY,MemVendorID",                                                     Buffer (0x02)                                                     {                                                             0x02, 0x00                                                     },                                                     "ATY,PlatformInfo",                                                     Buffer (0x80)                                                     {                                                             /* 0000 */ 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0008 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0010 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0018 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0020 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0028 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0030 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0038 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0040 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0048 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0050 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0058 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0060 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0068 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0070 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,                                                             /* 0078 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00                                                     },                                                     "ATY,Rom#",                                                     Buffer (0x10)                                                     {                                                             "113-B7710C-176"                                                     },                                                     "AAPL,slot-name",                                                     Buffer (0x0C)                                                     {                                                             "PCIe Slot-1"                                                     },                                                     "device_type",                                                     Buffer (0x12)                                                     {                                                             "ATY,IpomoeaParent"                                                     },                                                     "VRAM,totalsize",                                                     Buffer (0x04)                                                     {                                                             0x00, 0x00, 0x00, 0x80                                                     },                                                     "model",                                                     Buffer (0x14)                                                     {                                                             "AMD Radeon HD 6650M"                                                     },                                                     "hda-gfx",                                                     Buffer (0x0A)                                                     {                                                             "onboard-1"                                                     }                                             }, Local0)                                     DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))                                     Return (Local0)                             }                     }             }
[/font][/color]

Attached Files



#15
manor

manor

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 318 posts
  • Gender:Male

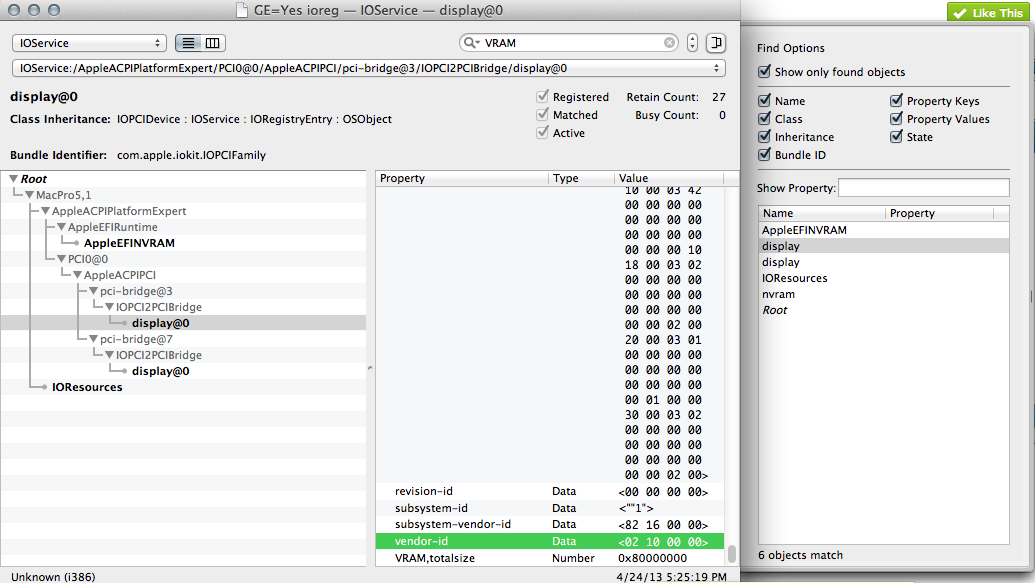

my ioreg GraphicsEnabler=Yes


Personality: Gibba

ConnectorInfo count in decimal: 5

Disk offset in decimal 179984

0000000 00 08 00 00 04 02 00 00 00 01 00 00 11 02 06 04

0000010 04 00 00 00 04 02 00 00 00 01 00 00 11 02 01 03

0000020 00 02 00 00 14 02 00 00 00 01 00 00 00 00 03 05

0000030 00 04 00 00 04 03 00 00 00 01 00 00 12 04 04 01

0000040 00 04 00 00 04 03 00 00 00 01 00 00 22 05 05 02

0000050

Attached Files



#16
Alex Auditore

Alex Auditore

    InsanelyMac Legend

  • Donators
  • 700 posts
  • Gender:Male

my ioreg GraphicsEnabler=Yes


Personality: Gibba
ConnectorInfo count in decimal: 5
Disk offset in decimal 179984
0000000 00 08 00 00 04 02 00 00 00 01 00 00 11 02 06 04
0000010 04 00 00 00 04 02 00 00 00 01 00 00 11 02 01 03
0000020 00 02 00 00 14 02 00 00 00 01 00 00 00 00 03 05
0000030 00 04 00 00 04 03 00 00 00 01 00 00 12 04 04 01
0000040 00 04 00 00 04 03 00 00 00 01 00 00 22 05 05 02
0000050

Hello. If you could load with video-bios in DSDT it's good.
But why I didn't see the Device (PEGP), Device (GFX0), and so on, in DSDT the you give me in twelfth message?
Your DSDT with video-bios has some mistakes.
For example, it have to be so
	 "ATY,MemVendorID",
							 Buffer (0x02)
							 {
								 0x02, 0x10
							 },
But you had 0x02, 0x00(your ioreg show me it)
And I didn't discole this parameter in your DSDT.
				 "@3,VRAM,memsize",
							 Buffer (0x08)
							 {
								 /* 0000 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80(it should be 8 if you have 2Gb memory, ioreg shows me so)
							 },
Take Method (_DSM, 4, NotSerialized) from the head of the topic or from fourteenth message(maybe it even better as it's closer to your video card and maybe depends less corrections) and to adjust it for your video-card. It will takes some time.
Compare my IOReg and your IOReg and it ought to help to choose necessary meanings.
If you will have some complications, don't feel shy I will try to help.

Attached Files



#17
plsh2me

plsh2me

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 179 posts
  • Gender:Male
  • Location:Bangladesh

Hello. Try this please and disable everything that injects your bootloader for Graphics.
Now I think video bios was placed in correct place. But it may contain some mistakes with some of the parameters.
See second Device (DVI)
Don't forget to paste video-bios to ATY,bin_image",
--------
Buffer (Zero) {}, And you have to delete "zero".
PS I attach my IOReg to the top of this thread just in case.



Alex, Tried your sended DSDT & others(edited by me) !!!
I don't know what goes wrong with DSDT.
System not booting with DSDT, if I add graphics injection.
It is strange for me, cause anyway I have patched my graphics kexts and with these kexts using ATY_Init (which is a gr. injector).
I mean anyway I am injecting my graphics card and this works both shrike & peregrine framebuffer (differently patched kexts), why not with DSDT?
On the sequence also tried without pasting bin_image, result same system not booting.
Attaching dsdt's, ioreg and aty.init kext (my card is 4600series) if you can find out something, otherwise I have to give up of the process.

Thank you
Palash

Attached Files



#18
manor

manor

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 318 posts
  • Gender:Male
thanks alex I change your idea #16
please look my ioreg after test still openGL low.

Attached Files



#19
Alex Auditore

Alex Auditore

    InsanelyMac Legend

  • Donators
  • 700 posts
  • Gender:Male

thanks alex I change your idea #16
please look my ioreg after test still openGL low.

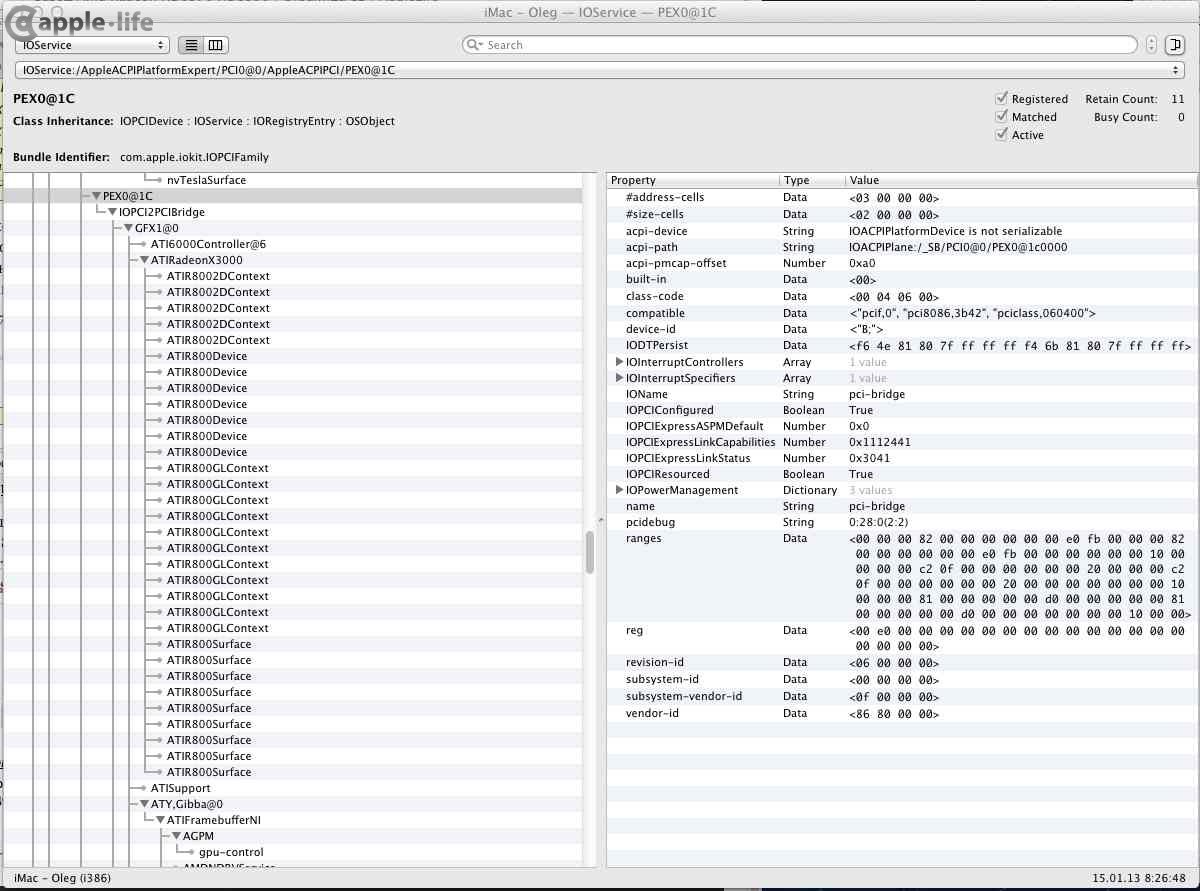

Hello I've found a solution for your card. This human told that he could launch his ATI HD 6950 2 gB.
Device (PEX0)		 {			 Name (_ADR, 0x001C0000)			 Device (GFX1)			 {				 Name (_ADR, Zero)				 Name (_PRW, Package (0x02)				 {					 0x09,					 0x05				 })				 Method (_DSM, 4, NotSerialized)				 {					 Store (Package (0x3C)						 {							 "@0,compatible",							 Buffer (0x0A)							 {								 "ATY,Gibba"							 },							 "@0,connector-type",							 Buffer (0x04)							 {								 0x00, 0x08, 0x00, 0x00							 },							 "@0,device_type",							 Buffer (0x08)							 {								 "display"							 },							 "@0,display-type",							 Buffer (0x05)							 {								 "NONE"							 },							 "@0,name",							 Buffer (0x0A)							 {								 "ATY,Gibba"							 },							 "@1,compatible",							 Buffer (0x0A)							 {								 "ATY,Gibba"							 },							 "@1,connector-type",							 Buffer (0x04)							 {								 0x00, 0x02, 0x00, 0x00							 },							 "@1,device_type",							 Buffer (0x08)							 {								 "display"							 },							 "@1,display-type",							 Buffer (0x05)							 {								 "NONE"							 },							 "@1,name",							 Buffer (0x0A)							 {								 "ATY,Gibba"							 },							 "@2,compatible",							 Buffer (0x0A)							 {								 "ATY,Gibba"							 },							 "@2,connector-type",							 Buffer (0x04)							 {								 0x04, 0x00, 0x00, 0x00							 },							 "@2,device_type",							 Buffer (0x08)							 {								 "display"							 },							 "@2,display-type",							 Buffer (0x05)							 {								 "NONE"							 },							 "@2,name",							 Buffer (0x0A)							 {								 "ATY,Gibba"							 },							 "@3,compatible",							 Buffer (0x0A)							 {								 "ATY,Gibba"							 },							 "@3,connector-type",							 Buffer (0x04)							 {								 0x00, 0x04, 0x00, 0x00							 },							 "@3,device_type",							 Buffer (0x08)							 {								 "display"							 },							 "@3,display-type",							 Buffer (0x05)							 {								 "NONE"							 },							 "@3,name",							 Buffer (0x0A)							 {								 "ATY,Gibba"							 },							 "@4,compatible",							 Buffer (0x0A)							 {								 "ATY,Gibba"							 },							 "@4,connector-type",							 Buffer (0x04)							 {								 0x00, 0x04, 0x00, 0x00							 },							 "@4,device_type",							 Buffer (0x08)							 {								 "display"							 },							 "@4,display-type",							 Buffer (0x05)							 {								 "NONE"							 },							 "@4,name",							 Buffer (0x0A)							 {								 "ATY,Gibba"							 },							 "AAPL,slot-name",							 Buffer (0x09)							 {								 "PCIe x16"							 },							 "device_type",							 Buffer (0x10)							 {								 "ATY,GibbaParent"							 },							 "model",							 Buffer (0x12)							 {								 "ATI Radeon HD6950"							 },							 "name",							 Buffer (0x10)							 {								 "ATY,GibbaParent"							 },							 "hda-gfx",							 Buffer (0x0A)							 {								 "onboard-1"							 }						 }, Local0)					 DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))					 Return (Local0)				 }			 }			 Device (HDAU)			 {				 Name (_ADR, One)				 Method (_DSM, 4, NotSerialized)				 {					 Store (Package (0x02)						 {							 "hda-gfx",							 Buffer (0x0A)							 {								 "onboard-1"							 }						 }, Local0)					 DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))					 Return (Local0)				 }			 }
He has two video card, namely ATI and Nvidea. ATI stands on second PCI.
Try his section and don't forget to paste
"ATY,bin_image",
							 Buffer (0xFC00)
							 {
And don't listen him that your have not perfact card for hackintosh. We shouldn't give up!
http://netkas.org/?p=959
http://netkas.org/?p=1056
http://applelife.ru/...-12#post-335048
(Use Google translator)
He recomends these drivers for your card. But try it with your drivers that you have now at first
Attached File  ioreg.jpg   169.03KB   21 downloads

Alex, Tried your sended DSDT & others(edited by me) !!!
I don't know what goes wrong with DSDT.
System not booting with DSDT, if I add graphics injection.
It is strange for me, cause anyway I have patched my graphics kexts and with these kexts using ATY_Init (which is a gr. injector).
I mean anyway I am injecting my graphics card and this works both shrike & peregrine framebuffer (differently patched kexts), why not with DSDT?
On the sequence also tried without pasting bin_image, result same system not booting.
Attaching dsdt's, ioreg and aty.init kext (my card is 4600series) if you can find out something, otherwise I have to give up of the process.

Thank you
Palash

Sorry me. No idea yet, but we didn't give up. We will mull it over further.

#20
manor

manor

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 318 posts
  • Gender:Male
Wow thanks man you did.morthen year I have this problem.now solved.changed to PEGP to PEX0 and PEG1 to PEX1
thank you very much your hard work. I update working dsdt.
if you don't mind can you fix wright Personality because dvi i and dvi d not working I have 2 xfx 6950 only one slot is working if i connect borth video cards.

Last login: Tue Jun 26 09:14:57 on ttys000
navaratnams-Mac-Pro-2:~ navaratnammanoranjan$ /Users/navaratnammanoranjan/Desktop/VBIOS/redsock_bios_decoder </Users/navaratnammanoranjan/Desktop/slot1/1002_6719.rom
695CNF80.BIN:

CAYMAN PRO Hill GDDR5 BIOS

Subsystem Vendor ID: 1682
Subsystem ID: 3122
Object Header Structure Size: 436
Connector Object Table Offset: 52
Router Object Table Offset: 0
Encoder Object Table Offset: 145
Display Path Table Offset: 12
Connector Object Id [19] which is [DISPLAY_PORT]
encoder obj id [0x21] which is [INTERNAL_UNIPHY2 (osx txmit 0x12 [duallink 0x2] enc 0x4)] linkb: false
Connector Object Id [19] which is [DISPLAY_PORT]
encoder obj id [0x21] which is [INTERNAL_UNIPHY2 (osx txmit 0x22 [duallink 0x2] enc 0x5)] linkb: true
Connector Object Id [12] which is [HDMI_TYPE_A]
encoder obj id [0x20] which is [INTERNAL_UNIPHY1 (osx txmit 0x11 [duallink 0x1] enc 0x2)] linkb: false
Connector Object Id [3] which is [DVI_D]
encoder obj id [0x20] which is [INTERNAL_UNIPHY1 (osx txmit 0x11 [duallink 0x1] enc 0x2)] linkb: false
Connector Object Id [2] which is [DVI_I]
encoder obj id [0x1e] which is [INTERNAL_UNIPHY (osx txmit 0x10 [duallink 0x0] enc 0x0)] linkb: false
Connector Object Id [2] which is [DVI_I]
encoder obj id [0x15] which is [INTERNAL_KLDSCP_DAC1 (osx txmit 0x00 enc 0x10?)] linkb: false
navaratnams-Mac-Pro-2:~ navaratnammanoranjan$
------------------------------------
Last login: Sat Jun 30 18:33:56 on ttys000
navaratnams-Mac-Pro-2:~ navaratnammanoranjan$ /Users/navaratnammanoranjan/Desktop/xfx6950\ files1/radeon_bios_decode </Users/navaratnammanoranjan/Desktop/xfx6950\ files1/1002_6719.rom
ATOM BIOS Rom:
SubsystemVendorID: 0x1682 SubsystemID: 0x3122
IOBaseAddress: 0x0000
Filename: 695CNF80.BIN
BIOS Bootup Message:
CAYMAN PRO Hill GDDR5 BIOS

PCI ID: 1002:6719
Connector at index 0
Type [@offset 44199]: DisplayPort (10)
Encoder [@offset 44203]: INTERNAL_UNIPHY2 (0x21)
i2cid [@offset 44335]: 0x90, OSX senseid: 0x1
Connector at index 1
Type [@offset 44209]: DisplayPort (10)
Encoder [@offset 44213]: INTERNAL_UNIPHY2 (0x21)
i2cid [@offset 44362]: 0x91, OSX senseid: 0x2
Connector at index 2
Type [@offset 44219]: HDMI-A (11)
Encoder [@offset 44223]: INTERNAL_UNIPHY1 (0x20)
i2cid [@offset 44389]: 0x93, OSX senseid: 0x4
Connector at index 3
Type [@offset 44229]: DVI-D (3)
Encoder [@offset 44233]: INTERNAL_UNIPHY1 (0x20)
i2cid [@offset 44416]: 0x92, OSX senseid: 0x3
Connector at index 4
Type [@offset 44239]: DVI-I (2)
Encoder [@offset 44243]: INTERNAL_UNIPHY (0x1e)
i2cid [@offset 44453]: 0x94, OSX senseid: 0x5
Connector at index 5
Type [@offset 44249]: DVI-I (2)
Encoder [@offset 44253]: INTERNAL_KLDSCP_DAC1 (0x15)
i2cid [@offset 44453]: 0x94, OSX senseid: 0x5
navaratnams-Mac-Pro-2:~ navaratnammanoranjan$

ori

00 04 00 00 04 03 00 00 00 01 00 00 12 04 04 01
00 04 00 00 04 03 00 00 00 01 00 00 22 05 05 02
00 08 00 00 04 02 00 00 00 01 00 00 11 02 03 04
00 02 00 00 14 02 00 00 00 01 00 00 00 00 06 05
02 00 00 00 40 00 00 00 29 05 00 00 00 00 00 04


patched


Personality: Gibba
ConnectorInfo count in decimal: 5
Disk offset in decimal 179984
0000000 00 08 00 00 04 02 00 00 00 01 00 00 11 02 06 04
0000010 04 00 00 00 04 02 00 00 00 01 00 00 11 02 01 03
0000020 00 02 00 00 14 02 00 00 00 01 00 00 00 00 03 05
0000030 00 04 00 00 04 03 00 00 00 01 00 00 12 04 04 01
0000040 00 04 00 00 04 03 00 00 00 01 00 00 22 05 05 02
0000050

Attached Files







0 user(s) are reading this topic

0 members, 0 guests, 0 anonymous users

© 2014 InsanelyMac  |   News  |   Forum  |   Downloads  |   OSx86 Wiki  |   Mac Netbook  |   PHP hosting by CatN  |   Designed by Ed Gain  |   Logo by irfan  |   Privacy Policy
