Hi everyone!

Firstly thanks to all the amazing people on this forum for inspiration and helping me get my Hackintosh up and running.


This is my first case mod ever…



Here is my system specs:

CPU-Intel i5 3330
MB-Gigabyte GA-Z77-DS3H
RAM-Corsair 2X4Gb 1600 MHz
GPU_XFX 5670 1Gb with Accelero S1 passive cooler
SSD-Mushkin 60 Gb
HDD-Seagate 1TB
PSU-Chieftec 400W
LG DVD/CD RW
Apple Bluetooth module
Apple Wi-Fi module
Antec cooler H2O 620
2X 120 mm Fan 500 RPM
1X 80 mm Fan 1000 RPM
G5 CASE

OS-OS X ML 10.8.3


What I wanted to do with this project is minimalistic and clean mod with "perfect" cable management :)

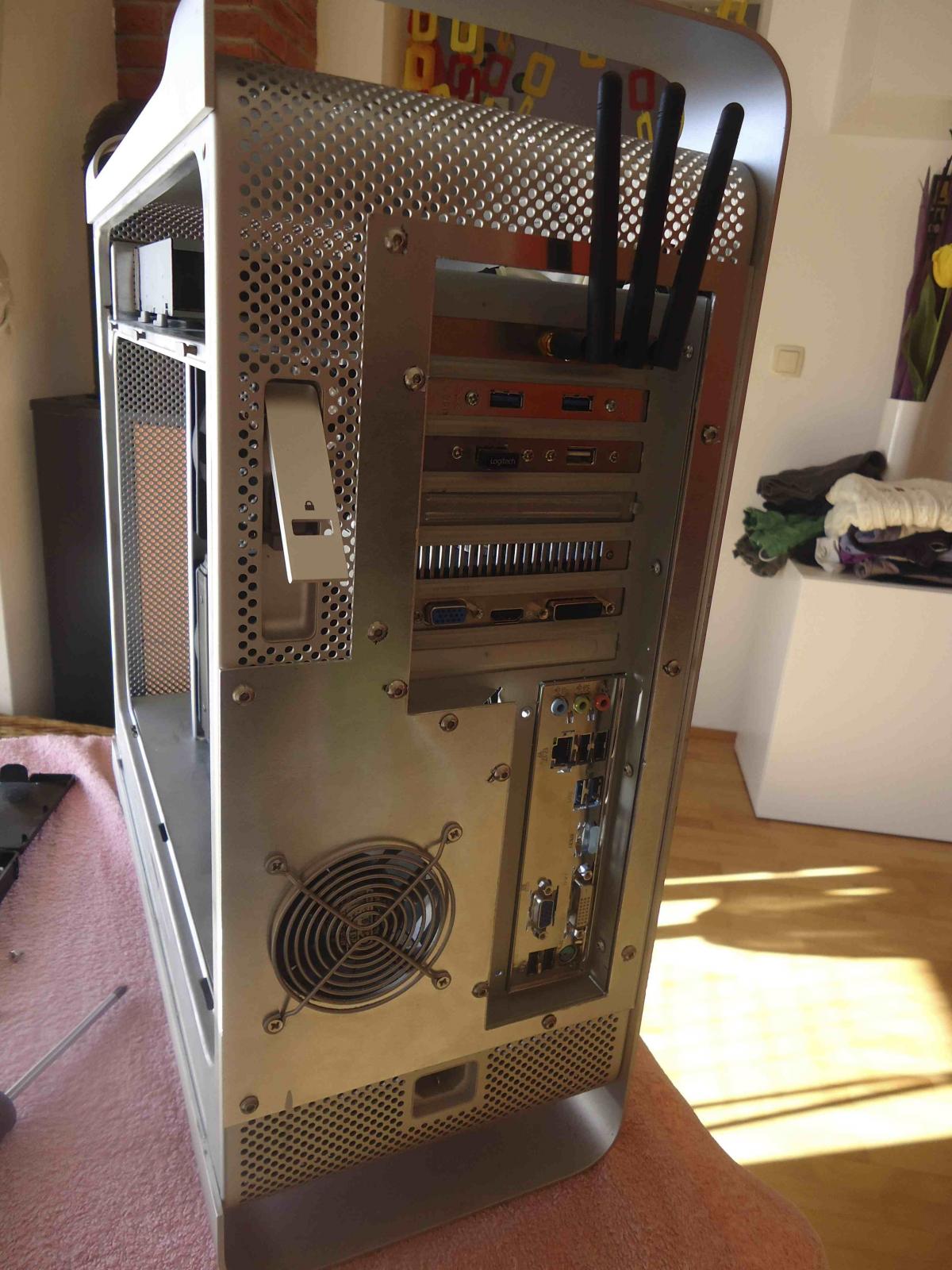

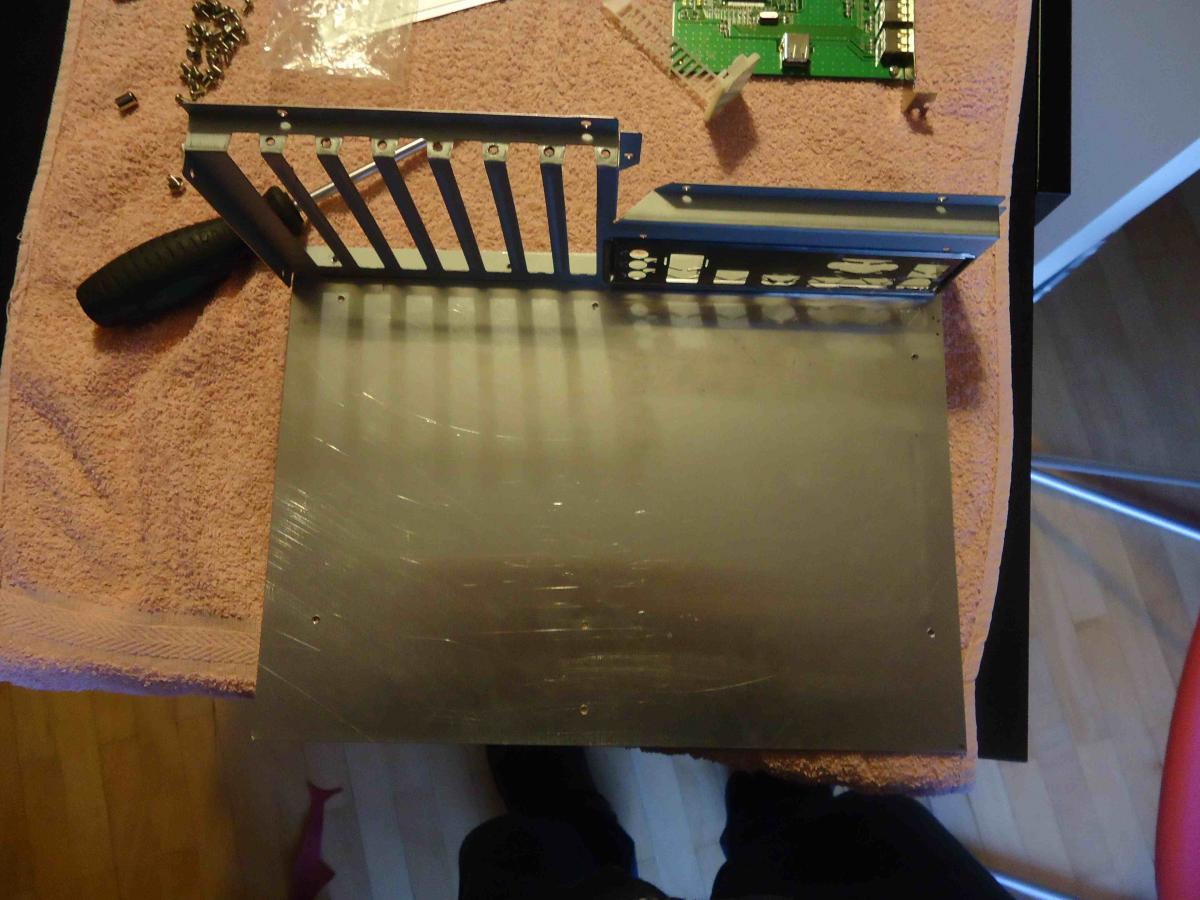

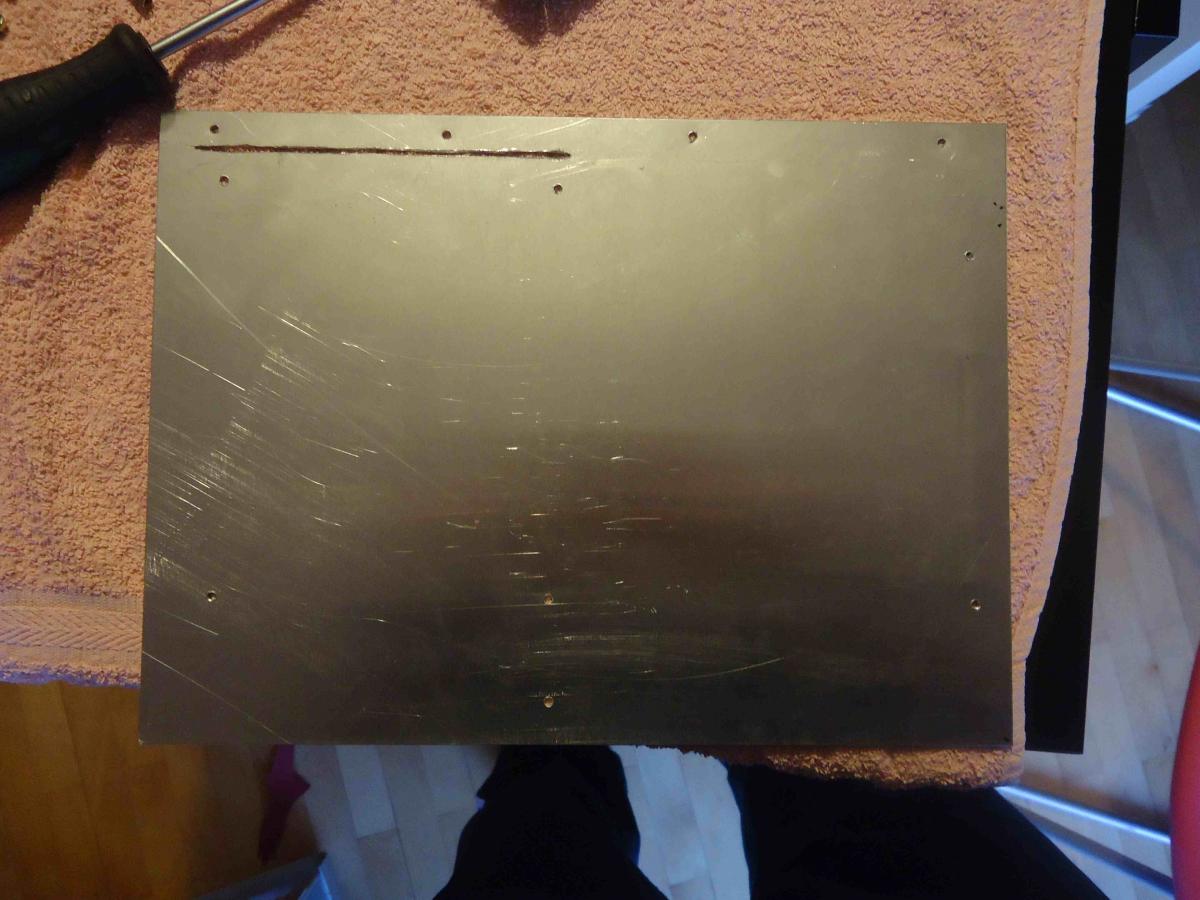

The hardest part of the job was making the back of the enclosure in which I used a 1.5 mm thick aluminum sheet with inner rear plate of my old ATX case. All aluminum work is home-made.
Attached File  DSC007841.jpg   109.95KB   39 downloadsAttached File  DSC007851.jpg   120.04KB   45 downloadsAttached File  DSC00682.JPG   211.69KB   77 downloads

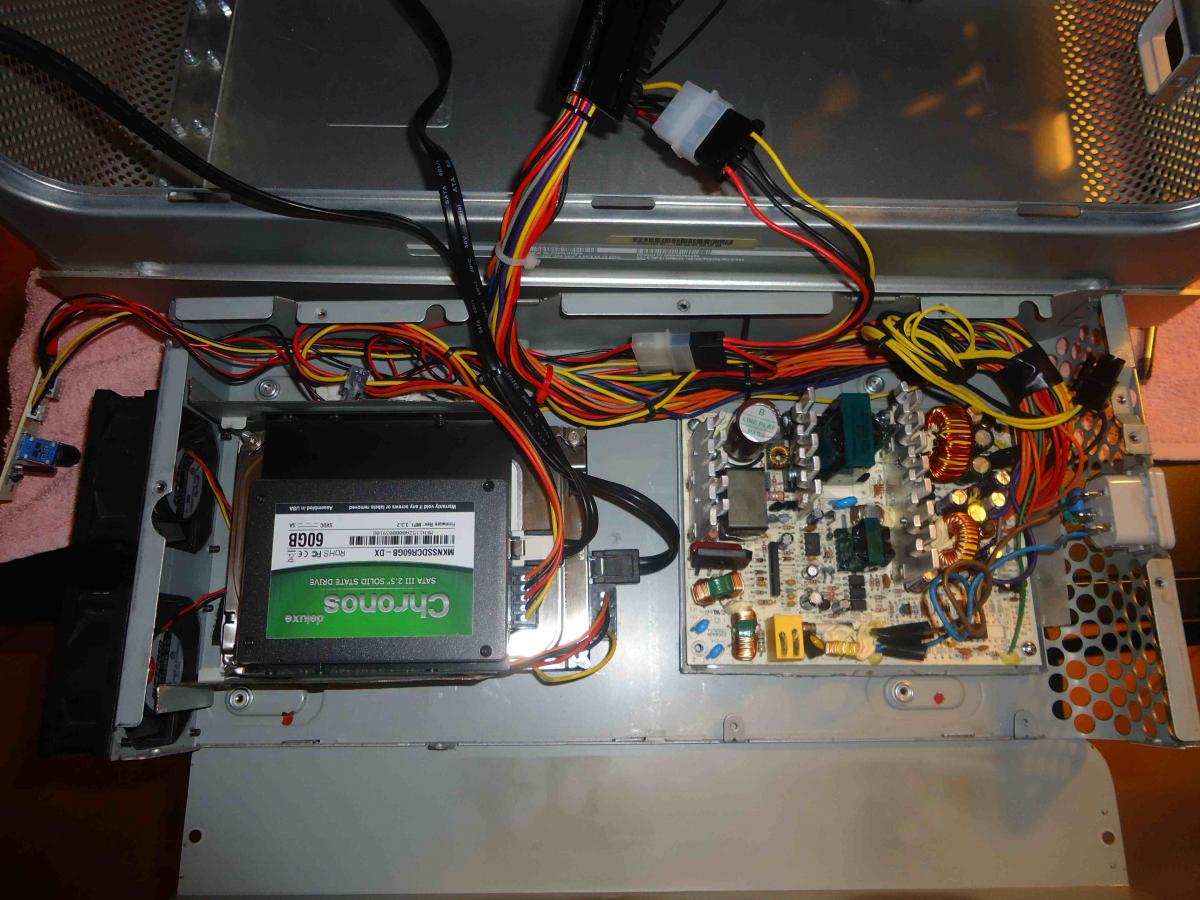

Power supply is put together in the original PSU case with the Hard and SSD drive, and that combination is cooled with the original G5 60 mm fans.This may seem strange combination putting HDD and PSU in one case, and I was a little bit skeptic, but for now everything is working great and temperatures not exceed 28 Celsius
Attached File  DSC00805.JPG   152.37KB   89 downloads

Mount for front fans is made of aluminum profile.

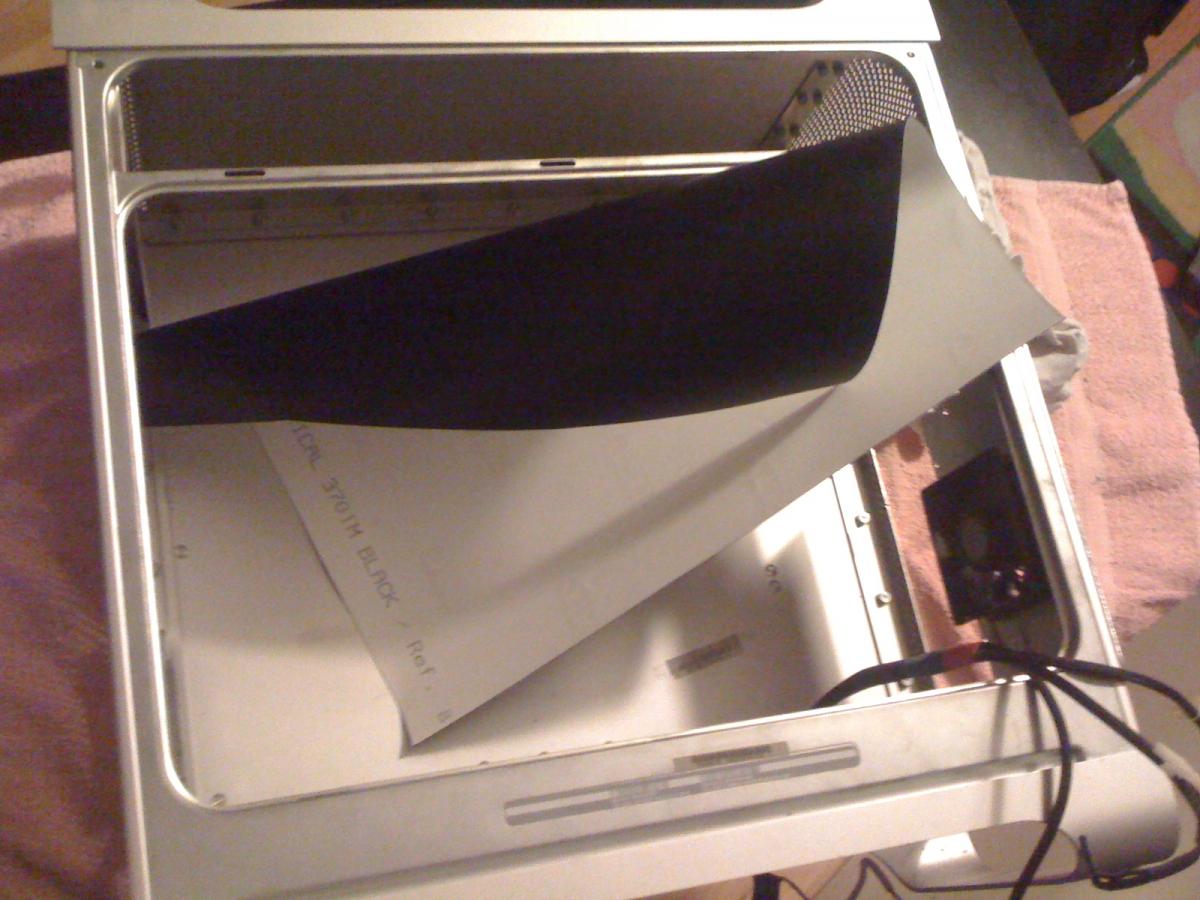

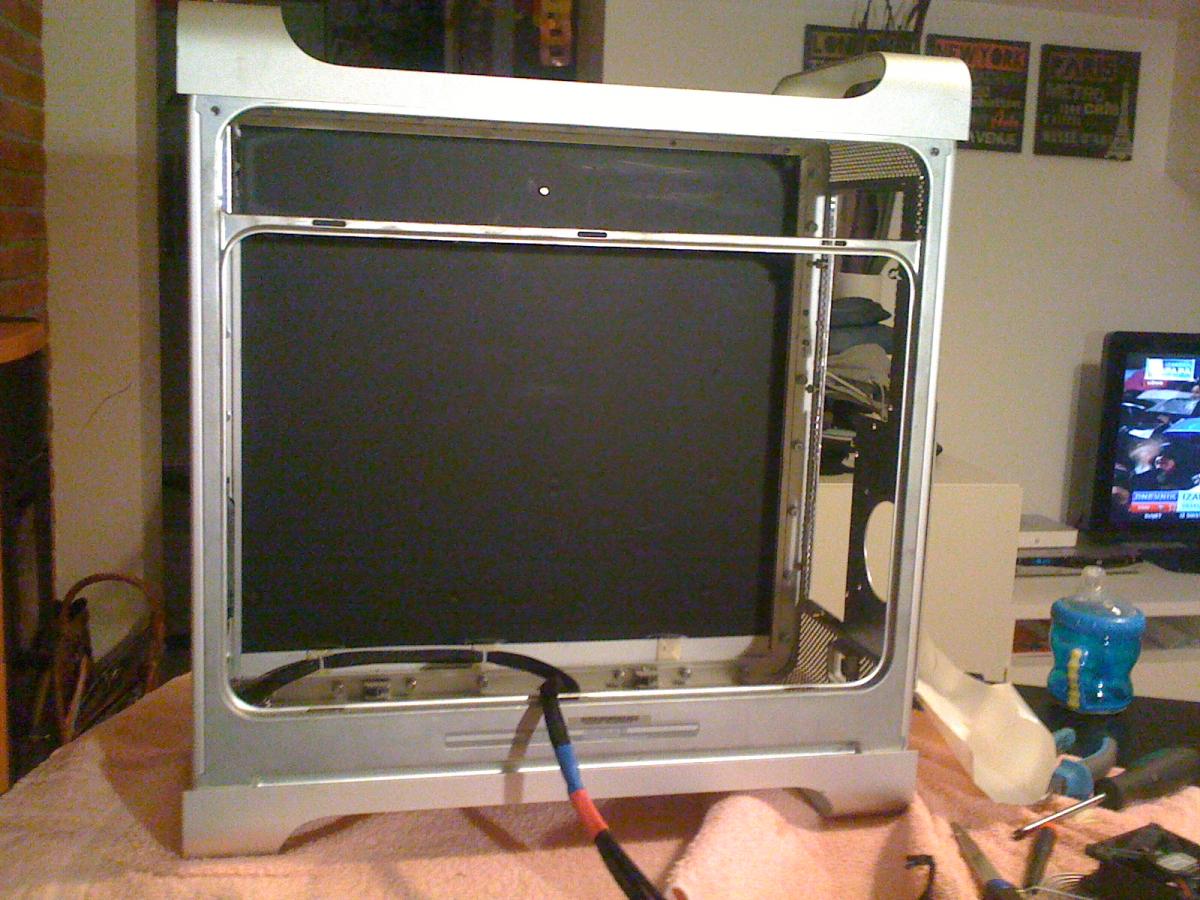

Case interior is lined with black self adhesive foil.

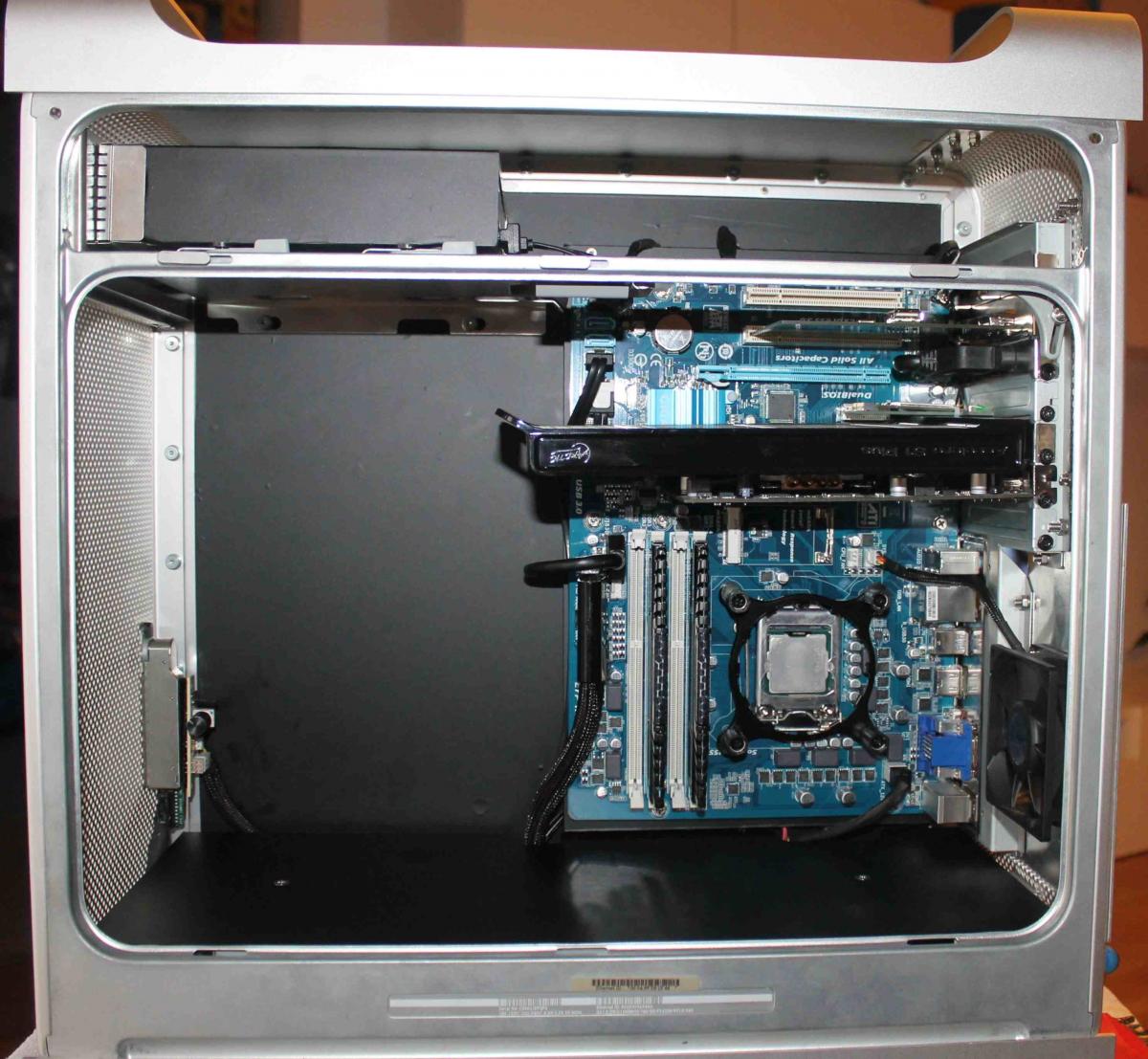

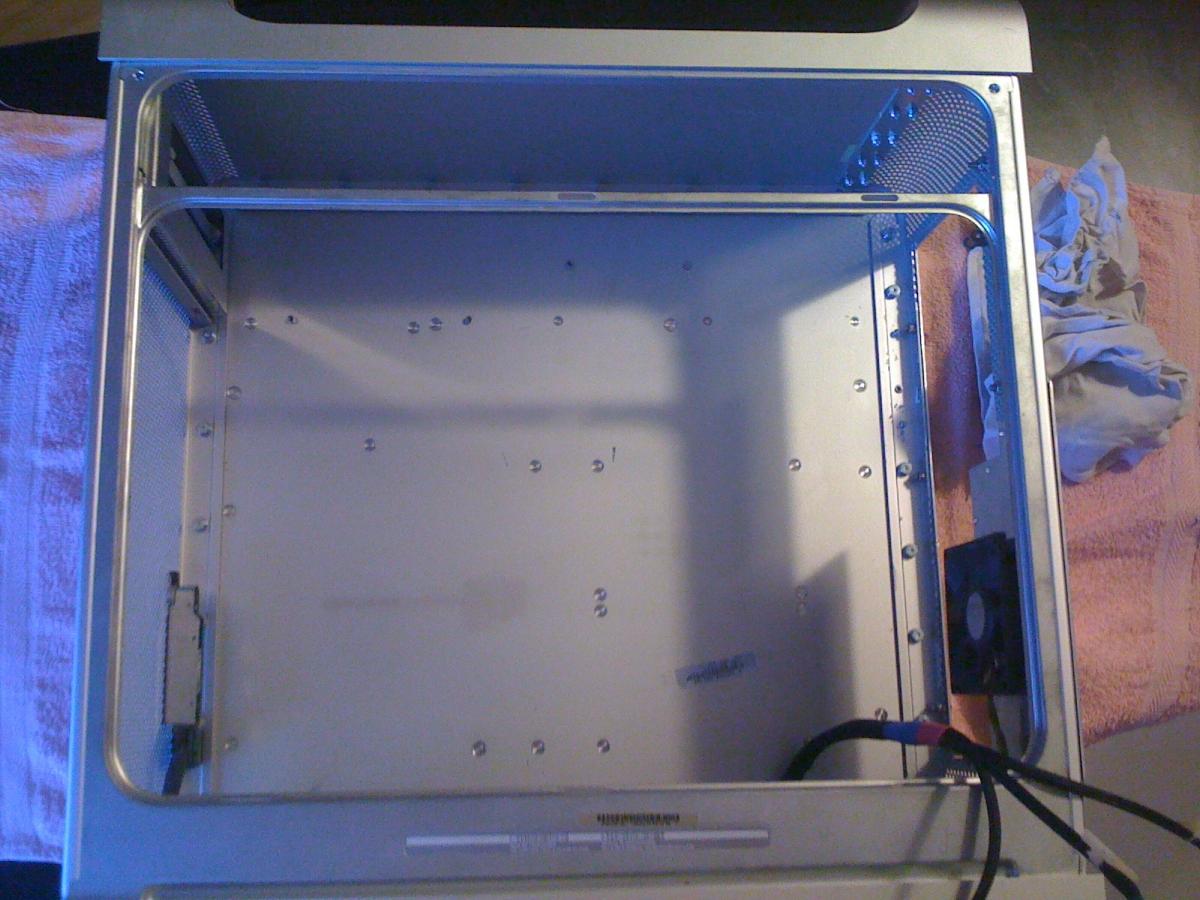

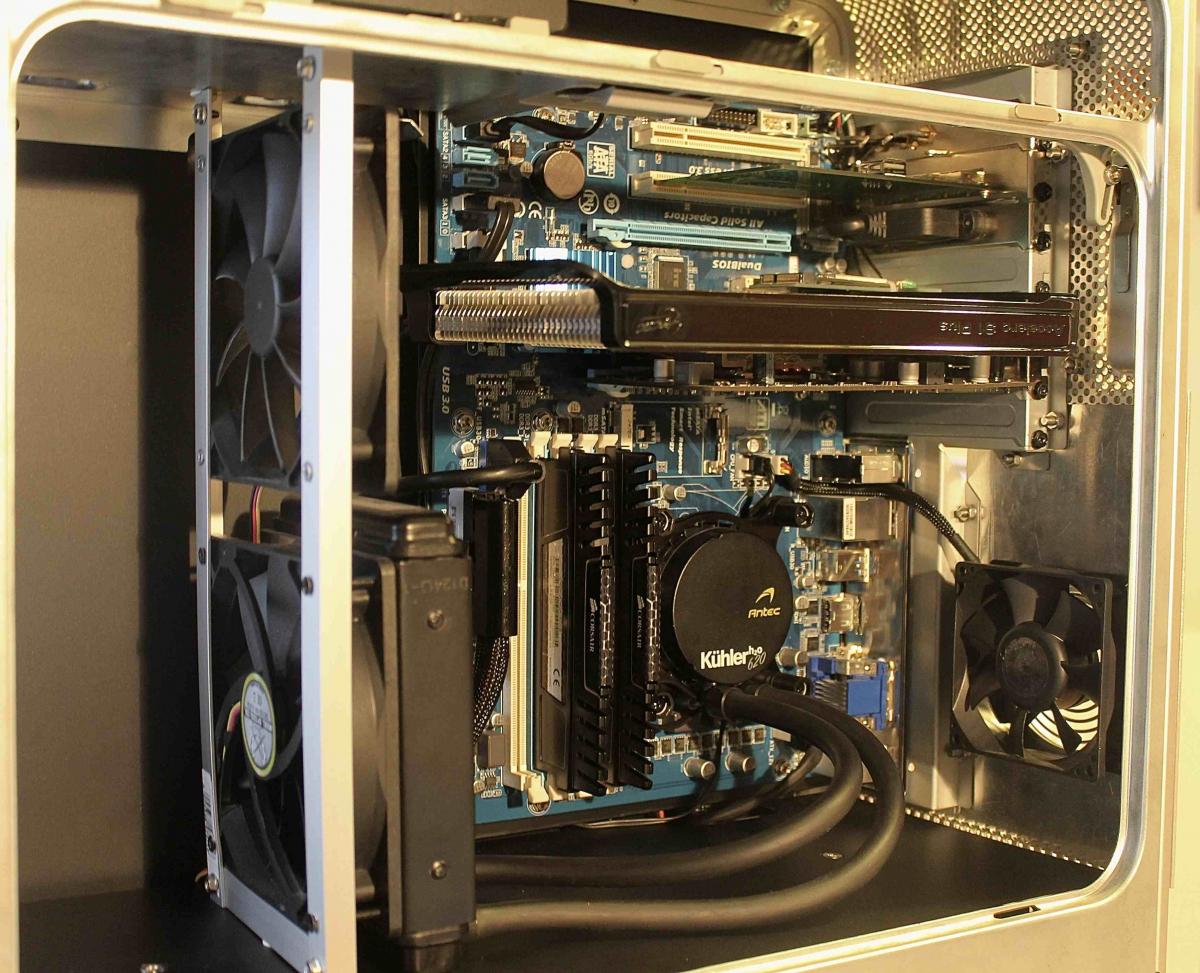

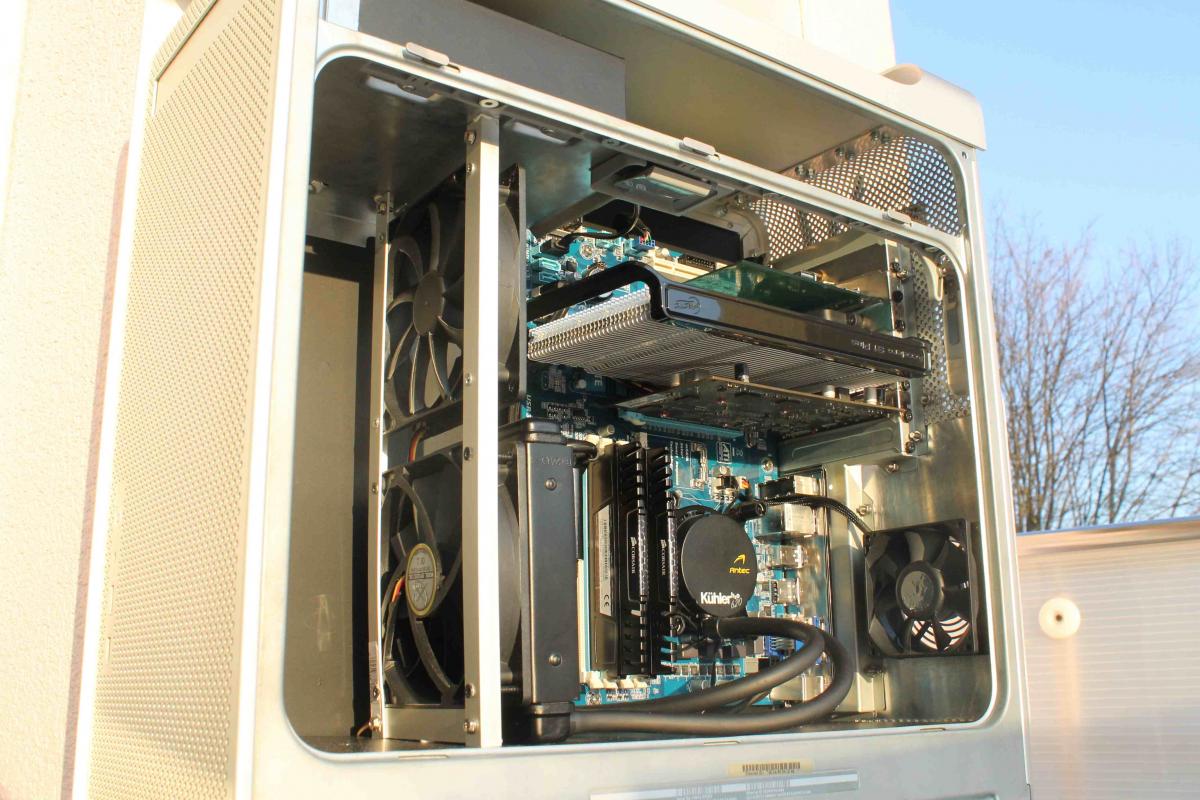

Attached File  IMG_0056.JPG   121.58KB   61 downloadsAttached File  IMG_0058.JPG   112KB   45 downloadsAttached File  IMG_0061.JPG   155.2KB   62 downloadsAttached File  IMG_2724.JPG   173.92KB   95 downloads

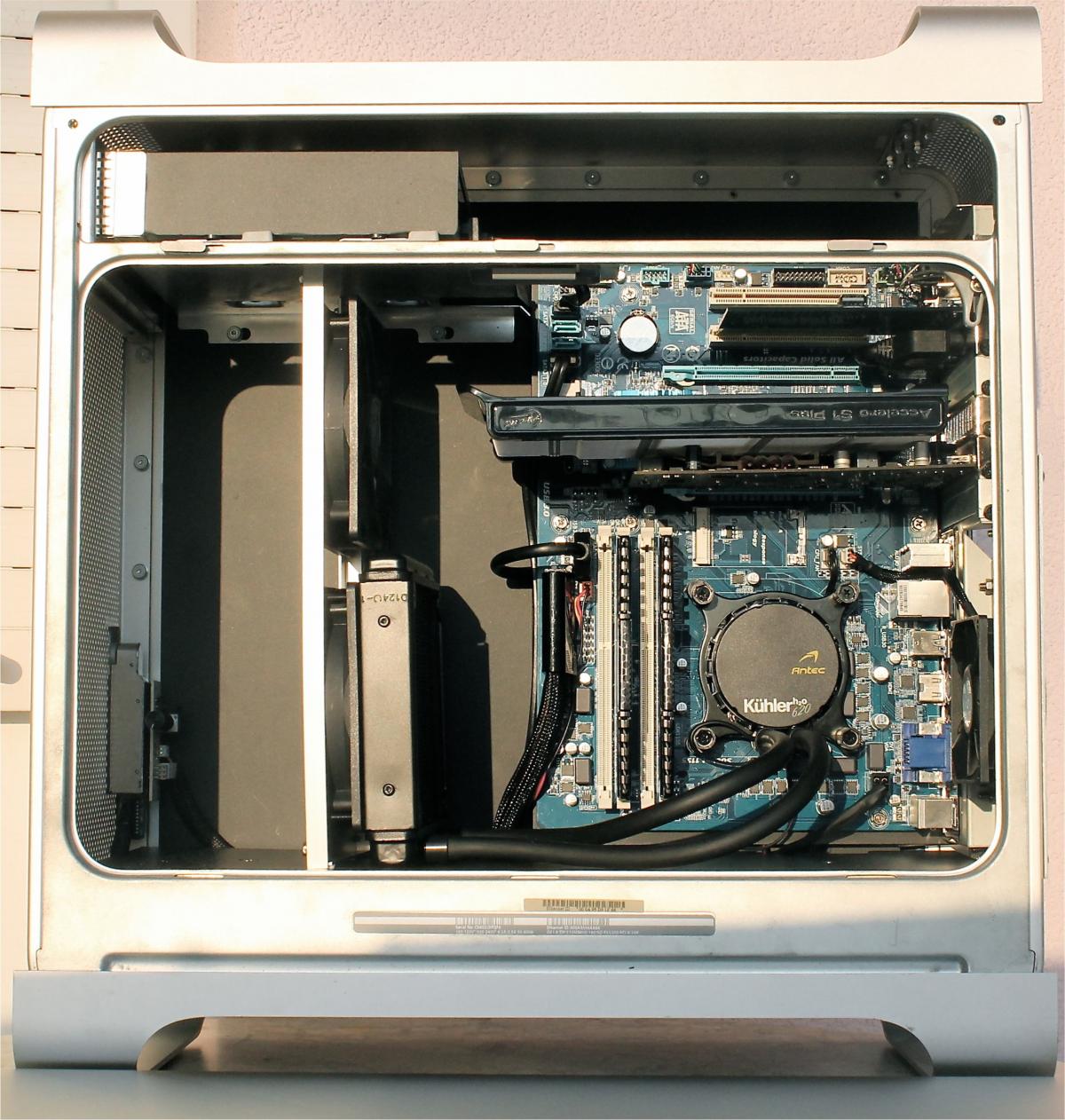

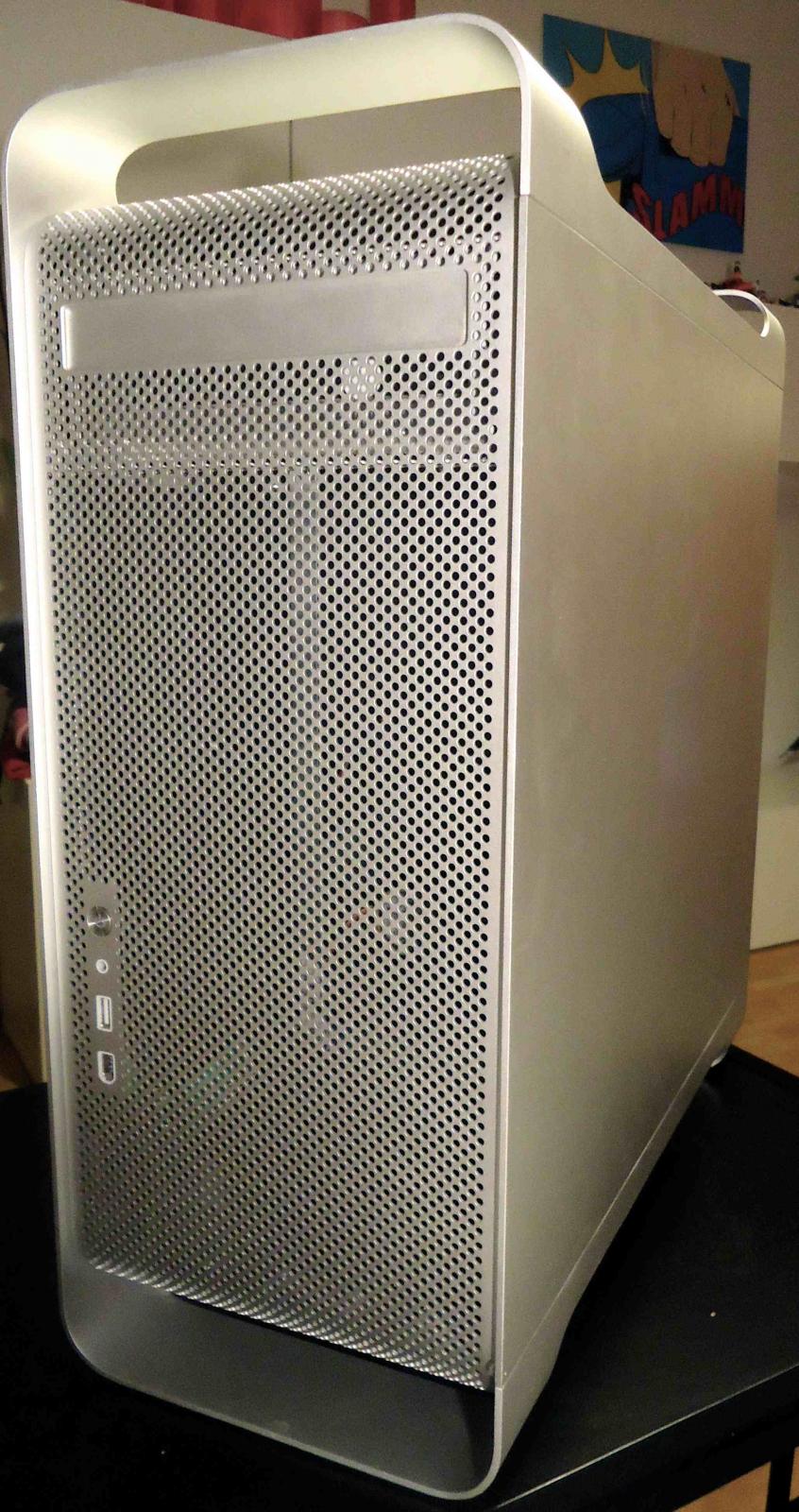

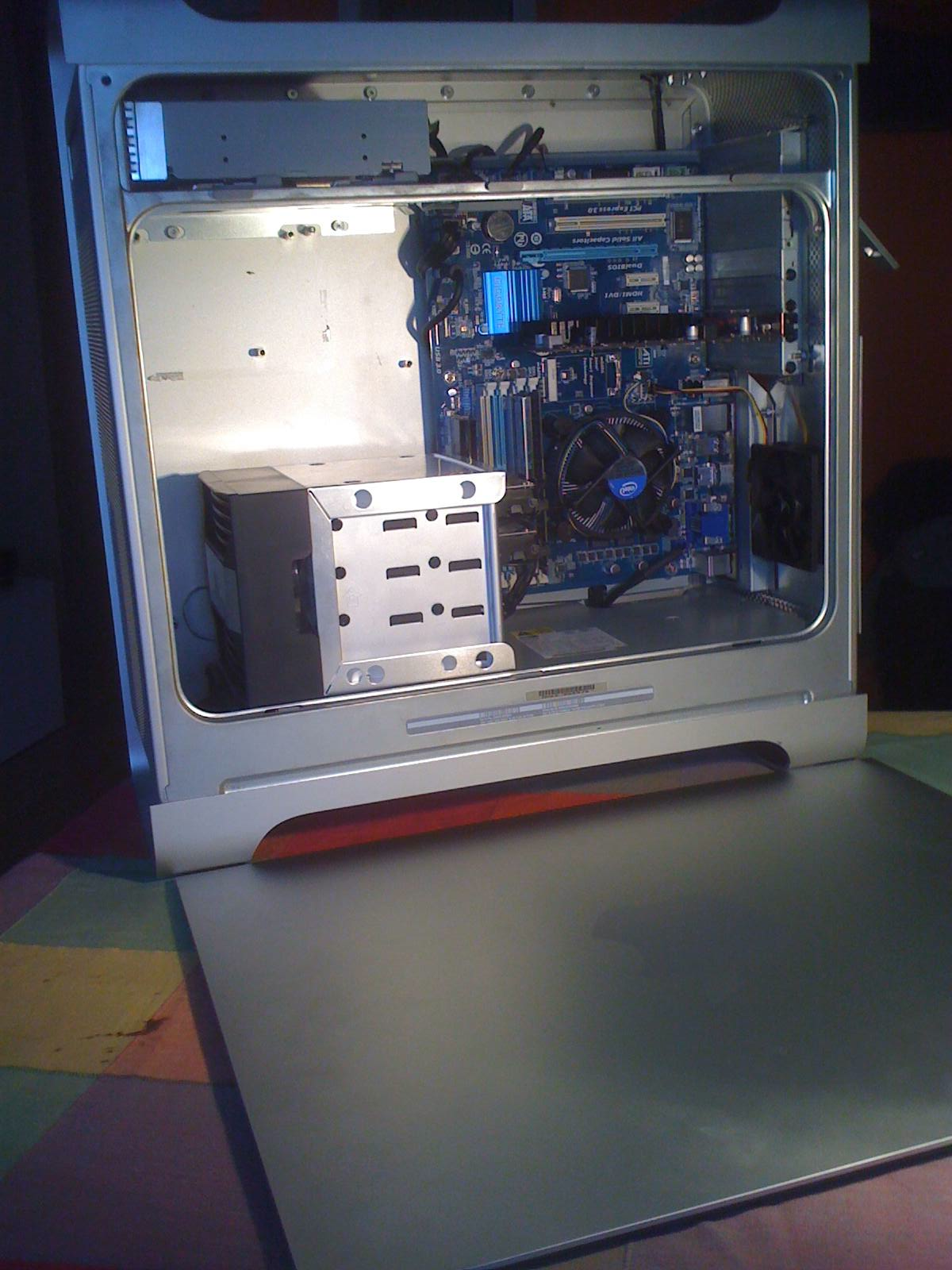

The end result is here, the configuration is very fast and quiet, and I am very satisfied with my first G5 case mod :)

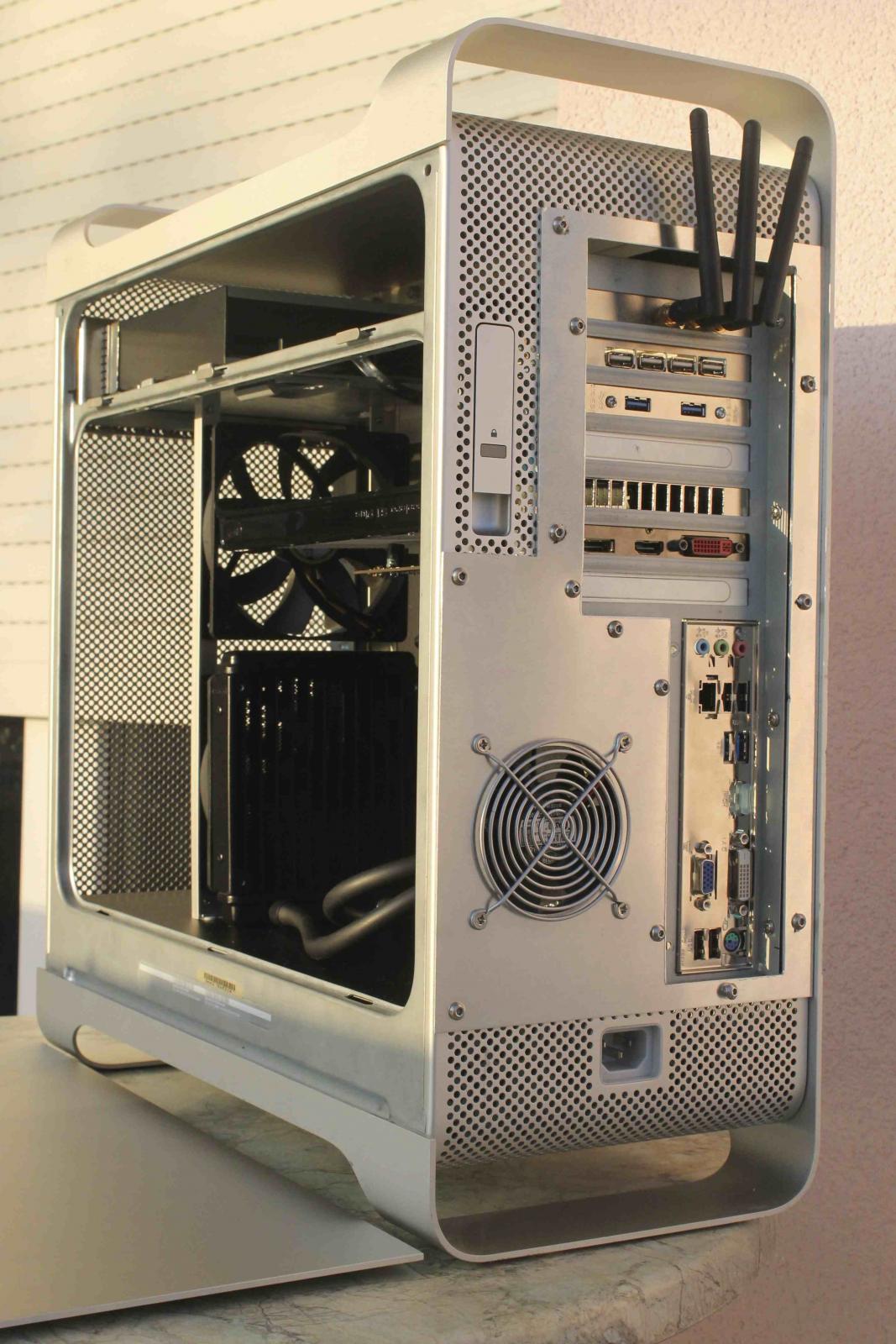

Attached File  IMG_2739.JPG   185.84KB   139 downloadsAttached File  Untitled.jpg   217.04KB   154 downloadsAttached File  IMG_2789.JPG   144.54KB   130 downloadsAttached File  DSC00833.JPG   241.83KB   105 downloadsAttached File  IMG_2783.JPG   213.04KB   121 downloadsAttached File  IMG_2640.JPG   148.68KB   99 downloads

Next thing what I want to do is replace power supply with better one (maybe 500-600W) and buy a new graphic card (AMD 7xxx)

Thanks for watching :D

#2
Baudouin

Baudouin

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 415 posts
  • Gender:Male
  • Location:Brussels, Belgium
Congratz, for a first time, this is a nice shot. Clean and well done.

#3
v3nom

v3nom

    InsanelyMac Protégé

  • Members
  • Pip
  • 43 posts
  • Gender:Male
  • Location:Aachen - Germany
You chose quiet fans / slow rpm, I like that! But how would you rate the G5 60mm fans? Do they point out in an acoustic way?

#4
Mr.D.

Mr.D.

    There are those who call me...

  • Local Moderators
  • 546 posts
  • Gender:Male
  • Location:Wyoming
  • Interests:Music editing/Remixing, hiking, orienteering, 4 wheeling, reading (yes like books and such), and...
I think that is a very unique idea putting the HDD &SSD in the TeslaConverter shell with the new PSU. My only question is one of heat. Do you have the ability to thermally monitor your storage drives and assuming yes, what are the temps?

Very nicely done!

#5
WhatTheTech

WhatTheTech

    Macmodder Addict

  • Retired
  • 458 posts
  • Gender:Male
Very VERY clean, I really love this. You did a great job on everything, and I second the props on the HDD solution, VERY nice!

#6
jopa1200mk2

jopa1200mk2

    InsanelyMac Protégé

  • Members
  • Pip
  • 4 posts
  • Gender:Male
  • Location:Croatia
  • Interests:DJ / Turntablism

You chose quiet fans / slow rpm, I like that! But how would you rate the G5 60mm fans? Do they point out in an acoustic way?

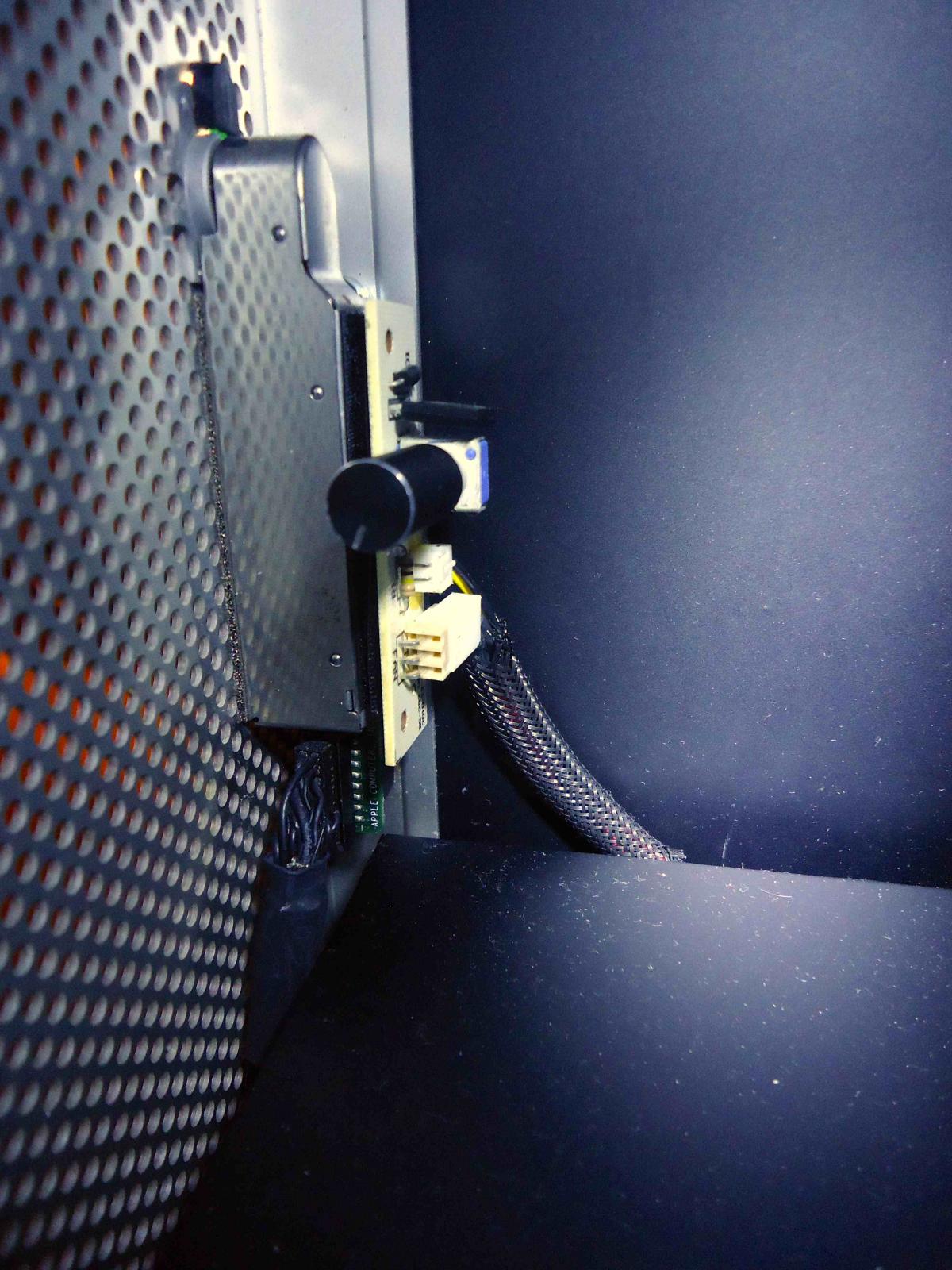

No they did not! G5 60mm fans are very loud and I had to install speed controller because my priority for this mod was to built silent PC
Attached File  DSC00868.JPG   232.35KB   19 downloads

I think that is a very unique idea putting the HDD &SSD in the TeslaConverter shell with the new PSU. My only question is one of heat. Do you have the ability to thermally monitor your storage drives and assuming yes, what are the temps?

Very nicely done!


Thanks :)

temps are 27-29C (If I can believe to HWMonitor app).
Maybe I will separate power supply and hdd but definitely hdd will stay at the bottom of the case, because I want to keep minimalistic look without visible power and SATA cables. For now everything seems to work very nice :)

Attached File  Untitled 2.jpg   13.05KB   17 downloads

Very VERY clean, I really love this. You did a great job on everything, and I second the props on the HDD solution, VERY nice!


Thanks.

Congratz, for a first time, this is a nice shot. Clean and well done.


Thanks man.

#7
Mr.D.

Mr.D.

    There are those who call me...

  • Local Moderators
  • 546 posts
  • Gender:Male
  • Location:Wyoming
  • Interests:Music editing/Remixing, hiking, orienteering, 4 wheeling, reading (yes like books and such), and...
those temps are just fine... great solution for two issues - where to put your storage drives and how to help manage cables better!

#8
jopa1200mk2

jopa1200mk2

    InsanelyMac Protégé

  • Members
  • Pip
  • 4 posts
  • Gender:Male
  • Location:Croatia
  • Interests:DJ / Turntablism

those temps are just fine... great solution for two issues - where to put your storage drives and how to help manage cables better!



definitely, here is a picture of my first idea... I wanted to put hard disk in coolermaster bay rafter but I didn't was satisfied with the result. I don't like cables!

Attached File  IMG_0132.png   2.57MB   48 downloads

#9
Riley Freeman

Riley Freeman

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 907 posts
  • Gender:Male
  • Location:The Streets
Are you using a PCI adapter for the Apple wifi module there? I'm just looking at the 3 antennae and have seen similar adapter cards on ebay.

I'm wondering if one of those would work with a BT/WiFi combo mini pci-e card? Ebay search isn't working right now but when I was looking up mini pci-e cards from MacBooks there was one which had wifi and bluetooth on the same card. It appeared to have 2 connections (one for BT and one for WiFi I assume). I was thinking of getting a pci-e adapter card with 2 antennae and using it with this combo card in an upcoming hack build.

#10
bonestonne

bonestonne

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 356 posts
You should flip the CPU fan around, it's blowing the wrong way.

#11
Baudouin

Baudouin

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 415 posts
  • Gender:Male
  • Location:Brussels, Belgium
@ Riley Freeman :
I hear you man, I bought years ago one mini pci-e card, after reading the ref on aquamac site, and now I have seen this on ebay, I will buy it and put them together and let you know about .

#12
jopa1200mk2

jopa1200mk2

    InsanelyMac Protégé

  • Members
  • Pip
  • 4 posts
  • Gender:Male
  • Location:Croatia
  • Interests:DJ / Turntablism

Are you using a PCI adapter for the Apple wifi module there? I'm just looking at the 3 antennae and have seen similar adapter cards on ebay.

I'm wondering if one of those would work with a BT/WiFi combo mini pci-e card? Ebay search isn't working right now but when I was looking up mini pci-e cards from MacBooks there was one which had wifi and bluetooth on the same card. It appeared to have 2 connections (one for BT and one for WiFi I assume). I was thinking of getting a pci-e adapter card with 2 antennae and using it with this combo card in an upcoming hack build.


yes, i'm using apple wireless card (bcm4322) with mini PCI-E adapter and Apple Bluetooth card from MacbookPro connected to USB on MB. I think that you can't use combo card (Wi-Fi/Bluetooth) from Apple with mini PCI-E adapter because it has 18 pins, PCI-E has 26 pins, so they are not compatible.




You should flip the CPU fan around, it's blowing the wrong way.


air direction of the cpu fan is going from inside of the pc to front out

#13
bonestonne

bonestonne

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 356 posts
You have two fans pushing air towards the back, and the CPU fan blowing towards the front going solely off the pictures... It's an airflow disaster.

#14
MiniHack

MiniHack

    InsanelyMac Legend

  • Donators
  • 634 posts
  • Gender:Male

You have two fans pushing air towards the back, and the CPU fan blowing towards the front going solely off the pictures... It's an airflow disaster.


Certainly looks like the bottom front fan is trying to expel to the front, while the top fan is drawing air in (and I guess partially heated air from the lower fan!) and that the rear lower fan is pushing air out of the back. Meanwhile the graphics card will also be pulling air from the case and pushing it out of the back.

I guess the intention is to avoid warm air from the radiator going into the case. However, probably the opposite of that is happening as at least some of the air the lower fan "ejects" to the front will be being sucked back in by the upper fan.

Even though it is not ideal to have warm air from a rad going into the case, the better compromise here is probably to simply reverse that lower fan and give the air a chance to flow through the case efficiently spending as little time there and avoiding any re-circulating. Either that or turn the other two fans around and go purely "back to front" (but the graphics card may not be so happy with that solution.....).

I guess it also shows that, as the temp.s look good despite the cooling, the G5 case is pretty easy to keep cool...

#15
bonestonne

bonestonne

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 356 posts
Hot air rises, so pushing that air towards the front of the case means that upper fan is going to suck it back into the CPU area.

All fans should just flow in one direction, it's neater, cooler and quieter.

The GPU having an Accelero S1 Plus likely will not change at all if the CPU fan direction was changed. Considering the rear fan blows out of the case, the other fans should go in the same direction, helps cool better with air pressure.

#16
Mr.D.

Mr.D.

    There are those who call me...

  • Local Moderators
  • 546 posts
  • Gender:Male
  • Location:Wyoming
  • Interests:Music editing/Remixing, hiking, orienteering, 4 wheeling, reading (yes like books and such), and...

I guess it also shows that, as the temp.s look good despite the cooling, the G5 case is pretty easy to keep cool...


I think that at this point, its all just nit-picking. Yes, hot air rises. Yes, recirculating warm air thru multiple cooling solutions isn't ideal. I think, however, the numbers speak for themselves.

temps are 27-29C (If I can believe to HWMonitor app).
Attached File  Untitled 2.jpg   13.05KB   17 downloads


We're quibbling over the direction of a fan when this guy got his HDD and SSD running under 30° while INSIDE THE PSU CASE!

I think this is a job well done - regardless if this is his first build or not.

#17
MiniHack

MiniHack

    InsanelyMac Legend

  • Donators
  • 634 posts
  • Gender:Male

I think that at this point, its all just nit-picking. Yes, hot air rises. Yes, recirculating warm air thru multiple cooling solutions isn't ideal. I think, however, the numbers speak for themselves.



We're quibbling over the direction of a fan when this guy got his HDD and SSD running under 30° while INSIDE THE PSU CASE!

I think this is a job well done - regardless if this is his first build or not.


Couldn't agree more. It looks great, it runs cool. Kudos.

#18
bonestonne

bonestonne

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 356 posts

I think that at this point, its all just nit-picking. Yes, hot air rises. Yes, recirculating warm air thru multiple cooling solutions isn't ideal. I think, however, the numbers speak for themselves.

We're quibbling over the direction of a fan when this guy got his HDD and SSD running under 30° while INSIDE THE PSU CASE!

I think this is a job well done - regardless if this is his first build or not.


I'm not saying it's a bad job, I'm just pointing out that it really isn't idea. As far as the HDD/SSD temps..they're less than 2" away from a pair of fans. If I had a fan that close to my hard drives, the temps would be the same.
