Kernel Panic (I think)

Wont boot Kernel Panic

  • Please log in to reply
16 replies to this topic

#1
ChrisHRWilliams

ChrisHRWilliams

    InsanelyMac Protégé

  • Newbies
  • Pip
  • 11 posts
Hi there, hope you can help me with this one.

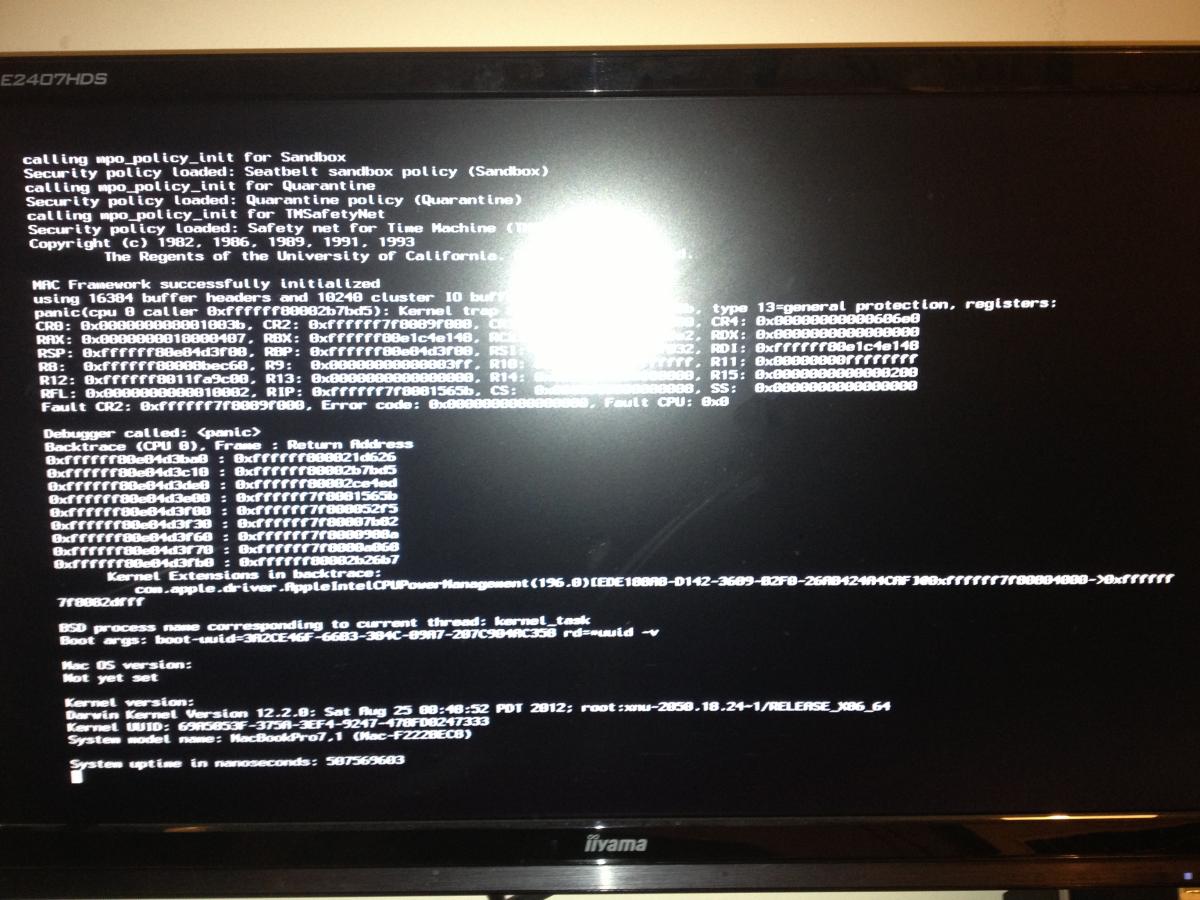

I followed the instructions which are perfectly written and managed to install OSX ML. So far so good. Great I thought, here we go but when I try to boot into the hard drive I get what I believe is a kernel panic. I used the -v option and then took a screen shot with my iphone which I attach here (sorry about the flash, this was the best of 10 I took with & without flash)

My system is

ASUS P8H61-M LX2 Motherboard
Intel i5 Processor
ASUS NVidia Geforce GT630 Graphics
8GB RAM
Seagate Barracuda 1TB hard drive

Please can you help. I have tried everything I can based on the help files on the forum but nothing seems to work.
I wonder if it is to do with my MB Bios?

Thanks to anyone out there willing to help out a newbie

Chris

Attached Files



#2
artur-pt

artur-pt

    InsanelyMacaholic

  • Local Moderators
  • 4,753 posts
  • Gender:Male
  • Location:Portugal
  • Interests:TechManiaco
hello

are u using a proper dsdt to have native cpu power management ?

if not, u must use nullcpupowermanagement.kext

good hack

#3
ChrisHRWilliams

ChrisHRWilliams

    InsanelyMac Protégé

  • Newbies
  • Pip
  • 11 posts
Hey Artur, great image by the way - Pirates! Thanks for replying, I appreciate it.
I am confused by your response, still new to this game.
How do I use the nullcpupowermanagement.kext?
Sorry to be so dumb but this is all new and not sure how to use your advice
thanks
Chris

#4
carbo178

carbo178

    InsanelyMac V.I.P.

  • Local Moderators
  • 7,498 posts
  • Gender:Male
  • Location:Dalle paludi della Pianura Padana
Hi Chris,
Put Nullcpupowermanagement.kext and FakeSMC.kext in /Extra/Extensions folder of Installation USB (if /Extensions folder does not exist, create it).
Reboot with -v -f

#5
LatinMcG

LatinMcG

    Insanely digesting DSDT

  • Members
  • PipPipPipPipPipPipPipPipPipPipPip
  • 2,509 posts
  • Gender:Male
  • Location:Tampa, Florida
or get the MSR asus cpu power management patched bios (if available.. try biosrepo.wordpress)
also u might need SSDT.aml generated with a script for your cpu.

#6
juanerson

juanerson

    InsanelyMac Legend

  • Local Moderators
  • 1,486 posts
  • Gender:Male
  • Location:Tru, Venezuela

Hi Chris,
Put Nullcpupowermanagement.kext and FakeSMC.kext in /Extra/Extensions folder of Installation USB (if /Extensions folder does not exist, create it).
Reboot with -v -f

Agree. Also add UseKernelCache=No DropSSDT=Yes GeneratePStates=Yes GenerateCStates=Yes
Until you can patch the AICPUPM.kext (using AICPMPatch to write operations to MSR 0xE2).

or get the MSR asus cpu power management patched bios (if available.. try biosrepo.wordpress)
also u might need SSDT.aml generated with a script for your cpu.

Absolutely Agree. See this post 481, 482, 485 and 487 for reference about the problem that affect many factory SSDT tables, and the fix by RevoGirl.
Good Luck.

#7
xpamamadeus

xpamamadeus

    InsanelyMac Legend

  • Donators
  • 588 posts
  • Gender:Male
  • Location:Croatia

Hi there, hope you can help me with this one.
I followed the instructions which are perfectly written and managed to install OSX ML. So far so good. Great I thought, here we go but when I try to boot into the hard drive I get what I believe is a kernel panic. I used the -v option and then took a screen shot with my iphone which I attach here (sorry about the flash, this was the best of 10 I took with & without flash)

My system is

ASUS P8H61-M LX2 Motherboard
Intel i5 Processor
ASUS NVidia Geforce GT630 Graphics
8GB RAM
Seagate Barracuda 1TB hard drive

Please can you help. I have tried everything I can based on the help files on the forum but nothing seems to work.
I wonder if it is to do with my MB Bios?

Thanks to anyone out there willing to help out a newbie

Chris

use this
http://www.insanelym...tching-utility/

#8
ChrisHRWilliams

ChrisHRWilliams

    InsanelyMac Protégé

  • Newbies
  • Pip
  • 11 posts
Hi there, thanks everyone for your great suggestions. I managed to copy the kext files across OK and then booted up again.
Unfortunately I did not get what I was hoping for and so am looking for some more advice please.

When I boot using the onboard graphics of my MB (ASUS P8H61-M LX2) it all looks to be going well. I boot past the grey Apple logo screen and then I get to a full grey screen with a mouse pointer which then turns to the rainbow swirly circle and that's how it stays until I switch it off.

If I boot using my graphics card (ASUS NVidia Geforce GT630) then it all just goes blank and switches off and I get a lost signal from my screen even though the PC is still switched on.

Can anyone help?

Would really appreciate some advice again to get me to the promised land of Mountain Lion Hackintosh

Thanks.

Chris

#9
LatinMcG

LatinMcG

    Insanely digesting DSDT

  • Members
  • PipPipPipPipPipPipPipPipPipPipPip
  • 2,509 posts
  • Gender:Male
  • Location:Tampa, Florida
try booting with npci=0x2000
or 0x3000

i believe its the onboard intel cpu video taking over.

#10
carbo178

carbo178

    InsanelyMac V.I.P.

  • Local Moderators
  • 7,498 posts
  • Gender:Male
  • Location:Dalle paludi della Pianura Padana
If the suggestion of LatinMcG doesn't work, try this at boot:
-v GraphicsEnabler=No (or/and) PCIRootUID=1 (or 0)
Also try to change video output

#11
ChrisHRWilliams

ChrisHRWilliams

    InsanelyMac Protégé

  • Newbies
  • Pip
  • 11 posts
Cool thanks a lot guys. Will give it a try tomorrow.

Carbo, how do I change the video output?

Will let you know how I get on.

Chris

#12
carbo178

carbo178

    InsanelyMac V.I.P.

  • Local Moderators
  • 7,498 posts
  • Gender:Male
  • Location:Dalle paludi della Pianura Padana

Carbo, how do I change the video output?


Chris

Change video port from vga to dvi or hdmi
Sorry for my english...

#13
ChrisHRWilliams

ChrisHRWilliams

    InsanelyMac Protégé

  • Newbies
  • Pip
  • 11 posts
OK cool thanks Carbo. Will give it a try.
English is perfect by the way.
Chris

#14
ChrisHRWilliams

ChrisHRWilliams

    InsanelyMac Protégé

  • Newbies
  • Pip
  • 11 posts
Hi all,

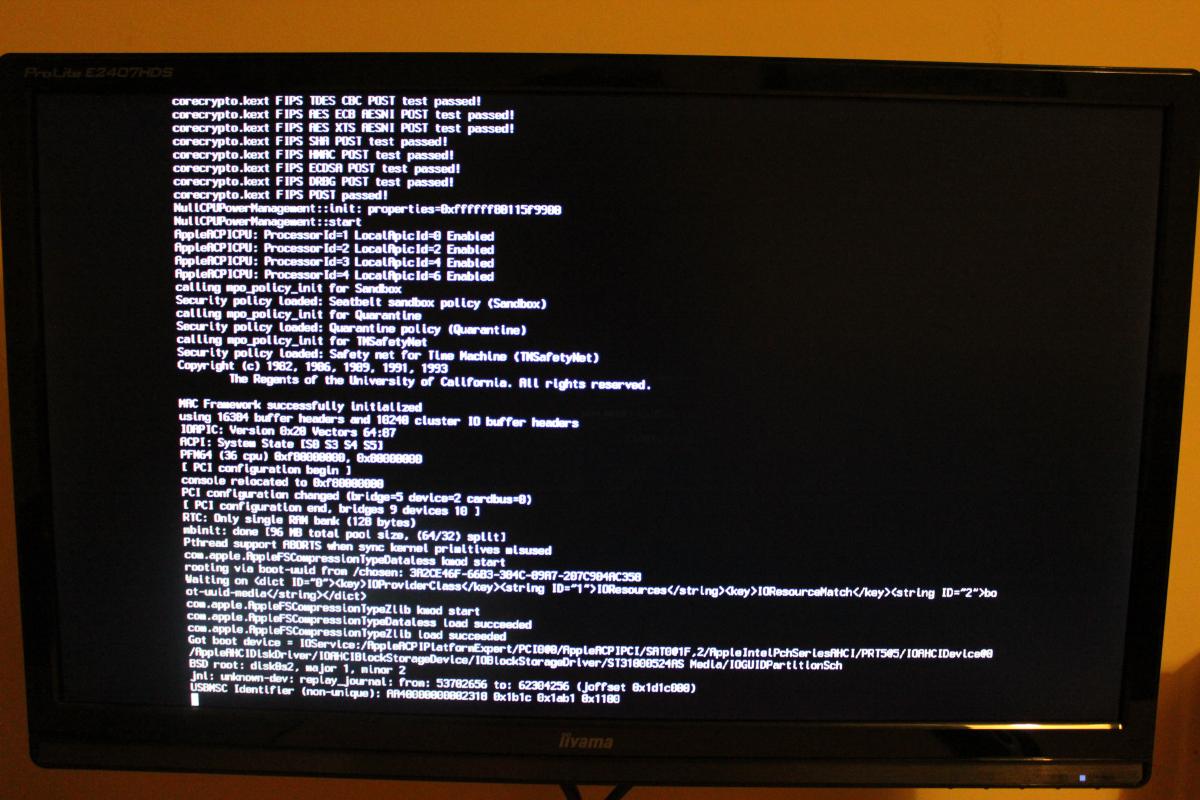

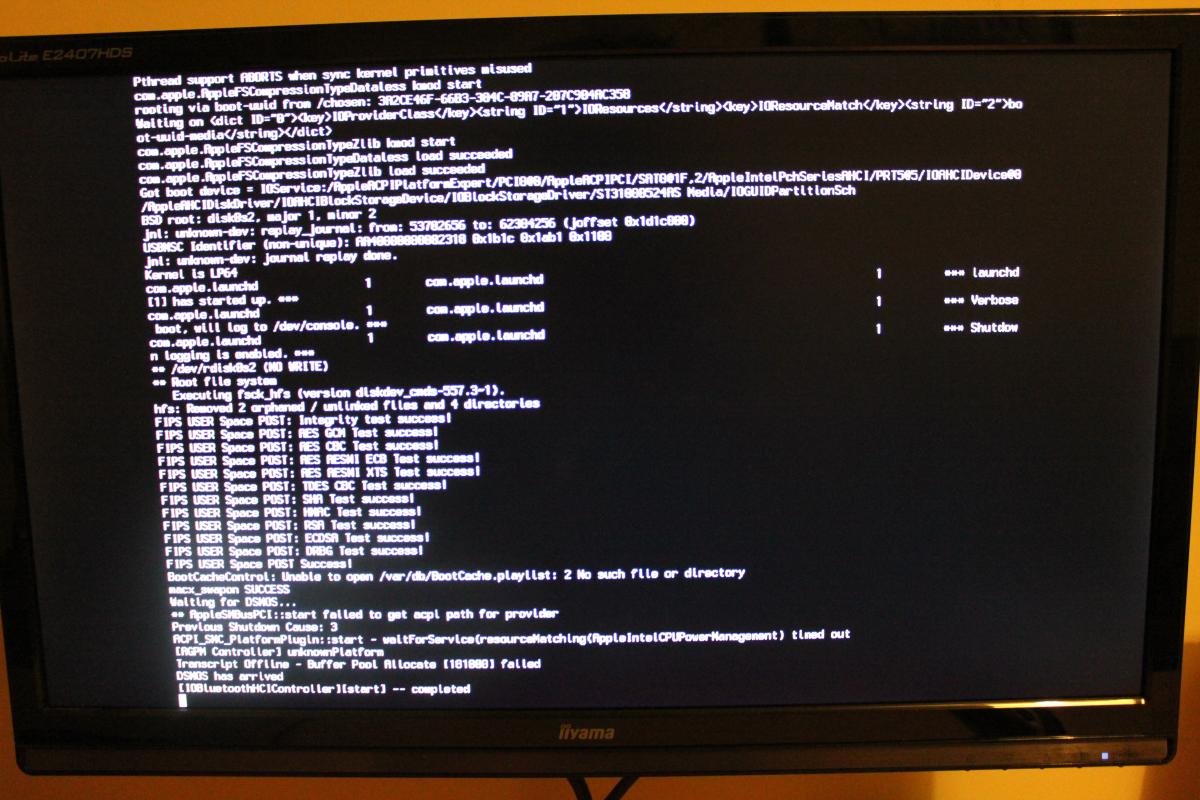

Well I tried all of the above suggestions from LatinMcG and Carbo178 but without success. I still boot to a full grey screen (past the one with the Apple logo) and am left with a mouse pointer that then turns to the spinning rainbow. I used -v and post below the screen shots just before it hangs.

Can anyone help to diagnose the problem? I am determined not to be defeated!!

Thanks

Chris

Attached Files



#15
Naxx

Naxx

    InsanelyMac Protégé

  • Members
  • Pip
  • 44 posts
I had a line like yours too, "ACPI_SMI_PlatrormPlugin etc. etc. timed out", I searched that in the HD, and just deleted it. Now I have no problems!
Try it out!
Sorry for my bad English!

#16
k3nny

k3nny

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 560 posts
  • Gender:Male
Are you sure you installed the FakeSMC extension? I don't see any verbose output of it in your photos. This is the base for Hackintoshes. Without it nothing will work.
Also make sure you are not using KernelCache as already posted.
If not, try the newest version from this branch: https://bitbucket.or...nsors/downloads (just the FakeSCM.kext for now).

#17
LatinMcG

LatinMcG

    Insanely digesting DSDT

  • Members
  • PipPipPipPipPipPipPipPipPipPipPip
  • 2,509 posts
  • Gender:Male
  • Location:Tampa, Florida
strange it says ACPI STATE [S0,S1,S2,S3,S4,S5]

also u might need to roll back IOPlatformPlugin and the videocard is not using a profile .. what smbios u using..MacBookPro7,1 ? try Imac12,1

what does your /Extra folder look like??
u will need SSDT.aml made for that cpu/board.
is bios patched MSR for Native power management ? doubt it.
http://biosrepo.word...s.com/asus/h61/

im glad i kept Lion and gave up on mountain.
