[Alex DeWolf]

Hello All:
I have  a Lenovo Y480 bought in Nov 2012:
I7 (Sorry I don't know the model)
8GB DDR3 RAM
750 GB HDD (GUID)
Intel 4000+Nvidia 630M
Dell wireless (bought from ebay)
Intel Gigabit ethernet
Bluetooth dongle

I was able to install Mountain Lion and the update to 8.2 went fine.
The only things not working:
No QE/Ci for the Intel GPU:

3]Unknown:

3]  Chipset Model: Unknown

3]  Type: GPU

3]  Bus: Built-In

3]  VRAM (Total): 64 MB of Shared System Memory

3]  Vendor: Intel (0x8086)

3]  Device ID: 0x0166

3]  Revision ID: 0x0009

3]  Kernel Extension Info: No Kext Loaded

3]  Displays:

65]Display:

65]  Resolution: 1024 x 768

65]  Pixel Depth: 32-Bit Color (ARGB8888)

65]  Main Display: Yes

65]  Mirror: Off

65]  Online: Yes

The builtin Ethernet is not working.
Battery is not recognized.
I have a dual boot with Linux (Manjaro Linux an Arch Linux derivative) using UEFI and GUID and ML. I am not able to get Chamelon to install as the default bootloader or to get grub2 to boot ML. I have to use the USB installer.

I installed using the iaktos ML.

[Lejenk]

Intel Core i7-3630QM


For the HD4000 you can add the following to your org.chamelion.boot. plist:

<key>device-properties</key>
<string>7f0000000100000001000000730000000200000002010c00d041030a000000000101060000027fff04002c0000004100410050004c002c00690067002d0070006c006100740066006f0072006d002d006900640000000800000004006601140000006800640061002d0067006600780000000d0000006f6e626f6172642d32</string>

Go for a vanilla installation.

http://www.insanelym...-for-beginners/

[Alex DeWolf]

Thanks! I will try that

[sslevski]

Is the CPU working?

[Alex DeWolf]

The CPU is working but I notice this from the dmesg command:

WARNING: IOPlatformPluginUtil : getCPUIDInfo: this is an unknown CPU model 0x3a

Also I install Chamelon but grub2 still is the bootloader.

[Lejenk]

What is the current setup? Windows/Linux/OSX? How did you partition? Multiple HDD's? If grub still loads, you have to set the OSX partition active, or the chameleon partition if you have used the GPT method for installing chameleon.

If OSX is on 1 HDD, an no other operating system is installed on that HDD, just boot from that HDD, grub should not load then, instead chameleon should pop up.

[Alex DeWolf]

I have one 750GB HDD, with OX and Linux. It is set up for UEFI boot and GUID partition table.

I installed iatkos ML2 and everything works, except boot off HDD and QE/CI.

alexs-iphone:~ adewolf$ ls /Extra
Extensions Keymaps modules
Extensions.mkext Themes smbios.plist
alexs-iphone:~ adewolf$

No

org.chamelion.boot. plist file.

[Alex DeWolf]

Ok I think my problem is EFI boot. Any suggestions here?

[Lejenk]

I suppose you are using Clover?

I can not help you any further, sorry.

[Alex DeWolf]

Thanks. Yes clover.

[Alex DeWolf]

So I installed another HDD and installed Iatkos ML2 using GPT no UEFI. Got everything working but:
QE/CI
USB 3 ports
Can't find

org.chamelion.boot. plist

[Lejenk]

Just for the troubleshoot, can you boot?
You switched to chameleon? Since it can not find the boot.plist?

[Alex DeWolf]

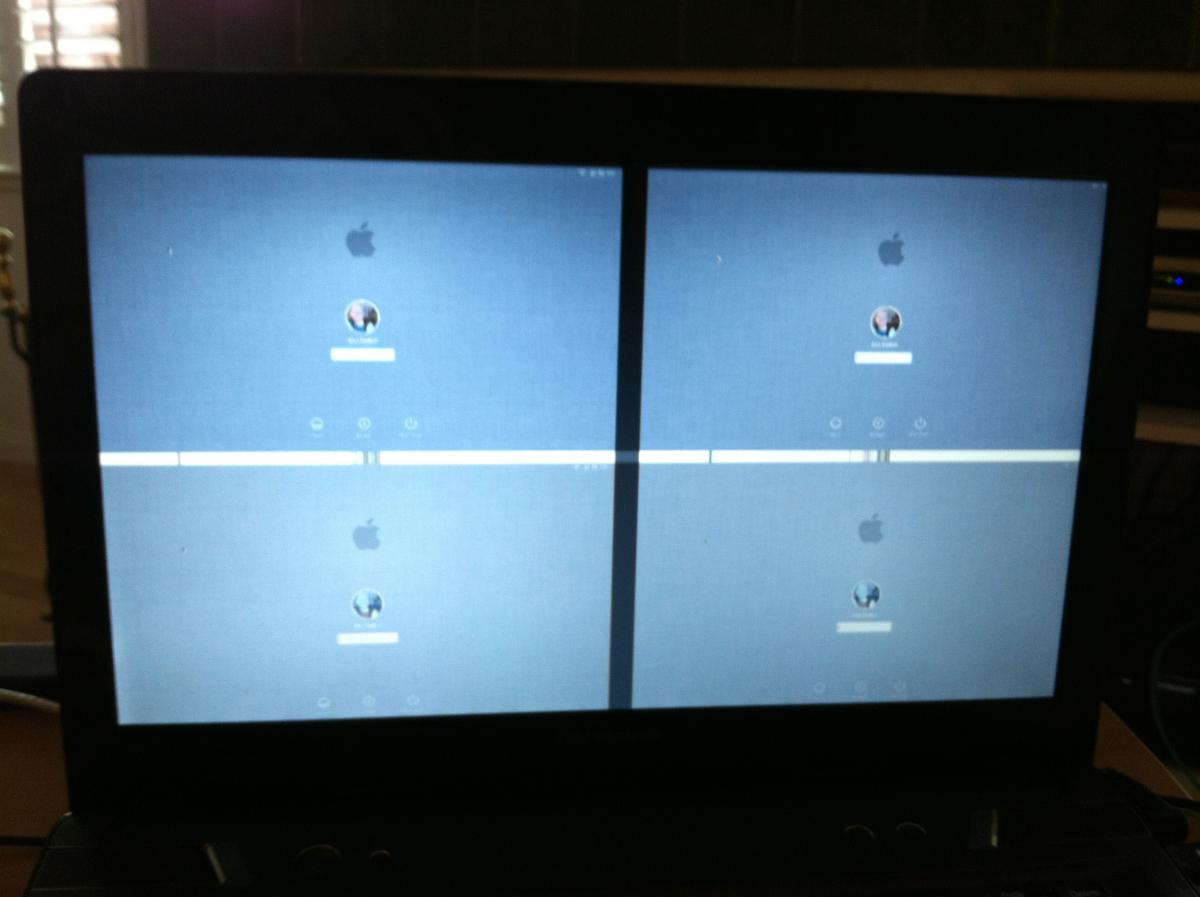

Ok I am able to boot and I did find the chamelon boot.plist file. I put in your HD4000 string in the

org.chamelion.boot

. plist and got 4 small screens on the display. Any ideas on how to fix that?

[Lejenk]

What do you mean with 4 small screens? 4 times the desktop or something? Can you make a screenshot? I used the EFI string i found somewhere on the net, worked for me, is the same one i shared with you. Did you delete the nvidia kexts?
What happens if you boot without the efi string, is everything except the acceleration and resolution ok? So no screen tearing etc..

[Alex DeWolf]

Without the EFI string the display is fine but at 1024x768 with no QE/CI.

Attached Files

•  photo.JPG   56.71K   17 downloads

[Lejenk]

Erh, ok...Hope someone else finally jumps in, don't know what is going on here, never seen this before.

[ryujikun]

using iATkos  ML2? via DVD or flash drive?

my z480 works nicely with iatkos ML2 dvd.

for the QE/CI used this string injected in chameleon.Boot.plist.org

<k[color=#333333][font=Verdana, Arial, Tahoma, Calibri, Geneva, sans-serif][size=3][background=rgb(250, 250, 250)]ey>device-properties</key>[/background][/size][/font][/color]
[color=#333333][font=Verdana, Arial, Tahoma, Calibri, Geneva, sans-serif][size=3][background=rgb(250, 250, 250)]<string>7f0000000100000001000000730000000200000002 010c00d041030a000000000101060000027fff04002c000000 4100410050004c002c00690067002d0070006c006100740066 006f0072006d002d0069006400000008000000030066011400 00006800640061002d0067006600780000000d0000006f6e62 6f6172642d31</string>

[/background][/size][/font][/color]

hope this help

[Lejenk]

ryujikun, on 28 January 2013 - 12:55 PM, said:

using iATkos  ML2? via DVD or flash drive?

my z480 works nicely with iatkos ML2 dvd.

for the QE/CI used this string injected in chameleon.Boot.plist.org

<k[color=#333333][font=Verdana, Arial, Tahoma, Calibri, Geneva, sans-serif][size=3][background=rgb(250, 250, 250)]ey>device-properties</key>[/background][/size][/font][/color]
[color=#333333][font=Verdana, Arial, Tahoma, Calibri, Geneva, sans-serif][size=3][background=rgb(250, 250, 250)]<string>7f0000000100000001000000730000000200000002 010c00d041030a000000000101060000027fff04002c000000 4100410050004c002c00690067002d0070006c006100740066 006f0072006d002d0069006400000008000000030066011400 00006800640061002d0067006600780000000d0000006f6e62 6f6172642d31</string>

[/background][/size][/font][/color]

hope this help

<key>device-properties</key>
<string>7f0000000100000001000000730000000200000002010c00d041030a000000000101060000027fff04002c0000004100410050004c002c00690067002d0070006c006100740066006f0072006d002d006900640000000800000003006601140000006800640061002d0067006600780000000d0000006f6e626f6172642d31</string>

[Alex DeWolf]

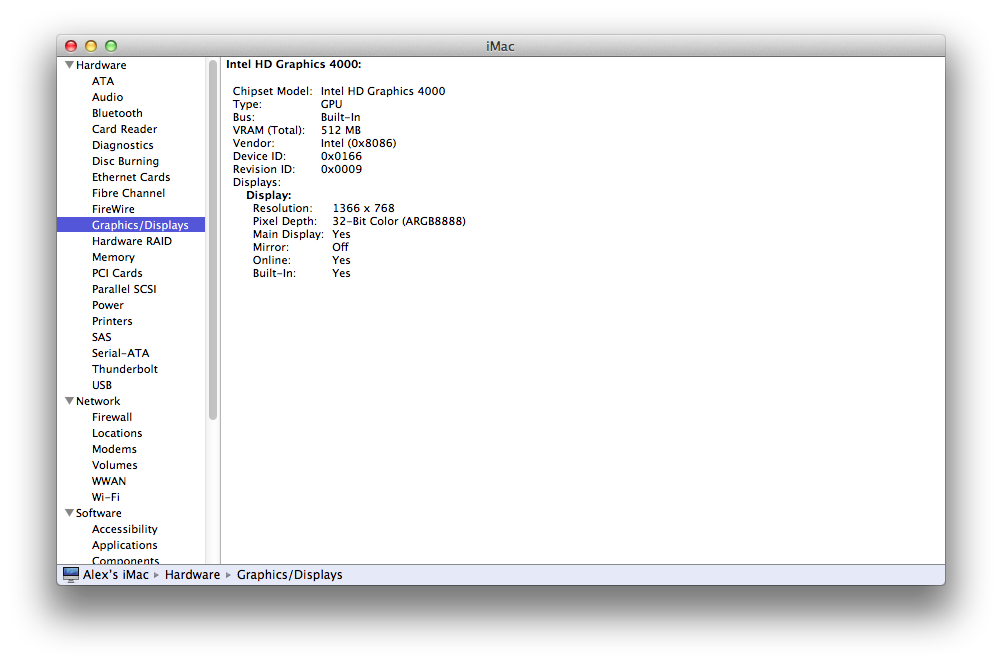

Wow that worked. I had to go into the BIOS and disable the Nvidia GPU:

Attached Files

•  Screen Shot 2013-01-29 at 6.21.54 PM.png   107.08K   37 downloads

[Alex DeWolf]

Now I can't get the USB 3.0 ports to work.
