Unknown Kernal Panic and one other question

[MrWouter]

Hi guys,



First off my specs:



Intel i3 3220

Gigabyte Z77X-D3H

4GB Corsair Vengeance 1600MHz

Ati HD4850

OCZ Vertex 2 60GB



I installes Mountain Lion almost succesfully, via this guide (http://mehigh.biz/ha...h-tutorial.html) mostly. Audio works, sleep works, ethernet works. The only thing is that i get a kernal panic on random moments. I added a photo of the kernal panic. I have searched the web but haven't found anything that could help me or that works. I tried to install Nullcpupowermangement.kext and didn't work.



http://imageshack.us/photo/my-images/827/photo3ohl.jpg/



What i installed is in ######:

UserDSDT or DSDT-Free Installation

3rd Party Sata

TRIM Patch

Atheros - Shailua's ALXEthernet

System Definitions - MacbookPro8.1(tried iMac12.1 and Mac Pro 5.1 and both wouldn't boot)



Also installed Exotic Patch (http://www.osx86.net...in_lion_gm.html) and added these strings to org.chameleon.Boot.plist:





<key>AtiConfig</key>

<string>Motmot</string>

<key>GraphicsEnabler</key>

<string>Yes</string>



And installed AppleHDA and patched my DSDT (http://www.osx86.net...0_applehda.html)

And installed AHCI_Series7_Injector.kext, but that is only cosmetic for the name of the Intel 7 Series Chipset.



What i tried was: delete ALXEthernet from the IONetworkingFamily.kext, internet still worked but kernal panics did continue. Also it looks like everytime i have an high internet usage, that's when it's happening.



And my last question. I tried to install HWMonitor and smcplugins, but after i installed my pc wouldnt boot in ML anymore. Do you guys why that is happening maybe.



I really hope you guys can help me out, cause my feelings says that i'm so close to completion. Anyway thank you for reading al my text, cause i know it's a lot

[iFIRE]

search in FakeSMC.kext/Pluguins and delete all pluguins, the kernel panic is your Ethernet kext , pluguin in IOnetworkingFamily.kext

[MrWouter]

What ethernet kext? Cause i already deleted ALXEthernet and i still get kernal panic's

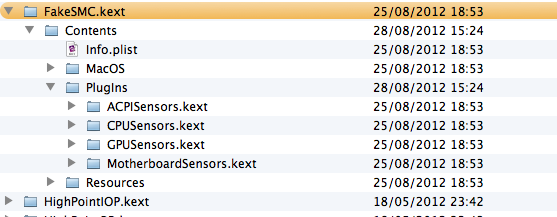

This is how it looks now: http://imageshack.us...30118at101.png/



And there are no plugins in my FakeSMS.kext

[iFIRE]

I tried to install HWMonitor and smcplugins, but after i installed my pc wouldnt boot in ML anymore, YES the ALXEthernet, you have delete caches, or have repairedPermissions/RebuildCaches with KextWizard ?!!!!

[MrWouter]

I forgot about the repairing/rebuilding. But now i don't have any internet anymore, obviously this is logic. But do you maybe know an kext for Atheros ethernet chips? What strange is that when i install the system fresh, ethernet works out of the box, but as soon as i install some ###### kext (everything, except the atheros kext) it doesn't work anymore.
