Intel HD3000 on a HP Laptop

intel hd3000 osx86 lion

  • Please log in to reply
13 replies to this topic

#1
Lopont

Lopont

    InsanelyMac Protégé

  • Members
  • Pip
  • 8 posts
Hi everyone!

I'm trying to configure iATKOS L2 (OSX Lion 10.7.2) on a HP Laptop (a Pavilion g6-2040sl). I know it's quite difficult on these kind of computers... Anyway, everything works fine, except for the built-in graphics: the Intel HD3000 won't work properly on my computer. As a result, I cannot enable graphics acceleration.

By the way, the first time i booted into OSX i had to manually remove the AppleIntelHD* and AppleIntelSNB* kexts because of the well-known "SNB framebuffer did not show up, unload." error.

I've also tried booting with the flag "GraphicsEnabler=Yes", but without success, because the system hangs up at the booting prompt.

One more thing, my computer comes with another graphics card, an AMD Radeon HD 7670M, which is not yet supported by OSX. That's why I'm trying to enable the built-in one.
My CPU is an Intel Core i5 2450M.

Thanks in advance for your help.

Regards,

Lopont.

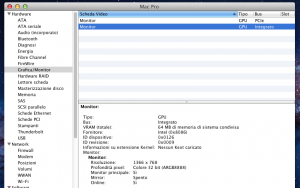

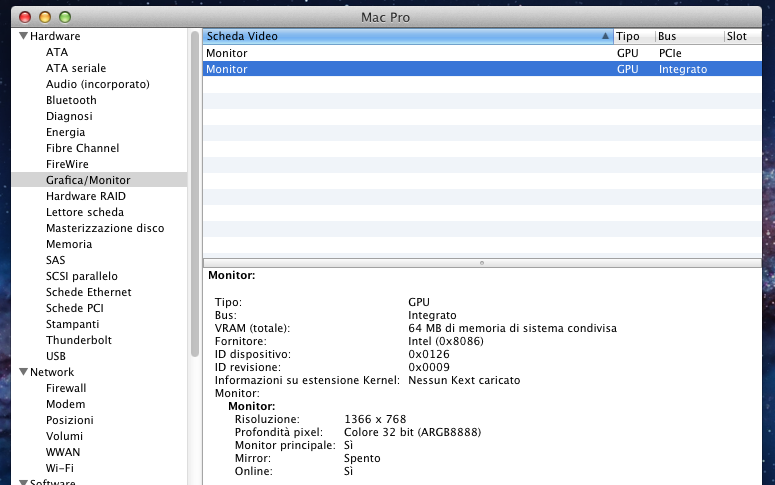

P.S.: I've attached a screenshot of my graphics cards information.

Attached Files



#2
eep357

eep357

    Triple Platinum

  • Supervisors
  • 2,527 posts
  • Gender:Male
  • Location:Dark Side of The Wall
  • Interests:things and stuff
If you haven't, reinstall needed GPU kexts you removed and update to newer version of Enoch Chameleon here

#3
Lopont

Lopont

    InsanelyMac Protégé

  • Members
  • Pip
  • 8 posts
Hi and thanks for your quick reply. I installed the latest Enoch and reinstalled the kexts, but I still get the "SNB framebuffer did not show up" error when booting (in verbose mode, of course). Also tried booting with the "GraphicsEnabler=Yes" flag, but my computer suddenly rebooted.

#4
Biso007

Biso007

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 183 posts
  • Gender:Male
  • Location:Cairo, EG
what SMBios.plist version do you use ? ... try MacBookPro8,1 or 8,3 and start with GraphicsEnabler=No

My other advice would be to go for 10.8.2 which works beautifully with HD3000 with full QE/CI (I have same device like yours x0126)

#5
Lopont

Lopont

    InsanelyMac Protégé

  • Members
  • Pip
  • 8 posts
Hi, thanks for your hint! I'm currently using the MacMini 5,1 SMBIOS, because I've read that Intel HD3000 can be recognized only if we use that one.
Anyway, I'll try with the MacBookPro 8,3 SMBIOS, because with the 8,1 one I get a kernel panic each time I try to boot.

#6
Lopont

Lopont

    InsanelyMac Protégé

  • Members
  • Pip
  • 8 posts
Hello everyone. As Biso suggested, I applied the MacBook Pro 8,3 SMBIOS and now my Intel HD3000 is recognized by OSX... Anyway, I'm still not able to use Quartz Extreme and full graphics acceleration, do I need to patch the Kexts?
Thanks to everyone for your help!

#7
artur-pt

artur-pt

    InsanelyMacaholic

  • Local Moderators
  • 4,385 posts
  • Gender:Male
  • Location:Portugal
  • Interests:TechManiaco
hello

see this if u res is bigger then 1366x768

http://olarila.com/f...php?f=18&t=2193

good hack

#8
Lopont

Lopont

    InsanelyMac Protégé

  • Members
  • Pip
  • 8 posts

hello

see this if u res is bigger then 1366x768

http://olarila.com/f...php?f=18&t=2193

good hack


Hi and thanks for your suggestion, but my resolution is exactly 1366x768!

#9
Biso007

Biso007

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 183 posts
  • Gender:Male
  • Location:Cairo, EG
Can you check if AppleIntelSNBGraphicsFP.kext is loaded ?

Are you able to use native resolution but no QE/CI ?

#10
Lopont

Lopont

    InsanelyMac Protégé

  • Members
  • Pip
  • 8 posts
Yep... Native resolution is 1366x768! I can use it, but I cannot get QE working.
By the way, AppleIntelSNBGraphicsFP.kext seems to be loaded... I checked it with Kext Wizard!

#11
Biso007

Biso007

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 183 posts
  • Gender:Male
  • Location:Cairo, EG
I couldn't get QE/CI on my HD3000 except by using 10.8.2 ... even 10.8 didn't activate it.

So, I can't tell much about 10.7.2 ... is there a good reason not to upgrade ?

#12
Lopont

Lopont

    InsanelyMac Protégé

  • Members
  • Pip
  • 8 posts
Actually, I'm waiting for the newest iATKOS ML 10.8.2...
Anyway, I was trying to solve this problem on Lion, just because evertyhing else on my PC is working fine!

#13
artur-pt

artur-pt

    InsanelyMacaholic

  • Local Moderators
  • 4,385 posts
  • Gender:Male
  • Location:Portugal
  • Interests:TechManiaco
hello

if u are in lion 10.7.2 must update for 10.7.3

only there hd 3000 is fully supported

good hack

#14
Lopont

Lopont

    InsanelyMac Protégé

  • Members
  • Pip
  • 8 posts
Thank you very much for your help. I installed OSX Combo Update 10.7.3... My Intel HD3000 seems to be recognized, anyway I'm still not able to use QE.
Has anyone got any suggestions?
