Asus P8H61-M LX R2.0 - El Capitan 10.11.1 - 100% Working

- - - - -

  • Please log in to reply
28 replies to this topic

#1
Elad Nava

Elad Nava

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 117 posts

Hi fellow mainboard users,
I'd like to share my success story of installing El Capitan (10.11.1) on this incredibly cheap but powerful motherboard.



I wrote an extremely detailed guide (applicable to noobs as well) for installing El Capitan on Hackintosh, check it out!

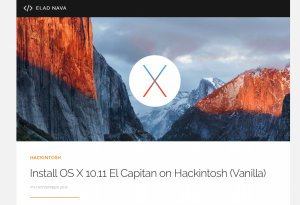

Attached File  Screen Shot 2015-11-07 at 7.22.36 AM.png   981.64KB   100 downloads





Link to the full guide:

http://eladnava.com/...intosh-vanilla/





Audio



Getting the on-board ALC 887 (0x10ec0887) to work in El Capitan is tricky, but I was able to do it by trying lots of kexts and scripts, until I found a combination of 2 that worked:



1. HDEnabler1.kext - by toleda (https://github.com/t...io_kext_enabler)

2. audio_cloverALC-110.command - by toleda (https://github.com/t...audio_CloverALC)



The HDAEnabler1.kext can be copied safely to EFI/Clover/kexts/10.11/. The audio_cloverALC-110.command needs to be run (after mounting the EFI partition via diskutil) and the correct Audio_ID for our ALC 887 is 1. Note that you will need to go into the System Preferneces -> Sound -> Output and select the hardware device for this to work!



Both files are attached.



Networking



The on-board RTL 8169 ethernet controller works great after installing the attached Ethernet-RTGNICv2.0.6For10.7.mpkg.



Graphics

Depends on your card. In my case, the GTX 650 worked out of the box (without graphics injection or what-not) with QE/CI support.

Attached Files



#2
gurzo

gurzo

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
Same mobo here. System stuck one minute at the end of -v output than other 1 or 2 minute at login screen (appears but can't clic on the user account).
Then everythings goes right up an wow !

BIOS from 0501 to the latest (at the moment) 0704
Do you have same "time problem" to get up the system ?

Without applehda and hdaenabler it's fast and furious but no sound . . .

Installed and updated to 10.8.2 without problem as you.
Vannilla kernel.

Thx for your kext !

Let me know your opinion, cheers ,-)

Gurzo

#3
Elad Nava

Elad Nava

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 117 posts
Do you have the exact same motherboard (Lx R2.0)?

#4
gurzo

gurzo

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
yep ! so fast !
same same p8h61-m lx r2.0
windows 8 ready etc etc

can you tell me your bios version ?
thx a lot for your help ,-)

Edited by gurzo, 14 December 2012 - 03:16 PM.


#5
Panzagrande

Panzagrande

    InsanelyMac Protégé

  • Members
  • Pip
  • 21 posts

Thank you VERY MUCH!!!! I thought I will never get off the -x mode!!!!



#6
Panzagrande

Panzagrande

    InsanelyMac Protégé

  • Members
  • Pip
  • 21 posts

Another question: is it safe to update to 10.8.5?



Thanx again!



#7
Elad Nava

Elad Nava

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 117 posts
Haven't tried :)

Probably shouldn't cause any issues except the usual AppleACPIPlatform kernel panic

#8
Panzagrande

Panzagrande

    InsanelyMac Protégé

  • Members
  • Pip
  • 21 posts

ok, thanks a lot! I'll try today and post the result.



#9
Panzagrande

Panzagrande

    InsanelyMac Protégé

  • Members
  • Pip
  • 21 posts

An update done ok, restart with -x flag and reinstall mentioned above kexts. Works fully! Thanks again.



#10
Elad Nava

Elad Nava

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 117 posts
Great to hear :)

#11
waltinho17

waltinho17

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
This package is for the kext P8H61-M LX R3.0 motherboard?

#12
toohinc

toohinc

    InsanelyMac Protégé

  • Members
  • PipPip
  • 58 posts

I have the same motherboard, but i´m having problems installing Mavericks. when I boot it just keeps rebooting all over.



If I find a solution meanwhile, ill post here of course.



#13
Elad Nava

Elad Nava

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 117 posts

Hi,

Try booting with -v flag to see where it fails.



#14
toohinc

toohinc

    InsanelyMac Protégé

  • Members
  • PipPip
  • 58 posts

Hi,

Try booting with -v flag to see where it fails.



hi

I have tried almost all combinations of flags possible. The problem is, it loads the kexts so fast and then suddenly reboots, I cant even read where the error is at.



It can be the kernel (mach_kernel), graphics kext, I have reinstalled a couple of times using difent USB installers/guides, all with same problem, keeps rebooting after loading a few kexts.



Thanks for the reply :)



#15
artur_pt

artur_pt

    InsanelyMac V.I.P.

  • Local Moderators
  • 5,857 posts
  • Gender:Male
  • Location:Portugal
  • Interests:TechManiaco

hello



try to replace this kext..



Attached File  AppleACPIPlatform.kext.zip   232.15KB   226 downloads



boot



-f -v GraphicsEnabler=No



good hack



#16
toohinc

toohinc

    InsanelyMac Protégé

  • Members
  • PipPip
  • 58 posts

hello



try to replace this kext..



attachicon.gifAppleACPIPlatform.kext.zip



boot



-f -v GraphicsEnabler=No



good hack



thanks for the reply artur-pt.



I forgot to install chameleon after installing mavericks. What a noob i am..



thanks



#17
Elad Nava

Elad Nava

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 117 posts

Guide has been updated for Mavericks 10.9.5. :)



#18
Renard45

Renard45

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 320 posts

i have the same motherboard on an all in one  i have installed yosemite with clover bootloader on it, your kexts pack will work or not?

every thing works but no sound at all do you think your kexts audio will work help please thanks in advance.



#19
Elad Nava

Elad Nava

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 117 posts

Updated the guide for El Capitan 10.11.1!



#20
morpheousman

morpheousman

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 297 posts

Updated the guide for El Capitan 10.11.1!





You had El Capitan working on November 10th 2012?



Great job!   :thumbsup_anim:



Nothing like starting a new thread.   :hysterical:
