Ok,

Well I just blundered flashing my HD 6750 to a 5750 and what did I do I never selected 5750 or 5770 but instead I chose 6850 and I don't know how or why did I choose that device :( , so now i am stuck with a card which does work but windows or atiflash cannot detect the card.

Got to wait for the PCI card from a friend so that I could reflash the 6750 as using the onboard 4250 does not work for reflashing.


I am also on the lookout for a card which would work both in SL and Win 7. My budget targets me towards 7750 as the GT640 does fall under the same price range but the reviews aren't so good.

Anyone using a 7750 on SL please let me know if it works.

Thanks.

#2
fantomas1

fantomas1

    InsanelyMacaholic

  • Supervisors
  • 2,789 posts
  • Gender:Male
Hi

not need to buy a new graphics card ! :) your problem is that the bios of your graphics card is now locked and it's why you can't reflashing again !

go here !!!

#3
Thunderbolt

Thunderbolt

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 244 posts

Hi

not need to buy a new graphics card ! :) your problem is that the bios of your graphics card is now locked and it's why you can't reflashing again !


Aha back to the soldering days :). Will try it out tonight.

But won't the pins for shoring be different on my card ? Or are they all the same ?

#4
fantomas1

fantomas1

    InsanelyMacaholic

  • Supervisors
  • 2,789 posts
  • Gender:Male
with my HD 6770, I found another tuto but without the screen ! :hammer:

So I did a little like a kamikaze! :moil:

on my HD6770, I have 3 chips with 8-pin, I took one of above

and it was the good ! :P

#5
Thunderbolt

Thunderbolt

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 244 posts

on my HD6770, I have 3 chips with 8-pin, I took one of above


Ok I will try it , if it gets bricked totally than I have to get my hands on a new card.

But one thing I had seen is that the first I time I flashed the bios new Device id to 5750 and it flash perfectly ,but after rebooting it was still showing me a 6700 series card in win 7, and when I load SL it tells me it a 5700 series card. I know that the 6750 are a rebranded bunch, funny.

Now my Sapphire HD 6750 is a 2 GB card and nowhere on techpower do I see any 5700 series or for that matter even a Sapphire 6750 with 2 GB.

#6
fantomas1

fantomas1

    InsanelyMacaholic

  • Supervisors
  • 2,789 posts
  • Gender:Male
Be careful and good luck ! ;)

#7
Thunderbolt

Thunderbolt

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 244 posts

Be careful and good luck ! ;)


Post back later with the results.

#8
fantomas1

fantomas1

    InsanelyMacaholic

  • Supervisors
  • 2,789 posts
  • Gender:Male

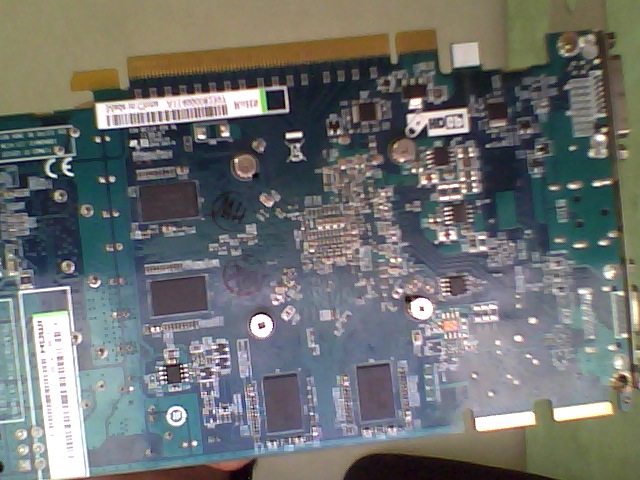

I think it was this one !


Posted Image

#9
Thunderbolt

Thunderbolt

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 244 posts

I think it was this one !




Is that a 6750 or is that your card ?

#10
fantomas1

fantomas1

    InsanelyMacaholic

  • Supervisors
  • 2,789 posts
  • Gender:Male
I typed HD 6750 and it gave me this !

my HD 6770 don't have the chips with vertical pin


edit :


Is that a 6750 or is that your card ?


i think it's a Sapphire HD 6770 FLEX - 1 Go

#11
Thunderbolt

Thunderbolt

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 244 posts

I typed HD 6750 and it gave me this !


Ah ok. At least its on the back and don't need to remove the fan.

#12
fantomas1

fantomas1

    InsanelyMacaholic

  • Supervisors
  • 2,789 posts
  • Gender:Male
Yes ! :)

you know, at first I was a little afraid to grill my card (normal) :blowup: , but once I succeeded the trick, in the end it was much easier to do that I thought! ;)

#13
Thunderbolt

Thunderbolt

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 244 posts

Yes ! :)

you know, at first I was a little afraid to grill my card (normal) :blowup: , but once I succeeded the trick, in the end it was much easier to do that I thought! ;)



Thanks. Will post back in a few hours.

#14
Thunderbolt

Thunderbolt

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 244 posts
Looks like I bricked it , but its still in warranty so I will try to get it replaced. Else I am going for a 6850.

#15
fantomas1

fantomas1

    InsanelyMacaholic

  • Supervisors
  • 2,789 posts
  • Gender:Male
:(

you can tell me how you did it ?

#16
Thunderbolt

Thunderbolt

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 244 posts

:(

you can tell me how you did it ?



well I shorted pin 4 & 5 on a different motherboard which I have as a standby but I could still not get the card to be detected by atiflash (booted using USB / Dos) then I wanted to check if the card still gives a display , well the display had stopped :( , so I think its bricked now and need to send for replacement , don't know if they shall else I will go for 6850.

#17
fantomas1

fantomas1

    InsanelyMacaholic

  • Supervisors
  • 2,789 posts
  • Gender:Male
to hold the wire on pin 4 and 5, I used the adhesive tape!

I put my graphics card like that, I started my pc and I booted on my USB key (bootable) where I had putting my original bios.

always on the pc started, I just removed the adhesive tape and the wire and then I just reflashed my graphics card and I restarted my computer normally and it was ok!

:)

#18
Thunderbolt

Thunderbolt

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 244 posts

to hold the wire on pin 4 and 5, I used the adhesive tape!

I put my graphics card like that, I started my pc and I booted on my USB key (bootable) where I had putting my original bios.

always on the pc started, I just removed the adhesive tape and the wire and then I just reflashed my graphics card and I restarted my computer normally and it was ok!

:)


Well that's what I did too, but I guess that chip was not an Eeprom . Maybe I shall try it again on the other three one by one, but I doubt it shall work as the display is not givin any output.

#19
fantomas1

fantomas1

    InsanelyMacaholic

  • Supervisors
  • 2,789 posts
  • Gender:Male
Can you give us a screen of your graphics card's pcb ?

#20
Thunderbolt

Thunderbolt

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 244 posts

Can you give us a screen of your graphics card's pcb ?


Will do once I reach home as I am @work
