(Problem)Ati 5430 No resolution & QE/CI 10.8 HP g72


  • Please log in to reply
54 replies to this topic

#1
Kasi99

Kasi99

    InsanelyMac Protégé

  • Members
  • PipPip
  • 50 posts
Hello,

i have problem with ati 5430 and 10.8 No resolution & QE/CI 10.8 HP g72!

my english is bad, sry!

i have all kexte tried!

without success!

i have edit my chameleon boot plist! without success!

with GraphicsEnabler=yes have i Blackcsreen stuck after loding apple screen!

i have also my id´s ati5430 in the kext registered, without success!!

I need help!

best step by step instructions!

i would grateful!

mfg kasi

#2
artur-pt

artur-pt

    InsanelyMacaholic

  • Local Moderators
  • 4,669 posts
  • Gender:Male
  • Location:Portugal
  • Interests:TechManiaco
hello

take a look here

http://olarila.com/f....php?f=18&t=736

good hack

#3
Kasi99

Kasi99

    InsanelyMac Protégé

  • Members
  • PipPip
  • 50 posts
hello artur-pt, thanks!

speak you german?

with instructions full working my ati 5430 on my laptop display ?

thanks!

gruss kasi

#4
Thunderbolt

Thunderbolt

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 244 posts
Apologize for butting the post, if ATIRadeonX3000 (e.g.) is an accelerator so would it only accelerate HD 3000 cards or would also give acceleration to other cards with the correct kext and device ids ?

#5
Kasi99

Kasi99

    InsanelyMac Protégé

  • Members
  • PipPip
  • 50 posts
hello eurofightertyhpoon!

i have devices id´s in the kext registered! nevertheless no QE/CI!
I look the week me the link of artur-pt on!

gruss kasi

#6
Thunderbolt

Thunderbolt

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 244 posts

i have devices id´s in the kext registered! nevertheless no QE/CI!
I look the week me the link of artur-pt on!



Have you checked if the kexts are correct ? I am a similar problem with my HD 6750 but I am running Snow Leopard .

Check here olarila.com/kexts put in the device id and see what kexts it shows for ML.

#7
Kasi99

Kasi99

    InsanelyMac Protégé

  • Members
  • PipPip
  • 50 posts
hello,

my id´s ati 5430, look screen short!

i have id´s in the kext registered (Apple Stock Kext ML 10.8)

i have edit plist

(AMDRadeonAccelerator):


<key>AMDBartsGraphicsAccelerator</key>


<key>IOPCIMatch</key>
<string>0x68e11002 0x67391002 0x67201002 0x67221002</string>

<key>AMDCaicosGraphicsAccelerator</key>

<key>IOPCIMatch</key>
<string>0x68e11002 0x67701002 0x67791002 0x67601002 0x67611002</string>

<key>AMDCaymanGraphicsAccelerator</key>

<key>IOPCIMatch</key>
<string>0x68e11002 0x67191002 0x67041002</string>

<key>AMDCedarGraphicsAccelerator</key>

<key>IOPCIMatch</key>
<string>0x68E11002</string>

<key>AMDCypressGraphicsAccelerator</key>

<key>IOPCIMatch</key>
<string>0x68e11002 0x68991002</string>

<key>AMDJuniperGraphicsAccelerator</key>

<key>IOPCIMatch</key>
<string>0x68E11002 0x68B01002 0x68B11002 0x68A01002 0x68A11002</string>


<key>AMDLombokGraphicsAccelerator</key>

<key>IOPCIMatch</key>
<string>0x68e11002 0x68411002</string>


<key>AMDRedwoodGraphicsAccelerator</key>

<key>IOPCIMatch</key>
<string>0x68E11002 0x68C01002 0x68C11002 0x68D91002</string>


<key>AMDTurksGraphicsAccelerator</key>

<key>IOPCIMatch</key>
<string>0x68e11002 0x67581002 0x67591002 0x67401002 0x67411002 0x67451002</string>

(ATI5000Controller):

<key>CFBundleIdentifier</key>

<key>IOPCIMatch</key>
<string>0x68E11002 0x68991002 0x68E01002 0x68E11002 0x68D81002 0x68C01002 0x68C11002 0x68D91002 0x68B81002 0x68B01002 0x68B11002 0x68A01002 0x68A11002 </string>

(ATISupport):


key>ATI Support</key>
<dict>
<key>CFBundleIdentifier</key>

<key>IOPCIMatch</key>
<string>0x68e11002&amp;0x0000FFFF</string>

with GraphicsEnabler=Yes Mode, i have Blackscreen after loading screen AppleLOGO

please help my!

i find the error not :wallbash:

no QE/CI

mfg kasi

Attached Files



#8
Thunderbolt

Thunderbolt

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 244 posts
it is SL or ML ?

#9
Kasi99

Kasi99

    InsanelyMac Protégé

  • Members
  • PipPip
  • 50 posts
it is ML 10.8

please tell my, which kexts i edit must with my id´s??

i have

chameleon boot plist edit with GraphicsEnabler=Yes and AtiConfig Langur!

result boot loop !

#10
artur-pt

artur-pt

    InsanelyMacaholic

  • Local Moderators
  • 4,669 posts
  • Gender:Male
  • Location:Portugal
  • Interests:TechManiaco
hello

what are u doing ?

u only edit 2 kext

ati5000controller

amdradeonacelerator in this kext u

must find u gpu family

and then insert there u dev id

not in all famiy of ati cards

man use google translator if u don't understand english

good hack

#11
Kasi99

Kasi99

    InsanelyMac Protégé

  • Members
  • PipPip
  • 50 posts
hallo artur-pt

sry for my bad english! :hammer:

as find my gnu family? have ati 5430!

can you my kext edit?

i desperate

#12
artur-pt

artur-pt

    InsanelyMacaholic

  • Local Moderators
  • 4,669 posts
  • Gender:Male
  • Location:Portugal
  • Interests:TechManiaco
hi

u family card is Cedar

like mine

good hack

#13
Kasi99

Kasi99

    InsanelyMac Protégé

  • Members
  • PipPip
  • 50 posts
i have only edit

ati5000controller &

amdradeonacelerator info plist in gpu family cedar!


i have bootloader

Chameleon-2.1svn-r2059 and edit

chameleon boot plist: GraphicsEnabler=YES AtiConfig

Langur!



result blackscreen after loading apple logo!

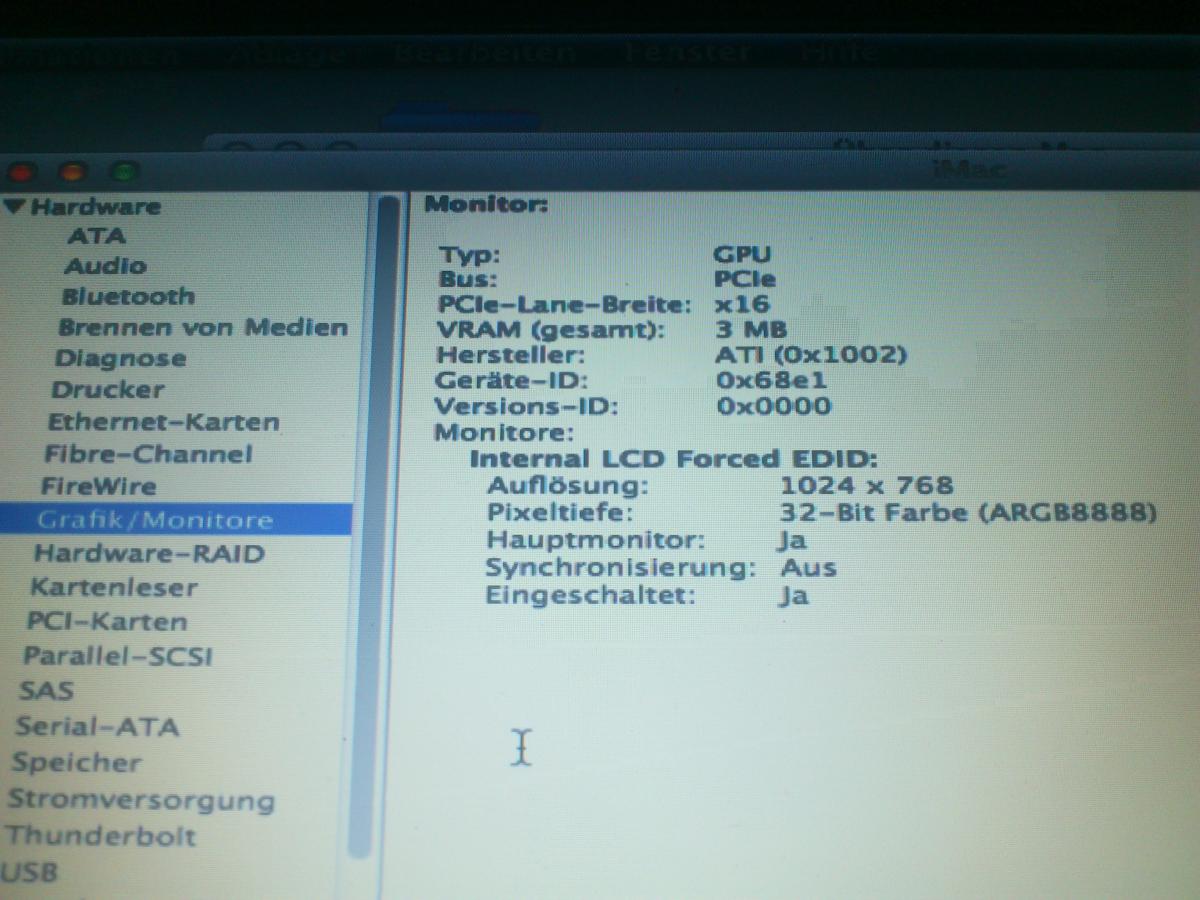

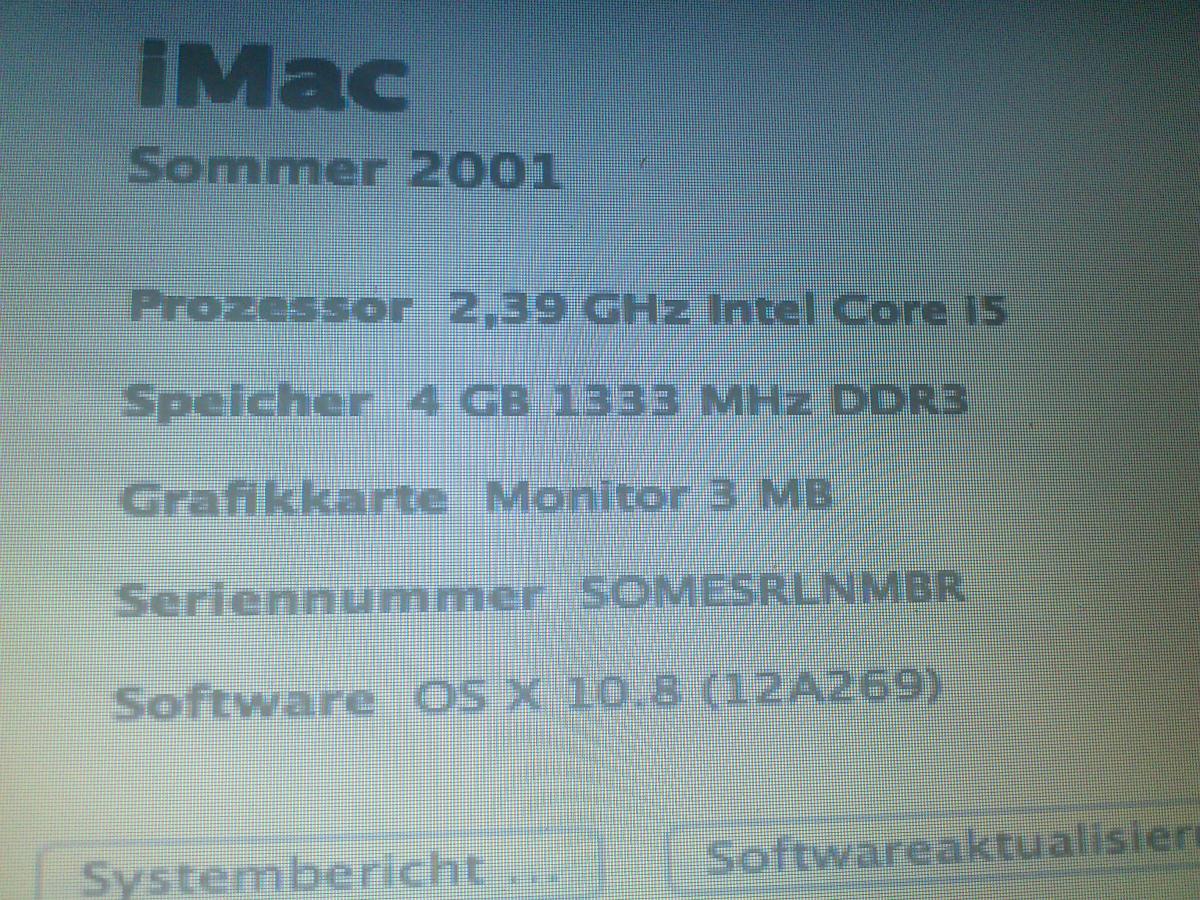

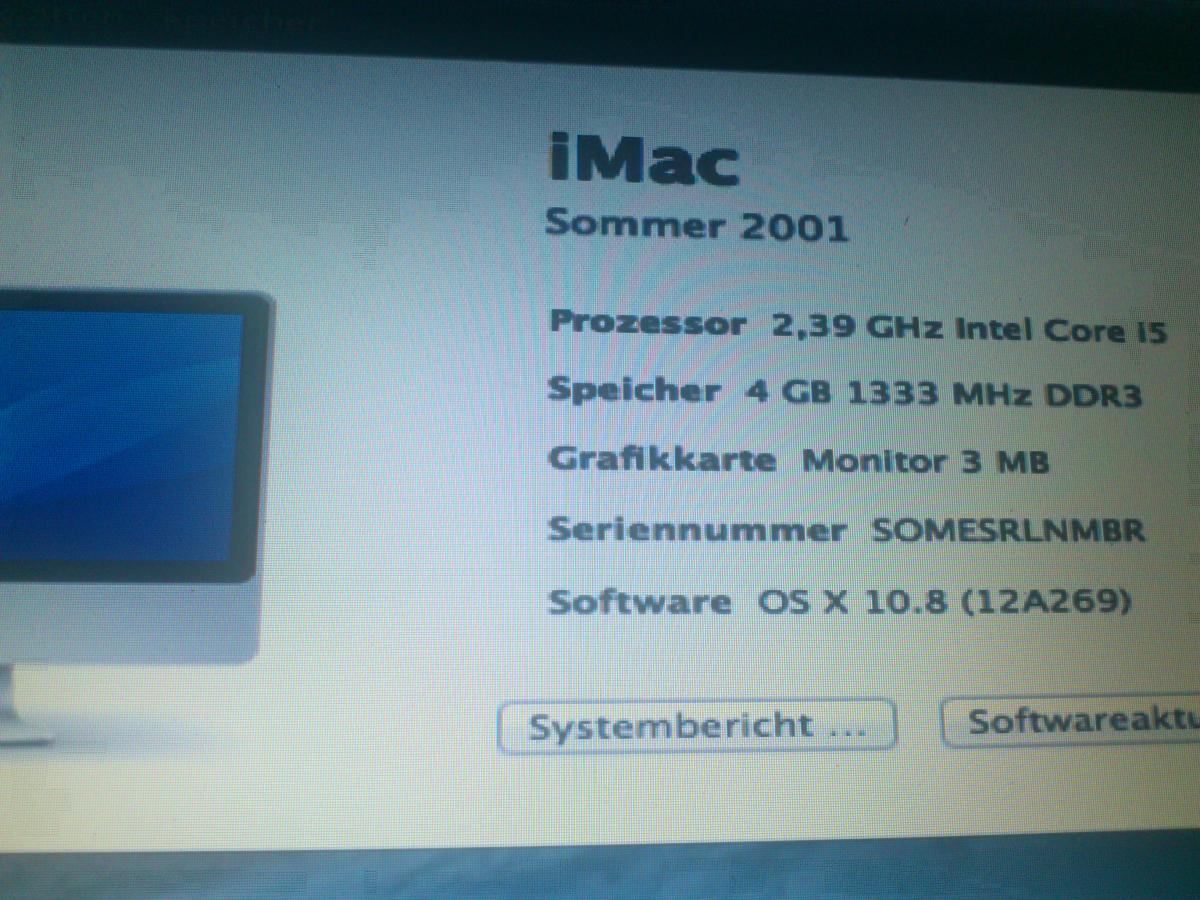

grafikcard 3mb look screen


no QE/CI no transparent bar

Attached Files



#14
Thunderbolt

Thunderbolt

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 244 posts
It could be that the kext is not loading, check in system profiler / Graphics it will show you "no kext loaded" that is only if its not loading. Keep GraphicsEnabler=No and try PCIRootUID=1 . Also please check Hardaware Compatibility List for ML at osx86project.org.

#15
RobertX

RobertX

    Yosemite Sam

  • Members
  • PipPipPipPipPipPipPip
  • 567 posts
  • Gender:Not Telling
...the "AtiConfig=Langur" could be your problem...most likely your default framebuffer would be Eulemur, if you use GraphicsEnabler=Yes
...and remember to repair permissions after doing any info.plist editing.... :smoke:

#16
Kasi99

Kasi99

    InsanelyMac Protégé

  • Members
  • PipPip
  • 50 posts
hello,

i have it still managed :help:
booting with GraphicsEnabler Yes only PCI Root 1!

i have edit

ati5000controller &

amdradeonacelerator my id 0x68E11002 gpu family Cedar!



my boot flags in the plist:



<key>AtiConfig</key>
<string>Eulemur</string>
<key>GraphicsEnabler</key>
<string>Yes</string>
<key>PciRoot</key>
<string>1</string>
<key>RestartFix</key>
<string>No</string>
<key>UseAtiROM</key>
<string>Yes</string>
</dict>

terminal kextstat:


Index Refs Address Size Wired Name (Version) <Linked Against>
1 63 0xffffff8066c58000 0x686c 0x686c com.apple.kpi.bsd (12.0.0)
2 6 0xffffff8009d0c800 0x46c 0x46c com.apple.kpi.dsep (12.0.0)
3 78 0xffffff8066c5f000 0x1b7bc 0x1b7bc com.apple.kpi.iokit (12.0.0)
4 83 0xffffff8066c7b000 0x99f8 0x99f8 com.apple.kpi.libkern (12.0.0)
5 73 0xffffff8009d1b000 0x88c 0x88c com.apple.kpi.mach (12.0.0)
6 34 0xffffff8066c85000 0x5008 0x5008 com.apple.kpi.private (12.0.0)
7 53 0xffffff8066c4c000 0x2264 0x2264 com.apple.kpi.unsupported (12.0.0)
8 0 0xffffff7f8073e000 0x41000 0x41000 com.apple.kec.corecrypto (1.0) <7 6 5 4 3 1>
9 19 0xffffff7f8077f000 0x7000 0x7000 com.apple.iokit.IOACPIFamily (1.4) <7 6 4 3>
10 20 0xffffff7f80786000 0x1e000 0x1e000 com.apple.iokit.IOPCIFamily (2.7) <7 6 5 4 3>
11 2 0xffffff7f807a4000 0x57000 0x57000 com.apple.driver.AppleACPIPlatform (1.6) <10 9 7 6 5 4 3 1>
12 0 0xffffff7f807fb000 0x29000 0x29000 com.apple.driver.AppleIntelCPUPowerManagement (196.0.0) <7 6 5 4 3 1>
13 1 0xffffff7f80825000 0xc000 0xc000 com.apple.driver.AppleKeyStore (28.18) <7 6 5 4 3 1>
14 10 0xffffff7f80831000 0x25000 0x25000 com.apple.iokit.IOStorageFamily (1.8) <7 6 5 4 3 1>
15 0 0xffffff7f80856000 0x18000 0x18000 com.apple.driver.DiskImages (344) <14 7 6 5 4 3 1>
16 0 0xffffff7f8086e000 0x8000 0x8000 com.apple.nke.applicationfirewall (4.0.39) <7 6 5 4 3 1>
17 2 0xffffff7f80878000 0x4000 0x4000 com.apple.kext.AppleMatch (1.0.0d1) <4 1>
18 1 0xffffff7f8087c000 0x11000 0x11000 com.apple.security.sandbox (220) <17 7 6 5 4 3 2 1>
19 0 0xffffff7f8088d000 0x6000 0x6000 com.apple.security.quarantine (2) <18 17 7 6 5 4 2 1>
20 0 0xffffff7f80894000 0x3000 0x3000 com.apple.security.TMSafetyNet (7) <7 6 5 4 2 1>
21 0 0xffffff7f80897000 0x3000 0x3000 com.apple.driver.AppleIntelCPUPowerManagementClient (196.0.0) <7 6 5 4 3 1>
22 0 0xffffff7f8089b000 0x3000 0x3000 com.apple.driver.AppleAPIC (1.6) <4 3>
23 0 0xffffff7f8089f000 0x4000 0x4000 com.apple.driver.AppleSMBIOS (1.9) <7 4 3>
24 3 0xffffff7f808a4000 0x6c000 0x6c000 com.apple.iokit.IOHIDFamily (1.8.0) <13 7 6 5 4 3 2 1>
25 0 0xffffff7f80910000 0x4000 0x4000 com.apple.driver.AppleACPIButtons (1.6) <24 11 9 7 6 5 4 3 1>
26 7 0xffffff7f80916000 0x55000 0x55000 com.apple.iokit.IOUSBFamily (5.1.6) <10 7 5 4 3 1>
27 0 0xffffff7f8096b000 0x17000 0x17000 com.apple.driver.AppleUSBEHCI (5.1.5) <26 10 7 5 4 3 1>
28 0 0xffffff7f8098a000 0x3000 0x3000 com.yourcompany.driver.AppleACPIPS2Nub (1.0.0d1) <9 7 5 4 3 1>
29 2 0xffffff7f8098f000 0xf000 0xf000 org.voodoo.driver.PS2Controller (1.1.0) <9 7 5 4 3 1>
30 1 0xffffff7f8099e000 0x4000 0x4000 com.apple.driver.AppleEFIRuntime (1.6.1) <7 6 5 4 3>
31 0 0xffffff7f809a2000 0x7000 0x7000 org.netkas.FakeSMC (3.1.0) <9 7 5 4 3>
32 0 0xffffff7f809a9000 0x7000 0x7000 com.apple.driver.AppleEFINVRAM (1.6.1) <30 7 6 5 4 3>
33 0 0xffffff7f809b2000 0x3000 0x3000 com.apple.iokit.IOUSBUserClient (5.0.0) <26 7 5 4 3 1>
34 0 0xffffff7f809b5000 0x14000 0x14000 com.apple.driver.AppleUSBHub (5.1.6) <26 5 4 3 1>
35 3 0xffffff7f809cd000 0x15000 0x15000 com.apple.iokit.IOAHCIFamily (2.2.0) <5 4 3 1>
36 0 0xffffff7f809e2000 0x19000 0x19000 com.apple.driver.AppleAHCIPort (2.4.0) <35 10 5 4 3 1>
37 2 0xffffff7f80a02000 0x3000 0x3000 com.apple.iokit.IOSMBusFamily (1.1) <5 4 3>
38 0 0xffffff7f80a05000 0x7000 0x7000 com.apple.driver.AppleACPIEC (1.6) <37 11 9 5 4 3>
39 0 0xffffff7f80a0e000 0x3000 0x3000 com.apple.driver.AppleHPET (1.7) <9 7 5 4 3>
40 0 0xffffff7f80a12000 0x8000 0x8000 com.apple.driver.AppleRTC (1.5) <9 5 4 3 1>
41 0 0xffffff7f80a1c000 0x3000 0x3000 org.voodoo.driver.PS2Keyboard (1.1.0) <29 24 7 6 5 4 3 1>
42 0 0xffffff7f80a21000 0x3000 0x3000 org.voodoo.driver.PS2Mouse (1.2.0) <29 24 7 6 5 4 3 1>
44 0 0xffffff7f80984000 0x3000 0x3000 com.apple.AppleFSCompression.AppleFSCompressionTypeDataless (1.0.0d1) <7 6 4 3 2 1>
45 0 0xffffff7f809fb000 0x4000 0x4000 com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0d1) <6 4 3 2 1>
46 0 0xffffff7f80a24000 0x9000 0x9000 com.apple.BootCache (34) <7 6 5 4 3 1>
47 3 0xffffff7f80a2d000 0x2b000 0x2b000 com.apple.iokit.IONetworkingFamily (3.0) <7 6 5 4 3 1>
48 1 0xffffff7f80a58000 0x6000 0x6000 com.apple.driver.AppleUSBComposite (5.0.0) <26 4 3 1>
49 0 0xffffff7f80a5e000 0x5000 0x5000 com.apple.driver.AppleUSBMergeNub (5.1.5) <48 26 4 3 1>
50 0 0xffffff7f80a63000 0x16000 0x16000 com.apple.iokit.IOAHCIBlockStorage (2.2.0) <35 14 6 5 4 3 1>
51 5 0xffffff7f80a79000 0x2a000 0x2a000 com.apple.iokit.IOSCSIArchitectureModelFamily (3.5.1) <5 4 3 1>
52 0 0xffffff7f80aa3000 0xc000 0xc000 com.apple.iokit.IOAHCISerialATAPI (2.5.0) <51 35 5 4 3 1>
53 0 0xffffff7f809c9000 0x3000 0x3000 com.apple.driver.XsanFilter (404) <14 5 4 3 1>
54 0 0xffffff7f80aaf000 0x11000 0x11000 com.apple.iokit.IOUSBMassStorageClass (3.5.0) <51 26 14 5 4 3 1>
55 3 0xffffff7f80ac0000 0xd000 0xd000 com.apple.iokit.IOCDStorageFamily (1.7.1) <14 5 4 3 1>
56 2 0xffffff7f80acd000 0xb000 0xb000 com.apple.iokit.IODVDStorageFamily (1.7.1) <55 14 5 4 3 1>
57 1 0xffffff7f80ad8000 0xa000 0xa000 com.apple.iokit.IOBDStorageFamily (1.7) <56 55 14 5 4 3 1>
58 0 0xffffff7f80ae2000 0x1a000 0x1a000 com.apple.iokit.IOSCSIMultimediaCommandsDevice (3.5.1) <57 56 55 51 14 5 4 3 1>
59 0 0xffffff7f80afc000 0x7000 0x7000 com.apple.iokit.SCSITaskUserClient (3.5.1) <51 14 5 4 3 1>
60 0 0xffffff7f80b03000 0x15000 0x15000 com.apple.iokit.IOSCSIBlockCommandsDevice (3.5.1) <51 14 5 4 3 1>
61 10 0xffffff7f80b18000 0x37000 0x37000 com.apple.iokit.IOGraphicsFamily (2.3.4) <10 7 5 4 3>
62 1 0xffffff7f80b4f000 0x1d8000 0x1d8000 com.apple.kext.AMDSupport (8.0.0) <61 10 9 7 5 4 3 1>
63 0 0xffffff7f80d27000 0x41000 0x41000 com.apple.kext.AMD5000Controller (8.0.0) <62 61 10 9 5 4 3 1>
64 4 0xffffff7f80d68000 0x8000 0x8000 com.apple.driver.IOPlatformPluginFamily (5.2.0d16) <9 7 6 5 4 3>
65 0 0xffffff7f80d70000 0x3000 0x3000 com.apple.driver.AppleLPC (1.6.0) <64 10 5 4 3>
67 1 0xffffff7f80d73000 0x12000 0x12000 com.apple.driver.IOPlatformPluginLegacy (1.0.0) <64 9 7 6 5 4 3>
68 2 0xffffff7f80d85000 0xc000 0xc000 com.apple.driver.AppleSMC (3.1.3d11) <9 7 5 4 3>
69 0 0xffffff7f80d91000 0x10000 0x10000 com.apple.driver.ACPI_SMC_PlatformPlugin (1.0.0) <68 67 64 10 9 7 6 5 4 3>
70 1 0xffffff7f80da1000 0x2d000 0x2d000 com.apple.iokit.IO80211Family (312) <47 7 5 4 3 1>
71 0 0xffffff7f80dce000 0xcc000 0xcc000 com.apple.driver.AirPort.Atheros21 (424.14.5) <70 47 10 7 5 4 3 1>
72 4 0xffffff7f80e9a000 0x12000 0x12000 com.apple.iokit.IONDRVSupport (2.3.4) <61 10 7 5 4 3>
73 1 0xffffff7f809ff000 0x3000 0x3000 com.apple.driver.AppleGraphicsControl (3.2.6) <72 61 10 9 7 5 4 3 1>
74 0 0xffffff7f80eac000 0xc000 0xc000 com.apple.driver.ApplePolicyControl (3.2.6) <73 72 61 10 9 7 5 4 3 1>
75 1 0xffffff7f80eb8000 0xc000 0xc000 com.apple.iokit.IOHDAFamily (2.3.0f2) <5 4 3 1>
76 0 0xffffff7f80ec4000 0x14000 0x14000 com.apple.driver.AppleHDAController (2.3.0f2) <75 61 10 6 5 4 3 1>
77 0 0xffffff7f80ed8000 0x3000 0x3000 com.apple.driver.AppleSMCPDRC (1.0.0) <64 10 6 4 3>
78 0 0xffffff7f80edb000 0x5000 0x5000 com.apple.Dont_Steal_Mac_OS_X (7.0.0) <68 7 4 3 1>
79 0 0xffffff7f80ee0000 0x7000 0x7000 com.apple.kext.OSvKernDSPLib (1.6) <5 4>
83 1 0xffffff7f81046000 0x47000 0x47000 com.apple.iokit.IOAcceleratorFamily (19.0.26) <72 61 10 7 5 4 3 1>
84 0 0xffffff7f8108d000 0x3cd000 0x3cd000 com.apple.AMDRadeonAccelerator (1.0.0) <83 72 61 10 7 5 4 3 1>
86 0 0xffffff7f81463000 0x9b000 0x9b000 com.apple.iokit.IOBluetoothFamily (4.0.9f8) <26 7 5 4 3 1>
88 1 0xffffff7f81500000 0xe000 0xe000 com.apple.driver.AppleSMBusController (1.0.10d0) <37 10 9 5 4 3>
89 0 0xffffff7f8150e000 0xc000 0xc000 com.apple.driver.AppleMCCSControl (1.0.33) <88 61 10 9 7 5 4 3 1>
90 1 0xffffff7f8151a000 0xe000 0xe000 com.apple.iokit.IOSerialFamily (10.0.6) <7 6 5 4 3 1>
91 0 0xffffff7f81528000 0xa000 0xa000 com.apple.iokit.IOBluetoothSerialManager (4.0.9f8) <90 7 5 4 3 1>
92 0 0xffffff7f81532000 0x5000 0x5000 com.apple.driver.AppleUpstreamUserClient (3.5.10) <61 10 9 7 5 4 3 1>
93 0 0xffffff7f81537000 0x11000 0x11000 com.apple.iokit.IOSurface (86.0.2) <7 5 4 3 1>
94 0 0xffffff7f81548000 0x7000 0x7000 com.apple.iokit.IOUserEthernet (1.0.0d1) <47 6 5 4 3 1>
95 3 0xffffff7f8154f000 0x56000 0x56000 com.apple.filesystems.ntfs (3.10) <7 6 5 4 1>
96 1 0xffffff7f815a5000 0x5000 0x5000 com.apple.kext.triggers (1.0) <7 6 5 4 3 1>
97 0 0xffffff7f815aa000 0x9000 0x9000 com.apple.filesystems.autofs (3.0) <96 7 6 5 4 3 1>

result: no Qe/CI no Transparent bar!

look screen!

i com not more :hammer: :wallbash: :wallbash:

Attached Files



#17
meknb

meknb

    InsanelyMac Protégé

  • Members
  • PipPip
  • 60 posts

I have the same card in my laptop and just installed mountain lion and use Hoolock as my frame buffer the same as i used in lion but no QE/Ci in mountain lion but shows up as 5400 series 5. I guess it's the AMDFramebuffer i edit not ATIFramebuffer

As

com.apple.kext.AMD5000Controller

com.apple.kext.AMDSupport

com.apple.kext.AMDFramebuffer

are loaded there are no ATI kexts loaded.



#18
Kasi99

Kasi99

    InsanelyMac Protégé

  • Members
  • PipPip
  • 50 posts
hello meknb!

sry my english is bad!

shall i edit

ATIFramebuffer my id? who?



more ideas?

mfg Kasi

#19
meknb

meknb

    InsanelyMac Protégé

  • Members
  • PipPip
  • 60 posts
Just edit AMDRadeonAccelerator.kext go down to the cedar setting change the iopcimatch

<key>IOPCIMatch</key>
<string>0x68E01002</string>
To

<key>IOPCIMatch</key>
<string>0x68E11002</string>
Then repair permissions then reboot then full QE/CI
I'm using Hoolock for my Framebuffer.

Attached Files



#20
Kasi99

Kasi99

    InsanelyMac Protégé

  • Members
  • PipPip
  • 50 posts
good morning meknb!

what kext have you? apple stock kext edit? or on osx86?

have you SL or ML?

what graphicChip have you ati 5430?

thank you!

mfg kasi





0 user(s) are reading this topic

0 members, 0 guests, 0 anonymous users

© 2014 InsanelyMac  |   News  |   Forum  |   Downloads  |   OSx86 Wiki  |   Mac Netbook  |   PHP hosting by CatN  |   Designed by Ed Gain  |   Logo by irfan  |   Privacy Policy
