ATi HD5770 10.8.1 Triple Screen Issues


  • Please log in to reply
6 replies to this topic

#1
Juggernaut1987

Juggernaut1987

    InsanelyMac Protégé

  • Members
  • Pip
  • 10 posts
  • Gender:Male
Dear forum users,

I'm having issues getting my three screens to work under my new Mountain Lion installation. I have a Sapphire HD5770 Crossfire setup.
My screens are connected using DVI, HDMI and a certified active DP->DVI adapter to the first HD5770 card.

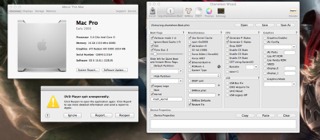

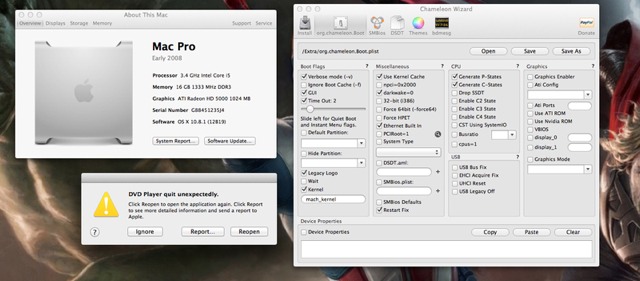

Booting with GraphicsEnabler=No gives me three screens but no QI/CE
Attached File  ImageUploadedByTapatalk1346098201.544163.jpg   53.07KB   97 downloads

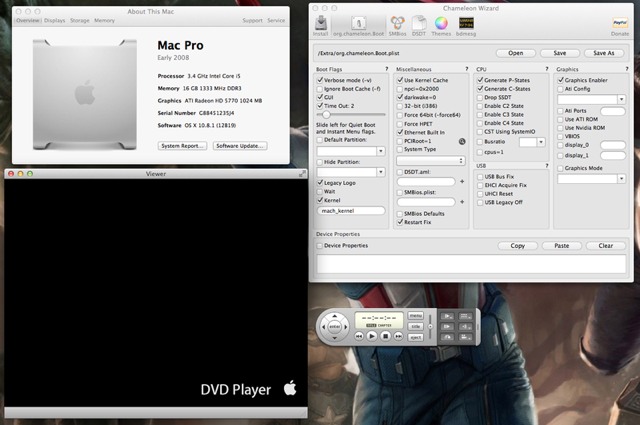

Booting with GraphicsEnabler=Yes gives me only 2 screens, the HDMI screen goes idle but the DVD app works.
Attached File  ImageUploadedByTapatalk1346098300.422307.jpg   62.49KB   98 downloads

How do I get QE/CI working while having three screens? Now I have three screens or QE/CI. Both is the goal.

Thanks for the help!

Attached Files



#2
Juggernaut1987

Juggernaut1987

    InsanelyMac Protégé

  • Members
  • Pip
  • 10 posts
  • Gender:Male
I've tried connecting my screens with DVI, DVI and DP->DVI already.

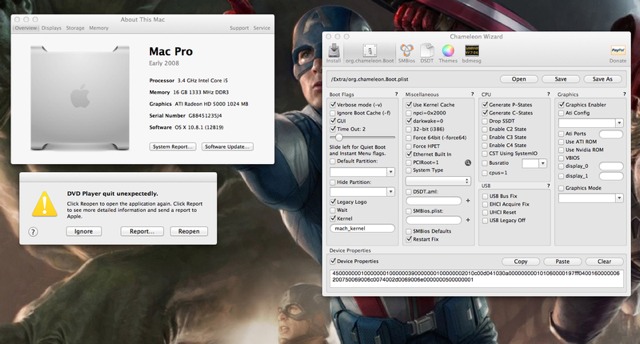

Also tried adding a device properties string in the chameleon boot plist like this using the hex string from my network card.Attached File  ImageUploadedByTapatalk1346141430.137191.jpg   64.71KB   23 downloads

Didnt work either. In verbose mode I can see that I'm using the Vervet frame buffer.

#3
Ryan Rhee

Ryan Rhee

    InsanelyMac Protégé

  • Members
  • Pip
  • 49 posts
5870 eyefinity 6 here, with 3x mini-DP monitors (apple 24 LEDs).

Same issue -- with 10.7.x, all 3 displays worked with QE/CI using GraphicsEnabler=yes. Now, only 2 work. I'm about to try with GE=no to see if it at least makes all 3 monitors work...

FWIW, IORegistryExplorer shows that the framebuffer personality has loaded correctly when using GE=yes. (In my case, it's Zonalis.)

Booting with GE=no is weird. The system thinks it recognizes all 3 monitors, but in reality, only two of the three screens actually show an image. I've tried changing the ports, and it always leads the the same result. :(

#4
Juggernaut1987

Juggernaut1987

    InsanelyMac Protégé

  • Members
  • Pip
  • 10 posts
  • Gender:Male
I fixed mine, maybe this helps for you too.

I reconnected 1 screen at a time with reboots in between now using DVI,DVI and DP->DVI. GE=Yes with AtiConfig=Vervet gives me 3 screens now. 10.7 required the hdmi port, 10.8 thinks 2x DVI is the way to go.

Maybe in your case try using different DP sockets and fiddle until you find the right combination. It wasn't the framebuffer or GE, it's the ports used to connect the screens in my case.

#5
Ryan Rhee

Ryan Rhee

    InsanelyMac Protégé

  • Members
  • Pip
  • 49 posts
Thanks, will try different port combinations.

When you only had 2 screens working, did "System Information" recognize 2 monitors or 3?

#6
Ryan Rhee

Ryan Rhee

    InsanelyMac Protégé

  • Members
  • Pip
  • 49 posts
Another question: in your sys profiler, in the "PCI Cards" section, do you see your card listed? b/c I don't. :(

this post seems to say that it should show up if initialized properly.

#7
Rampage Dev

Rampage Dev

    InsanelyMac Deity

  • Local Moderators
  • 1,995 posts
  • Gender:Male
You need to inject your GPU into your DSDT to get it to work. Read my guide here:

http://rampagedev.wo...to-a-dsdt-36-2/

Another question: in your sys profiler, in the "PCI Cards" section, do you see your card listed? b/c I don't. :(

this post seems to say that it should show up if initialized properly.


Not true. That is cosmetic and I hate people who post false information. For nvidia injection read my guide here:

http://rampagedev.wo...rd-into-a-dsdt/
