Need patched Intel GMA X3100 Kexts


  • Please log in to reply
20 replies to this topic

#1
tpho2500

tpho2500

    InsanelyMac Protégé

  • Members
  • Pip
  • 28 posts
  • Gender:Male
The kexts in "X3100 Backup" are the original kexts that HAVE QE/CI WITH the "MOUSE LAG" bug.

The kexts in "x3100_x86_64" are Snow Leopard 10.6.2 kexts that DON'T HAVE QE/CI WITHOUT the "MOUSE LAG".

I need QE/CI WITHOUT mouse lag.

I'm running Lion 10.7.4.

System Profiler:

Chipset Model: GMA X3100
Type: GPU
Bus: Built-In
VRAM (Total): 144 MB
Vendor: Intel (0x8086)
Device ID: 0x2a02
Revision ID: 0x000c

The kexts I've found online for Lion are for "Revision 3" and they do not work without "Revision C".

Attached Files



#2
HUSABER

HUSABER

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 876 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:HusabergFC-600 FourStroke,KTM500 TwoStroke,TM300 TwoStroke
    Free Time-My Hackintosh&Ap...
Hi i have patched 3100 but this work only in 32bit.. :wink2: 64bit dont work with QE/CE

#3
tpho2500

tpho2500

    InsanelyMac Protégé

  • Members
  • Pip
  • 28 posts
  • Gender:Male

Hi i have patched 3100 but this work only in 32bit.. :wink2: 64bit dont work with QE/CE


Can you post them? And are they for 0x2a02 Rev. 0x000c?

#4
HUSABER

HUSABER

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 876 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:HusabergFC-600 FourStroke,KTM500 TwoStroke,TM300 TwoStroke
    Free Time-My Hackintosh&Ap...
Recommended 32Bit in 64bit dont work...... :thumbsup_anim:

Attached Files



#5
tpho2500

tpho2500

    InsanelyMac Protégé

  • Members
  • Pip
  • 28 posts
  • Gender:Male

Recommended 32Bit in 64bit dont work...... :thumbsup_anim:


Can you upload all of them?

AppleIntelGMAX3100.kext

AppleIntelGMAX3100FB.kext

AppleIntelGMAX3100GA.plugin

AppleIntelGMAX3100GLDriver.bundle

AppleIntelGMAX3100VADriver.bundle
AppleIntegratedFrameBuffer.kext

Thanks!

#6
HUSABER

HUSABER

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 876 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:HusabergFC-600 FourStroke,KTM500 TwoStroke,TM300 TwoStroke
    Free Time-My Hackintosh&Ap...
Why?Yo need only this 2
Or you reinstall all your system kext for GMAx3100?and need all?

Attached Files



#7
tpho2500

tpho2500

    InsanelyMac Protégé

  • Members
  • Pip
  • 28 posts
  • Gender:Male

Why?Yo need only this 2
Or you reinstall all your system kext for GMAx3100?and need all?


Those two you uploaded have different "Info.plist ID's". I don't think you can mix and match. I'll try the pack. Will report back in a minute.

#8
HUSABER

HUSABER

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 876 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:HusabergFC-600 FourStroke,KTM500 TwoStroke,TM300 TwoStroke
    Free Time-My Hackintosh&Ap...
This is the same from my extensions from last 30 min,see screen shot,i dont take never mishmash on my laptop :thumbsup_anim: but maybe you take....

#9
tpho2500

tpho2500

    InsanelyMac Protégé

  • Members
  • Pip
  • 28 posts
  • Gender:Male

This is the same from my extensions,see screen shot,i dont take never mishmash on my laptop :thumbsup_anim: but maybe you take....


Works 100% with QE/CI and NO MOUSE LAG. :D!

Thank you so much man! :thumbsup_anim:

#10
HUSABER

HUSABER

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 876 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:HusabergFC-600 FourStroke,KTM500 TwoStroke,TM300 TwoStroke
    Free Time-My Hackintosh&Ap...
Husaber never use mishmash..on mashine :wink2:

#11
Biso007

Biso007

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 183 posts
  • Gender:Male
  • Location:Cairo, EG
I use a patched X3100FB kext for my X4500MHD GPU and I have never got QE/CI to work on SL or ML in either 32 or 64 bit

Does that tell that the QE/CI code is built specifically for X3100 (2a02) and can't work for another chip (2a42) ?

#12
HUSABER

HUSABER

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 876 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:HusabergFC-600 FourStroke,KTM500 TwoStroke,TM300 TwoStroke
    Free Time-My Hackintosh&Ap...
Need to change id and ven in info.plist inside in kext
X3100FB-im no shuar to work with X4500MHD GPU :worried_anim:

#13
Biso007

Biso007

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 183 posts
  • Gender:Male
  • Location:Cairo, EG
X3100FB works for X4500MHD by patching not only info.plist but every occurrence of the device ID within the code.

the problem as I see is that the kext you said enable QE/CI is a 32bit and ML doesn't have a 32bit kernel :wallbash:

#14
HUSABER

HUSABER

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 876 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:HusabergFC-600 FourStroke,KTM500 TwoStroke,TM300 TwoStroke
    Free Time-My Hackintosh&Ap...
Search way for 4500 With ML
http://www.osx86.net...videocards.html

#15
mickymick06

mickymick06

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts
Hello sorry for my english I'm french and I need to install a kext for my chipset GMAX3100 I am a newbie in hackintosh
I have downloaded the links above to install the kext in Extra with kextwizard and repair disk permissions I still have no choice in the monitor :wacko:

I'm running OSX 10.8.2
With compacq cq 61 dual core

#16
artur-pt

artur-pt

    InsanelyMacaholic

  • Local Moderators
  • 4,539 posts
  • Gender:Male
  • Location:Portugal
  • Interests:TechManiaco
hello

u vga card only work in 32 bit mode.. ML is 64 bit...never work.

good hack

#17
akha666

akha666

    InsanelyMac Protégé

  • Members
  • Pip
  • 1 posts

Hello

I have the same Laptop Model Compaq CQ61 Cour2Duo (Graphics 4500MHD)

I downloaded   (10.7.4 32bit.X3100 Pack.zip) and installed with Kext wizard with no luck

I have Lion 10.7.4 , try boot with kernel flag arch=i386 GraphicsEnabler=Yes

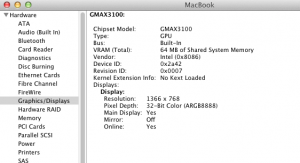

I changed Device ID matches with my Device ID in the screenshot, but there is no QE/CI

can you help me , plz see my screenshot



thanks in advanced

Attached Files



#18
HUSABER

HUSABER

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 876 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:HusabergFC-600 FourStroke,KTM500 TwoStroke,TM300 TwoStroke
    Free Time-My Hackintosh&Ap...

dont't try boot with kernel flag arch=i386,this is wrong..you boot on 64bit mode,right? :hysterical:

only need to add on to your org.chameleon.Boot.plist this one:

       <key>GraphicsEnabler</key>
          <string>Yes</string>

           <key>arch</key>
        <string>i386</string>



#19
Cypher-DR

Cypher-DR

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts
  • Gender:Male
  • Location:USA
  • Interests:Technology

Hello all,



I have tried all of the recommendations and methods in this post to get my GMA X3100 (HP Pavillion DV6000 - Intel) fully working on iATKOS L2 10.7.2 with QE/CI, but encountered the same mouse/video lag that many others have. I was almost ready to go back to using SL until it dawned on me...why not copy the kexts from my 10.6 install to my 10.7? I loaded iATKOS S3 version 2 and extracted the following using "Pacifist":



1) gma.pkg

2) natitintel.pkg

3) x3100.pkg



Note - I used Kext Utility after installing the above packages, the I restarted the PC.



I then copied these items to a USB drive and installed on my 10.7.2 setup, and now have fully (and I mean fully) working GMA X3100 on iATKOS L2. I will try these same pkg's on a retail 10.7 install and post the results. I will also post my Chameleon bootloader settings for reference. If someone needs these files, just PM me and I will send directly as they are all in a ZIP that is less than 1MB in size (easy to share). Keep up the good work gents!



Chameleon Bootloader Flags:

Added boot option: Instant Menu=Yes
Added boot option: arch=i386
Added boot option: EthernetBuiltIn=Yes
Added boot option: Kernel Flags=-f
Added boot option: Graphics Mode=1280x800x32



**I take no credit for any of the files I uploaded as they are sourced from iAtkos S3 V2**



Big thanks to Team Uphuck!

Attached Files



#20
HUSABER

HUSABER

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 876 posts
  • Gender:Male
  • Location:Cyprus
  • Interests:HusabergFC-600 FourStroke,KTM500 TwoStroke,TM300 TwoStroke
    Free Time-My Hackintosh&Ap...



Hello all,



I have tried all of the recommendations and methods in this post to get my GMA X3100 (HP Pavillion DV6000 - Intel) fully working on iATKOS L2 10.7.2 with QE/CI, but encountered the same mouse/video lag that many others have. I was almost ready to go back to using SL until it dawned on me...why not copy the kexts from my 10.6 install to my 10.7? I loaded iATKOS S3 version 2 and extracted the following using "Pacifist":



1) gma.pkg

2) natitintel.pkg

3) x3100.pkg



Note - I used Kext Utility after installing the above packages, the I restarted the PC.



I then copied these items to a USB drive and installed on my 10.7.2 setup, and now have fully (and I mean fully) working GMA X3100 on iATKOS L2. I will try these same pkg's on a retail 10.7 install and post the results. I will also post my Chameleon bootloader settings for reference. If someone needs these files, just PM me and I will send directly as they are all in a ZIP that is less than 1MB in size (easy to share). Keep up the good work gents!



Chameleon Bootloader Flags:

Added boot option: Instant Menu=Yes
Added boot option: arch=i386
Added boot option: EthernetBuiltIn=Yes
Added boot option: Kernel Flags=-f
Added boot option: Graphics Mode=1280x800x32



**I take no credit for any of the files I uploaded as they are sourced from iAtkos S3 V2**



Big thanks to Team Uphuck!



COOL :hysterical:
