6GB/S ASM1061 controller


  • Please log in to reply
4 replies to this topic

#1
ergot

ergot

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 181 posts
Hello,
After buying the controller which using the ASM1061 chip i have installed it on the second PCI-E X16 on my mobo (Asus P6 workstation) and connected the OWC electra 6gb/s SSD the speed was even lower then the onboard 3gb/s chip... Hmmm...anyone have any idea what I am doing wrong here??

#2
Ekstr

Ekstr

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts
Check in the BIOS if the speed of the second PCI-E slot is set to x8 or higher. As on a couple of ASUS motherboards the second and third slots are set to lower speeds (often x1).
When this is set correctly the device will identify itself as an PCI-E V2 device and will say a SATA3 device is connected to it .

#3
ergot

ergot

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 181 posts
HI,

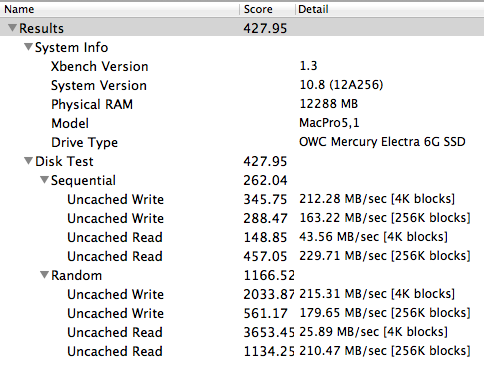

I ran Xbench and you can see the results, are those good results?

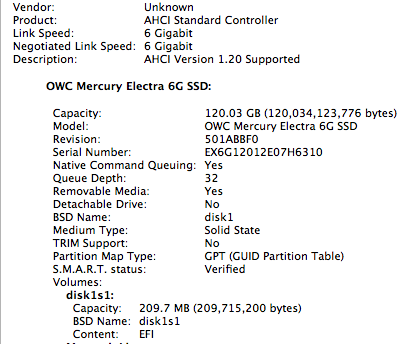

As you can see the controller recognise data 3...

Attached Files



#4
ergot

ergot

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 181 posts
Anyone??

#5
tot318

tot318

    InsanelyMac Protégé

  • Members
  • PipPip
  • 81 posts
that is a good score, here is my xbench score on Intel 330 60GB with ASM1061 PCIe card, yours is better

Posted Image
Posted Image
Posted Image
