Need help with front panel wiring.


  • Please log in to reply
3 replies to this topic

#1
novaris

novaris

    InsanelyMac Protégé

  • Members
  • Pip
  • 24 posts
background story: I have a 2006 mac pro and the case mod is pretty much done except for the front panel cables.

I've not started on the wiring for the 8 wire socket at the top Attached File  macprofrontpanela.jpeg   173.83KB   47 downloads yet as the motherboard switch and led extension wires have not yet arrived.

I;ve started on the front USBs and audio but something seems to be wrong as there it doesn't seem to be working at all. Please point it out to me if i've missed out anything.

8Pin connector
Where do i connect the 12v, 3.3v and 5v pin to?

Sata Wire
I've soldered the wires exactly as described in the picture Attached File  Mac-Pro-USB-Connection.jpg   159.41KB   47 downloads But it doesnt seem to be working. i've tried both usb headers on the motherboard but nothing works.

EDIT: somehow i've connected the central ground wire to 1 of the outer ground wire and the USB extension wire does not have the wire at the lower right side.

Front audio

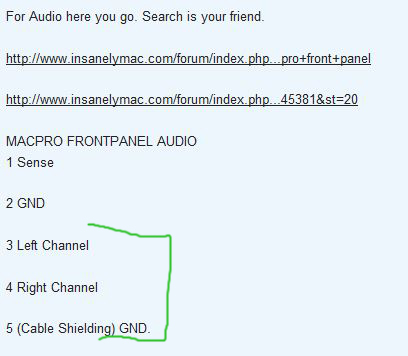

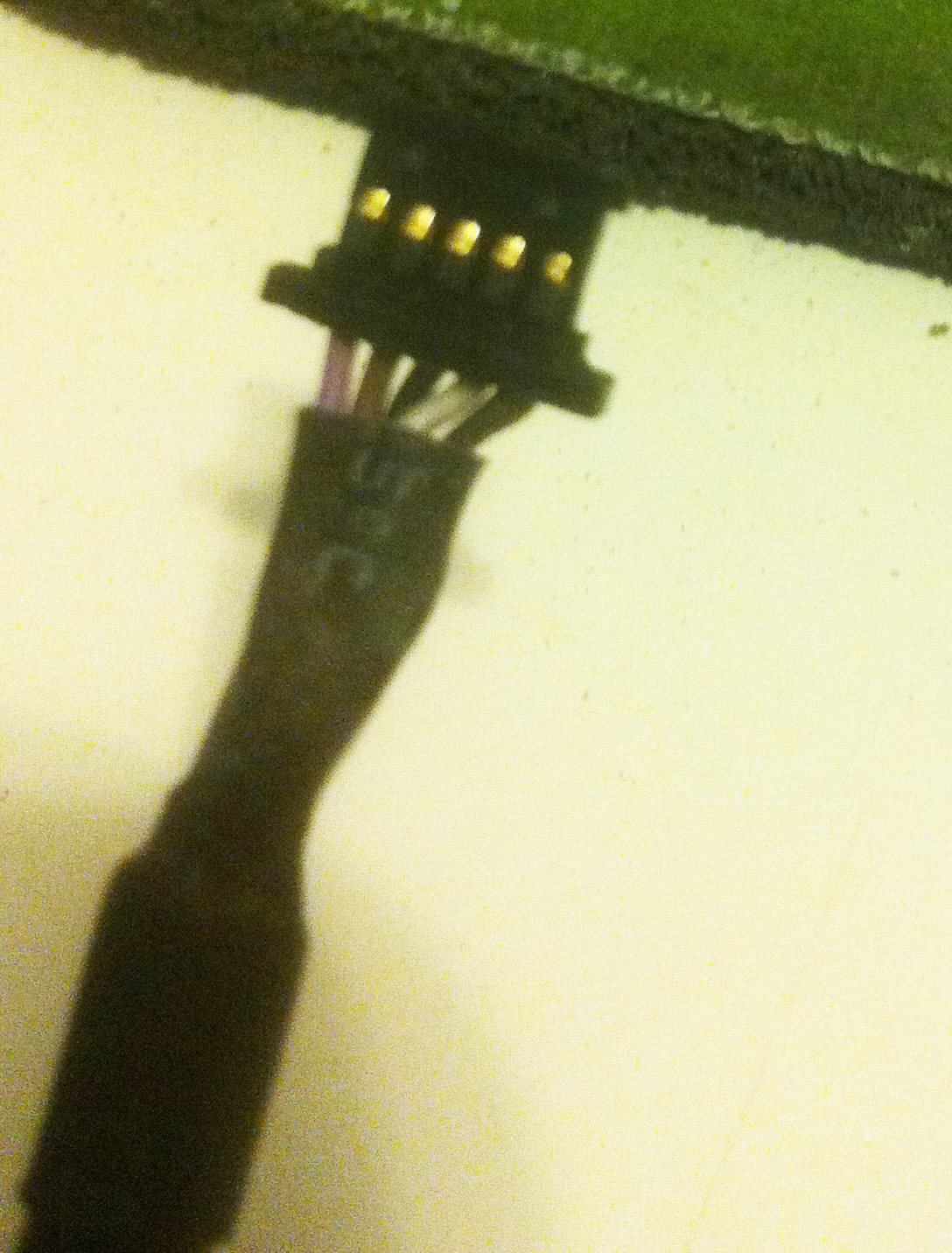

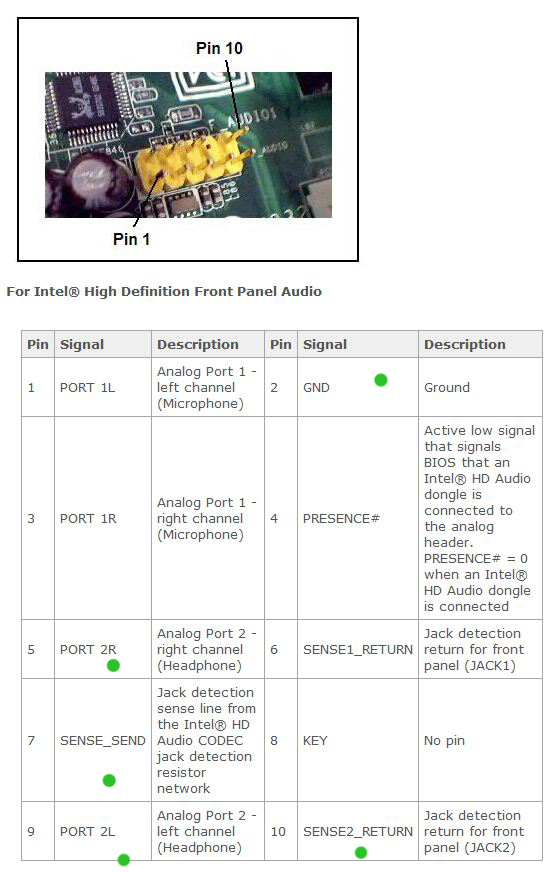

this is where I get quite confused. I followed the guide Attached File  audio pinout.JPG   67.29KB   49 downloads Attached File  PC front audio.JPG   193.51KB   45 downloads and I assume pin number 1 is the leftmost pin in the picture and on the guide. Attached File  IMG_3508.JPG   1.12MB   24 downloads
What i did was I connected wire 3 in the guide to pin number 9 in the front panel audio pinout, wire 4 to pin number 5 and wire 2 to pin number 2.

Can someone help me on this issue? or is anyone selling ready-made adapter cables or something?

thanks

#2
AlohaCab

AlohaCab

    G5 ATX cables. Made in the USA.

  • Members
  • PipPipPipPip
  • 232 posts
  • Gender:Male
  • Location:Northern California
  • Interests:Still serving the hackintosh community with high quality G5 front panel I/O cables. Shipped from...
Novaris, PM me. I make the G5 adapter cables and can ship you one.

AlohaCab

#3
novaris

novaris

    InsanelyMac Protégé

  • Members
  • Pip
  • 24 posts
alohacab, I'm talking about the mac pro not yhr g5..

#4
AlohaCab

AlohaCab

    G5 ATX cables. Made in the USA.

  • Members
  • PipPipPipPip
  • 232 posts
  • Gender:Male
  • Location:Northern California
  • Interests:Still serving the hackintosh community with high quality G5 front panel I/O cables. Shipped from...
Oh yeah. Sorry. I never got very far with that project. I got the board, wires and everything. Just never could find a good SATA connector that I could make up myself. The whole cutting off the end and splicing just didn't appeal to me.

Looking forward to seeing your progress. Maybe after your done you can supply all of us with them! hahaha

AlohaCab
