Hello,

I got inspired with all the G5 mods, now i started designing the rear I/O and i will be making a PCB for it so i can mod my own G5 case.

So far i found all the parts needed except the Optical in and out.

The one that i plan on making will sit on the back facing outside of the case and not mounted sideways on the case screws.

So far the design will include the ethernet, both FW's, 2 USBs and Audio in and Audio out.


Any inputs and suggestions are welcome.

Also if i see lot of interest in the idea, i might consider producing it and sell it to members,

In order to do that i need at least 50 members willing to buy it so it can be made.

Also tell me what will be considered a reasonable price for selling it.

Thanks

#2
nickjf20

nickjf20

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 112 posts
  • Gender:Male
  • Location:Manchester - UK
What do you mean sitting on the back rather than mounted sideways ?

#3
Surferpro

Surferpro

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
  • Gender:Male
the pcb will have the ports inside it and will be facing the ports rather than screwed to the side like the G5 motherboard.

#4
Surferpro

Surferpro

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
  • Gender:Male

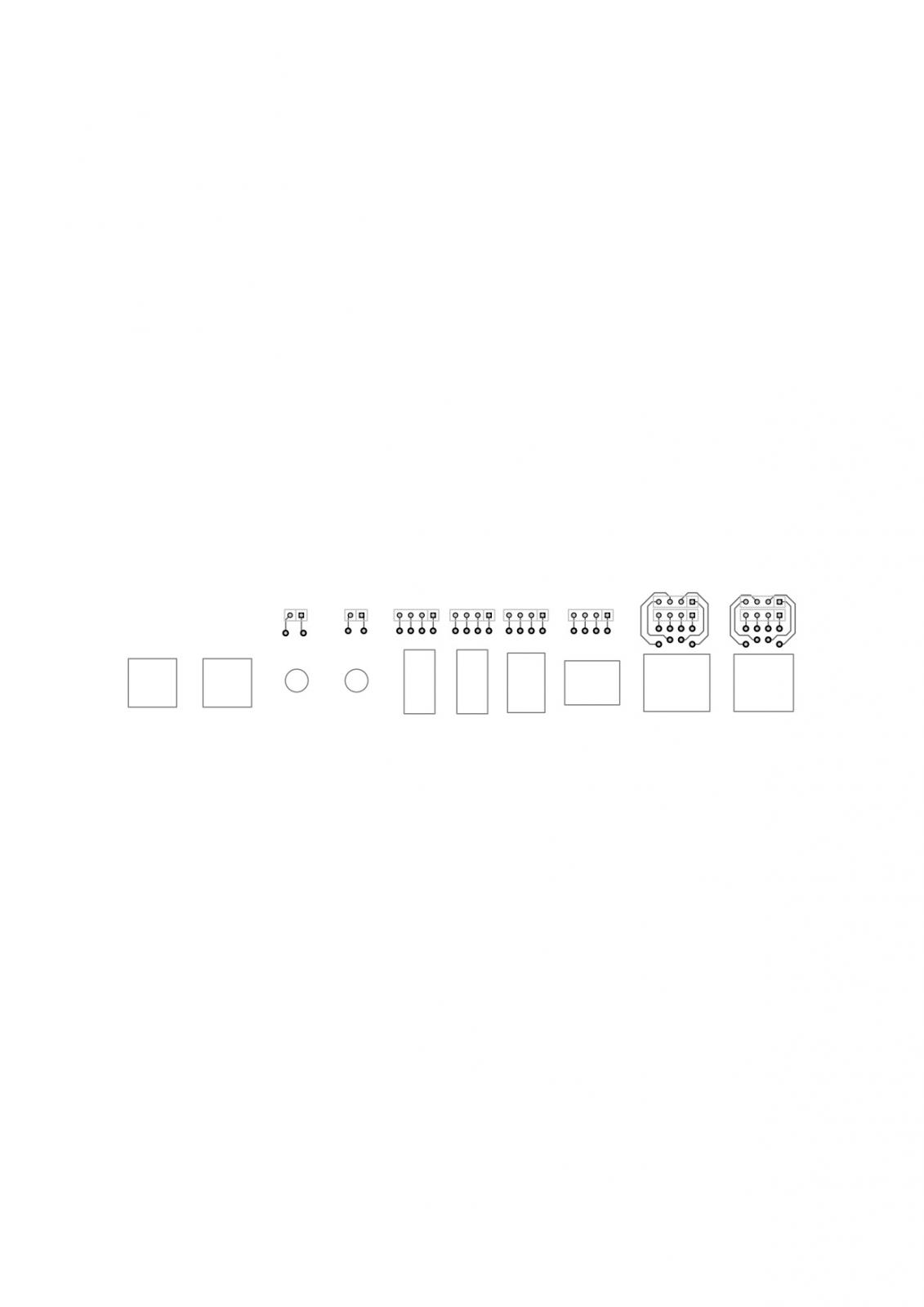

here is the design so far and i am still tweaking it, been busy with work and school

for the toslink, i did not find the ports, so i am thinking to use couplers instead and i will see how it goes, if anyone knows where i can get toslink ports that will be great and helpful.

Attached Files



#5
Surferpro

Surferpro

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
  • Gender:Male
i have been busy a lot lately but i made the first sample.
Posted Image
Posted Image
Posted Image
Posted Image

#6
CaptHowie

CaptHowie

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
  • Gender:Male
  • Location:Melbourne, Australia
Depending on the cost, I'll put down for one as well. Looking great! :)

#7
Surferpro

Surferpro

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
  • Gender:Male
i will have to figure all the cost and time and then i will give you guys a price.
I am still looking for the toslinks, i didn't find them anywhere.

#8
nickjf20

nickjf20

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 112 posts
  • Gender:Male
  • Location:Manchester - UK
Definitely interested :angel_not:

#9
JamesLittler

JamesLittler

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,022 posts
  • Gender:Male
  • Location:Portsmouth, England
If this could be made to accommodate the space that occurs between a standard m-ATX/ATX rear panel and the rear panel of the G5 case when a PCI card is mounted in the standard Apple PCI slot then it would enable a G5 m-ATX/ATX mod with NO external cuts at all!

If this is the case, I'll take quite a few off your hands if the price is right.

#10
Surferpro

Surferpro

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
  • Gender:Male

If this could be made to accommodate the space that occurs between a standard m-ATX/ATX rear panel and the rear panel of the G5 case when a PCI card is mounted in the standard Apple PCI slot then it would enable a G5 m-ATX/ATX mod with NO external cuts at all!

If this is the case, I'll take quite a few off your hands if the price is right.


As you can see from the photo, i planned it so it can be screwed to the back of the case and not be blocking anything while mounting the motherboard, i saw from other designs that it was a problem when placing the motherboard and attaching the pcb.

Once i get everything setup i will install it and take more pictures.

#11
JamesLittler

JamesLittler

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,022 posts
  • Gender:Male
  • Location:Portsmouth, England
Nice, I'm currently making G5's to order so if there's anything I can help with in any way please don't hesitate to contact me. Im on here pretty much every day.

Just an idea:
Rather than screwing into the back of the case, you can get a tape (in the UK at least) called 'No More Nails - Instant Grab Tape'.
A 1m roll holds up to 50kg (I've had many conversations with the Mrs about sticking her to the ceiling with it)
This would give a very strong, electrically insulating and invisible bond between the PCB and the interior of the case.

#12
Surferpro

Surferpro

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
  • Gender:Male

Nice, I'm currently making G5's to order so if there's anything I can help with in any way please don't hesitate to contact me. Im on here pretty much every day.

Just an idea:
Rather than screwing into the back of the case, you can get a tape (in the UK at least) called 'No More Nails - Instant Grab Tape'.
A 1m roll holds up to 50kg (I've had many conversations with the Mrs about sticking her to the ceiling with it)
This would give a very strong, electrically insulating and invisible bond between the PCB and the interior of the case.


i thought about taping and i will test it to see if it holds well.

#13
JamesLittler

JamesLittler

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,022 posts
  • Gender:Male
  • Location:Portsmouth, England
If you need a lenth of tape, let me know and I'll post you some

#14
c-fuzz

c-fuzz

    InsanelyMac Protégé

  • Members
  • Pip
  • 6 posts
Great thing, please put me down for two of them :-)
Br/Fuzz

#15
Linux_Inside V2

Linux_Inside V2

    InsanelyMac Protégé

  • Members
  • Pip
  • 10 posts
How much to order enough so that your minimum order of 50 is met? because this is exactly what I need for mine :)

#16
big_mac

big_mac

    InsanelyMac Protégé

  • Members
  • Pip
  • 2 posts
I would love to take one as well. Give us an update please :)

#17
Ksearch

Ksearch

    InsanelyMac Protégé

  • Members
  • Pip
  • 3 posts
Also interested in one of those!

#18
neil43

neil43

    Grey Beard

  • Members
  • PipPipPipPip
  • 215 posts
  • Gender:Male
  • Location:Fremont, California, USA
If you are going through with a volume purchase, I would be interested in several depending upon the unit cost. Please consider posting the estimated unit cost for the fab board.

neil

#19
Surferpro

Surferpro

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
  • Gender:Male
i am having a problem so far, the guy who designed and made the sample for me is in Europe and he shipped but i haven't received it and added the rest of the parts to it, i will be adding the USB and Firewire headers and give it some testing and make sure everything will work fine.

i asked if we can place an order of 50 units and i am waiting for an answer for the cost, and i will have to add the cost of ports from mousers.com

#20
Stork

Stork

    InsanelyMac Protégé

  • Members
  • Pip
  • 6 posts
  • Gender:Male
I, too, would be interested in one or two units, depending upon the cost.
