{Guide} DELL INSPIRON N5110

* * * * * 14 votes

  • Please log in to reply
2214 replies to this topic

#1
Mohamed Khairy

Mohamed Khairy

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,153 posts
  • Gender:Male

*
POPULAR


Contents

  • Some information you need to know to bypass installation without panic .
  • Bios mod --> latest bios mods for UEFI Unlocking , Native power management and Vesa mode .
  • Pre Install --> preparing your Usb Flash Memory for installation .
  • Post Install --> Finishing installation
  • Customisation --> optional ! .
  • Problems and Solutions .
  • Credits .
  • Updates .





some Info

-you need to know that with OS X we need to make some customisation for every hardware spesfication .

-our notebook have some customisation on cpu , graphics and wireless card .

-so when you going to setup you must to know your cpu name to choose your SSDT-4.aml this table show to OS X the power states that this cpu works with it .

-you need also to use the correct DSDT.aml and Config.plist this is determined by the presence of nVidia Card , AMD Card or not .

-if you are looking for using WIFI on osx the only working card is dell Wireless 1702 card , Replace your one with working one if you don't have .

-intel wireless card won't work also nvidia & AMD GFX Cards won't work don't ask about them .

-you need to do bios mod it is a must .



Bios Mod


You can find here bios mod LINK

you will find tool to apply bios mod .

  • close all programs
  • open tool
  • choose bios file
  • on setup menu choose Program all Blocks
  • press flash
  • wait till finish
  • close program
  • shutdown the notebook .. you done :)

this bios mod contain unblocked UEFI , updated microcode , updated intel vbios with support for vesa mode & patched power management module .


Pre Install



for Pre Install you will need

  • Instal OS X ........ .App Get it From App Store .
  • Pre Install Folder LINK .
  • Flash Memory 8 GB or more .
  • watching this Video .



now you ready for installation without any panic or any problem

start setuping :)





For Windows Setup

- boot normally from Window DVD ( don't use UEFI ) and setup as normal

- Later to boot windows just exit Clover or press F12 and choose HDD ( this after we install clover on HDD )



#2
Mohamed Khairy

Mohamed Khairy

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,153 posts
  • Gender:Male

Post Install



now you need This Post Install Folder LINK

Follow this steps to finish .



- Put PostInstall Folder on Desktop .

- Copy to PostInstall Folder the EFI folder you made before from Flash Memory .

- if you want to do Customisations below do them on CustomPeripheral.kext that on PostInstall Folder before next step .

- now open Terminal and type this command .

cd ~/Desktop/PostInstall

then

sudo ./PostInstall.sh

- After Finishing Run kext Utility then  Restart

- Boot from UEFI Flash Memory

- there is small icon of clover called Clover Boot Option




- from it add clover as boot option






- Now shutdown your notebook remove flash memory and power on , you will see clover and Enjoy .



N.B.

- about OS X upcoming updates just update nothing needed after you update all will work don't worry  about that !.

- about reinstalling on future you just need to restore app to flash memory only as on vedio no need to do refi folder again

   and after setup just install kext to system/library/extensions and .zlib files to resources folder of applehda.kext then rebuild caches only !.

 -------------------------------------------------------------------------------------------------------------------------------------------------------

Customisations


if you like to make your notebook accessories act like on real MacBook Pro

you can follow this part :)

  • card reader ---> use AnyCardReader kext and edit info.plist with your card pro id and ven id
    edit idproduct &idvender under all except Fake Apple Card Reader SCSI Inject AnySDCardReaderAppleSBC AnySDCardReaderAnySBC

  • Webcam to act Like on MacBook Pro 8.x
    edit FaceTime kext --> edit idproduct &idvender under the three Fake Built-in FaceTime HD Camera Device entry .


  • DVD Drive to act like apple shipping drive
    use AppleShippingDrive kext and edit the
    Product Identification & Vendor Identification with your DVD Drive info .

how to get your your device idproduct & idvender ?

first go to system profiler --> USB --> go to usb device that you want to customize it --> you will find vender id and product id -- > take them one by one to caclculator --> on calculator use programmer mode --> then paste numder of id on (16) mode then convert it to (10) mode you will get new number that we need on kexts and do other ids like this .



#3
Mohamed Khairy

Mohamed Khairy

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,153 posts
  • Gender:Male

Problems & Solutions

  • Ethernet to make it to work you must to do this
    go to System Preferences --> Network --> Advanced --> Hardware
    set
    Configure --> Manually
    Speed ---> 10BaseT/UTP

  • for VGA connector you need to boot OS X with the VGA cable connected , or connect cable enter sleep then wake up, or use SwitchResX tool

  • for boot0:error
    boot from usb device to installer ---> open disk utility ---> right click on mac partion and unmount it
    then open terminal and type
    dd if=/usr/standalone/i386/boot1h of=/dev/disk0s1
    as 0s1 is mac partion identifier you can know it from disk utility info of mac partion

  • About triple OS setup
    first do partioning using gparted and make your HDD four parts first for windows second for osx third for ubuntu fourth for your data
    setup windows on first partion then setup osx on second partion and then setup ubuntu on third partion do forget to make grub bootlader to be installed only on third partion ... now you have triple OSes

  • about artifact and freezes refer here LINK Start read from here ;)

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Credits


this work is done by many of shares :)

  • chameleon & clover developers .
  • fakesmc with plugins from kozlek and pervious developer
  • voodoops2controller thanks to voodoo team and more development from rehabman
  • special thanks for florin9doi for his work on getting our alps touchpad to work with multi touch function ;)
  • thanks for maropr as he worked on getting disabling nvidia card possible
  • thanks for temp for his discovery of vga connector code
  • thanks for bcc9 for his work on connector info also on fixing still waiting for root problem since Mlion
  • about bios mode thanks for florin9doi , androdev & jkbuha
  • thanks for andyvand for customisation files
  • ssdt-4 files extracted from HP Probook Installer 4 pkg
  • atheros bluetooth firmware loader by mac4mat
  • thanks for nanotech for artefact fix

thanks for all and sorry if i forget any one :)


----------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Updates




Auto updator ( thanks to florin9doi for his Code )



after any new update like 10.9.1 , 10.9.2 ....... etc

you can install updates with out any fears from app store

and after restart

put Updator folder Attached File  Updator.zip   15.58KB   460 downloads to desktop

then open terminal and then type this

sudo -s

cd ~/Desktop/Updator

./Update.sh



guide updated



changes log 131024



pre install



chameleon from 2265  --> 2266

MBR from GM1 ---> public release one



added have AMD for whom having AMD card to disable it and enable HDMI sound



post install



chameleon from 2265  --> 2266
latest hwsensores.pkg
compiled kexts with Xcode 5.0.1 for 10.9
patched appleintelsnbgraphics kext for LVDS &HDMI(with sound for people having intel card only or having also AMD card ) & VGA

updator

to do LVDS HDMI VGA  and applehda for up coming updates from apple





#4
hisho

hisho

    InsanelyMac Protégé

  • Members
  • PipPip
  • 63 posts
here is the webcam in the usb system profile

Attached Files



#5
Mohamed Khairy

Mohamed Khairy

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,153 posts
  • Gender:Male

UEFI Clover







Needs

1- latest hacked bios from Florin9doi find it here

2-you will repartition  your HDD  to GPT

3-addiatinal USB memory



you will follow pre install as on guide



* during setup *

repartition HDD  use GPT

if you wants windows and os x on same HDD

make first partition as FAT32 this for windows

second one for os x

Third  for your data



then you can shut down and start setuping windows on first partition

and then after finishing windows install  OS X  on second partition



-------



if your HDD  was partition with GPT from first you can start from here



------



after finish setup os x



now we will format efi partition



open terminal and type

sudo -s

then type your password



then type

newfs_msdos -v EFI /dev/disk0s1

then type

mkdir /Volumes/EFI
mount_msdos /dev/disk0s1 /Volumes/EFI

now you will see efi paratition  on finder open it



-----

now we will prepare your efi folder to put it  on it



download this EFI Folder



and as on main guide we will do some changes according to your hardware

if you have nvidia card don't change dsdt or config.plist

if you have AMD card use this dsdt and config Attached File  Have AMD.zip   20.5KB   21 downloads

if you have only intel gfx card use this dsdt and config Attached File  Have No nVidia.zip   19.86KB   46 downloads



config.plist will be replaced on EFI/CLOVER

DSDT.aml will be replaced on EFI/CLOVER/ACPI/patched



and add your serial generated by chameleon wizard to config.plist under SMBIOS > SerialNumber



also replace ssdt-4 of your CPU on EFI/CLOVER/ACPI/patched



after finishing edit to efi folder

copy it to EFI partitation



and follow this steps as on main guide



  • Go to System/Library/Extensions and delete AppleHDA.kext , AppleIntelSNBGraphicsFB.kext .
  • Copy all kexts on Extensions folder on Post Install folder to System/Library/Extensions .
  • If you will do customisations below do it before copying kexts to System/Library/Extensions .
  • Now run Kext Utility .
  • Setup HWSensors .



-----

now we need new flash memory format it to fat32

and put on it this efi folder



now restart with the new flash memory connected to notebook and press f12

and choose UEFI from usb device

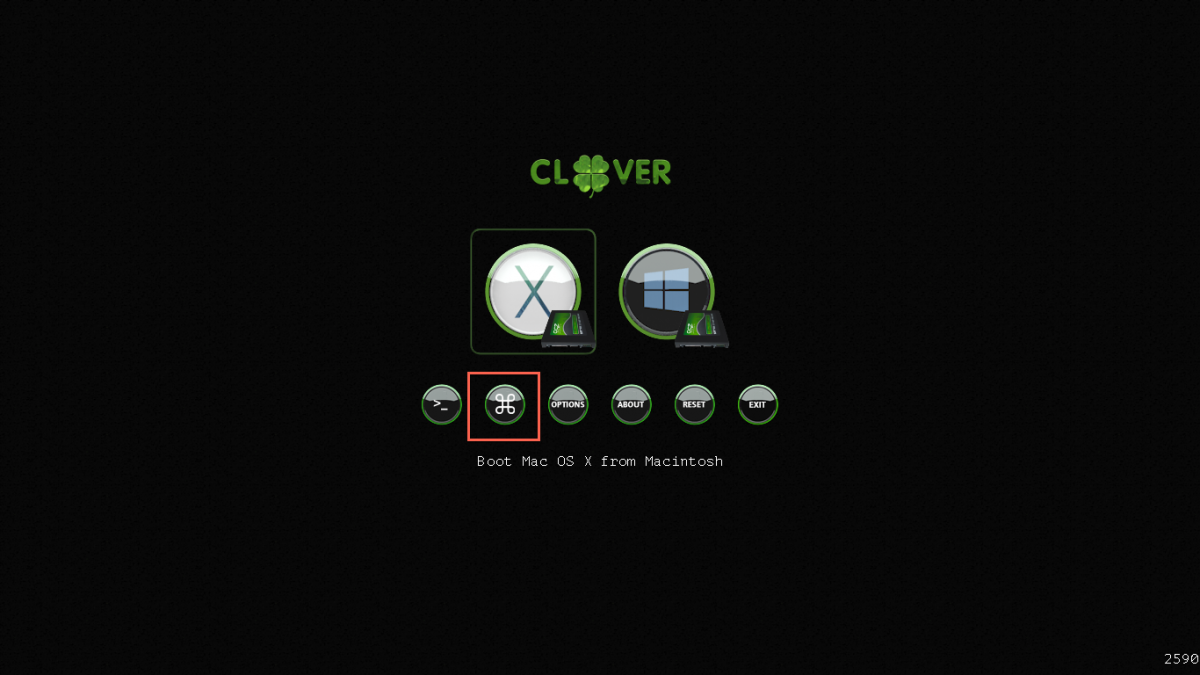

you will get screen like this

Attached File  atxx.png   266.35KB   88 downloads



choose icon marked by read on pic



and add entry for clover



then shutdown and remove usb device

and turn on notebook you now should  auto enter to clover guy  :)

choose os x to boot os x

to boot windows

shutdown and press f12 and choose hard disk drive you will boot windows





------

this guide just trial for whom need this urgently



#6
hisho

hisho

    InsanelyMac Protégé

  • Members
  • PipPip
  • 63 posts
i use the latest boot loader and what you mean by serial number in the snbios file?

#7
Mohamed Khairy

Mohamed Khairy

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,153 posts
  • Gender:Male

i use the latest boot loader and what you mean by serial number in the snbios file?

when you open photo booth what does it says

use chameleon wizard to built serial number for your notebook

#8
hisho

hisho

    InsanelyMac Protégé

  • Members
  • PipPip
  • 63 posts
photo booth doesn't show anything , when i open it , it stays in this state

Attached Files



#9
Mohamed Khairy

Mohamed Khairy

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,153 posts
  • Gender:Male

photo booth doesn't show anything , when i open it , it stays in this state

when you open program is your webcam listed on camera on apple bar

#10
hisho

hisho

    InsanelyMac Protégé

  • Members
  • PipPip
  • 63 posts
yes , it's listed in the program

#11
Mohamed Khairy

Mohamed Khairy

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,153 posts
  • Gender:Male

yes , it's listed in the program

is it marked ?

#12
hisho

hisho

    InsanelyMac Protégé

  • Members
  • PipPip
  • 63 posts
yes , it's marked

#13
Mohamed Khairy

Mohamed Khairy

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,153 posts
  • Gender:Male

yes , it's marked

so
if you have anther cam can you connect it and see if the problem from os or from webcam

#14
hisho

hisho

    InsanelyMac Protégé

  • Members
  • PipPip
  • 63 posts
unfortunalty , i don't have one

#15
Mohamed Khairy

Mohamed Khairy

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,153 posts
  • Gender:Male

unfortunalty , i don't have one

did you tried FaceTime kext ?

#16
hisho

hisho

    InsanelyMac Protégé

  • Members
  • PipPip
  • 63 posts
yes , it doesn't make a difference

#17
Mohamed Khairy

Mohamed Khairy

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,153 posts
  • Gender:Male

yes , it doesn't make a difference

try new lion install may be but i think it will be same problem

#18
hisho

hisho

    InsanelyMac Protégé

  • Members
  • PipPip
  • 63 posts
i have installed lion so many times , and still didn't work

#19
Mohamed Khairy

Mohamed Khairy

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,153 posts
  • Gender:Male

i have installed lion so many times , and still didn't work

product id if different from mine one
my product id is 6483

#20
hisho

hisho

    InsanelyMac Protégé

  • Members
  • PipPip
  • 63 posts
my product key is : gnjpvp1





3 user(s) are reading this topic

1 members, 2 guests, 0 anonymous users


© 2014 InsanelyMac  |   News  |   Forum  |   Downloads  |   OSx86 Wiki  |   Mac Netbook  |   PHP hosting by CatN  |   Designed by Ed Gain  |   Logo by irfan  |   Privacy Policy
