ATi Radeon HD5450


  • Please log in to reply
14 replies to this topic

#1
MrCarioca

MrCarioca

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts
hey guys,

I'm having issues on getting my HD5450 1GB DVI with HDMI working. It become a bit frustaring.

Any guides or kexts?


Thank you
Installed Mac OS X 1.6.3 original with #####.
Core i7 DP55WB 8GB

#2
artur-pt

artur-pt

    InsanelyMacaholic

  • Local Moderators
  • 4,550 posts
  • Gender:Male
  • Location:Portugal
  • Interests:TechManiaco

hey guys,

I'm having issues on getting my HD5450 1GB DVI with HDMI working. It become a bit frustaring.

Any guides or kexts?


Thank you
Installed Mac OS X 1.6.3 original with iBoot.
Core i7 DP55WB 8GB


hi

if you are using 10.6.3 no support for ati 5xxx series

ati5000controller is not in s/l/e

upgrade to 10.6.7

and use chameleon with GE=Yes

#3
MrCarioca

MrCarioca

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts

hi

if you are using 10.6.3 no support for ati 5xxx series

ati5000controller is not in s/l/e

upgrade to 10.6.7

and use chameleon with GE=Yes

Just updated to 10.6.8
What do you mean Chameleon with GE and not s/l/e?? I still didnt install any bootloader, still using ##### to load OS.

Any recommendations?

#4
petopay

petopay

    InsanelyMac Protégé

  • Members
  • Pip
  • 48 posts
  • Gender:Male
  • Location:GH

Just updated to 10.6.8
What do you mean Chameleon with GE and not s/l/e?? I still didnt install any bootloader, still using ##### to load OS.

Any recommendations?



Are you a noob or a newbie? Simply add GraphicsEnabler=Yes in the plist file in the Extra folder and reboot to get QE/CI. No addition of kext if you already have 10.6.7 or above update...

#5
MrCarioca

MrCarioca

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts

Are you a noob or a newbie? Simply add GraphicsEnabler=Yes in the plist file in the Extra folder and reboot to get QE/CI. No addition of kext if you already have 10.6.7 or above update...

I will give that a try.

Tell me something, I must install Chameleon? or will it work with the one that comes with #####?

#6
Eiszeit

Eiszeit

    InsanelyMac Protégé

  • Members
  • Pip
  • 40 posts
All you need to get HD5450 working in 10.6.8/10.7.X is to put ati5000injector.kext in E/E and restart.

I've done it in both Snow Leopard and Lion.

Attached Files



#7
MrCarioca

MrCarioca

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts

All you need to get HD5450 working in 10.6.8/10.7.X is to put ati5000injector.kext in E/E and restart.

I've done it in both Snow Leopard and Lion.

Alright I will give that a try however whats exactly a S/L/E? and E/E?

Thank you.

Edti:
/System/Library/Extensions (further /S/L/E) - system folder with all OSX kexts.
/Extra/Extensions (further /E/E) - a separate folder for custom kexts to separate them from vanilla kexts.

Correct?

Edit: I don't seem to have a /Extra folder.

#8
Eiszeit

Eiszeit

    InsanelyMac Protégé

  • Members
  • Pip
  • 40 posts

Alright I will give that a try however whats exactly a S/L/E? and E/E?

Thank you.

Edti:
/System/Library/Extensions (further /S/L/E) - system folder with all OSX kexts.
/Extra/Extensions (further /E/E) - a separate folder for custom kexts to separate them from vanilla kexts.

Correct?

Edit: I don't seem to have a /Extra folder.

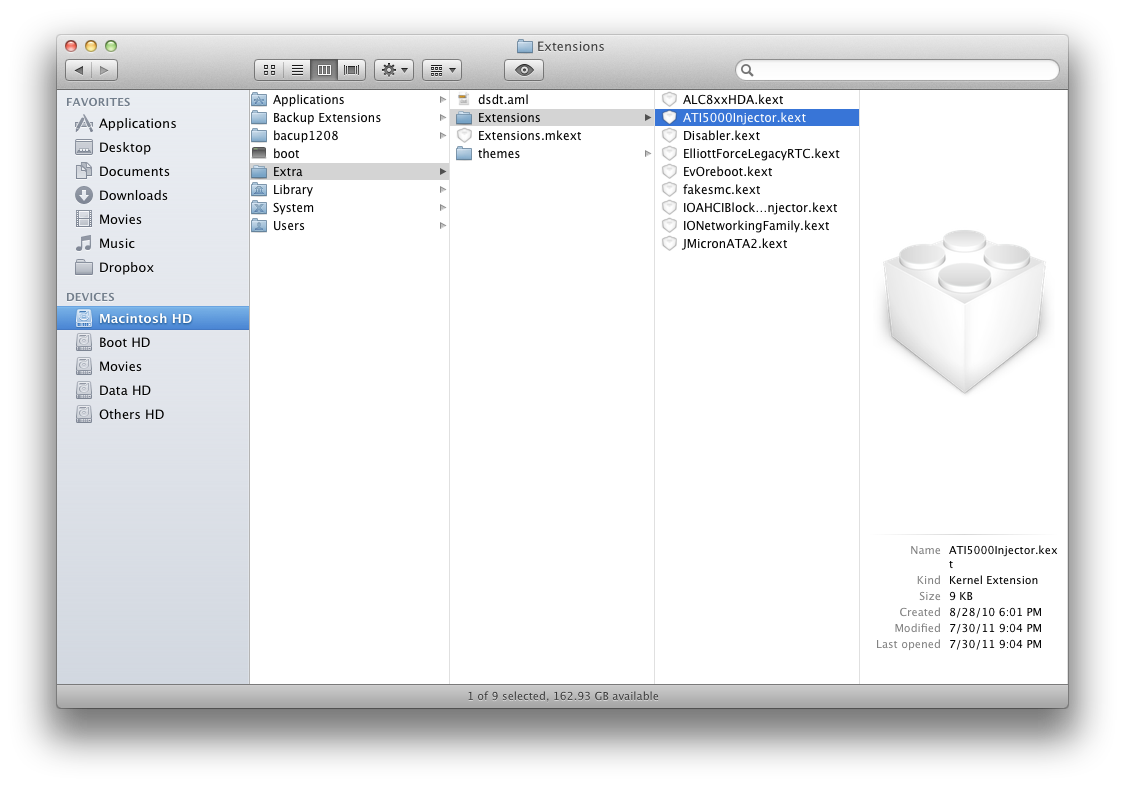

E/E is /Extra/Extensions , you're correct.

You have the folder, it's just hidden by default.

There are few simple ways to show hidden files on the Mac:
http://osxdaily.com/...-files-in-os-x/

Attached Files



#9
MrCarioca

MrCarioca

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts
Where do I download the ATi5000Injector.kext?

Edit: uhm the Extra file it inst there by default... I guess I have go to though the process of ##### it.

#10
Sysyphus

Sysyphus

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 137 posts
  • Gender:Male
  • Location:3rd rock from that big yellow shiny thing in the sky!
Click here: ATI5000InjectorKext.zip

:jester:

#11
mauroalpha

mauroalpha

    InsanelyMac Protégé

  • Members
  • Pip
  • 6 posts

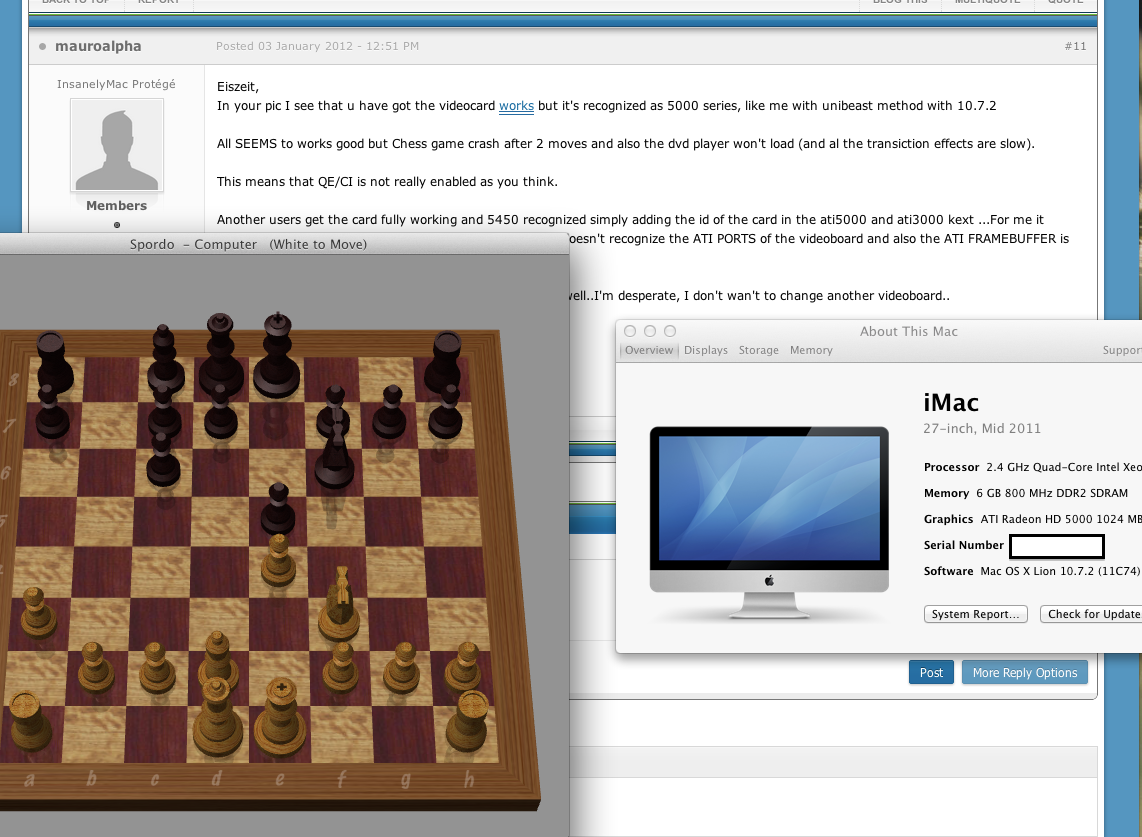

Eiszeit,

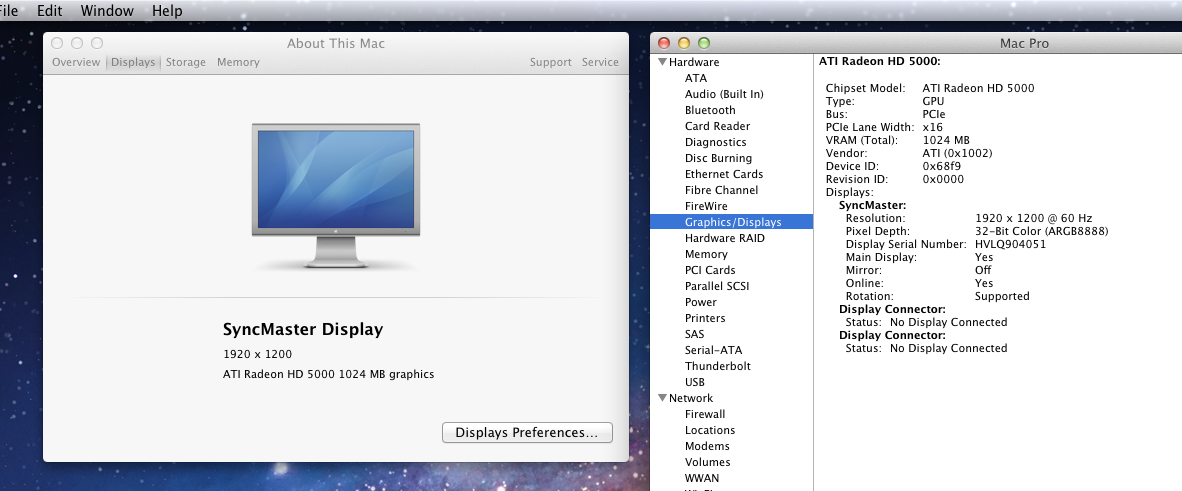

In your pic I see that u have got the videocard works but it's recognized as 5000 series, like me with ##### method with 10.7.2

All SEEMS to works good but Chess game crash after 2 moves and also the dvd player won't load (and al the transiction effects are slow).

This means that QE/CI is not really enabled as you think.

Another users get the card fully working and 5450 recognized simply adding the id of the card in the ati5000 and ati3000 kext ...For me it doesn't work cause if I see the log of the verbose mode it doesn't recognize the ATI PORTS of the videoboard and also the ATI FRAMEBUFFER is not setted.

I've tried injector, only GE, but nothing seems to work as well..I'm desperate, I don't wan't to change another videoboard..

any suggest?
ps: I work in dual monitor mode at 1080p

#12
Eiszeit

Eiszeit

    InsanelyMac Protégé

  • Members
  • Pip
  • 40 posts
mauroalpha,
I don't usually play Chess, but I just tried to and it didn't crash (yet), I played more than 2 moves.
The DVD Player doesn't work because of the DVD burner, not the Graphic Card, I heard there are some solution for it but I don't bother fixing it because I wouldn't use it anyway.

I have used it like that for few months already and haven't faced any problems, I even played some of the 3D games for mac like Asphalt and they work great, I also watch 1080P movies with VLC and they work great as well (I have a single 1920x1200 monitor).

I'm not sure what is the ##### solution, I used no 3rd party program to make it work, only:
http://www.insanelym...dpost&p=1749890

Attached Files



#13
mauroalpha

mauroalpha

    InsanelyMac Protégé

  • Members
  • Pip
  • 6 posts
Eiszeit, I've forced the atiframebuffer to eulemur and now the graphic card is 5400 series and the chess and DVD player doesn't crash...

But I'm not happy, cause the Cinebench is only 10 fps...and I can see that all the graphics transictions are slow :|

#14
BugsB

BugsB

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,513 posts
  • Gender:Male
  • Location:Kauai, Hawai'i
sigh .. we've made this experience soooo many times with grfx cards in this forum .. ATI 1234 from ONE manufacturer is almost always NOT THE SAME ATI 1234 from ANOTHER manufacturer - esp. not in OS X !!!!! Why do you think there are Radeon HD5450's from Asus, Gigabyte, Alpha-tek, Visontek, Sapphire, etc. pp.? Because they are the same? Naturally not - because they are NOT the same. All that's the same is that they purchased this particular CHIPSET from AMD (or Nvidia for Nvidia based adapters). How they implement it is up to EACH manufacturer. That's what all these threads "ATI 1234 FULLY working" are BS! We MUST !!!! always a) provide EXACT name of our grfx card incl. manufacturer AND exact model number, like Sapphire Radeon HD 5450 1 GB DDR3 HDMIDVI-IVGA PCI-Express Graphics Card 100292DDR3L, AND (please) the EXACT link where you purchased it, e.g. http://www.amazon.co...19&sr=8-3-fkmr1

EVERYTHING ELSE IS ALMOST COMPLETELY USELESS !! Just look around in this froum, convince yourself!

But even with such a link there is no guarantue: we've ordered two cards from the exact same link from NewEgg, with about 7 months distance. The first card works perfectly in Leo & Snwo - in the same computer, the 2nd card DOESN'T - even though it looks EXACTLY the same. Only tiny difference: REVISION! I thought, oh well, can just be some tiny little value I need to figure out via some utility and enter into some plist - NO GO! After a day I gave up. The card is now runnign in some Linux machine ...

All that said: PLEASE (!!) edit your above postings and add the required data - EXACT model name + link to online shop where you purchased it. This has proven to be the ONLY way out of this mess!

Over (but not out) -
Bugs

#15
kofmasters

kofmasters

    InsanelyMac Protégé

  • Members
  • Pip
  • 18 posts
  • Gender:Male
  • Location:mexico
im using iatkos s3 v2 ,but i cannot get qe/ci using 10.6.7 and sapphire hd5450 ati card,please help,i dont like the lion osx, idont give up on this card
