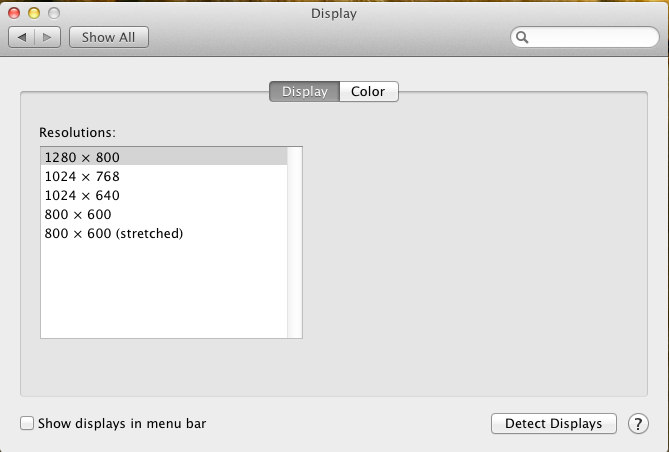

Finally! Get X3100 works in 1280x800 (32 bit)


  • Please log in to reply
11 replies to this topic

#1
orakanggo

orakanggo

    InsanelyMac Protégé

  • Members
  • Pip
  • 29 posts
  • Location:Indonesia
Hi..

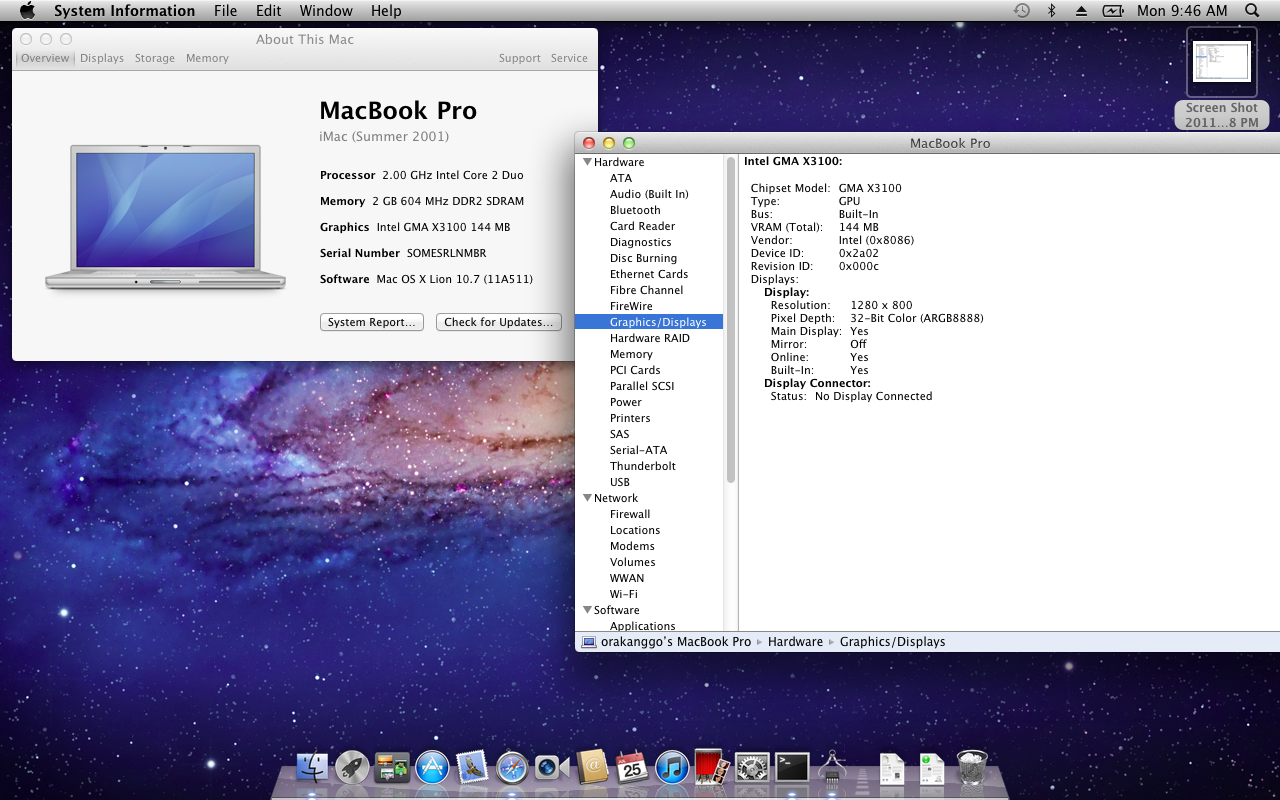

I have HP Compaq 2210b and I have GMA965 X3100 Graphic Card with dev id:0x2a02

This is what i've done..

1. Download kext from http://www.kexts.com...w_and_lion.html

2. Extract to Desktop

3. Do these command :

sudo -s [Enter password]
cd /Volumes/<LION DRIVE>/System/Library/Extensions/
rm -rf AppleIntelGMAX3100.kext AppleIntelGMAX3100FB.kext AppleIntelGMAX3100GA.plugin AppleIntelGMAX3100GLDriver.bundle AppleIntelGMAX3100VADriver.bundle AppleIntelIntegratedFramebuffer.kext

cd ~/Desktop/x3100_x86_64/
cp -R * /Volumes/<LION DRIVE>/System/Library/Extensions/
chown -R root:wheel /Volumes/<LION DRIVE>/System/Library/Extensions/
chmod -R 755 /Volumes/<LION DRIVE>/System/Library/Extensions/

reboot


change <LION DRIVER> with your current Lion OS Partition

Good Luck

Attached Files


  • ham likes this

#2
Bense

Bense

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
  • Gender:Male
  • Location:South Carolina
What does your /Extra/smbios.plist and /Extra/com.apple.Boot.plist look like?

#3
nef

nef

    InsanelyMac Protégé

  • Members
  • Pip
  • 15 posts

Hi..

I have HP Compaq 2210b and I have GMA965 X3100 Graphic Card with dev id:0x2a02

This is what i've done..

1. Download kext from http://www.kexts.com...w_and_lion.html

2. Extract to Desktop

3. Do these command :


change <LION DRIVER> with your current Lion OS Partition

Good Luck




did you have quartz extreme enabled?
i have the correct resolution but can't get the quartz working.... i hope you do so i can make the same that you do to make it work

i've booted on 32 and 64 bits and still the same

#4
ioricloud

ioricloud

    InsanelyMac Protégé

  • Members
  • Pip
  • 17 posts
Is it in 64-bit mode?

#5
nef

nef

    InsanelyMac Protégé

  • Members
  • Pip
  • 15 posts

Is it in 64-bit mode?


32 bits


i tried but its the same.... correct resolution and no qe/ci :rolleyes:

#6
ioricloud

ioricloud

    InsanelyMac Protégé

  • Members
  • Pip
  • 17 posts
I have x3100 with qe/ci! in 32bit
do you want

#7
Bense

Bense

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
  • Gender:Male
  • Location:South Carolina

I have x3100 with qe/ci! in 32bit
do you want


what does your smbios.plist and Boot.plist look like? And yes, please share.

#8
orakanggo

orakanggo

    InsanelyMac Protégé

  • Members
  • Pip
  • 29 posts
  • Location:Indonesia

did you have quartz extreme enabled?
i have the correct resolution but can't get the quartz working.... i hope you do so i can make the same that you do to make it work

i've booted on 32 and 64 bits and still the same


no qe/ci :ninja:

I have x3100 with qe/ci! in 32bit
do you want


yes, please share..

did you modify the kext from link above?

#9
notinthisworld

notinthisworld

    InsanelyMac Protégé

  • Members
  • Pip
  • 28 posts
will this work on a x3100 rev3 ?

#10
mnfesq

mnfesq

    Emenef, Esquire

  • Members
  • PipPipPipPipPipPipPip
  • 546 posts
  • Gender:Male
  • Location:Southern California
These are the video kexts from 10.6.2. They are the only ones that will run in 64-bit for the GMAX3100. They don't work that well (in 64-bit) and Apple never attempted to improve the 64-bit function of X3100 ever again. For most people, these kexts will give the correct resolution but no QE/CI. Some will get QE/CI in 32-bit.

#11
Biso007

Biso007

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 188 posts
  • Gender:Male
  • Location:Cairo, EG

I have x3100 with qe/ci! in 32bit
do you want


is that a question ?!!

#12
lekany

lekany

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
  • Gender:Male

I have x3100 with qe/ci! in 32bit
do you want


Hello,
Yes I would like to know how o have it.
Thx
