ATI Radeon 5400 or 5000 series on Lion Full QE CI


  • Please log in to reply
21 replies to this topic

#1
terranova2142

terranova2142

    InsanelyMac Protégé

  • Members
  • PipPip
  • 50 posts
  • Gender:Male
  • Location:Deutsch
:D Hi Guys,I got my ATI 5400 working on Lion full QE CI,DVI+VGA(I am not has HDMI port)
This is guide Attached File  ATI_5400for_Lion.docx.zip   5.39KB   3186 downloads
Attached File  kexts.zip   7.98MB   3904 downloads

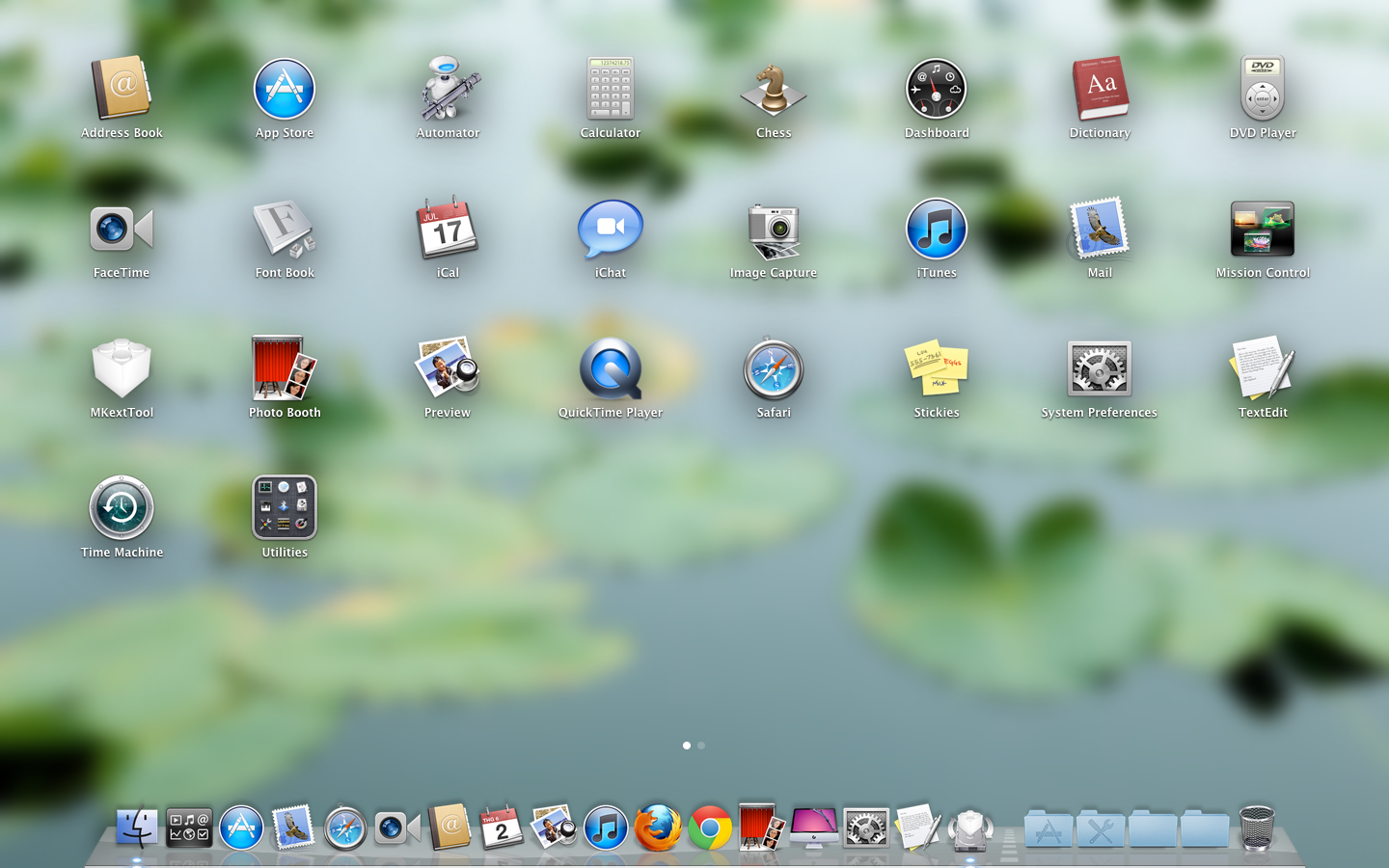

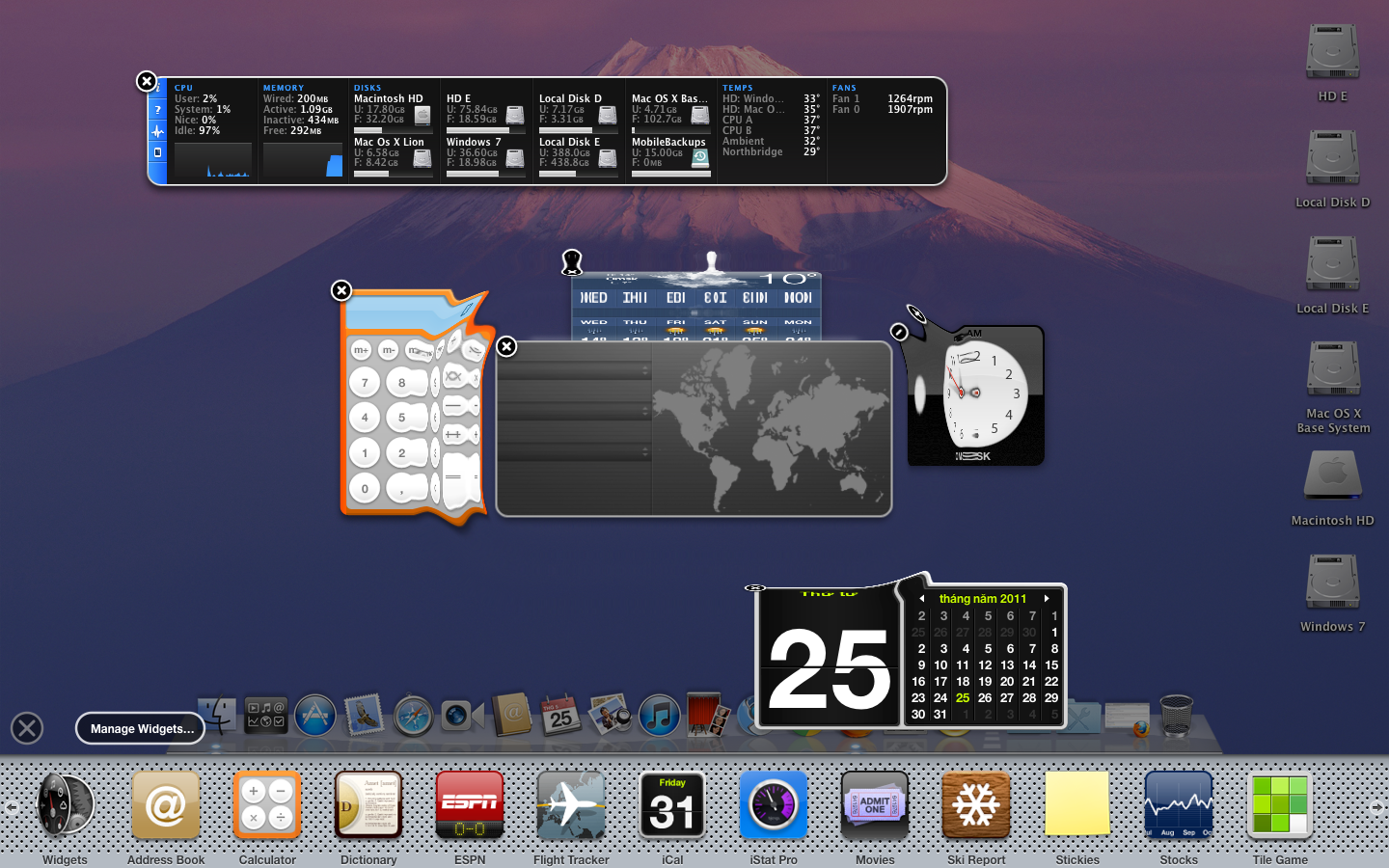

Attached File  Screen_Shot_2011_05_31_at_3.52.16_PM.png   1.41MB   1673 downloads
2 Monitor

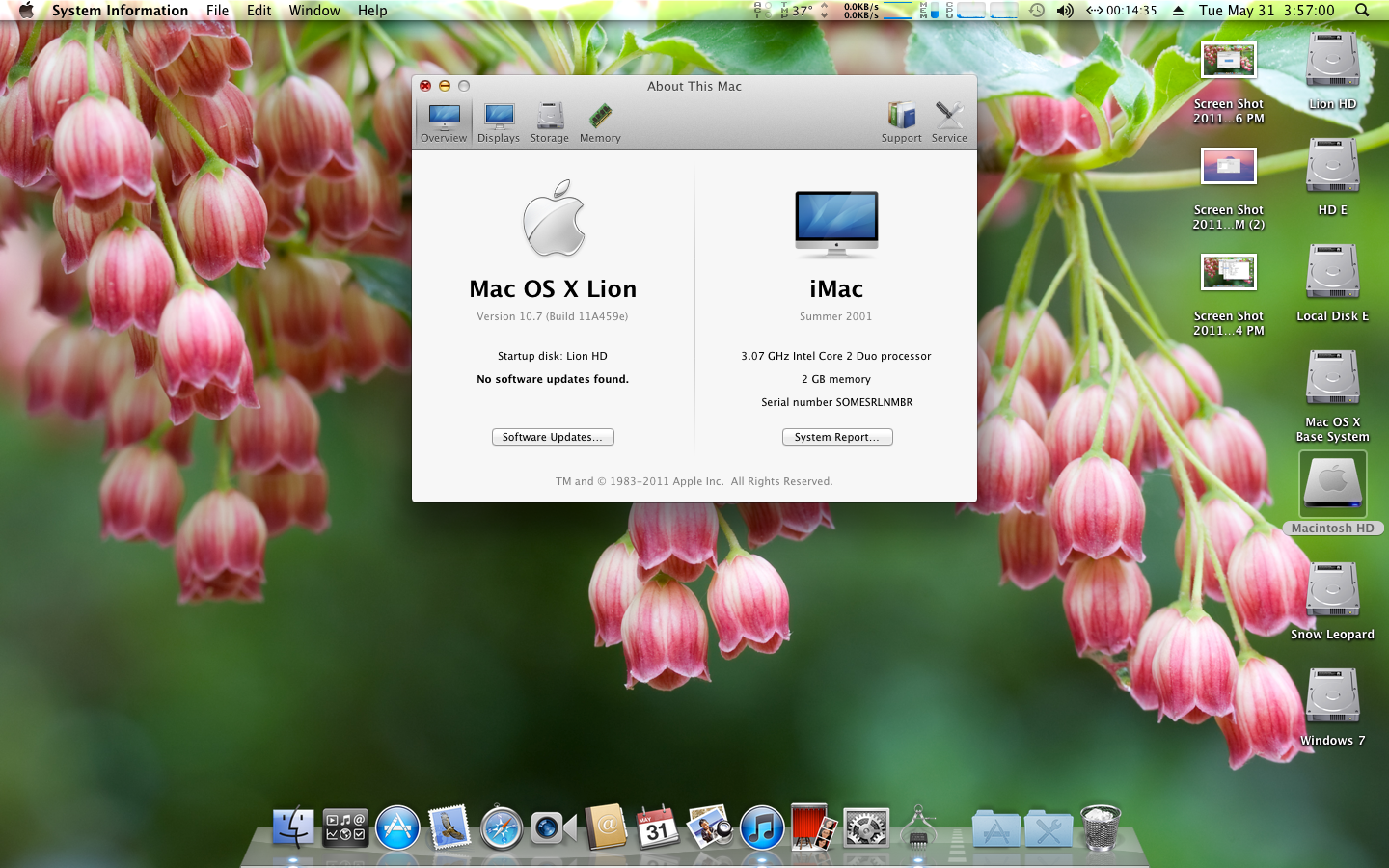

Attached File  Screen_Shot_2011_05_31_at_3.56.44_PM.png   1.25MB   1650 downloads
ATI 5450 device 68F9
Attached File  Screen_Shot_2011_05_31_at_3.57.00_PM.png   1.53MB   1298 downloads
Attached File  Screen_Shot_2011_05_25_at_11.47.51.png   1.35MB   897 downloads
Attached File  Screen_Shot_2011_06_02_at_13.01.31.png   1.15MB   675 downloads
I think,this is method can apply for ATI 5000,6000 device support in ATI5000controller,ATI6000controller.

#2
geekgyan

geekgyan

    InsanelyMac Protégé

  • Members
  • Pip
  • 4 posts
Thanks dude, Mac OS X Lion work perfectly fine with ATI HD Radeon 5450.

For information of others,
There is no need for ATY_Init.kext or modifying any other ATI kext(s).

I just put the ATI ROM in /extra folder (1002_68f9.rom), since, i have it on my snow installation already, and added an extra key in extra/com.apple.Boot.plist
<key>UseAtiROM</key>
<string>Yes</string>

Haven't tried it without the ROM, but i guess it works since Schutzstaffel38 has got it working without it.

#3
Eiszeit

Eiszeit

    InsanelyMac Protégé

  • Members
  • Pip
  • 40 posts

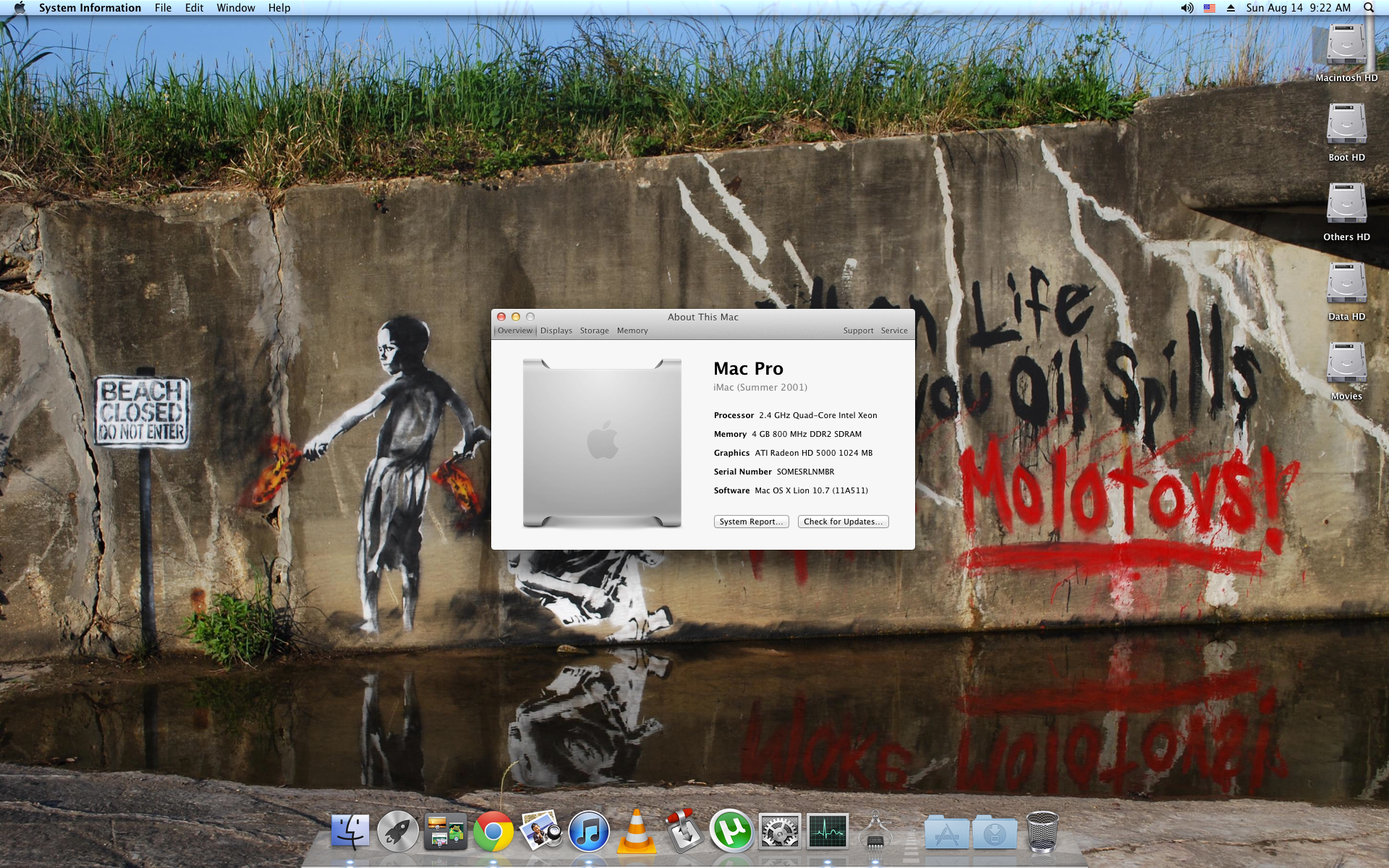

Yep, HD5450 works very well on Lion 10.7 retail, all you need is is ati5000injector.kext in E/E and it works perfectly with QE/CL.

Attached Files



#4
PGHammer

PGHammer

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 282 posts

Yep, HD5450 works very well on Lion 10.7 retail, all you need is is ati5000injector.kext in E/E and it works perfectly with QE/CL.


The method was originally developed for Snow (and required a modded ATY_Init and a captured ROM image, in addition to ATI5000Injector.kext there). Fortunately, because Lion supports the entire GPU family directly, all that's needed is ATI5000Injector.kext (in /System/Library/Extensions). If you use the USB flash installer method (or the HDD-partition source/xMove method), putting ATI5000Injector.kext (along with FakeSMC.kext, of course) in /S/L/E of that partition gives you full resolution support in the install as well.

That is, in fact, why I'm not exactly rushing to look at new GPUs for upgrading the Hack side of things, despite falling prices for HD6790, as I'm not sure if it works in Lion (or Snow) *at all*.

#5
Eiszeit

Eiszeit

    InsanelyMac Protégé

  • Members
  • Pip
  • 40 posts

The method was originally developed for Snow (and required a modded ATY_Init and a captured ROM image, in addition to ATI5000Injector.kext there). Fortunately, because Lion supports the entire GPU family directly, all that's needed is ATI5000Injector.kext (in /System/Library/Extensions). If you use the USB flash installer method (or the HDD-partition source/xMove method), putting ATI5000Injector.kext (along with FakeSMC.kext, of course) in /S/L/E of that partition gives you full resolution support in the install as well.

That is, in fact, why I'm not exactly rushing to look at new GPUs for upgrading the Hack side of things, despite falling prices for HD6790, as I'm not sure if it works in Lion (or Snow) *at all*.



I'm not an expert but all I did to get my HD5450 working on 10.6.8 is to put ATI5000injector in E/E, I never used any ATY_Init or ROM images.

Same with Lion (and I already upgraded to 10.7.1 and had no problem with the GPU at all).

#6
petopay

petopay

    InsanelyMac Protégé

  • Members
  • Pip
  • 48 posts
  • Gender:Male
  • Location:GH
Can't wait to install this on my HP Pavilion Elite HPE-240f Desktop with ATI Radeon HD 5570 card. Will post results here! :(

#7
taky2008

taky2008

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 112 posts
Hey Dude This Kexts From my TOpic :( But Ok

#8
terranova2142

terranova2142

    InsanelyMac Protégé

  • Members
  • PipPip
  • 50 posts
  • Gender:Male
  • Location:Deutsch

Hey Dude This Kexts From my TOpic :D But Ok


Das ist mein kext,this is my kext,not your kext :D :hysterical:

The method was originally developed for Snow (and required a modded ATY_Init and a captured ROM image, in addition to ATI5000Injector.kext there). Fortunately, because Lion supports the entire GPU family directly, all that's needed is ATI5000Injector.kext (in /System/Library/Extensions). If you use the USB flash installer method (or the HDD-partition source/xMove method), putting ATI5000Injector.kext (along with FakeSMC.kext, of course) in /S/L/E of that partition gives you full resolution support in the install as well.

That is, in fact, why I'm not exactly rushing to look at new GPUs for upgrading the Hack side of things, despite falling prices for HD6790, as I'm not sure if it works in Lion (or Snow) *at all*.

In mac os x install usb,ati 5450 work

#9
n3n3

n3n3

    InsanelyMac Protégé

  • Members
  • Pip
  • 22 posts

Das ist mein kext,this is my kext,not your kext :D ;)


In mac os x install usb,ati 5450 work



Hello, what program you use to monitor network? there in you first pick.

#10
mauroalpha

mauroalpha

    InsanelyMac Protégé

  • Members
  • Pip
  • 6 posts
hey guys, for all of you that have 5450 recognized as 5000 series ....can you play chess game and open dvd player ?

#11
wnxmojo

wnxmojo

    InsanelyMac Protégé

  • Members
  • Pip
  • 1 posts
For anyone having frame buffer issues with a ATI 5450 such as opening the dvd player, I fixed this on my Sapphire ATI 5450 by changing the frame buffer to "Eulemur" my card is now recognized as a 5400 series instead of the 5000 series and I have full QE/CI.

Add this to your org.chameleon.Boot.plist.


<key>AtiConfig</key>
<string>Eulemur</string>

#12
BugsB

BugsB

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,513 posts
  • Gender:Male
  • Location:Kauai, Hawai'i
Anybody running a SILENT 5450 in Lion, with no or a silent fan? If so, can you please post a link to the online shop's page where you purchased your silent card?

Thanks.

#13
wedgin

wedgin

    InsanelyMac Protégé

  • Members
  • Pip
  • 9 posts
I am having quite a bit of difficulties on my system running 10.7.3 and just can't seem to get this right. I just bought an Asus 5450 HD Silent card tonight and haven't had any luck getting this to work.

http://canadacompute...&item_id=030149

If I boot up with GE=no it boots up just fine and gives me a full gamut of resolutions to work with, identifies as a 5000 series, I can play chess without issue, didn't test the DVD bit though. But when I enable graphics it passes the grey load screen and when it changes resolution it just goes black, so no signal anymore.

I've tried putting ATIinjector.kext in e/e and s/l/e with no luck. I've looked through all these different threads about the 5450 and cannot seem to figure it out. I don't get why when the graphics are disabled it works fine, yet when I enable them it doesn't work. Can anyone shed some light on why that would be?

#14
Jadar

Jadar

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 119 posts
  • Gender:Male
  • Location:Unites States
Do you need the injector? Why don't you just boot with GraphicsEnabler=Yes? What about the ROM? What version of Chameleon are you using?

EDIT: Nevermind about the injector, it just puts the device IDs into ATI5000Controllr and ATIRadeonX3000. But I'm still wondering about the ROM, doesn't Chameleon get it from the BIOS? As the video card BIOS is dumped into memory at boot?

Thanks!

-J

#15
BugsB

BugsB

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,513 posts
  • Gender:Male
  • Location:Kauai, Hawai'i
The trick (thanks to machinist) is to find the correct PCIRootUID value via

ioreg -l | grep -15 "AppleACPIPCI" | grep "_UID"

which will output a # (known values betw. 0 and 4, but higher values might appear)

then enter that value into the org.chameleon plist as follows:

<key>PCIRootUID</key>
<string>#</string>

also make sure you have the following entries in your plist

<key>GraphicsEnabler</key>
<string>Yes</string>
<key>AtiConfig</key>
<string>UrFrameBuffer</string>

UrFrameBuffer probably Eulemur?

remove *ANY* EFI strings from device properties (best delete kex/string)

save

delete *any* grfx enablers from E/E and S/L/E

delete extension (if present) AND (mandatory step here!) kernel caches, in Lion: /System/Library/Caches/Startup

make sure you have a current Chameleon bootloader installed (e.g. via Chameleon Wizard, or Chimera)

reboot

see if EVERYTHING works (res. changes/ QE-CI e.g. by launching Chess/ multi-monitors/ DVD Player)

#16
BugsB

BugsB

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,513 posts
  • Gender:Male
  • Location:Kauai, Hawai'i
if s.b. has time to get HDMI audio going for the HD 5xxx (I don't at this point), here's ####### incl. useful files.

#17
BugsB

BugsB

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,513 posts
  • Gender:Male
  • Location:Kauai, Hawai'i
sigh, here's the next problem w. my 5450: the monitor connected via HDMI does not wake up after sleep. The one on VGA does. That is only the case when the FB is set correctly by means of PCIRootUID/GE/ATIConfig. As soon as the 5450 defaults back to generic Radeon FB (either by deleting the PCIRootUID value or disabling GraphicsEnabler), the HDMI monitor wakes up from sleep, too ...

Ideas?

#18
paulobarros

paulobarros

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts
  • Gender:Male
  • Location:Salvador, Brazil
  • Interests:Photography, Videomaking, Sports, Mac, Anime, Music, Linux, Astronomy.
Hey guys, I have Lion 10.7.4 installed on a Hp Dm4 1095br with a ATI Radeon Mobility HD 5450 1gb .. but there's no way I can make the OSX load the ATI Kext files.

On a verbose book I can see that it recognizes the card just fine, but when the system is up I only have my Intel Hd Graphics GPU working.

I tried to disable the Hybrid video in mi BIOS but it's a locked function, even if I switch off the Hybrid, goes back on automatically.

I don't know what else I can do, I've search this forum like crazy and no solution so far. Hope you guys can help me.

#19
iFIRE

iFIRE

    InsanelyMacaholic

  • Moderators
  • 3,772 posts
  • Gender:Male
  • Location:Bcn-Spain

Hey guys, I have Lion 10.7.4 installed on a Hp Dm4 1095br with a ATI Radeon Mobility HD 5450 1gb .. but there's no way I can make the OSX load the ATI Kext files.

On a verbose book I can see that it recognizes the card just fine, but when the system is up I only have my Intel Hd Graphics GPU working.

I tried to disable the Hybrid video in mi BIOS but it's a locked function, even if I switch off the Hybrid, goes back on automatically.

I don't know what else I can do, I've search this forum like crazy and no solution so far. Hope you guys can help me.



LOOK HERE!!!!http://olarila.com/f...c.php?f=2&t=716

#20
paulobarros

paulobarros

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts
  • Gender:Male
  • Location:Salvador, Brazil
  • Interests:Photography, Videomaking, Sports, Mac, Anime, Music, Linux, Astronomy.

LOOK HERE!!!!http://olarila.com/f...c.php?f=2&t=716


I've tried this and other many ways, but the problem is that my card it's no been recognized by the OSx. It recognize it on the boot, but when the system is loaded up, only the Intel HD graphics is active. I can disable the Intel HD on the BIOS, for what I've goggled there's no way of setting the Intel as discret.

With the intel I can do much, I cant even watch a video on youtube with this card. It sucks. I must install Windows 7, cause I work with photography and video and can't be without good VGA performance. A real shame because I loved Lion, this week as been so much fun playing with it.

A real shame.
