blacqwolf Posted March 28, 2011 Share Posted March 28, 2011 I was looking for a kext for my IDT audio card. I am not sure what model it is, though, this is the information from Alsa Mixer Card: HDA ATI SB (I assume this is the ATI HDMI audio/video output) Chip: IDT 92HD75B2X5 (And I assume this is the speaker and headphone port) I would appreciate any help, and I don't really need the HDMI audio. Just the speaker and headphone ports. Also, just to get everything on my laptop working, I would like to get my modem working as well. I don't really absolutely need it working, so don't worry about this if you can't find anything. The modem is an Agere Systems HDA modem. The tag on the inside of the laptop does not make it clear what model, but there are a few letters and numbers, D40 and AM5. I don't think these are both one product number because of the significant amount of spacing between the two. (About three times one normal space) Any help would be greatly appreciated. Thanks Link to comment Share on other sites More sharing options...
Cyrus the Great Posted April 8, 2011 Share Posted April 8, 2011 post your specification and pin config of your device that may i can help you.(edit your signature like mine) Link to comment Share on other sites More sharing options...
armyaircorp Posted April 27, 2011 Share Posted April 27, 2011 post your specification and pin config of your device that may i can help you.(edit your signature like mine) I have the same one.... I got all wroking except mic internal input. finally got voodoohda to read internal mic but still not being read by osx/ system pref/sound here are my info. Linux Dump: Codec Dump.txt Codec: LSI ID 1040 Address: 1 Function Id: 0x2 Vendor Id: 0x11c11040 Subsystem Id: 0x103c137e Revision Id: 0x100200 Modem Function Group: 0x1 Codec Dump 2 Codec: IDT 92HD75B2X5 Address: 0 Function Id: 0x1 Vendor Id: 0x111d7608 Subsystem Id: 0x103c363f Revision Id: 0x100202 No Modem Function Group found Default PCM: rates [0x7e0]: 44100 48000 88200 96000 176400 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Default Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Default Amp-Out caps: ofs=0x7f, nsteps=0x7f, stepsize=0x02, mute=1 GPIO: io=8, o=0, i=0, unsolicited=1, wake=1 IO[0]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[1]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[2]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[3]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[4]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[5]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[6]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[7]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 Power-Map: 0x00 Analog Loopback: 0x00 Node 0x0a [Pin Complex] wcaps 0x400181: Stereo Pincap 0x0000001c: OUT HP Detect Pin Default 0x0121101f: [Jack] HP Out at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0x1, Sequence = 0xf Pin-ctls: 0x00: Unsolicited: tag=01, enabled=1 Connection: 3 0x10 0x11* 0x17 Node 0x0b [Pin Complex] wcaps 0x400081: Stereo Pincap 0x00001724: IN Detect Vref caps: HIZ 50 GRD 80 Pin Default 0x01a11020: [Jack] Mic at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0x2, Sequence = 0x0 Pin-ctls: 0x24: IN VREF_80 Unsolicited: tag=02, enabled=1 Node 0x0c [Pin Complex] wcaps 0x400081: Stereo Pincap 0x00001724: IN Detect Vref caps: HIZ 50 GRD 80 Pin Default 0x92a71130: [Fixed] Mic at Int Front Conn = Analog, Color = Black DefAssociation = 0x3, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x24: IN VREF_80 Unsolicited: tag=00, enabled=0 Node 0x0d [Pin Complex] wcaps 0x400181: Stereo Pincap 0x00000014: OUT Detect Pin Default 0x90110110: [Fixed] Speaker at Int N/A Conn = 1/8, Color = Unknown DefAssociation = 0x1, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x40: OUT Unsolicited: tag=00, enabled=0 Connection: 3 0x10* 0x11 0x17 Node 0x0e [Pin Complex] wcaps 0x400081: Stereo Pincap 0x00000024: IN Detect Pin Default 0x40f000f9: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x9 Pin-ctls: 0x00: Unsolicited: tag=00, enabled=0 Node 0x0f [Vendor Defined Widget] wcaps 0xf00181: Stereo Unsolicited: tag=00, enabled=0 Connection: 3 0x10 0x11 0x17* Node 0x10 [Audio Output] wcaps 0xd0c05: Stereo Amp-Out R/L Amp-Out caps: N/A Amp-Out vals: [0x73 0x73] Converter: stream=0, channel=0 Power: setting=D0, actual=D0 Delay: 13 samples Node 0x11 [Audio Output] wcaps 0xd0c05: Stereo Amp-Out R/L Amp-Out caps: N/A Amp-Out vals: [0x60 0x60] Converter: stream=0, channel=0 Power: setting=D0, actual=D0 Delay: 13 samples Node 0x12 [Audio Input] wcaps 0x1d0541: Stereo Converter: stream=0, channel=0 SDI-Select: 0 Power: setting=D3, actual=D3 Delay: 13 samples Connection: 1 0x1c Processing caps: benign=0, ncoeff=0 Node 0x13 [Audio Input] wcaps 0x1d0541: Stereo Converter: stream=0, channel=0 SDI-Select: 0 Power: setting=D3, actual=D3 Delay: 13 samples Connection: 1 0x1d Processing caps: benign=0, ncoeff=0 Node 0x14 [Pin Complex] wcaps 0x400100: Mono Pincap 0x00000030: IN OUT Pin Default 0x40f000f1: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x1 Pin-ctls: 0x00: Connection: 1 0x16 Node 0x15 [Audio Selector] wcaps 0x300101: Stereo Connection: 3 0x10 0x11 0x17* Node 0x16 [Audio Mixer] wcaps 0x200100: Mono Connection: 1 0x15 Node 0x17 [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Amp-In caps: ofs=0x17, nsteps=0x1f, stepsize=0x05, mute=1 Amp-In vals: [0x97 0x97] [0x97 0x97] [0x97 0x97] [0x97 0x97] [0x97 0x97] Connection: 5 0x10 0x11 0x14 0x1a 0x1b Node 0x18 [Pin Complex] wcaps 0x40000b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Pincap 0x00000020: IN Pin Default 0x40f000f2: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x2 Pin-ctls: 0x00: Node 0x19 [Vendor Defined Widget] wcaps 0xf0000b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: Node 0x1a [Audio Selector] wcaps 0x30010d: Stereo Amp-Out Amp-Out caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-Out vals: [0x00 0x00] Connection: 3 0x0b* 0x0c 0x0e Node 0x1b [Audio Selector] wcaps 0x30010d: Stereo Amp-Out Amp-Out caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-Out vals: [0x00 0x00] Connection: 3 0x0b* 0x0c 0x0e Node 0x1c [Audio Selector] wcaps 0x30090d: Stereo Amp-Out R/L Amp-Out caps: ofs=0x00, nsteps=0x0f, stepsize=0x05, mute=1 Amp-Out vals: [0x80 0x80] Connection: 4 0x1a* 0x17 0x18 0x19 Node 0x1d [Audio Selector] wcaps 0x30090d: Stereo Amp-Out R/L Amp-Out caps: ofs=0x00, nsteps=0x0f, stepsize=0x05, mute=1 Amp-Out vals: [0x80 0x80] Connection: 4 0x1b* 0x17 0x18 0x19 Node 0x1e [Pin Complex] wcaps 0x400301: Stereo Digital Pincap 0x00000010: OUT Pin Default 0x40f000f4: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x4 Pin-ctls: 0x00: Connection: 1 0x24 Node 0x1f [Pin Complex] wcaps 0x400701: Stereo Digital Pincap 0x00010010: OUT EAPD EAPD 0x0: Pin Default 0x40f000f5: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x5 Pin-ctls: 0x00: Power: setting=D0, actual=D0 Connection: 2 0x24* 0x25 Node 0x20 [Pin Complex] wcaps 0x400301: Stereo Digital Pincap 0x00000010: OUT Pin Default 0x40f000f6: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x6 Pin-ctls: 0x00: Connection: 1 0x25 Node 0x21 [Audio Output] wcaps 0x40211: Stereo Digital Converter: stream=0, channel=0 Digital: Digital category: 0x0 PCM: rates [0x7e0]: 44100 48000 88200 96000 176400 192000 bits [0xe]: 16 20 24 formats [0x5]: PCM AC3 Delay: 4 samples Node 0x22 [Audio Output] wcaps 0x40211: Stereo Digital Converter: stream=0, channel=0 Digital: Digital category: 0x0 PCM: rates [0x7e0]: 44100 48000 88200 96000 176400 192000 bits [0xe]: 16 20 24 formats [0x5]: PCM AC3 Delay: 4 samples Node 0x23 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x24 [Audio Selector] wcaps 0x300101: Stereo Connection: 3 0x21* 0x1c 0x1d Node 0x25 [Audio Selector] wcaps 0x300101: Stereo Connection: 3 0x22* 0x1c 0x1d Node 0x26 [beep Generator Widget] wcaps 0x70000c: Mono Amp-Out Amp-Out caps: ofs=0x03, nsteps=0x03, stepsize=0x17, mute=1 Amp-Out vals: [0x00] Node 0x27 [Volume Knob Widget] wcaps 0x600000: Mono Volume-Knob: delta=1, steps=127, direct=0, val=127 Connection: 2 0x10 0x11 From Windows: Pinconfig already Flipped and converted to hex: <00A71C1F 00A71D10 00A71E21 00A71F01 00B71C20 00B71D10 00B71EA1 00B71F01 00C71C30 00C71D11 00C71EA7 00C71F92 00D71C10 00D71D01 00D71E11 00D71F90 00E71CF9 00E71D00 00E71EF0 00E71F40 01471CF1 01471D00 01471EF0 01471F40 01871CF2 01871D00 01871EF0 01871F40 01E71CF4 01E71D00 01E71EF0 01E71F40 01F71CF5 01F71D00 01F71EF0 01F71F40 02071CF6 02071D00 02071EF0 02071F40> From SL 10.6.4 Some Voodoohelpertool -dump Probing codec #0... HDA Codec #0: ATI RS690/780 HDMI HDA Codec ID: 0x1002791a Vendor: 0x1002 Device: 0x791a Revision: 0x00 Stepping: 0x00 PCI Subvendor: 0x363f103c startNode=1 endNode=2 Found audio FG nid=1 startNode=2 endNode=4 total=2 Processing audio FG cad=0 nid=1... Powering up... Parsing audio FG... GPIO: 0x00000000 NumGPIO=0 NumGPO=0 NumGPI=0 GPIWake=0 GPIUnsol=0 nid 3 0x18560010 as 1 seq 0 Digital-out Jack jack 6 loc 24 color Unknown misc 0 Parsing vendor patch... VHDevice NID=2 Config=00000000 Type=00000000 Cap=00000000 Ctrl=00000000 -- Conns: VHDevice NID=3 Config=18560010 Type=00000004 Cap=00000094 Ctrl=00000040 -- Conns: 0=2 Disabling nonaudio... Disabling useless... Patched pins configuration: nid 3 0x18560010 as 1 seq 0 Digital-out Jack jack 6 loc 24 color Unknown misc 0 Parsing pin associations... 1 associations found: Association 0 (1) out: Pin nid=3 seq=0 Redir type=-1 jack=0 def=0 Building AFG tree... Tracing association 0 (1) Tracing pin 3 with min nid 0 tracing via nid 3 tracing via nid 2 nid 2 returned 2 nid 3 returned 2 Pin 3 traced to DAC 2 Association 0 (1) trace succeeded Tracing input monitor Tracing other input monitors Tracing beeper Disabling unassociated widgets... Disabling nonselected inputs... Disabling useless... Disabling crossassociated connections... Disabling useless... Binding associations to channels... Assigning names to signal sources... Parsing Ctls... Assigning mixers to the tree... Preparing pin controls... AFG commit... Creating PCM devices... pcmAttach: HDA ATI RS690/780 HDMI PCM #0 HDMI at cad 0 nid 1 +--------------------------------------+ | DUMPING PCM Playback/Record Channels | +--------------------------------------+ Playback: Stream cap: 0x00000005 AC3 PCM PCM cap: 0x00020040 16 bits, 48 KHz DAC: 2 +-------------------------------+ | DUMPING Playback/Record Paths | +-------------------------------+ Playback: nid=3 [pin: Digital-out (HDMI)] | + <- nid=2 [audio output] [src: pcm] bindSeq=00000001 +-------------------------+ | DUMPING Volume Controls | +-------------------------+ OSS mixer initialization... Registering PCM channels... FG config/quirks: forcestereo ivref50 ivref80 ivref100 ivref HP switch init... +-------------------+ | DUMPING HDA NODES | +-------------------+ Default Parameter ----------------- Stream cap: 0x00000001 PCM PCM cap: 0x00020040 16 bits, 48 KHz IN amp: 0x00000000 OUT amp: 0x00000000 nid: 2 Name: audio output Widget cap: 0x00000201 DIGITAL STEREO Association: 0 (0x00000001) OSS: pcm (pcm) Stream cap: 0x00000001 PCM PCM cap: 0x00020040 16 bits, 48 KHz nid: 3 Name: pin: Digital-out (HDMI) Widget cap: 0x00400381 DIGITAL UNSOL STEREO Association: 0 (0x00000001) Pin cap: 0x00000094 PDC OUT HDMI Pin config: 0x18560010 Pin control: 0x00000040 OUT connections: 1 enabled 1 | + <- nid=2 [audio output] Link to comment Share on other sites More sharing options...
blacqwolf Posted May 10, 2011 Author Share Posted May 10, 2011 I have the same one....I got all wroking except mic internal input. finally got voodoohda to read internal mic but still not being read by osx/ system pref/sound here are my info. Linux Dump: Codec Dump.txt Codec: LSI ID 1040 Address: 1 Function Id: 0x2 Vendor Id: 0x11c11040 Subsystem Id: 0x103c137e Revision Id: 0x100200 Modem Function Group: 0x1 Codec Dump 2 Codec: IDT 92HD75B2X5 Address: 0 Function Id: 0x1 Vendor Id: 0x111d7608 Subsystem Id: 0x103c363f Revision Id: 0x100202 No Modem Function Group found Default PCM: rates [0x7e0]: 44100 48000 88200 96000 176400 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Default Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Default Amp-Out caps: ofs=0x7f, nsteps=0x7f, stepsize=0x02, mute=1 GPIO: io=8, o=0, i=0, unsolicited=1, wake=1 IO[0]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[1]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[2]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[3]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[4]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[5]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[6]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[7]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 Power-Map: 0x00 Analog Loopback: 0x00 Node 0x0a [Pin Complex] wcaps 0x400181: Stereo Pincap 0x0000001c: OUT HP Detect Pin Default 0x0121101f: [Jack] HP Out at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0x1, Sequence = 0xf Pin-ctls: 0x00: Unsolicited: tag=01, enabled=1 Connection: 3 0x10 0x11* 0x17 Node 0x0b [Pin Complex] wcaps 0x400081: Stereo Pincap 0x00001724: IN Detect Vref caps: HIZ 50 GRD 80 Pin Default 0x01a11020: [Jack] Mic at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0x2, Sequence = 0x0 Pin-ctls: 0x24: IN VREF_80 Unsolicited: tag=02, enabled=1 Node 0x0c [Pin Complex] wcaps 0x400081: Stereo Pincap 0x00001724: IN Detect Vref caps: HIZ 50 GRD 80 Pin Default 0x92a71130: [Fixed] Mic at Int Front Conn = Analog, Color = Black DefAssociation = 0x3, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x24: IN VREF_80 Unsolicited: tag=00, enabled=0 Node 0x0d [Pin Complex] wcaps 0x400181: Stereo Pincap 0x00000014: OUT Detect Pin Default 0x90110110: [Fixed] Speaker at Int N/A Conn = 1/8, Color = Unknown DefAssociation = 0x1, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x40: OUT Unsolicited: tag=00, enabled=0 Connection: 3 0x10* 0x11 0x17 Node 0x0e [Pin Complex] wcaps 0x400081: Stereo Pincap 0x00000024: IN Detect Pin Default 0x40f000f9: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x9 Pin-ctls: 0x00: Unsolicited: tag=00, enabled=0 Node 0x0f [Vendor Defined Widget] wcaps 0xf00181: Stereo Unsolicited: tag=00, enabled=0 Connection: 3 0x10 0x11 0x17* Node 0x10 [Audio Output] wcaps 0xd0c05: Stereo Amp-Out R/L Amp-Out caps: N/A Amp-Out vals: [0x73 0x73] Converter: stream=0, channel=0 Power: setting=D0, actual=D0 Delay: 13 samples Node 0x11 [Audio Output] wcaps 0xd0c05: Stereo Amp-Out R/L Amp-Out caps: N/A Amp-Out vals: [0x60 0x60] Converter: stream=0, channel=0 Power: setting=D0, actual=D0 Delay: 13 samples Node 0x12 [Audio Input] wcaps 0x1d0541: Stereo Converter: stream=0, channel=0 SDI-Select: 0 Power: setting=D3, actual=D3 Delay: 13 samples Connection: 1 0x1c Processing caps: benign=0, ncoeff=0 Node 0x13 [Audio Input] wcaps 0x1d0541: Stereo Converter: stream=0, channel=0 SDI-Select: 0 Power: setting=D3, actual=D3 Delay: 13 samples Connection: 1 0x1d Processing caps: benign=0, ncoeff=0 Node 0x14 [Pin Complex] wcaps 0x400100: Mono Pincap 0x00000030: IN OUT Pin Default 0x40f000f1: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x1 Pin-ctls: 0x00: Connection: 1 0x16 Node 0x15 [Audio Selector] wcaps 0x300101: Stereo Connection: 3 0x10 0x11 0x17* Node 0x16 [Audio Mixer] wcaps 0x200100: Mono Connection: 1 0x15 Node 0x17 [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Amp-In caps: ofs=0x17, nsteps=0x1f, stepsize=0x05, mute=1 Amp-In vals: [0x97 0x97] [0x97 0x97] [0x97 0x97] [0x97 0x97] [0x97 0x97] Connection: 5 0x10 0x11 0x14 0x1a 0x1b Node 0x18 [Pin Complex] wcaps 0x40000b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Pincap 0x00000020: IN Pin Default 0x40f000f2: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x2 Pin-ctls: 0x00: Node 0x19 [Vendor Defined Widget] wcaps 0xf0000b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: Node 0x1a [Audio Selector] wcaps 0x30010d: Stereo Amp-Out Amp-Out caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-Out vals: [0x00 0x00] Connection: 3 0x0b* 0x0c 0x0e Node 0x1b [Audio Selector] wcaps 0x30010d: Stereo Amp-Out Amp-Out caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-Out vals: [0x00 0x00] Connection: 3 0x0b* 0x0c 0x0e Node 0x1c [Audio Selector] wcaps 0x30090d: Stereo Amp-Out R/L Amp-Out caps: ofs=0x00, nsteps=0x0f, stepsize=0x05, mute=1 Amp-Out vals: [0x80 0x80] Connection: 4 0x1a* 0x17 0x18 0x19 Node 0x1d [Audio Selector] wcaps 0x30090d: Stereo Amp-Out R/L Amp-Out caps: ofs=0x00, nsteps=0x0f, stepsize=0x05, mute=1 Amp-Out vals: [0x80 0x80] Connection: 4 0x1b* 0x17 0x18 0x19 Node 0x1e [Pin Complex] wcaps 0x400301: Stereo Digital Pincap 0x00000010: OUT Pin Default 0x40f000f4: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x4 Pin-ctls: 0x00: Connection: 1 0x24 Node 0x1f [Pin Complex] wcaps 0x400701: Stereo Digital Pincap 0x00010010: OUT EAPD EAPD 0x0: Pin Default 0x40f000f5: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x5 Pin-ctls: 0x00: Power: setting=D0, actual=D0 Connection: 2 0x24* 0x25 Node 0x20 [Pin Complex] wcaps 0x400301: Stereo Digital Pincap 0x00000010: OUT Pin Default 0x40f000f6: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x6 Pin-ctls: 0x00: Connection: 1 0x25 Node 0x21 [Audio Output] wcaps 0x40211: Stereo Digital Converter: stream=0, channel=0 Digital: Digital category: 0x0 PCM: rates [0x7e0]: 44100 48000 88200 96000 176400 192000 bits [0xe]: 16 20 24 formats [0x5]: PCM AC3 Delay: 4 samples Node 0x22 [Audio Output] wcaps 0x40211: Stereo Digital Converter: stream=0, channel=0 Digital: Digital category: 0x0 PCM: rates [0x7e0]: 44100 48000 88200 96000 176400 192000 bits [0xe]: 16 20 24 formats [0x5]: PCM AC3 Delay: 4 samples Node 0x23 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x24 [Audio Selector] wcaps 0x300101: Stereo Connection: 3 0x21* 0x1c 0x1d Node 0x25 [Audio Selector] wcaps 0x300101: Stereo Connection: 3 0x22* 0x1c 0x1d Node 0x26 [beep Generator Widget] wcaps 0x70000c: Mono Amp-Out Amp-Out caps: ofs=0x03, nsteps=0x03, stepsize=0x17, mute=1 Amp-Out vals: [0x00] Node 0x27 [Volume Knob Widget] wcaps 0x600000: Mono Volume-Knob: delta=1, steps=127, direct=0, val=127 Connection: 2 0x10 0x11 From Windows: Pinconfig already Flipped and converted to hex: <00A71C1F 00A71D10 00A71E21 00A71F01 00B71C20 00B71D10 00B71EA1 00B71F01 00C71C30 00C71D11 00C71EA7 00C71F92 00D71C10 00D71D01 00D71E11 00D71F90 00E71CF9 00E71D00 00E71EF0 00E71F40 01471CF1 01471D00 01471EF0 01471F40 01871CF2 01871D00 01871EF0 01871F40 01E71CF4 01E71D00 01E71EF0 01E71F40 01F71CF5 01F71D00 01F71EF0 01F71F40 02071CF6 02071D00 02071EF0 02071F40> From SL 10.6.4 Some Voodoohelpertool -dump Probing codec #0... HDA Codec #0: ATI RS690/780 HDMI HDA Codec ID: 0x1002791a Vendor: 0x1002 Device: 0x791a Revision: 0x00 Stepping: 0x00 PCI Subvendor: 0x363f103c startNode=1 endNode=2 Found audio FG nid=1 startNode=2 endNode=4 total=2 Processing audio FG cad=0 nid=1... Powering up... Parsing audio FG... GPIO: 0x00000000 NumGPIO=0 NumGPO=0 NumGPI=0 GPIWake=0 GPIUnsol=0 nid 3 0x18560010 as 1 seq 0 Digital-out Jack jack 6 loc 24 color Unknown misc 0 Parsing vendor patch... VHDevice NID=2 Config=00000000 Type=00000000 Cap=00000000 Ctrl=00000000 -- Conns: VHDevice NID=3 Config=18560010 Type=00000004 Cap=00000094 Ctrl=00000040 -- Conns: 0=2 Disabling nonaudio... Disabling useless... Patched pins configuration: nid 3 0x18560010 as 1 seq 0 Digital-out Jack jack 6 loc 24 color Unknown misc 0 Parsing pin associations... 1 associations found: Association 0 (1) out: Pin nid=3 seq=0 Redir type=-1 jack=0 def=0 Building AFG tree... Tracing association 0 (1) Tracing pin 3 with min nid 0 tracing via nid 3 tracing via nid 2 nid 2 returned 2 nid 3 returned 2 Pin 3 traced to DAC 2 Association 0 (1) trace succeeded Tracing input monitor Tracing other input monitors Tracing beeper Disabling unassociated widgets... Disabling nonselected inputs... Disabling useless... Disabling crossassociated connections... Disabling useless... Binding associations to channels... Assigning names to signal sources... Parsing Ctls... Assigning mixers to the tree... Preparing pin controls... AFG commit... Creating PCM devices... pcmAttach: HDA ATI RS690/780 HDMI PCM #0 HDMI at cad 0 nid 1 +--------------------------------------+ | DUMPING PCM Playback/Record Channels | +--------------------------------------+ Playback: Stream cap: 0x00000005 AC3 PCM PCM cap: 0x00020040 16 bits, 48 KHz DAC: 2 +-------------------------------+ | DUMPING Playback/Record Paths | +-------------------------------+ Playback: nid=3 [pin: Digital-out (HDMI)] | + <- nid=2 [audio output] [src: pcm] bindSeq=00000001 +-------------------------+ | DUMPING Volume Controls | +-------------------------+ OSS mixer initialization... Registering PCM channels... FG config/quirks: forcestereo ivref50 ivref80 ivref100 ivref HP switch init... +-------------------+ | DUMPING HDA NODES | +-------------------+ Default Parameter ----------------- Stream cap: 0x00000001 PCM PCM cap: 0x00020040 16 bits, 48 KHz IN amp: 0x00000000 OUT amp: 0x00000000 nid: 2 Name: audio output Widget cap: 0x00000201 DIGITAL STEREO Association: 0 (0x00000001) OSS: pcm (pcm) Stream cap: 0x00000001 PCM PCM cap: 0x00020040 16 bits, 48 KHz nid: 3 Name: pin: Digital-out (HDMI) Widget cap: 0x00400381 DIGITAL UNSOL STEREO Association: 0 (0x00000001) Pin cap: 0x00000094 PDC OUT HDMI Pin config: 0x18560010 Pin control: 0x00000040 OUT connections: 1 enabled 1 | + <- nid=2 [audio output] Would you mind sharing with me how you got your audio working? Thanks. Link to comment Share on other sites More sharing options...
bci24sg22 Posted August 19, 2011 Share Posted August 19, 2011 I have a Compaq CQ61-125EQ with the same codec id: IDT 92HD75B2X5 codec dump linux Codec: IDT 92HD75B2X5 Address: 0 AFG Function Id: 0x1 (unsol 1) Vendor Id: 0x111d7608 Subsystem Id: 0x103c306a Revision Id: 0x100202 No Modem Function Group found Default PCM: rates [0x7e0]: 44100 48000 88200 96000 176400 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Default Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Default Amp-Out caps: ofs=0x7f, nsteps=0x7f, stepsize=0x02, mute=1 GPIO: io=8, o=0, i=0, unsolicited=1, wake=1 IO[0]: enable=1, dir=1, wake=0, sticky=0, data=1, unsol=0 IO[1]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[2]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[3]: enable=1, dir=1, wake=0, sticky=0, data=1, unsol=0 IO[4]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[5]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[6]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[7]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 Power-Map: 0x00 Analog Loopback: 0x00 Node 0x0a [Pin Complex] wcaps 0x400181: Stereo Pincap 0x0000001c: OUT HP Detect Pin Default 0x0121101f: [Jack] HP Out at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0x1, Sequence = 0xf Pin-ctls: 0x00: Unsolicited: tag=01, enabled=1 Connection: 3 0x10 0x11* 0x17 Node 0x0b [Pin Complex] wcaps 0x400081: Stereo Control: name="Rear Mic Jack Mode", index=0, device=0 ControlAmp: chs=0, dir=In, idx=0, ofs=0 Pincap 0x00001724: IN Detect Vref caps: HIZ 50 GRD 80 Pin Default 0x01a11020: [Jack] Mic at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0x2, Sequence = 0x0 Pin-ctls: 0x24: IN VREF_80 Unsolicited: tag=02, enabled=1 Node 0x0c [Pin Complex] wcaps 0x400081: Stereo Pincap 0x00001724: IN Detect Vref caps: HIZ 50 GRD 80 Pin Default 0x92a71130: [Fixed] Mic at Int Front Conn = Analog, Color = Black DefAssociation = 0x3, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x24: IN VREF_80 Unsolicited: tag=00, enabled=0 Node 0x0d [Pin Complex] wcaps 0x400181: Stereo Pincap 0x00000014: OUT Detect Pin Default 0x90110110: [Fixed] Speaker at Int N/A Conn = 1/8, Color = Unknown DefAssociation = 0x1, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x40: OUT Unsolicited: tag=00, enabled=0 Connection: 3 0x10* 0x11 0x17 Node 0x0e [Pin Complex] wcaps 0x400081: Stereo Pincap 0x00000024: IN Detect Pin Default 0x40f000f9: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x9 Pin-ctls: 0x00: Unsolicited: tag=00, enabled=0 Node 0x0f [Vendor Defined Widget] wcaps 0xf00181: Stereo Unsolicited: tag=00, enabled=0 Connection: 3 0x10 0x11 0x17* Node 0x10 [Audio Output] wcaps 0xd0c05: Stereo Amp-Out R/L Control: name="Speaker Playback Volume", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=63 Control: name="Speaker Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Device: name="STAC92xx Analog", type="Audio", device=0 Amp-Out caps: N/A Amp-Out vals: [0x73 0x73] Converter: stream=5, channel=0 Power: setting=D0, actual=D0 Delay: 13 samples Node 0x11 [Audio Output] wcaps 0xd0c05: Stereo Amp-Out R/L Control: name="Headphone Playback Volume", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=63 Control: name="Headphone Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Amp-Out caps: N/A Amp-Out vals: [0x73 0x73] Converter: stream=5, channel=0 Power: setting=D0, actual=D0 Delay: 13 samples Node 0x12 [Audio Input] wcaps 0x1d0541: Stereo Device: name="STAC92xx Analog", type="Audio", device=0 Converter: stream=1, channel=0 SDI-Select: 0 Power: setting=D3, actual=D3 Delay: 13 samples Connection: 1 0x1c Processing caps: benign=0, ncoeff=0 Node 0x13 [Audio Input] wcaps 0x1d0541: Stereo Converter: stream=0, channel=0 SDI-Select: 0 Power: setting=D0, actual=D0 Delay: 13 samples Connection: 1 0x1d Processing caps: benign=0, ncoeff=0 Node 0x14 [Pin Complex] wcaps 0x400100: Mono Pincap 0x00000030: IN OUT Pin Default 0x40f000f1: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x1 Pin-ctls: 0x00: Connection: 1 0x16 Node 0x15 [Audio Selector] wcaps 0x300101: Stereo Connection: 3 0x10 0x11 0x17* Node 0x16 [Audio Mixer] wcaps 0x200100: Mono Connection: 1 0x15 Node 0x17 [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Amp-In caps: ofs=0x17, nsteps=0x1f, stepsize=0x05, mute=1 Amp-In vals: [0x97 0x97] [0x97 0x97] [0x97 0x97] [0x97 0x97] [0x97 0x97] Connection: 5 0x10 0x11 0x14 0x1a 0x1b Node 0x18 [Pin Complex] wcaps 0x40000b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Pincap 0x00000020: IN Pin Default 0x40f000f2: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x2 Pin-ctls: 0x00: Node 0x19 [Vendor Defined Widget] wcaps 0xf0000b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: Node 0x1a [Audio Selector] wcaps 0x30010d: Stereo Amp-Out Control: name="Mux Capture Volume", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Amp-Out caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-Out vals: [0x00 0x00] Connection: 3 0x0b 0x0c* 0x0e Node 0x1b [Audio Selector] wcaps 0x30010d: Stereo Amp-Out Amp-Out caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-Out vals: [0x00 0x00] Connection: 3 0x0b* 0x0c 0x0e Node 0x1c [Audio Selector] wcaps 0x30090d: Stereo Amp-Out R/L Control: name="Capture Volume", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Control: name="Capture Switch", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Amp-Out caps: ofs=0x00, nsteps=0x0f, stepsize=0x05, mute=1 Amp-Out vals: [0x08 0x08] Connection: 4 0x1a* 0x17 0x18 0x19 Node 0x1d [Audio Selector] wcaps 0x30090d: Stereo Amp-Out R/L Amp-Out caps: ofs=0x00, nsteps=0x0f, stepsize=0x05, mute=1 Amp-Out vals: [0x80 0x80] Connection: 4 0x1b* 0x17 0x18 0x19 Node 0x1e [Pin Complex] wcaps 0x400301: Stereo Digital Pincap 0x00000010: OUT Pin Default 0x40f000f4: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x4 Pin-ctls: 0x00: Connection: 1 0x24 Node 0x1f [Pin Complex] wcaps 0x400701: Stereo Digital Pincap 0x00010010: OUT EAPD EAPD 0x0: Pin Default 0x40f000f5: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x5 Pin-ctls: 0x00: Power: setting=D0, actual=D0 Connection: 2 0x24* 0x25 Node 0x20 [Pin Complex] wcaps 0x400301: Stereo Digital Pincap 0x00000010: OUT Pin Default 0x40f000f6: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x6 Pin-ctls: 0x00: Connection: 1 0x25 Node 0x21 [Audio Output] wcaps 0x40211: Stereo Digital Converter: stream=0, channel=0 Digital: Digital category: 0x0 PCM: rates [0x7e0]: 44100 48000 88200 96000 176400 192000 bits [0xe]: 16 20 24 formats [0x5]: PCM AC3 Delay: 4 samples Node 0x22 [Audio Output] wcaps 0x40211: Stereo Digital Converter: stream=0, channel=0 Digital: Digital category: 0x0 PCM: rates [0x7e0]: 44100 48000 88200 96000 176400 192000 bits [0xe]: 16 20 24 formats [0x5]: PCM AC3 Delay: 4 samples Node 0x23 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x24 [Audio Selector] wcaps 0x300101: Stereo Connection: 3 0x21* 0x1c 0x1d Node 0x25 [Audio Selector] wcaps 0x300101: Stereo Connection: 3 0x22* 0x1c 0x1d Node 0x26 [Beep Generator Widget] wcaps 0x70000c: Mono Amp-Out Control: name="Beep Playback Switch", index=0, device=0 ControlAmp: chs=1, dir=Out, idx=0, ofs=0 Control: name="Beep Playback Volume", index=0, device=0 ControlAmp: chs=1, dir=Out, idx=0, ofs=0 Amp-Out caps: ofs=0x03, nsteps=0x03, stepsize=0x17, mute=1 Amp-Out vals: [0x00] Node 0x27 [Volume Knob Widget] wcaps 0x600000: Mono Volume-Knob: delta=1, steps=127, direct=0, val=127 Connection: 2 0x10 0x11 Can someone please share with us the AppleHda patched? Link to comment Share on other sites More sharing options...
iSoprano Posted August 22, 2011 Share Posted August 22, 2011 I have a Compaq CQ61-125EQ with the same codec id: IDT 92HD75B2X5 codec dump linux Codec: IDT 92HD75B2X5 Address: 0 AFG Function Id: 0x1 (unsol 1) Vendor Id: 0x111d7608 Subsystem Id: 0x103c306a Revision Id: 0x100202 No Modem Function Group found Default PCM: rates [0x7e0]: 44100 48000 88200 96000 176400 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Default Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Default Amp-Out caps: ofs=0x7f, nsteps=0x7f, stepsize=0x02, mute=1 GPIO: io=8, o=0, i=0, unsolicited=1, wake=1 IO[0]: enable=1, dir=1, wake=0, sticky=0, data=1, unsol=0 IO[1]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[2]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[3]: enable=1, dir=1, wake=0, sticky=0, data=1, unsol=0 IO[4]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[5]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[6]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[7]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 Power-Map: 0x00 Analog Loopback: 0x00 Node 0x0a [Pin Complex] wcaps 0x400181: Stereo Pincap 0x0000001c: OUT HP Detect Pin Default 0x0121101f: [Jack] HP Out at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0x1, Sequence = 0xf Pin-ctls: 0x00: Unsolicited: tag=01, enabled=1 Connection: 3 0x10 0x11* 0x17 Node 0x0b [Pin Complex] wcaps 0x400081: Stereo Control: name="Rear Mic Jack Mode", index=0, device=0 ControlAmp: chs=0, dir=In, idx=0, ofs=0 Pincap 0x00001724: IN Detect Vref caps: HIZ 50 GRD 80 Pin Default 0x01a11020: [Jack] Mic at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0x2, Sequence = 0x0 Pin-ctls: 0x24: IN VREF_80 Unsolicited: tag=02, enabled=1 Node 0x0c [Pin Complex] wcaps 0x400081: Stereo Pincap 0x00001724: IN Detect Vref caps: HIZ 50 GRD 80 Pin Default 0x92a71130: [Fixed] Mic at Int Front Conn = Analog, Color = Black DefAssociation = 0x3, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x24: IN VREF_80 Unsolicited: tag=00, enabled=0 Node 0x0d [Pin Complex] wcaps 0x400181: Stereo Pincap 0x00000014: OUT Detect Pin Default 0x90110110: [Fixed] Speaker at Int N/A Conn = 1/8, Color = Unknown DefAssociation = 0x1, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x40: OUT Unsolicited: tag=00, enabled=0 Connection: 3 0x10* 0x11 0x17 Node 0x0e [Pin Complex] wcaps 0x400081: Stereo Pincap 0x00000024: IN Detect Pin Default 0x40f000f9: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x9 Pin-ctls: 0x00: Unsolicited: tag=00, enabled=0 Node 0x0f [Vendor Defined Widget] wcaps 0xf00181: Stereo Unsolicited: tag=00, enabled=0 Connection: 3 0x10 0x11 0x17* Node 0x10 [Audio Output] wcaps 0xd0c05: Stereo Amp-Out R/L Control: name="Speaker Playback Volume", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=63 Control: name="Speaker Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Device: name="STAC92xx Analog", type="Audio", device=0 Amp-Out caps: N/A Amp-Out vals: [0x73 0x73] Converter: stream=5, channel=0 Power: setting=D0, actual=D0 Delay: 13 samples Node 0x11 [Audio Output] wcaps 0xd0c05: Stereo Amp-Out R/L Control: name="Headphone Playback Volume", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=63 Control: name="Headphone Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Amp-Out caps: N/A Amp-Out vals: [0x73 0x73] Converter: stream=5, channel=0 Power: setting=D0, actual=D0 Delay: 13 samples Node 0x12 [Audio Input] wcaps 0x1d0541: Stereo Device: name="STAC92xx Analog", type="Audio", device=0 Converter: stream=1, channel=0 SDI-Select: 0 Power: setting=D3, actual=D3 Delay: 13 samples Connection: 1 0x1c Processing caps: benign=0, ncoeff=0 Node 0x13 [Audio Input] wcaps 0x1d0541: Stereo Converter: stream=0, channel=0 SDI-Select: 0 Power: setting=D0, actual=D0 Delay: 13 samples Connection: 1 0x1d Processing caps: benign=0, ncoeff=0 Node 0x14 [Pin Complex] wcaps 0x400100: Mono Pincap 0x00000030: IN OUT Pin Default 0x40f000f1: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x1 Pin-ctls: 0x00: Connection: 1 0x16 Node 0x15 [Audio Selector] wcaps 0x300101: Stereo Connection: 3 0x10 0x11 0x17* Node 0x16 [Audio Mixer] wcaps 0x200100: Mono Connection: 1 0x15 Node 0x17 [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Amp-In caps: ofs=0x17, nsteps=0x1f, stepsize=0x05, mute=1 Amp-In vals: [0x97 0x97] [0x97 0x97] [0x97 0x97] [0x97 0x97] [0x97 0x97] Connection: 5 0x10 0x11 0x14 0x1a 0x1b Node 0x18 [Pin Complex] wcaps 0x40000b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Pincap 0x00000020: IN Pin Default 0x40f000f2: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x2 Pin-ctls: 0x00: Node 0x19 [Vendor Defined Widget] wcaps 0xf0000b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: Node 0x1a [Audio Selector] wcaps 0x30010d: Stereo Amp-Out Control: name="Mux Capture Volume", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Amp-Out caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-Out vals: [0x00 0x00] Connection: 3 0x0b 0x0c* 0x0e Node 0x1b [Audio Selector] wcaps 0x30010d: Stereo Amp-Out Amp-Out caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-Out vals: [0x00 0x00] Connection: 3 0x0b* 0x0c 0x0e Node 0x1c [Audio Selector] wcaps 0x30090d: Stereo Amp-Out R/L Control: name="Capture Volume", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Control: name="Capture Switch", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Amp-Out caps: ofs=0x00, nsteps=0x0f, stepsize=0x05, mute=1 Amp-Out vals: [0x08 0x08] Connection: 4 0x1a* 0x17 0x18 0x19 Node 0x1d [Audio Selector] wcaps 0x30090d: Stereo Amp-Out R/L Amp-Out caps: ofs=0x00, nsteps=0x0f, stepsize=0x05, mute=1 Amp-Out vals: [0x80 0x80] Connection: 4 0x1b* 0x17 0x18 0x19 Node 0x1e [Pin Complex] wcaps 0x400301: Stereo Digital Pincap 0x00000010: OUT Pin Default 0x40f000f4: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x4 Pin-ctls: 0x00: Connection: 1 0x24 Node 0x1f [Pin Complex] wcaps 0x400701: Stereo Digital Pincap 0x00010010: OUT EAPD EAPD 0x0: Pin Default 0x40f000f5: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x5 Pin-ctls: 0x00: Power: setting=D0, actual=D0 Connection: 2 0x24* 0x25 Node 0x20 [Pin Complex] wcaps 0x400301: Stereo Digital Pincap 0x00000010: OUT Pin Default 0x40f000f6: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x6 Pin-ctls: 0x00: Connection: 1 0x25 Node 0x21 [Audio Output] wcaps 0x40211: Stereo Digital Converter: stream=0, channel=0 Digital: Digital category: 0x0 PCM: rates [0x7e0]: 44100 48000 88200 96000 176400 192000 bits [0xe]: 16 20 24 formats [0x5]: PCM AC3 Delay: 4 samples Node 0x22 [Audio Output] wcaps 0x40211: Stereo Digital Converter: stream=0, channel=0 Digital: Digital category: 0x0 PCM: rates [0x7e0]: 44100 48000 88200 96000 176400 192000 bits [0xe]: 16 20 24 formats [0x5]: PCM AC3 Delay: 4 samples Node 0x23 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x24 [Audio Selector] wcaps 0x300101: Stereo Connection: 3 0x21* 0x1c 0x1d Node 0x25 [Audio Selector] wcaps 0x300101: Stereo Connection: 3 0x22* 0x1c 0x1d Node 0x26 [Beep Generator Widget] wcaps 0x70000c: Mono Amp-Out Control: name="Beep Playback Switch", index=0, device=0 ControlAmp: chs=1, dir=Out, idx=0, ofs=0 Control: name="Beep Playback Volume", index=0, device=0 ControlAmp: chs=1, dir=Out, idx=0, ofs=0 Amp-Out caps: ofs=0x03, nsteps=0x03, stepsize=0x17, mute=1 Amp-Out vals: [0x00] Node 0x27 [Volume Knob Widget] wcaps 0x600000: Mono Volume-Knob: delta=1, steps=127, direct=0, val=127 Connection: 2 0x10 0x11 Can someone please share with us the AppleHda patched? go here http://www.insanelymac.com/forum/index.php...0849&st=700 and look at post 705 Link to comment Share on other sites More sharing options...
bci24sg22 Posted September 6, 2011 Share Posted September 6, 2011 go here http://www.insanelymac.com/forum/index.php...0849&st=700and look at post 705 It's not working. I get this warning console: 9/6/11 10:39:22.000 AM kernel: Sound assertion "!me->fKextResourceLoaded" failed in AppleHDADriver at line 858 goto Exit 9/6/11 10:39:22.000 AM kernel: Sound assertion "0 != result" failed in AppleHDADriver at line 883 goto Exit 9/6/11 10:39:22.000 AM kernel: Sound assertion "!me->fKextResourceLoaded" failed in AppleHDADriver at line 858 goto Exit 9/6/11 11:23:10.000 AM kernel: Sound assertion "0 != result" failed in AppleHDADriver at line 883 goto Exit 9/6/11 11:23:10.000 AM kernel: Sound assertion "!me->fKextResourceLoaded" failed in AppleHDADriver at line 858 goto Exit 9/6/11 11:23:10.000 AM kernel: Sound assertion "0 != result" failed in AppleHDADriver at line 883 goto Exit 9/6/11 11:23:10.000 AM kernel: Sound assertion "!me->fKextResourceLoaded" failed in AppleHDADriver at line 858 goto Exit I use a dsdt.aml (thanks to MaLd0n) see post Mald0n says that patching the apple hda will work with that dsdt. My codec is IDT92HD75B2X5 and the AppleHDA from the post 705 is for IDT 92HD75B3X5 Link to comment Share on other sites More sharing options...
Komano Posted September 21, 2011 Share Posted September 21, 2011 Try mine. :s AppleHDA_IDT92HD75B2X5.kext.zip Link to comment Share on other sites More sharing options...

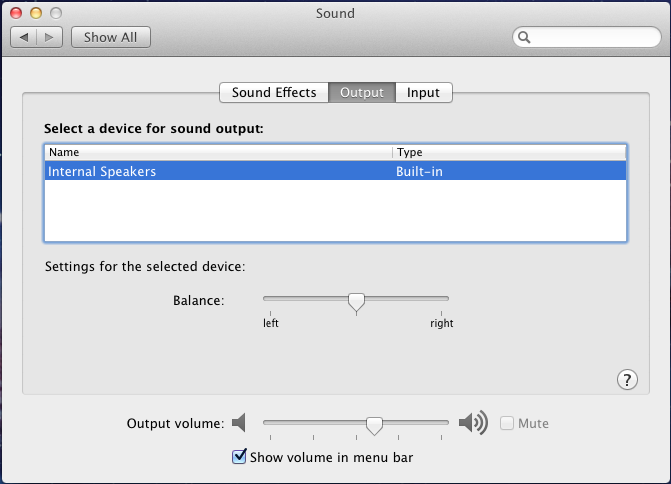

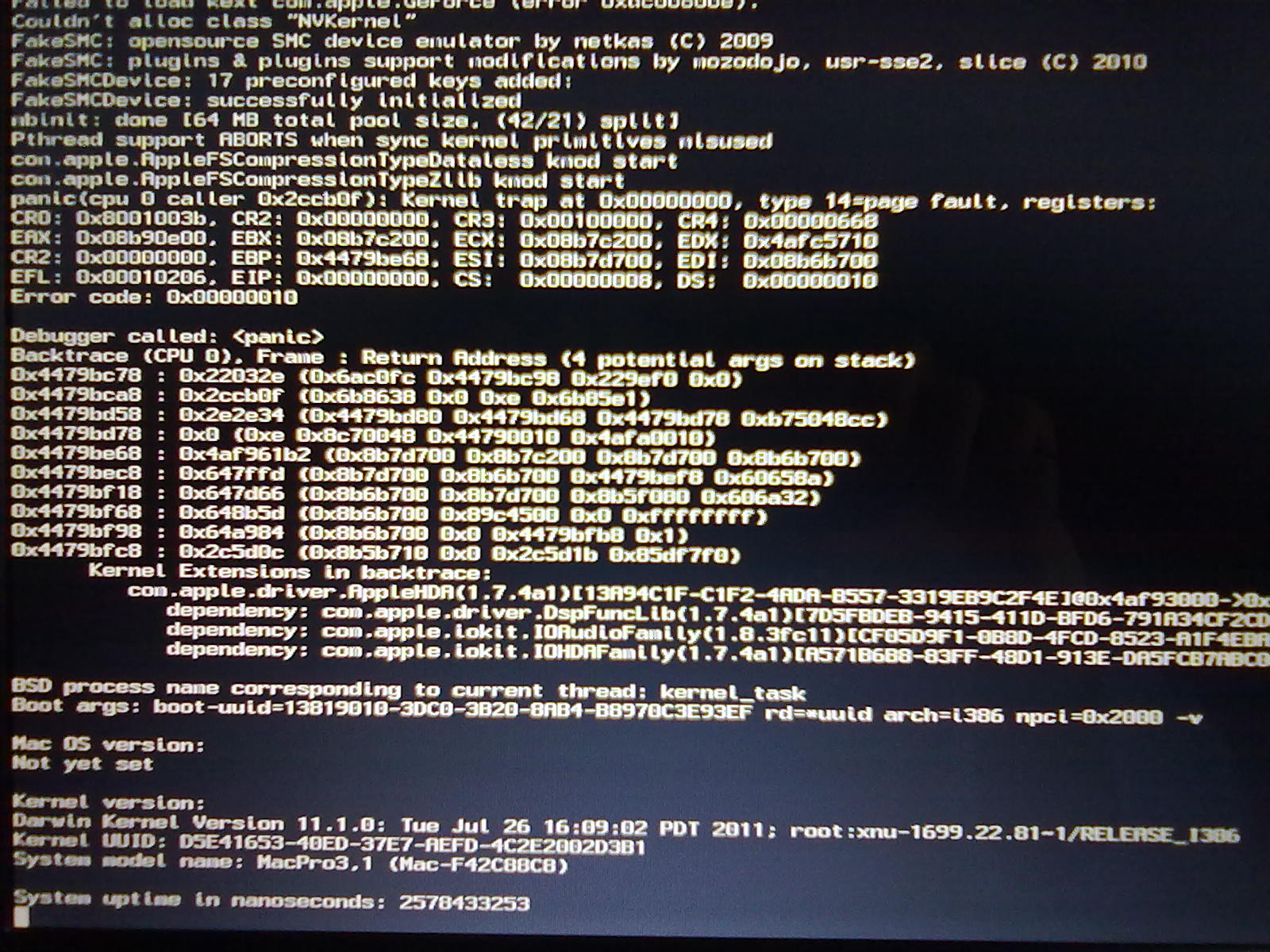

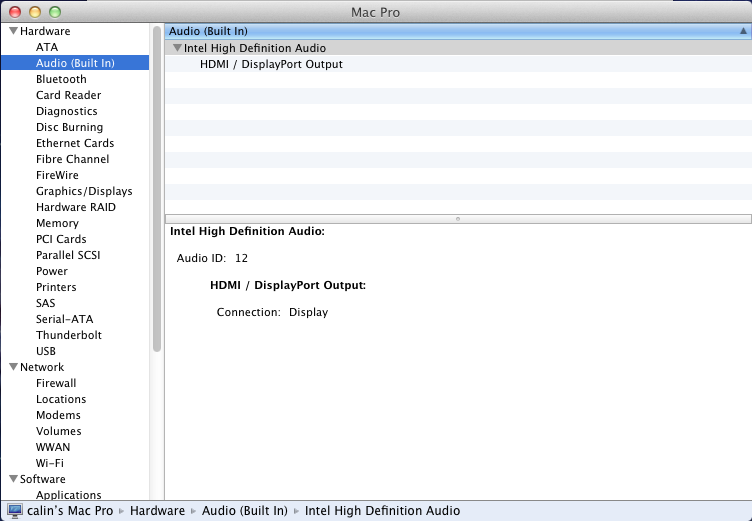

bci24sg22 Posted September 27, 2011 Share Posted September 27, 2011 Try mine. :s AppleHDA_IDT92HD75B2X5.kext.zip ( 1.41MB ) Number of downloads: 4 Thank you very much!!! Finally i can get some sound. The sound its working but i get to much kernel panics. In System Profile the audio looks strange like this: In System Preferences --> Sound like this: How can i get rid of that kernel panic??? Link to comment Share on other sites More sharing options...
bci24sg22 Posted October 8, 2011 Share Posted October 8, 2011 Thank you very much!!! Finally i can get some sound. The sound its working but i get to much kernel panics. In System Profile the audio looks strange like this: In System Preferences --> Sound like this: How can i get rid of that kernel panic??? Please somebody help me with that kernel panic. :censored2: Link to comment Share on other sites More sharing options...
Komano Posted January 31, 2012 Share Posted January 31, 2012 Unfortunately i never found a way to properly patch this Codec. But i think i did manage to get it working with VoodooHDA though. Link to comment Share on other sites More sharing options...
