OSX86 ati mobility radeon HD5870 working perfectlly with QE/CI


  • Please log in to reply
83 replies to this topic

#1
Olda

Olda

    InsanelyMac Protégé

  • Members
  • Pip
  • 10 posts

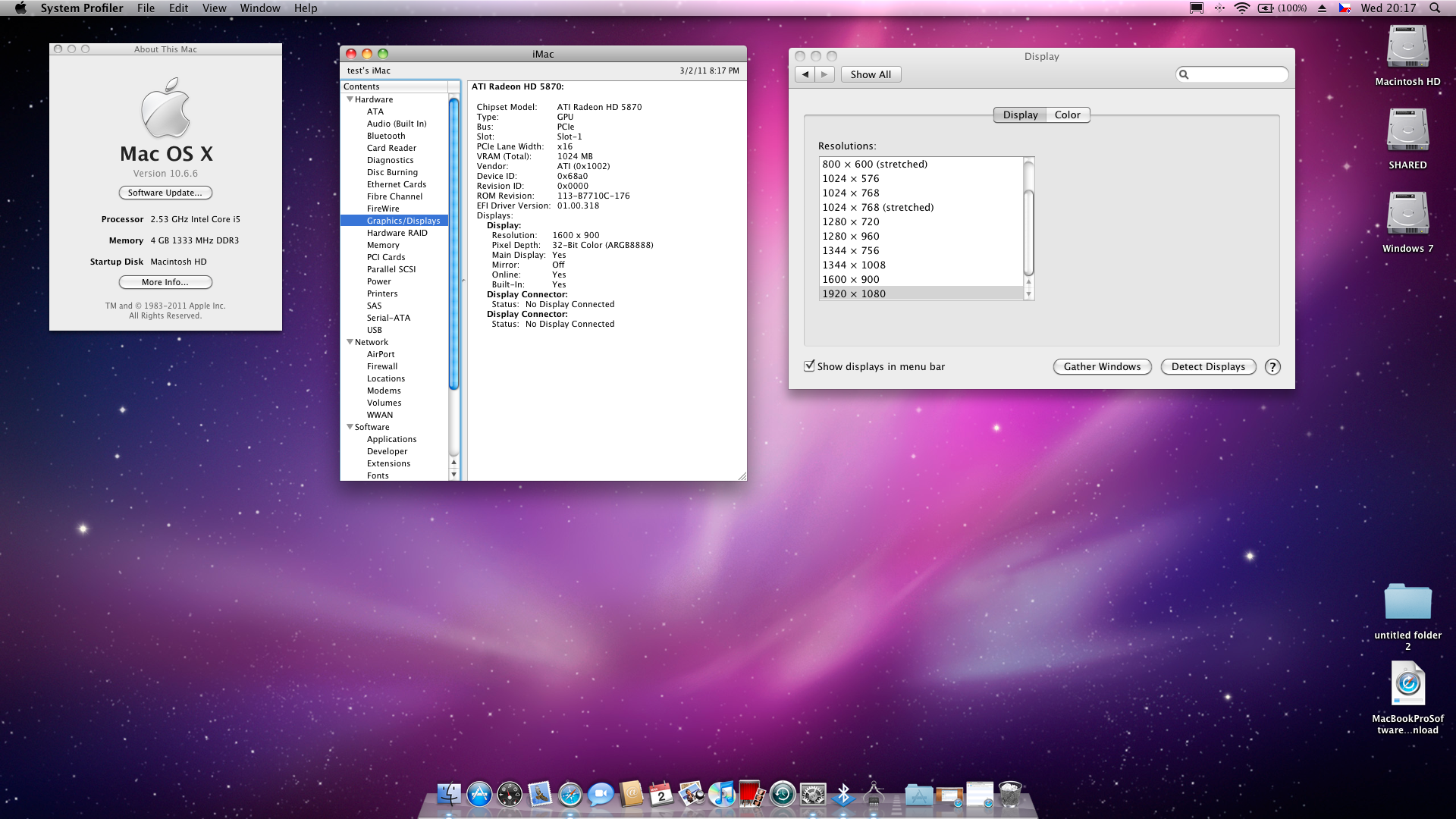

Hi guys, as you can see on the picture, my mobility radeon is fully supported in 10.6.6(QE/CI).
1. Install 10.6.6 - do not reboot
2. Install chameleon bootlooder
3. Replace the boot file
4. Create the Extra folder
5. Use ati rom into the Extra folder
6. Use com.apple.Boot.plist into the Extra folder
Restart the computer and your graphics acceleration should be working.

Ati framebuffer in boot file was changed to Nomascus - fb for mobility cards.

#2
Fb2003

Fb2003

    InsanelyMac Protégé

  • Members
  • Pip
  • 33 posts
Hi Olda,

This is very good news, I also have a laptop with the 5870 mobility in it... been dying to get it to work.

What resolution do you get? Does your laptop screen display correctly?

Cheers

#3
pavol.tomik

pavol.tomik

    InsanelyMac Protégé

  • Members
  • Pip
  • 20 posts

Hi guys, as you can see on the picture, my mobility radeon is fully supported in 10.6.6(QE/CI).
1. Install 10.6.6 - do not reboot
2. Install chameleon bootlooder
3. Replace the boot file
4. Create the Extra folder
5. Use ati rom into the Extra folder
6. Use com.apple.Boot.plist into the Extra folder
Restart the computer and your graphics acceleration should be working.

Ati framebuffer in boot file was changed to Nomascus - fb for mobility cards.


Hi,
great news!!! :P Can you be please more specific in this? Can you tell us exactly which files you use (ati rom, repalce boot file?, what is in your com.apple.boot.list)?
Thank you
PT

#4
Olda

Olda

    InsanelyMac Protégé

  • Members
  • Pip
  • 10 posts

Hi Olda,

This is very good news, I also have a laptop with the 5870 mobility in it... been dying to get it to work.

What resolution do you get? Does your laptop screen display correctly?

Cheers

Hi,
the resolution which I am using is 1920x1080, everythink is working correctly without problem.
Attached File  Screen_shot_2011_03_02_at_8.17.53_PM.png   1.73MB   718 downloads

#5
Redspike

Redspike

    InsanelyMac Protégé

  • Members
  • Pip
  • 10 posts
Congrats on getting your 5870 working. Hopefully this is just the beginning of ati mobility's being used properly in OSX.

Pavol I think the ati rom he is on about is a dump of his video card, which you can get using Dong's code from his now defunct framebuffer project on google project.

Also when he talks about replacing the boot file I believe this is to do with the experimenting that is going on with respect to changing the framebuffer for ATI cards. Have a look in the graphics section of the hardware pages for more info.

#6
pavol.tomik

pavol.tomik

    InsanelyMac Protégé

  • Members
  • Pip
  • 20 posts
Hi Olda,
can you please post your boot file please.
I have Asus G73jh with Ati Mobility Radeon HD5870 (1600x900).
I tried about 5 boot files with no luck.
All I got is spinning wheel or only 1024x768.
So I want to try your boot file with my Radeon.
Thank you

PT

#7
Olda

Olda

    InsanelyMac Protégé

  • Members
  • Pip
  • 10 posts

Congrats on getting your 5870 working. Hopefully this is just the beginning of ati mobility's being used properly in OSX.

Pavol I think the ati rom he is on about is a dump of his video card, which you can get using Dong's code from his now defunct framebuffer project on google project.

Also when he talks about replacing the boot file I believe this is to do with the experimenting that is going on with respect to changing the framebuffer for ATI cards. Have a look in the graphics section of the hardware pages for more info.

Hi guys,
download the files from link below.
http://www.mediafire...qpev3oov7icafk3
There is modified boot file - the framebuffer for mobility card was changed to right one(Nomascus).
Also, there is atirom for mobility hd5870, device ID 68a0.
Follow the instruction above and your card will be working.

#8
Olda

Olda

    InsanelyMac Protégé

  • Members
  • Pip
  • 10 posts

Hi Olda,
can you please post your boot file please.
I have Asus G73jh with Ati Mobility Radeon HD5870 (1600x900).
I tried about 5 boot files with no luck.
All I got is spinning wheel or only 1024x768.
So I want to try your boot file with my Radeon.
Thank you

PT

This boot file is correct one
Attached File  boot.zip   103.55KB   865 downloads

#9
pavol.tomik

pavol.tomik

    InsanelyMac Protégé

  • Members
  • Pip
  • 20 posts
Hi Olda,
thank you.
I will try it and let you know.

P.

#10
pavol.tomik

pavol.tomik

    InsanelyMac Protégé

  • Members
  • Pip
  • 20 posts
Hi all,
I need to inform you that "Olda" is my GOD from NOW!!!!!!!!!!!!!!!!!
I can confirm that this is WORKING!!!!! for ATI MOBILITY RADEON HD5870 on my Asus G73jh.
Full resolution with QE/CI :(
Olda thank you very very very much ;)
Regards

Pavol Tomik

#11
Olda

Olda

    InsanelyMac Protégé

  • Members
  • Pip
  • 10 posts

Hi all,
I need to inform you that "Olda" is my GOD from NOW!!!!!!!!!!!!!!!!!
I can confirm that this is WORKING!!!!! for ATI MOBILITY RADEON HD5870 on my Asus G73jh.
Full resolution with QE/CI :)
Olda thank you very very very much :)
Regards

Pavol Tomik

Není zač Pavol, rádo se stalo. Myslím,že mi rozumíš v mateřském jazyce.
Olda

#12
xtremekite

xtremekite

    InsanelyMac Protégé

  • Just Joined
  • Pip
  • 2 posts
I can confirm also, works on ASUS G73JH, full resolution with hardware acceleration, thanx. Wroks both internal display and external HDMI, just VGA doesn't work here. Thank so much again.

#13
Olda

Olda

    InsanelyMac Protégé

  • Members
  • Pip
  • 10 posts

I can confirm also, works on ASUS G73JH, full resolution with hardware acceleration, thanx. Wroks both internal display and external HDMI, just VGA doesn't work here. Thank so much again.

Thanks both guys for confirmation. So the method is working on MSI GX660 and Asus G73JH. I think that will be working also for another series of HD5xxx - need to use the correct atirom file.
Good luck!

#14
Fb2003

Fb2003

    InsanelyMac Protégé

  • Members
  • Pip
  • 33 posts
Olda is our Hero :D

This is insanely good news !

I normally follow fool proof tutorials for my desktop installs :)

Who is up for a quick step by step tutorial for this 5870 mobility laptop install?

eg. Can i use ##### for this laptop OSX install?

#15
pavol.tomik

pavol.tomik

    InsanelyMac Protégé

  • Members
  • Pip
  • 20 posts
Olda,
jasna vec, ze rozumiem :blink: Si u mna ale proste borec ;)

P.

#16
cre8r

cre8r

    InsanelyMac Protégé

  • Members
  • Pip
  • 14 posts
Great news! Gonna try this method with Mobility 5850 on my MSI GX640.

Also i think that this topic's place is at ATI forum, quite a few people are trying to get their laptop cards working and they may not be aware of your success.

#17
cre8r

cre8r

    InsanelyMac Protégé

  • Members
  • Pip
  • 14 posts
Confirming that Mobility 5850 card works with internal display on my laptop (MSI GX640) with native resolution and QE/CI. Haven't tested VGA and HDMI ports though. Great job, Olda!

#18
ohmehgawd

ohmehgawd

    InsanelyMac Protégé

  • Just Joined
  • Pip
  • 1 posts
should I try this on my mobility 4670? Maybe I do need another framebuffer?

#19
leo90

leo90

    InsanelyMac Protégé

  • Members
  • Pip
  • 32 posts
  • Gender:Male
  • Location:Italy
I'll hope it will usefull also for mob 4570 :)

#20
hjs89

hjs89

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 150 posts
  • Gender:Male

I'll hope it will usefull also for mob 4570 ;)


Look here.
