G5 ATX mod with a twist


  • Please log in to reply
9 replies to this topic

#1
hsv2kk

hsv2kk

    InsanelyMac Protégé

  • Members
  • Pip
  • 13 posts

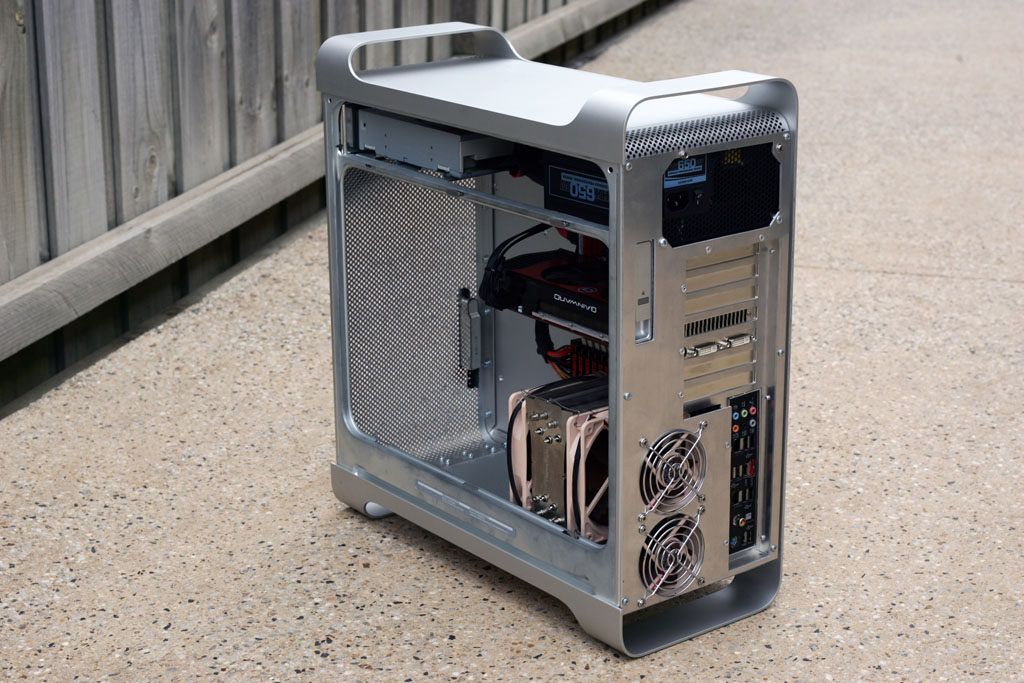

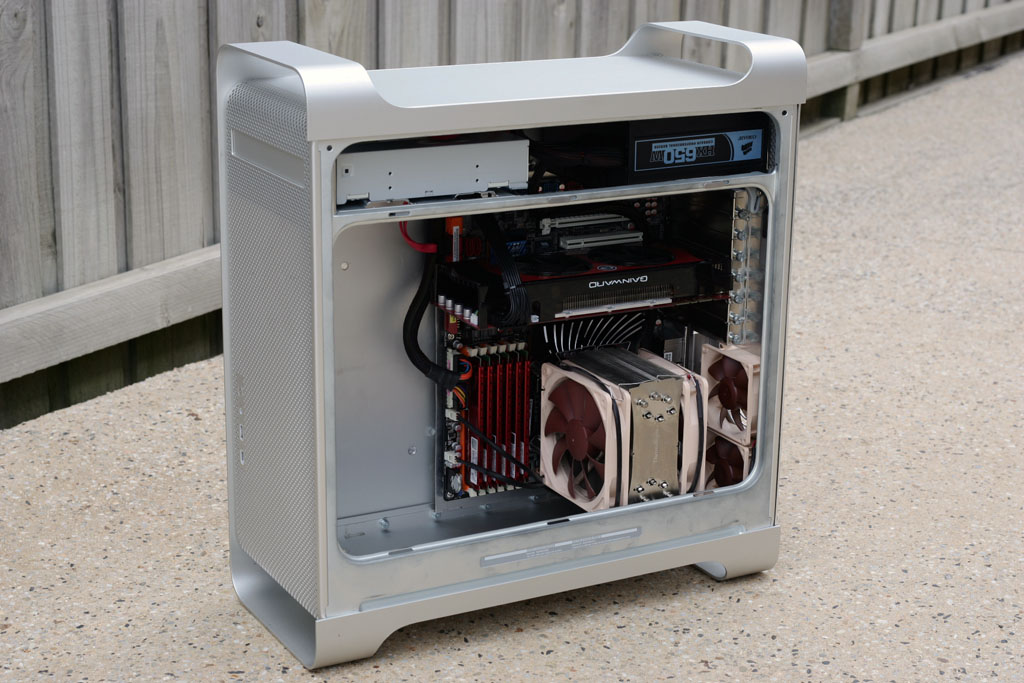

So here it is.. an evenings work with the jigsaw and file, and the results:

A totally upgradable ATX case solution
PSU mounted up top (a tight squeeze)
Removable tray/rear section
G5 clear perspex cover snaps in-to-place and that's how the PC is used daily

System specs:
i7 920 w/ TRUE 120
Asus P6t Deluxe v1
12gb G.Skill 1600

60gb OCZ Vertex SSD
Gainward GTX-275
Snow Leopard 10.6.6

Attached File  NX4P2295.JPG   166.21KB   1152 downloads

Attached File  NX4P2298.JPG   191.93KB   1111 downloads

#2
MacBookJoe

MacBookJoe

    InsanelyMac Protégé

  • Members
  • Pip
  • 46 posts
Very nice, clean, minimal. awesome! congrats!

J.

#3
grady.lynch

grady.lynch

    InsanelyMac Protégé

  • Members
  • PipPip
  • 68 posts
Looks great!

Could we see more pix?

And also how did you secure the DVD drive

#4
hsv2kk

hsv2kk

    InsanelyMac Protégé

  • Members
  • Pip
  • 13 posts

Very nice, clean, minimal. awesome! congrats!

J.


Thanks for the compliments.
I am a big fan of being minimalistic and keeping it clean/simple.

Oh, is that your case in your avatar?
Do you have a build log or pix I can have a look at.

It looks amazing!


Looks great!

Could we see more pix?

And also how did you secure the DVD drive


Thanks!

The DVD drive secures perfectly in the existing position.
4x screw holes attached the dvd drive from underneath.

I will throw more pix up when I get a chance.

#5
oizoi

oizoi

    InsanelyMac Protégé

  • Members
  • Pip
  • 15 posts
Could we see more pix? thank you ;)

#6
Manu0600

Manu0600

    InsanelyMac Protégé

  • Members
  • PipPip
  • 80 posts
  • Gender:Male
  • Location:Brussels, Belgium
no HDD ?

#7
zammykoo

zammykoo

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 145 posts
  • Gender:Male
  • Location:Houston
Very clean mod!

OP stated there's a SSD, its probably wedged behind the optical drive

#8
eelhead

eelhead

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 103 posts
  • Gender:Male
  • Location:Phoenix AZ
Nice!

#9
topsub

topsub

    InsanelyMac Protégé

  • Members
  • Pip
  • 17 posts
Hey,

I love the look, did you buy the mobo / psu tray? Or did you make this yourself, Unless i missed it i didn't see you say in the description.

#10
Lagerfeuer

Lagerfeuer

    InsanelyMac Protégé

  • Members
  • Pip
  • 6 posts
Very clean and nice indeed. I will try to adopt this look to my own mod soon, however I'm going to add a HDD cage (LianLi-3-Bay) and 2 font intake fans.

There is a question that I would be happy to get an answer from you or someone else: Did you hide your (PSU- and other) cables beneath the motherboard tray? Im wondering if that is possible at all. I never had a standard ATX PSU in my hands and don't know whether the thick looking cables will fit between the space thats created from the original G5 stand offs (I read somewhere that it's about 13 mm)...
