10.6.5 + XFX Radeon 5770 + 27" cinema display = triple display


  • Please log in to reply
7 replies to this topic

#1
mawe10

mawe10

    InsanelyMac Protégé

  • Members
  • Pip
  • 6 posts
It works - triple display involving a 27" cinema display on a Hackintosh:

1) Have a working retail 10.6.5 installation using Chameleon_2.0_RC5_INSTALLER_r629

2) Insert your device ID into ATIRadeonX3000.kext and ATI5000Controller.kext
(eg. 0x68B81002 for XFX Radeon HD 5770 single slot (with mini display port ;-))

3) Add the following lines to your com.apple.Boot.plist
<key>GraphicsEnabler</key>        <string>yes</string>        <key>UseAtiROM</key>        <string>Yes</string>

4) Copy the boot file out of the zip into your root (not sure if this is really necessary)
http://www.insanelym...howtopic=236926

5) Use Kext Utility

6) Insert your new XFX Radeon HD 5770 single slot into your Hackintosh and connect your 27" cinema display to the mdp

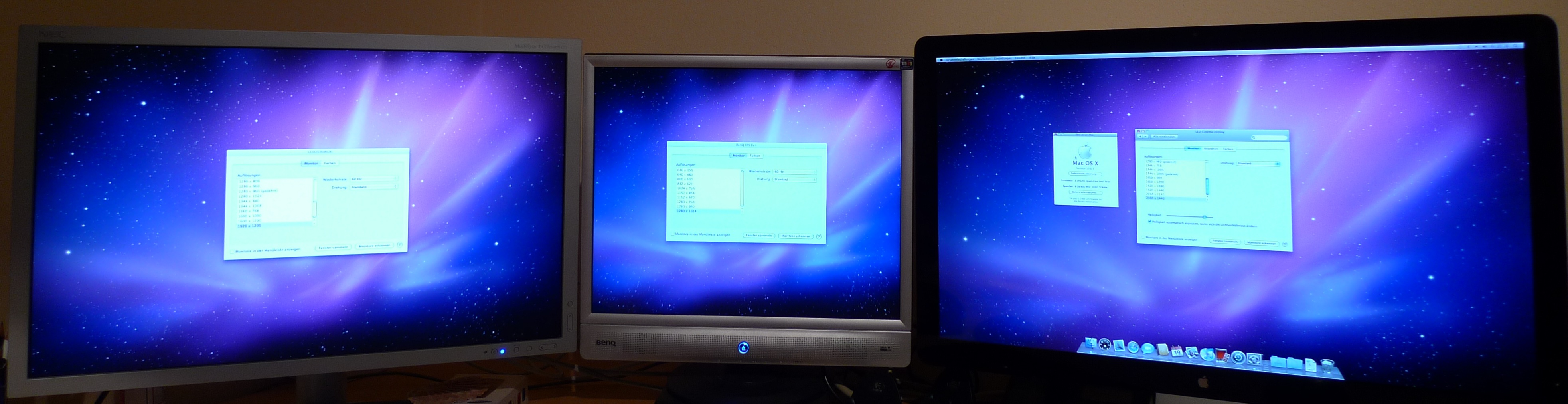

proof: Attached File  TrippleDisplay.JPG   643.24KB   244 downloads

source used: http://www.insanelym...howtopic=236926

#2
dothacker

dothacker

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 813 posts
  • Gender:Male
  • Location:Garland, TX
so which connections are in the card, 2 DVI and 1 HDMI?

#3
mawe10

mawe10

    InsanelyMac Protégé

  • Members
  • Pip
  • 6 posts

so which connections are in the card, 2 DVI and 1 HDMI?

2 DVI
1 mini display port
0 HDMI

#4
Hangten

Hangten

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 403 posts
  • Gender:Male
  • Location:Laguna Beach, CA.
Was it not suppose to work or something?

Someone confirming 4 monitor's and 2 XFX 5770's. Not sure where that thread was but nice set up you must have.

#5
mawe10

mawe10

    InsanelyMac Protégé

  • Members
  • Pip
  • 6 posts

Was it not suppose to work or something?

Someone confirming 4 monitor's and 2 XFX 5770's. Not sure where that thread was but nice set up you must have.


Sorry I did not want to bother you with my post.

2 cards and 4 monitors is not equal to 1 card and 3 monitors especially confirming a working mini displayport on a low cost Radeon 5770 - on my search I could not find anything reliable about that.

It might be interesting to anybody looking for a alternative to these expensive mini display adapters - and thats what you have to face up to when buying a 27" cinema display.

#6
Hangten

Hangten

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 403 posts
  • Gender:Male
  • Location:Laguna Beach, CA.
Just interesting considering I set up a customer with a Dell Monitor's w/displayports running eyeinfinity through the DVI/VGA/Displayport all three display outputs work but kinda figured some other Hackintoshers had 3 monitors already running earlier with an HD5770.

Conclusion was you can.

#7
q6600mac

q6600mac

    InsanelyMac Protégé

  • Just Joined
  • Pip
  • 4 posts
I have been reading on here a lot I want to do 2 27" acd on my hackintosh setup. Anyways I would really appreciate If you could supply a link to that specific video card. I think when you mean singe it onl takes up ! slot space correct?

#8
ClassicRed

ClassicRed

    InsanelyMac Protégé

  • Members
  • PipPip
  • 50 posts
Hello

French:
ton tutoriel concerne bien cette carte graphique ? :)

=============
Anglais:
Your tutoriel concerns this graphic card well ? :)

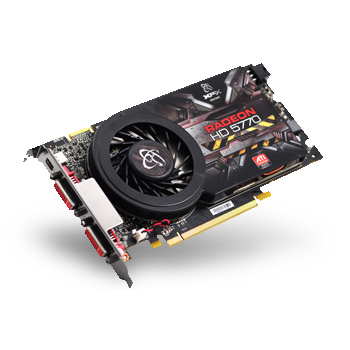

XFX ATI 5770 Single slot

Ref:
Posted Image

Uploaded with ImageShack.us
Attached File  117189.jpg   43.09KB   21 downloads
