DWA 547 snow leopard 64 bit


  • Please log in to reply
3 replies to this topic

#1
janwahl

janwahl

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts
hi I'm just wondering if there is no driver for the athekos chipset for 64 bit out now.


i have a DWA 547 wlan card inside and the card is still not working...so i appriciate everyone who can help me to get the card working!!!!


thank you for your help!!!!!


Jan

p.s.....i didnd founf any new topics about this card

#2
Yragael

Yragael

    InsanelyMac Protégé

  • Members
  • Pip
  • 30 posts
  • Gender:Male
  • Location:Fort de France, Martinique

hi I'm just wondering if there is no driver for the athekos chipset for 64 bit out now.


i have a DWA 547 wlan card inside and the card is still not working...so i appriciate everyone who can help me to get the card working!!!!


thank you for your help!!!!!


Jan

p.s.....i didnd founf any new topics about this card


Hi.

You can find some information in Netkas' site, here: http://netkas.org/?p=315
He provides a legacy kext (http://files.netkas....rosFix.kext.zip), so you can use your card in 32 or 64 bits mode.
more informations here: http://www.efixusers...hread.php?t=528
Hope this helps.

Edit: have bought one today, just had to change pci id in kext, mine is pci168c,29; works like a charm.
here is modified kext: Attached File  AtherosFix.kext.zip   4.24KB   288 downloads

#3
plesuvescu

plesuvescu

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts

Hi.

You can find some information in Netkas' site, here: http://netkas.org/?p=315
He provides a legacy kext (http://files.netkas....rosFix.kext.zip), so you can use your card in 32 or 64 bits mode.
more informations here: http://www.efixusers...hread.php?t=528
Hope this helps.

Edit: have bought one today, just had to change pci id in kext, mine is pci168c,29; works like a charm.
here is modified kext: Attached File  AtherosFix.kext.zip   4.24KB   288 downloads


Yragael do you have pci card with atheros 922x
Do you see the card in system profiler/pci card?
I have the TP Link tl-wn851n end i have the same dev id 168,0029 and dont work! System profiler don't see any card

#4
Yragael

Yragael

    InsanelyMac Protégé

  • Members
  • Pip
  • 30 posts
  • Gender:Male
  • Location:Fort de France, Martinique

Yragael do you have pci card with atheros 922x
Do you see the card in system profiler/pci card?
I have the TP Link tl-wn851n end i have the same dev id 168,0029 and dont work! System profiler don't see any card


Hi.
Are you sure your id is 168c:0029 ?

I have read here that it works, but with kext available on thread first post, which contains pci id 168c:0023

Maybe you can try this kext, or show us what lspci reports about your card ?

I don't see the card under pci cards as i didn't declare it in DSDT, but i'll try to do it asap.

Just let me know.


My adapter is D-Link DWA-547

lspci output:
04:01.0 Network controller [0280]: Atheros Communications Inc. AR922X Wireless Network Adapter [168c:0029] (rev 01)
Subsystem: D-Link System Inc Unknown device [1186:3a78]

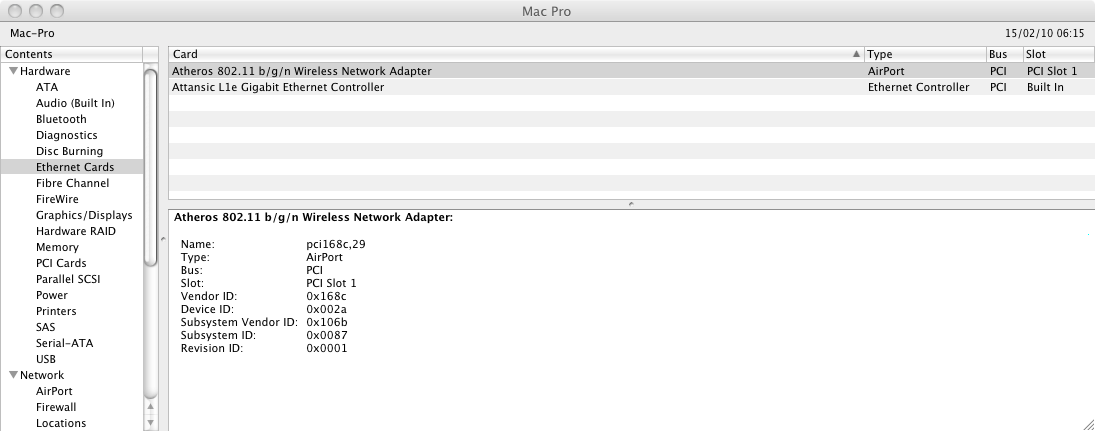

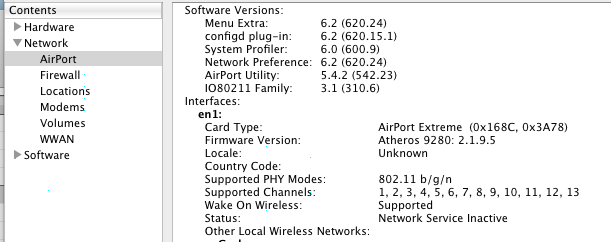

System Profiler:
Attached File  airport.png   38.88KB   292 downloads


Edit:

Done it with DSDT, no kext, but TheKing had already done here
so code working on my mobo is
Device (WLAN)                {                    Name (_ADR, Zero)                    Method (_DSM, 4, NotSerialized)                    {                    	Store (Package ()                    	{                    		"AAPL,slot-name", Buffer () {"PCI Slot 1"},                        	"class-code", Buffer () {0x00, 0x80, 0x02, 0x00},                        	"device-id", Buffer () { 0x2A, 0x00, 0x00, 0x00 },                        	"device_type", Buffer () { "AirPort" },                        	"model", Buffer () {"Atheros 802.11 b/g/n Wireless Network Adapter"},                        	"subsystem-id", Buffer () {0x87, 0x00, 0x00, 0x00},                        	"subsystem-vendor-id", Buffer () {0x6B, 0x10, 0x00, 0x00},                        	"vendor-id", Buffer () {0x8C, 0x16, 0x00, 0x00}                        }, Local0)                    	DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))                    	Return (Local0)                    }                }

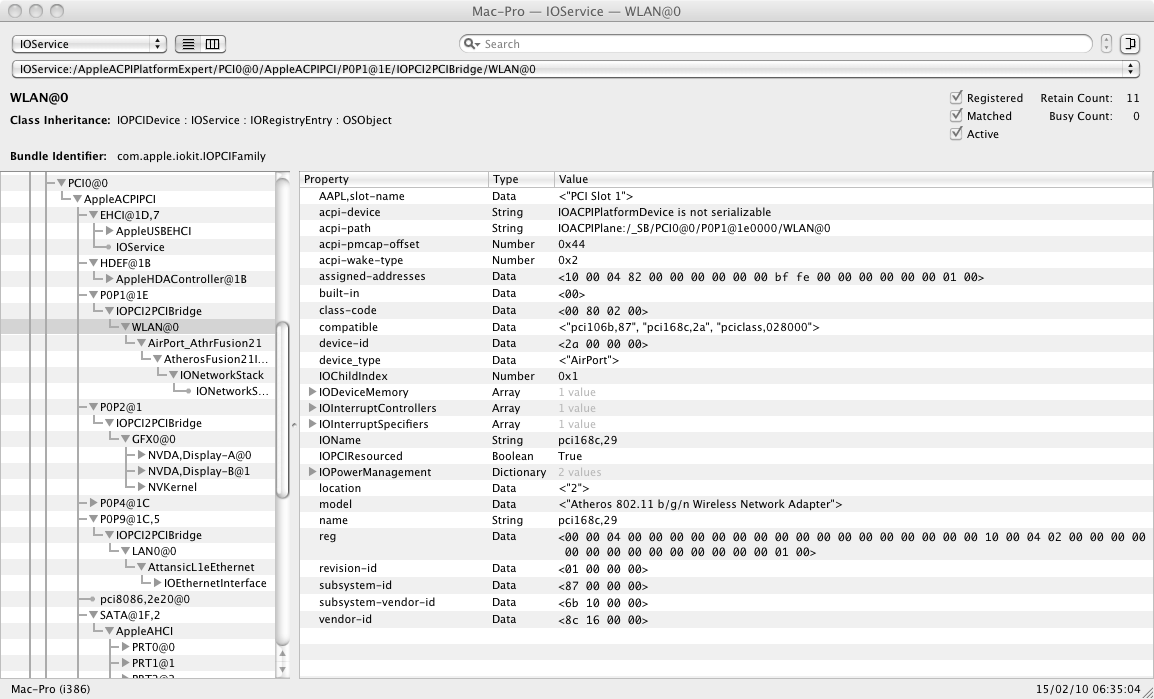

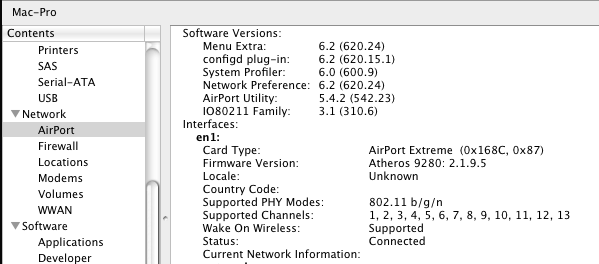

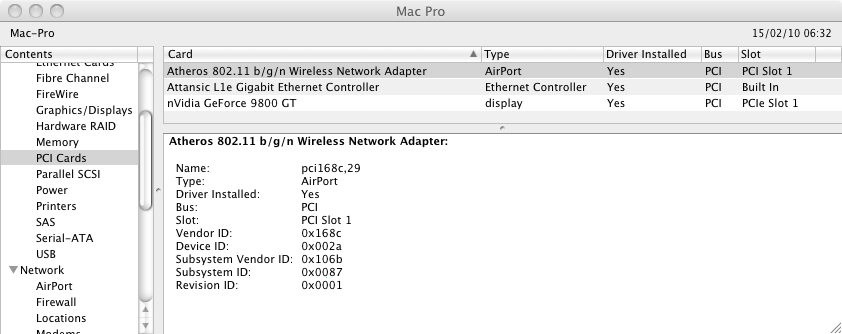

Attached File  airport.png   42.01KB   247 downloads Attached File  ethernet.png   66.47KB   202 downloads Attached File  pci.png   58.58KB   208 downloads Attached File  ioreg.png   159.1KB   211 downloads

My card is under P0P1, add the device where needed in DSDT.
