G5 to ATX Front I/O Cables


  • Please log in to reply
533 replies to this topic

#1
enjoyfebruary

enjoyfebruary

    InsanelyMac Protégé

  • Members
  • PipPip
  • 80 posts
  • Gender:Male
Do not send requests to EnjoyFebruary (They will not be answered).
Please see seller list below to find a cable seller in your area.

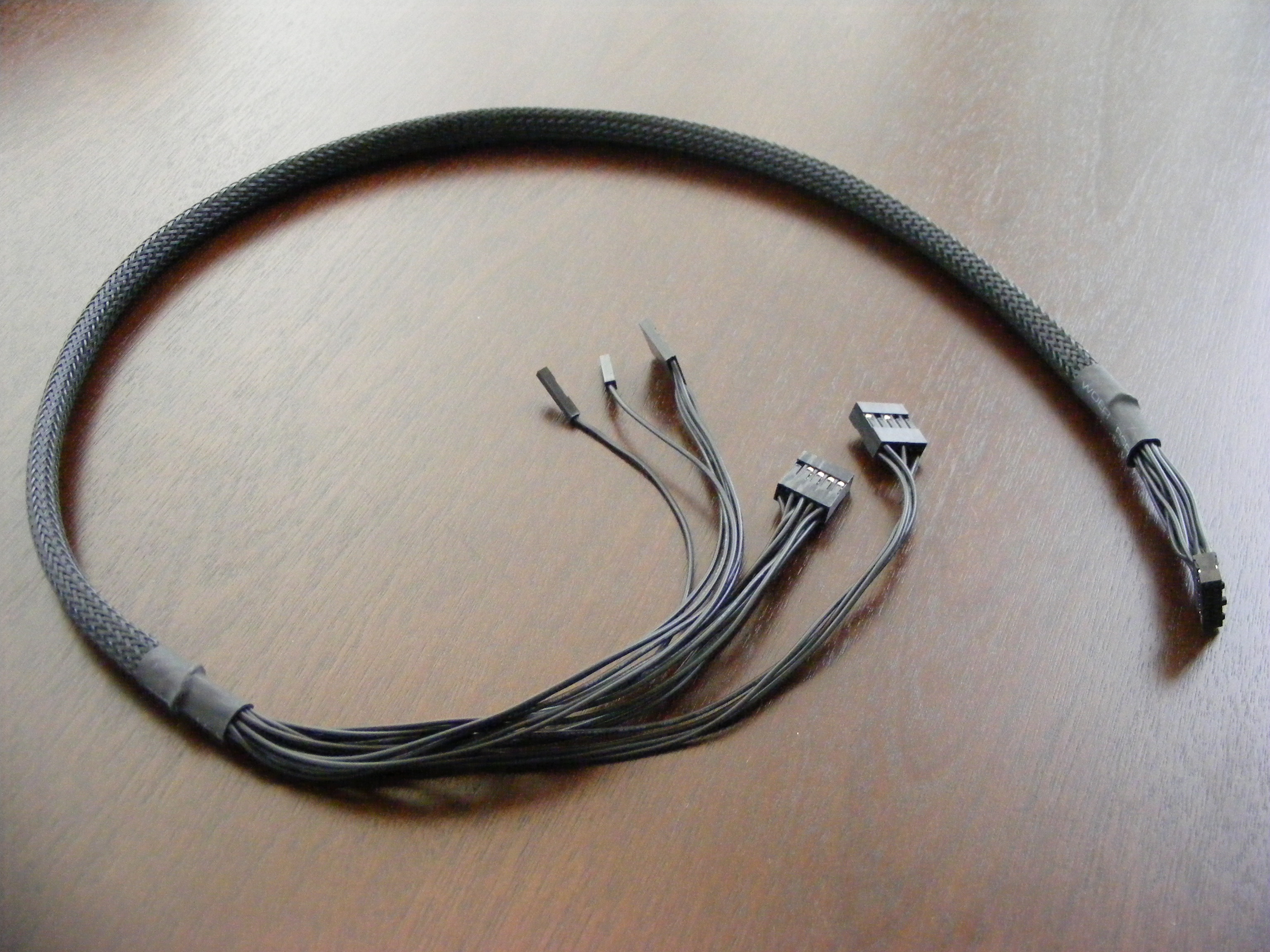

These cables let you hook up the front I/O connectors of the PowerMac G5 case to standard ATX motherboard headers. The cable includes connections for USB, Firewire 400, Headphones, PWR button and PWR Led. Thanks for viewing this topic. Take care, Dan.

"Will this cable work for my case?" - This cable will only work for Apple PowerMac G5 cases with a single ethernet port.
"How do I hookup the cable if I do not have firewire?" - If you don't have firewire built into your motherboard the best option in my opinion is to buy the Dell Adaptec (Agere Chipset) Firewire 400 PCI card. You can find these on eBay for around $9. Totally worth it and it saves me explaining how to create a work around :) . Trust me, it's easier this way AND you get firewire!

Sellers as of: 3/26/2012
US - AlohaCab
EU - BlackCH

Attached File  DSCF3638.JPG   1.38MB   1113 downloadsAttached File  DSCF3640.JPG   1.38MB   1275 downloadsAttached File  DSCF3642.JPG   1.43MB   1224 downloads

#2
Frogburn959

Frogburn959

    InsanelyMac Protégé

  • Members
  • PipPip
  • 54 posts
  • Gender:Male
  • Location:ATX
you can put me down for 1, this will have a real clean look

#3
BlackCH

BlackCH

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,618 posts
  • Gender:Male
  • Location:BCN
I would want one. Depends where are you shipping from...

#4
enjoyfebruary

enjoyfebruary

    InsanelyMac Protégé

  • Members
  • PipPip
  • 80 posts
  • Gender:Male

I would want one. Depends where are you shipping from...


I'm in San Diego.

#5
manual123

manual123

    InsanelyMac Protégé

  • Donators
  • 14 posts
  • Gender:Male
  • Location:Bellevue Nebreska
put me down for one too

#6
mbzowski

mbzowski

    InsanelyMac Protégé

  • Members
  • Pip
  • 4 posts
Im down for one as well.

#7
Vostro15

Vostro15

    InsanelyMac Protégé

  • Members
  • Pip
  • 34 posts
Will this work with a G4? I have a G4 Case + Power buttons with a G41M-ES2L that I need to hook the power buttons up to.

Thanks,

Ollie

#8
akira9000

akira9000

    InsanelyMac Protégé

  • Members
  • Pip
  • 49 posts
  • Location:UK
Put me down for one - shipped to the UK which I am happy to pay.

#9
dvdhsu

dvdhsu

    InsanelyMac Protégé

  • Members
  • Pip
  • 7 posts
If it works, and you can post pictures of it, count me in.

I have heat, and eBay feedback.

#10
ronsega

ronsega

    InsanelyMac Protégé

  • Members
  • Pip
  • 35 posts
can I buy a few of those donated header connectors off of you (I'm in SD too)? Or if you are willing to share the source of the 18pin header connector, I'd be interested to know.

#11
justin holt

justin holt

    InsanelyMac Protégé

  • Members
  • Pip
  • 35 posts
  • Gender:Male
  • Location:Rockville
I'd probably want 2 or 3 myself. If you could make this you'd be my hero. I've wired up the power button and led myself but would love to have the usb and firewire available as well

#12
enjoyfebruary

enjoyfebruary

    InsanelyMac Protégé

  • Members
  • PipPip
  • 80 posts
  • Gender:Male

Will this work with a G4? I have a G4 Case + Power buttons with a G41M-ES2L that I need to hook the power buttons up to.

Thanks,

Ollie


Hey Ollie. The cables I'm making wont be compatible with a G3/G4 case. What G4 case do you have? If it is a "Graphite" G4 I have a G3 button board that will probably work. I've built my own G4 hack and I just soldered leads straight off of each component. Works perfect for me. Just let me know and i'll see what I can do for you. Thanks. Dan.

#13
myfoothurtz

myfoothurtz

    InsanelyMac Protégé

  • Members
  • Pip
  • 2 posts

Hey Ollie. The cables I'm making wont be compatible with a G3/G4 case. What G4 case do you have? If it is a "Graphite" G4 I have a G3 button board that will probably work. I've built my own G4 hack and I just soldered leads straight off of each component. Works perfect for me. Just let me know and i'll see what I can do for you. Thanks. Dan.


I want one.

#14
enjoyfebruary

enjoyfebruary

    InsanelyMac Protégé

  • Members
  • PipPip
  • 80 posts
  • Gender:Male

I want one.


You want a set of cables for a G5 or a G4?

#15
M4c

M4c

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
I want one (G5), shipped to France, it'll be great.

#16
dvdhsu

dvdhsu

    InsanelyMac Protégé

  • Members
  • Pip
  • 7 posts
Any update, sir?

#17
JohnCa

JohnCa

    InsanelyMac Protégé

  • Just Joined
  • Pip
  • 1 posts
I would like one as well.

#18
myfoothurtz

myfoothurtz

    InsanelyMac Protégé

  • Members
  • Pip
  • 2 posts

I would like one as well.



Hi, sorry, I would like a G5 cable. Shipped to Toronto. I can Paypal asap!
Cheers! :(

#19
LucasIsEpic

LucasIsEpic

    InsanelyMac Protégé

  • Donators
  • 52 posts
  • Gender:Male
  • Location:London, UK

IMPORTANT - Please Read - If you want a cable please PM me with the subject as "Request - G5 I/O Cable" Do not post requests in this thread. Cables will be available March 10th 2010. Thank you.

I'm sourcing parts to make a bunch of G5 Front Panel I/O Cables so I want to know a rough estimate of how many connectors I should order. PM me with the subject as "Request - G5 I/O Cable" and let me know if you want one. This thread is for conversation and not a place to request a cable. It will simply plug right into the 18pin header on the circuit board and have individual pins for LED, and Power and 2 10pin header connections for 1394a, and audio and a 5pin connector for USB. I'm not gonna charge much more than the parts which is looking to be like 20-25 bucks. Once I confirm that i've sourced the right stuff I'll lock down the price plus shipping. Take care.

Dan

Posted Image


** Update 2009-02-12 **
Ok so new update. I'm changing the design of the cable a little from one solid cable to 19 individual wires that'll be wrapped in a nice black wrap. I made a little mock up yesterday and it looks really good. This solves the issue of the +25v Firewire pin in an easy way. Also got a couple of ideas of how to address the LED, PWR Button grounding thing. So we'll see how that goes once I get the new connector. I know the March 10th date is a little far off but I wanted to give myself ample amount of time to get these things perfect. So please be patient. Thanks everyone! Dan


so how is this getting along? I'd order one today as long as you ship to the uk and have a paypal account. So will it have standard atx headers for pwr led, USB,audio and firewire? Or will it be basicly a long version of the front panel cable? As I managed to kill mine yesterday trying to wire mine up.

#20
enjoyfebruary

enjoyfebruary

    InsanelyMac Protégé

  • Members
  • PipPip
  • 80 posts
  • Gender:Male

so how is this getting along? I'd order one today as long as you ship to the uk and have a paypal account. So will it have standard atx headers for pwr led, USB,audio and firewire? Or will it be basicly a long version of the front panel cable? As I managed to kill mine yesterday trying to wire mine up.


Hey there. Yeah I definitely plan on shipping to the UK. The cable will have the Apple 18pin connector on one end and the standard ATX connections at the other. Take care! Dan.
