Snow Leopard Retail with a GTX 260


25 posts in this topic

Recommended Posts

Hello everyone, long time no see. ;)



First off, my hardware. Foxconn p55MX motherboard, i7 core 8xx, 4 gb RAM, and most importantly a GTX 260.



So I have an issue. I've been using the guide below along with a Foxconn P55MX Motherboard. Before updating the bios, I couldn't get past the root device issue (because the AHCI option wasn't in BIOS v01. It's in v05.)



http://tonymacx86.blogspot.com/2009/12/ins...ectly-from.html



Anyway, I get to RIGHT before the installation screen - I actually get to it, but I can't see it. This is due to the fact that the display goes off right when I reach the installation screen. I can tell that it gets to this point because if I hit enter, the disc starts spinning again, showing that it's in the installer. I've tried switching the input to the monitor, but it seems to be the card itself.



I believe it's a direct issue with the card because in the comments, user Jeff33702 reports the same thing. He had a spare card available, but I do not.



Any ideas, tips? I've tried quite a few pre-brewed bootloaders. I'm not sure how to do one myself. :/



Thanks for the help, everyone. After this, I'd love to upload a guide for this board, including how to do a bios update.

Link to comment
Share on other sites

-x does not work, graphicsenabler=yes doesn't want to work... Is there another boot CD I should try?

This is a standard problem with this card. You have to temporarily remove nvdaresman.kext (boot into -s mode) add the correct efi strings and then put it back correct the permissions and you should be good to go. I also have this card gtx 260 dual dvi ports and I am going crazy trying to get it to work. I wish I would have the blank screen problem because the solution to that is simple. Are you using and enabler because SL has native support for the gtx 200 series. Also EFI strings can only be made in leopard and you have to hope that your NVcap is correct. here is a link

http://aquamac.proboards.com/index.cgi?act...&thread=509

Link to comment
Share on other sites

First off, Thank you. Really. :)



I think we're getting somewhere - the problem is that this issue is happening when booting from the install disc. I cannot even get OSX installed yet due to the fact that the monitor turns off when it goes into the install menu for OSX. It's there - it's just not displaying.



Maybe there's a boot disc that disables nvdaresman.kext? Or an option to do so?

Link to comment
Share on other sites

Hello everyone, long time no see. :)



First off, my hardware. Foxconn p55MX motherboard, i7 core 8xx, 4 gb RAM, and most importantly a GTX 260.



So I have an issue. I've been using the guide below along with a Foxconn P55MX Motherboard. Before updating the bios, I couldn't get past the root device issue (because the AHCI option wasn't in BIOS v01. It's in v05.)



http://tonymacx86.blogspot.com/2009/12/ins...ectly-from.html



Anyway, I get to RIGHT before the installation screen - I actually get to it, but I can't see it. This is due to the fact that the display goes off right when I reach the installation screen. I can tell that it gets to this point because if I hit enter, the disc starts spinning again, showing that it's in the installer. I've tried switching the input to the monitor, but it seems to be the card itself.



I believe it's a direct issue with the card because in the comments, user Jeff33702 reports the same thing. He had a spare card available, but I do not.



Any ideas, tips? I've tried quite a few pre-brewed bootloaders. I'm not sure how to do one myself. :/



Thanks for the help, everyone. After this, I'd love to upload a guide for this board, including how to do a bios update.



hi,



did you succeed in installing it? i have the same problem and i can't do my own brewed bootloader. if u succeed pls tell me how u did it.



i forgot to tell u what system i ran:

gentoo (amd64) on asus p7p55d with core i7 860, GeForce GTX 260...

Link to comment
Share on other sites

  • 2 weeks later...
  • 1 month later...
has someboby created a working boot-iso for the gtx 260 ( on a asus p7p55d )?

i tried the different tony-isos but still blank screen like described above.





forget it stick with the IATKOS V7 i cannot get my GTX260 to work on 10.6.2, well it works but on some low rez.

i used iHACK on the usb to get it working.

http://www.insanelymac.com/forum/index.php?showtopic=213336



if anyone finds the answer to running a GTX260 PM me :gun:

Link to comment
Share on other sites

Here is a copy of my com.apple.Boot.Plist with the string that enables my Asus Geforce GTX 260



I just use Chameleon 2 or PC EFI 10.5/6 and GraphicsEnabler=Yes .. as a boot argument.



If that doesn't work for you then try with GraphicsEnabler=Yes and PciRoot=1 for chameleon

or if using PC EFI GraphicsEnabler=Yes and -pci1



D

Link to comment
Share on other sites

  • 3 weeks later...
I just use Chameleon 2 or PC EFI 10.5/6 and GraphicsEnabler=Yes .. as a boot argument.



If that doesn't work for you then try with GraphicsEnabler=Yes and PciRoot=1 for chameleon

or if using PC EFI GraphicsEnabler=Yes and -pci1



D



I tried these arguments even with newer boot CDs, including the P55 [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] cd. Nothing wants to work. I changed to a very, very, very old PCI nvidia card from years ago just to see what might happen, but it then gave me an error with appleintelcpupowermanagement and hung right before the installation screen.



Do you think that a different graphics card would fix this?



EDIT: Just dug around. Perhaps it's an additional ethernet card that's screwing with the install. I'll see if disabling the onboard LAN or removing the PCI Ethernet slot fixes anything.

Link to comment
Share on other sites

Alright, update, but there really hasn't been much progress.



Here's where I am. I've recently tried the new [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] CD. The CD worked great until the same area as the last time, but instead of a black screen, it now just restarts. Here are two YouTube videos of both failing.



http://www.youtube.com/watch?v=4kHlcxJxJ5A

http://www.youtube.com/watch?v=5FSymX4pa7M



Don't mind my language, it's 2am and I'm tired.



EDIT: the timeout is appleintelcpupowermanagement. It's the last thing to show before freezing/restarting/going black.

Link to comment
Share on other sites

  • 4 weeks later...
Alright, update, but there really hasn't been much progress.



Here's where I am. I've recently tried the new [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] CD. The CD worked great until the same area as the last time, but instead of a black screen, it now just restarts. Here are two YouTube videos of both failing.



http://www.youtube.com/watch?v=4kHlcxJxJ5A

http://www.youtube.com/watch?v=5FSymX4pa7M



Don't mind my language, it's 2am and I'm tired.



EDIT: the timeout is appleintelcpupowermanagement. It's the last thing to show before freezing/restarting/going black.



Hi Getintothegame.

I've been reading your persistent issue. I wanna know if you have been able to fix the problem or not?

I'd suggest you use the NullCPUPowermanagement.kext in /Extra/Extensions/

Probably, use the latest (modded) FakeSMC.kext (version 2.5), from HERE

and SleepEnabler version 10.6.x. Yes, it's version number is: 10.6.x

This should block the adamant AppleIntelCPUPowermanagement.kext and give your some progress.



Awaiting your reply.



Regards,

Freaky Chokra :thumbsup_anim:

Link to comment
Share on other sites

I don't know if this is similar to my problem/nuisance. During and after installing SL, I got the blue screen instead but I noticed that my system is still responding and working. I turn-off and waited for 5 or more secs before turning it back on. I did get my display to work again. So currently, I just turn-off/turn-on my monitor every time I start my PCMac.

Link to comment
Share on other sites

its weird cause i have a gt 220 and i cant get full acceleration on it.

yes i have enabled the quartz thing on osx86 tools.

i used the 10.6.2 by hazard disc and i now am running it fine since theres not many games to play with.

Link to comment
Share on other sites

Hello everyone, long time no see. :censored2:



First off, my hardware. Foxconn p55MX motherboard, i7 core 8xx, 4 gb RAM, and most importantly a GTX 260.



So I have an issue. I've been using the guide below along with a Foxconn P55MX Motherboard. Before updating the bios, I couldn't get past the root device issue (because the AHCI option wasn't in BIOS v01. It's in v05.)



http://tonymacx86.blogspot.com/2009/12/ins...ectly-from.html



Anyway, I get to RIGHT before the installation screen - I actually get to it, but I can't see it. This is due to the fact that the display goes off right when I reach the installation screen. I can tell that it gets to this point because if I hit enter, the disc starts spinning again, showing that it's in the installer. I've tried switching the input to the monitor, but it seems to be the card itself.



I believe it's a direct issue with the card because in the comments, user Jeff33702 reports the same thing. He had a spare card available, but I do not.



Any ideas, tips? I've tried quite a few pre-brewed bootloaders. I'm not sure how to do one myself. :/



Thanks for the help, everyone. After this, I'd love to upload a guide for this board, including how to do a bios update.

Hi

For Solve black Screen Issue =

From Other OS (Like Windows(with MacDrive Application) or Leopard) Move All Files That Starts With NV*.kext in below address

SnowLeopard HD:\System\Library\Extensions

to Another Folder, Just Disappear Them From Extension Folder, But Do Backup Of Them!

They Are 4 files , as:

NVDANV40Hal.kext

NVDANV50Hal.kext

NVDAResman.kext

NVSMU.kext



this act will be starts your snow without any black screen issu, but the VGA isnt installed now

For Installing!!!

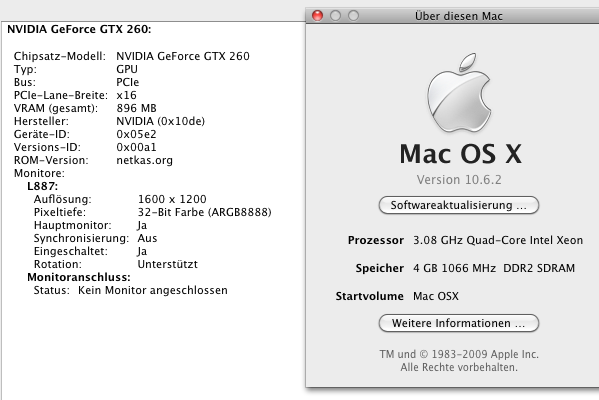

And Knowing your Card By System Profiler

Download this Package [Mirror - Mediafire]and extract to your desktop, Like this




open terminal and type:

~/Desktop/GFXstrings/gfxutil -f display



you will be get texts like this









DevicePath = PciRoot(0x0)/Pci(0xc,0x0)/Pci(0x0,0x0)

copy just

PciRoot(0x0)/Pci(0xc,0x0)/Pci(0x0,0x0),



now go to Desktop -> GFX String -> GTX 260 and open GTX260 with text editor.

find

<key>PciRoot(0x1)/Pci(0x3,0x0)/Pci(0x0,0x0)</key>

and replace with ours.

now save this file with text editor as " gtx260.plist " in GTX260 Folder.



back to terminal and type

cd ~/Desktop/GFXstrings/GTX260
~/Desktop/GFXstrings/gfxutil -i xml -o hex ./gtx260.plist ./output.hex

now we have a "output.hex" file in GTX260 Folder.



open "output.hex" and copy all text from it, this texts called STRING.



back to terminal and type:

cp /Library/Preferences/SystemConfiguration/com.apple.Boot.plist ~/Desktop/

this command will be copy com.apple.boot.plist into desktop.

open it by text editor



add this string:

<key>device-properties</key>
<string>Paste STRING Here!</string>

Save com.apple.boot.plist file.and exit Text editor.

For Example, After This Job, Will Be Have Like This:

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">

<plist version="1.0">

<dict>

<key>device-properties</key>

				<string>6c0200000100000001000000600200000d00000002010c00d041030a00000000010106000003
0101060000007fff04001e00000072006f006d002d007200650076006900730069006f006e0000002
e0000006e5669646961204765466f7263652047545820323630204f70656e474c20456e67696e6520
5b4546495d22000000400030002c006400650076006900630065005f00740079007000650000000b0
00000646973706c6179100000004e00560043004100500000001800000004000000000003000c0000
0000000007000000000e0000006e0061006d00650000000b000000646973706c61791400000040003
0002c006e0061006d0065000000120000004e5644412c446973706c61792d41100000006d006f0064
0065006c0000001a0000006e5669646961204765466f72636520475458203236300e0000004e00560
050004d00000020000000010000000000000000000000000000000000000000000000000000001400
0000400031002c006e0061006d0065000000120000004e5644412c446973706c61792d42200000004
00031002c0063006f006d00700061007400690062006c00650000000e0000004e5644412c4e564d61
63220000005600520041004d002c0074006f00740061006c00730069007a006500000008000000000
0003820000000400030002c0063006f006d00700061007400690062006c00650000000e0000004e56
44412c4e564d616322000000400031002c006400650076006900630065005f0074007900700065000
0000b000000646973706c61791c0000006400650076006900630065005f0074007900700065000000
0f0000004e5644412c506172656e74</string>



<key>Kernel</key>

<string>mach_kernel</string>

<key>Kernel Flags</key>

<string>-v  Boot-UUID=53696A2D-5CB0-3DC0-8689-3584CEC8050B</string>



</dict>



back to terminal and type this commands:

sudo -s
[enter password]
rm -rf /Library/Preferences/SystemConfiguration/com.apple.Boot.plist
mv ~/Desktop/com.apple.Boot.plist /Library/Preferences/SystemConfiguration
chmod 644 /Library/Preferences/SystemConfiguration/com.apple.Boot.plist
chown root:admin /Library/Preferences/SystemConfiguration/com.apple.Boot.plist

now with kextHelper B7 program, install 4 files that we move them to backup folder for solving black screen issu, at first step.



Sorry For My English Language.

refrence:

http://www.kelvan.ir/showthread.php?t=6138...ull=1#post12321
