Asus Z8NA-D6 watercooled hotswapable in a G5 case


  • Please log in to reply
53 replies to this topic

#1
peach-os

peach-os

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,286 posts
  • Location:lago di constanza
A couple of months ago I decided to plan a new machine with an Asus Z8NA-D6 dual cpu server board.
Inspired by a few beautiful G5 mods I decided to use this case and to keep it as original as possible with one (almost) invisible exception. Planning a few hours I have found my very own way to manage that.
A must was that the disks are hot swapable - and I need five of them!

still looks like the original

Posted Image

also the back

Posted Image
and the backpanel

Posted Image

inside

Posted Image

leo running flawless

Posted Image


So let´see what happened :(

Attached File  DSCF0002.jpg   151.12KB   211 downloads Attached File  DSCF0013.jpg   130.13KB   165 downloads Attached File  DSCF0018.jpg   176.13KB   180 downloads

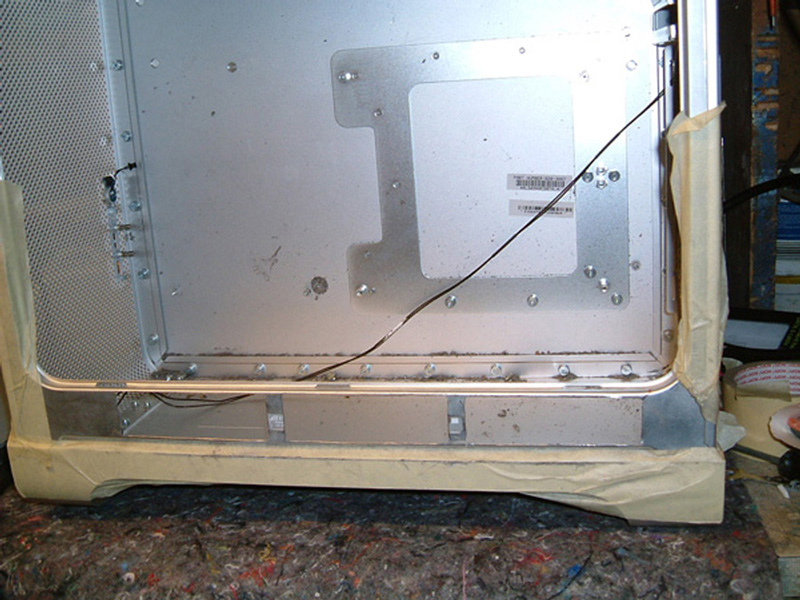

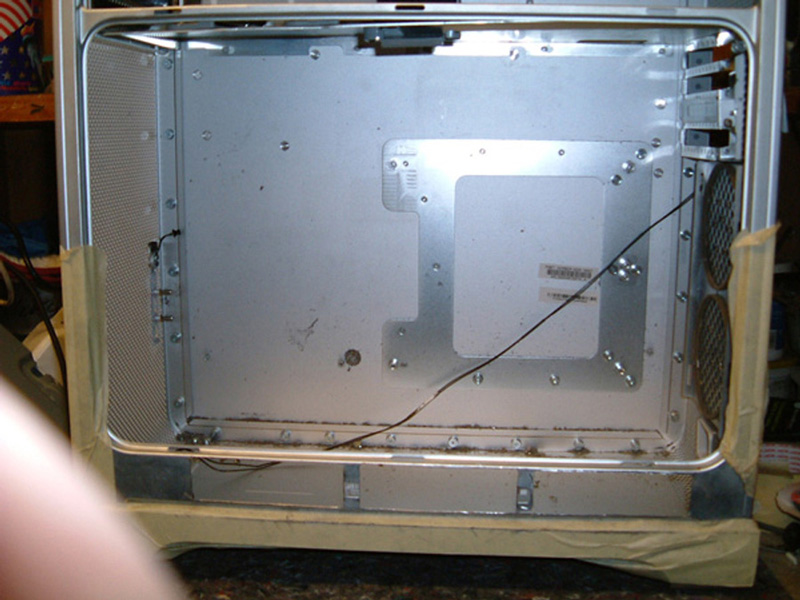

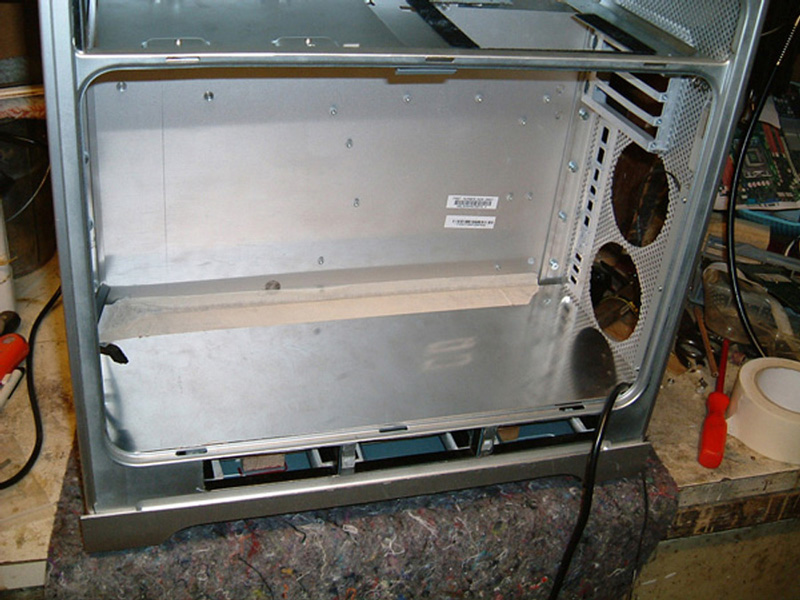

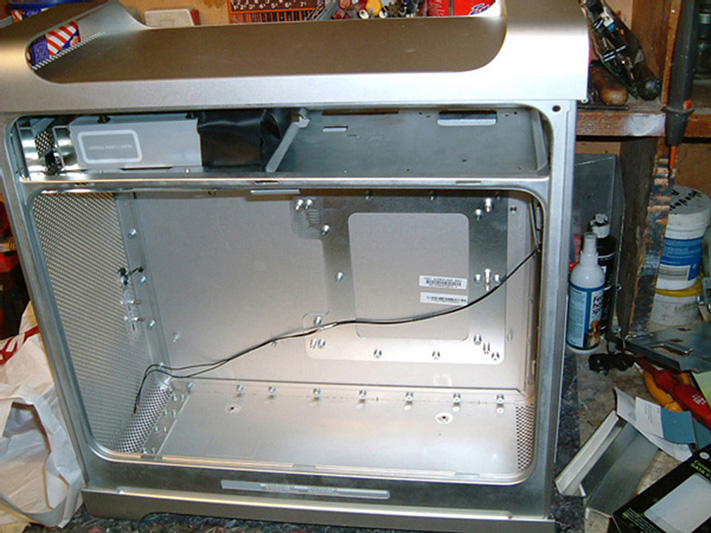

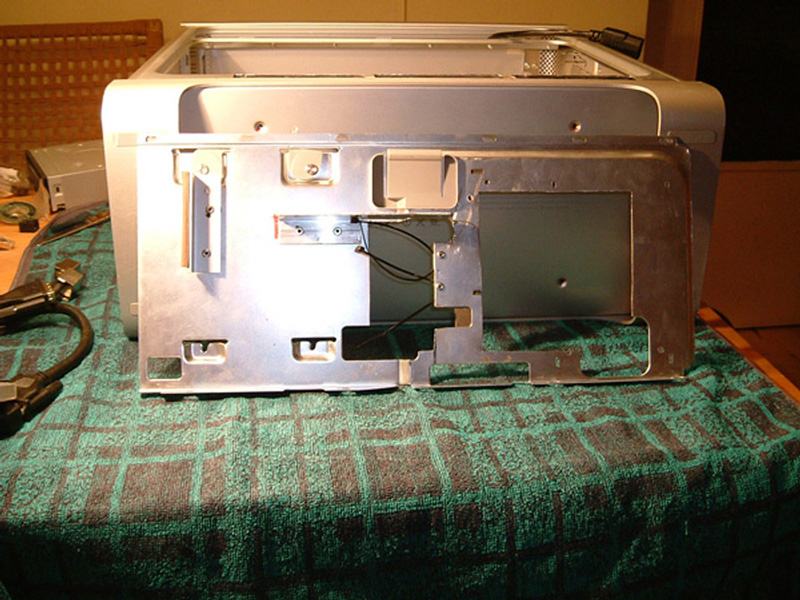

1. The empty case

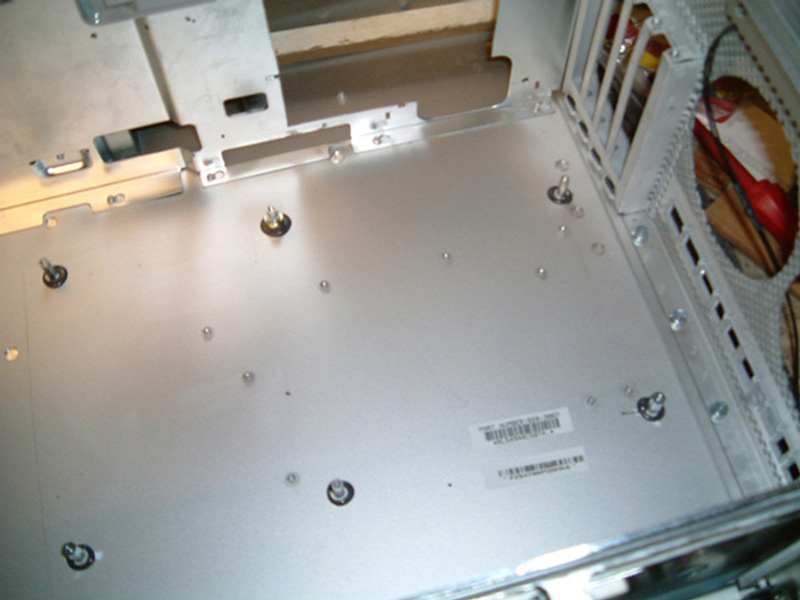

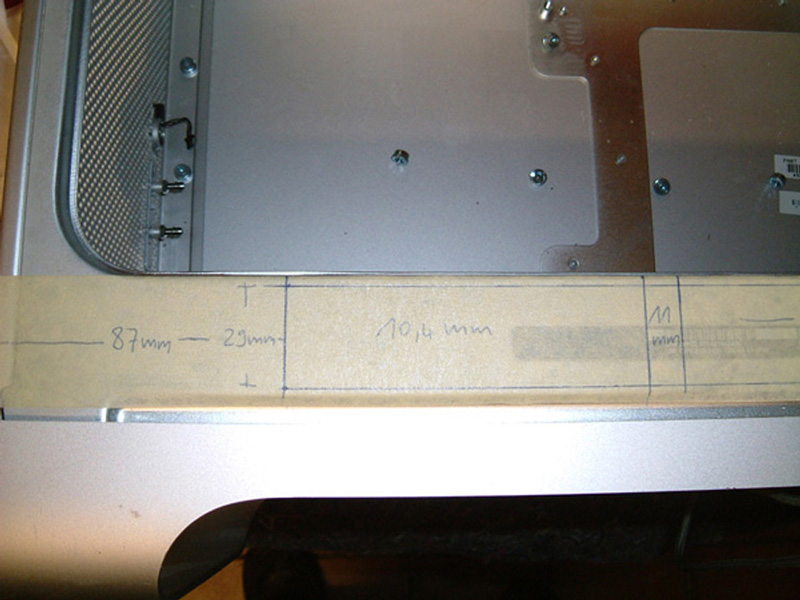

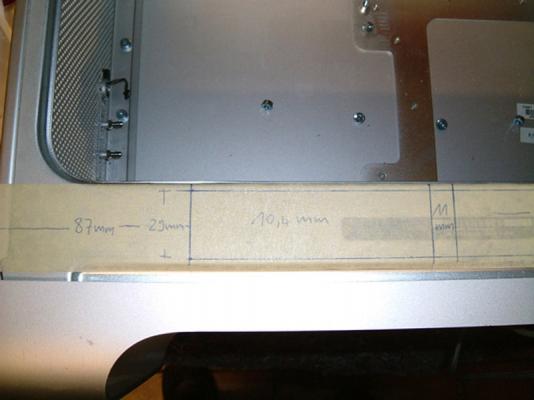

2. Marking the wholes for the new hot swap cages at the bottom where usually the power supply is located 3. The wholes in the apple case - please don´t damn me for that sin - you will like the result! :wacko:

Attached File  DSCF0005.jpg   150.02KB   191 downloadsAttached File  DSCF0023.jpg   173.15KB   204 downloads Attached File  DSCF0024.jpg   166.79KB   214 downloads

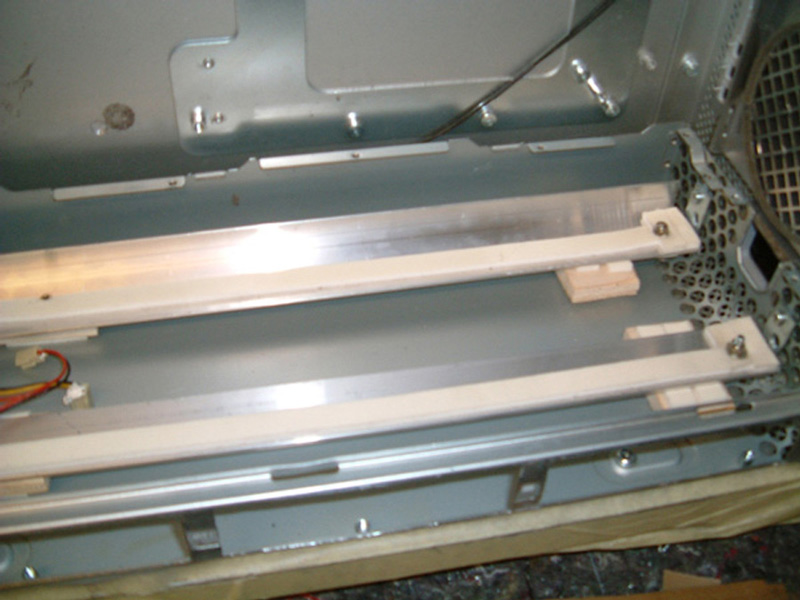

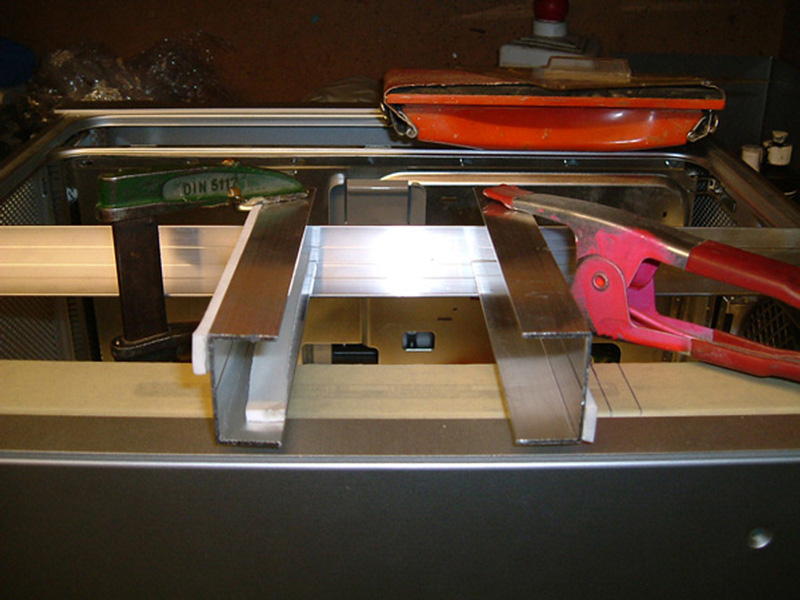

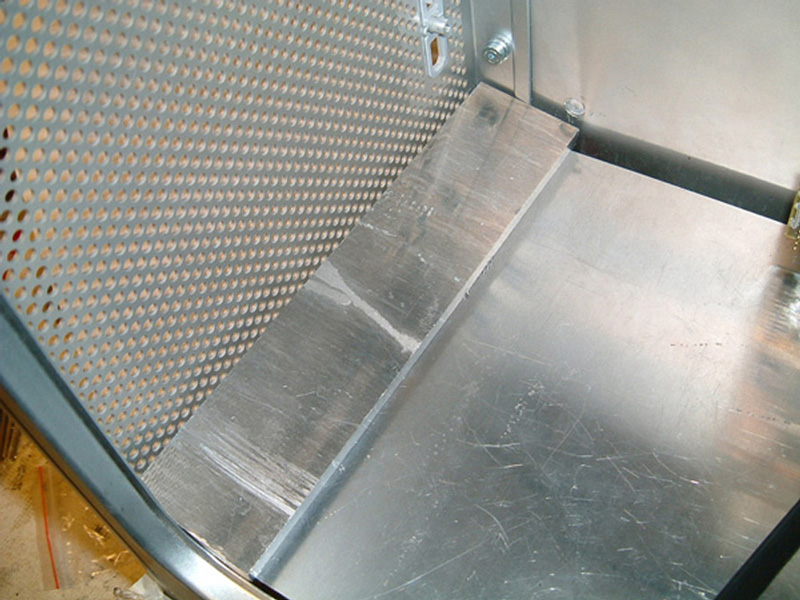

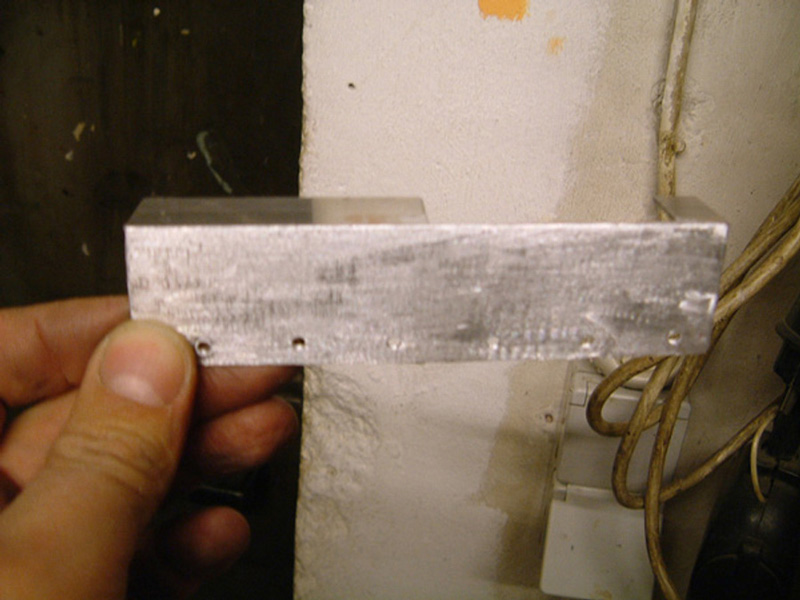

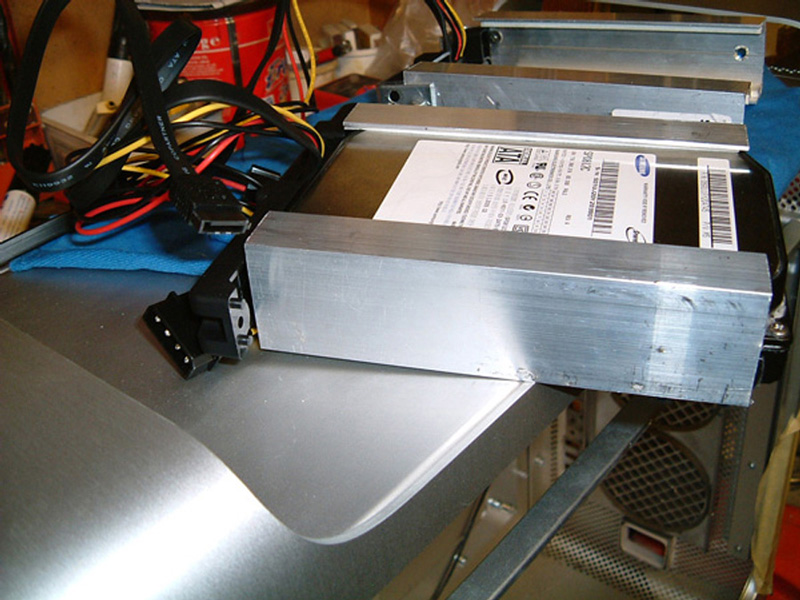

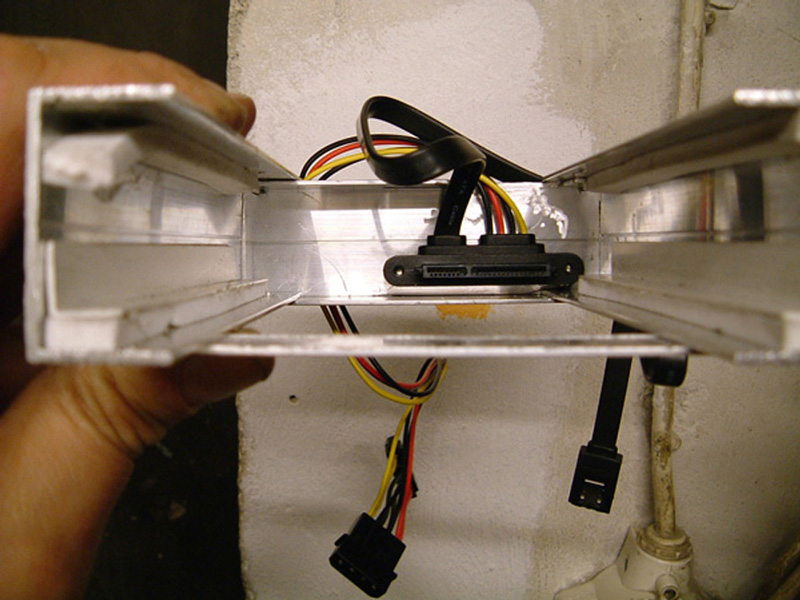

1. My construction for the hotswapable disks using a 35mm aluminium U
2. Cutted also wholes into the apple power supply cage to use the fans
3. Here you can see the finished cage from outside - let´s proceed to the inside

Attached File  DSCF0026.jpg   171.88KB   185 downloadsAttached File  DSCF0027.jpg   126.54KB   148 downloadsAttached File  DSCF0031.jpg   127.04KB   151 downloads

1. The Silverstone SST-CP05 Hot-Swap SATA II Modul that I used for it
2. Inside the cage isolation for the disks
3. This is how it should work - don´t worry - won´t use the adhesive tape for it :(

Attached File  DSCF0033.jpg   150.1KB   189 downloads Attached File  DSCF0034.jpg   218.88KB   226 downloads Attached File  DSCF0037.jpg   150.52KB   155 downloads

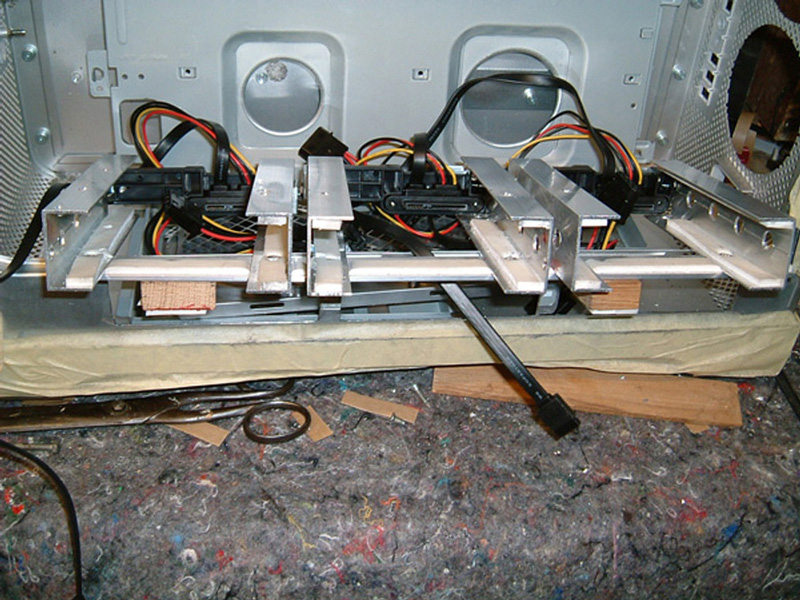

1. Close up of the hot swap preparing to fix the new low noise 40mm fans

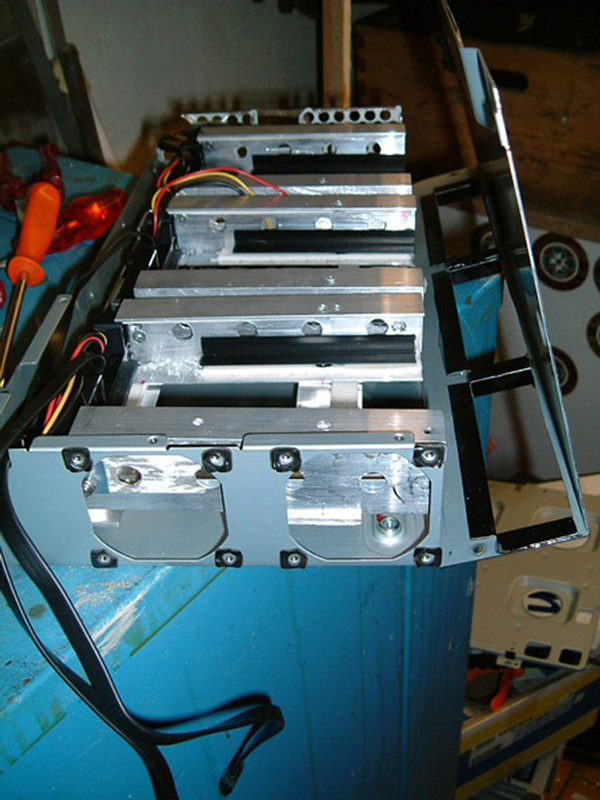

2. The whole construction inside

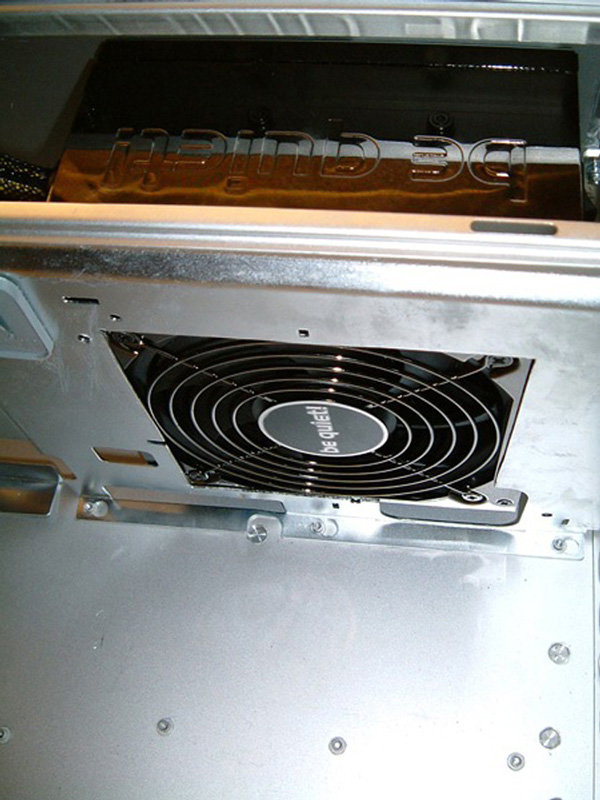

3. My new be quiet power supply fits in perfectly where it should be in an atx case. It has unfortunately no cable-managment, but was unbelievable cheap.

Attached File  DSCF0040.jpg   176.38KB   203 downloads Attached File  DSCF0044.jpg   176.48KB   166 downloads Attached File  DSCF0046.jpg   120.21KB   144 downloads

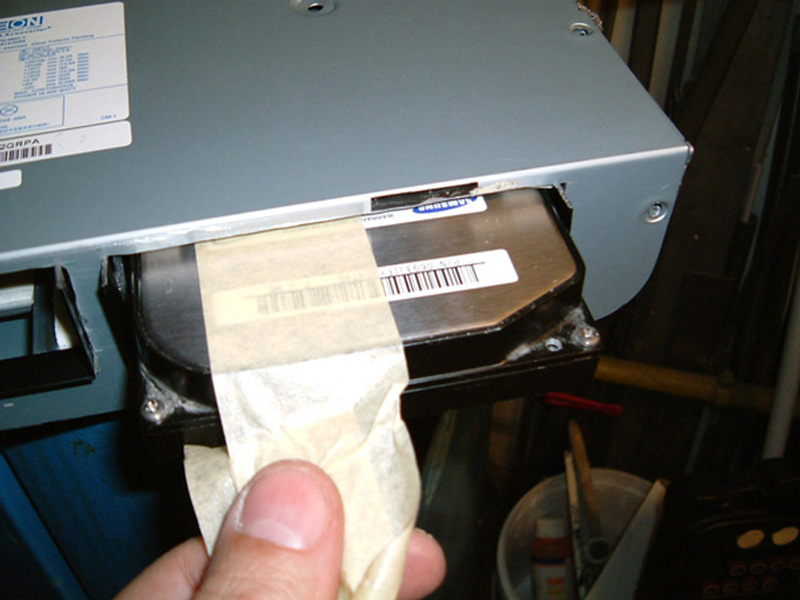

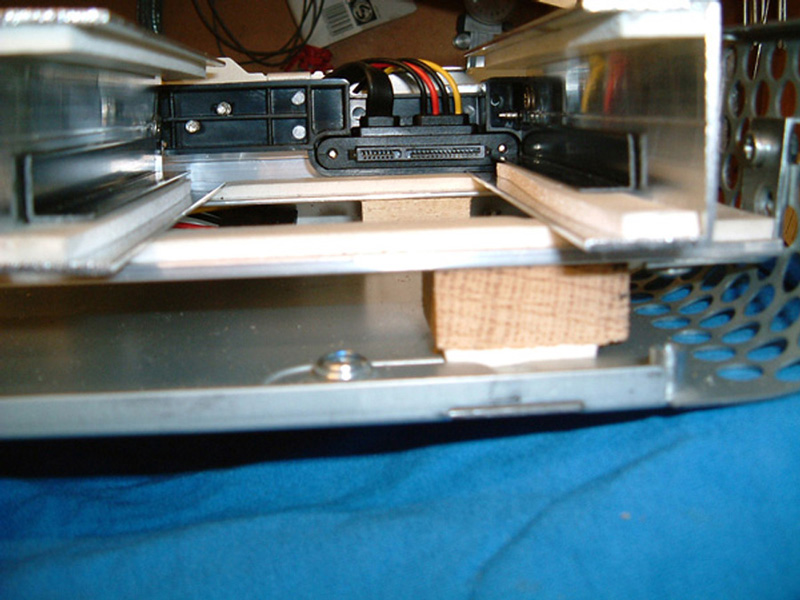

1. Closing the new hd cage
2. Testing the new aluminium cover of the cage

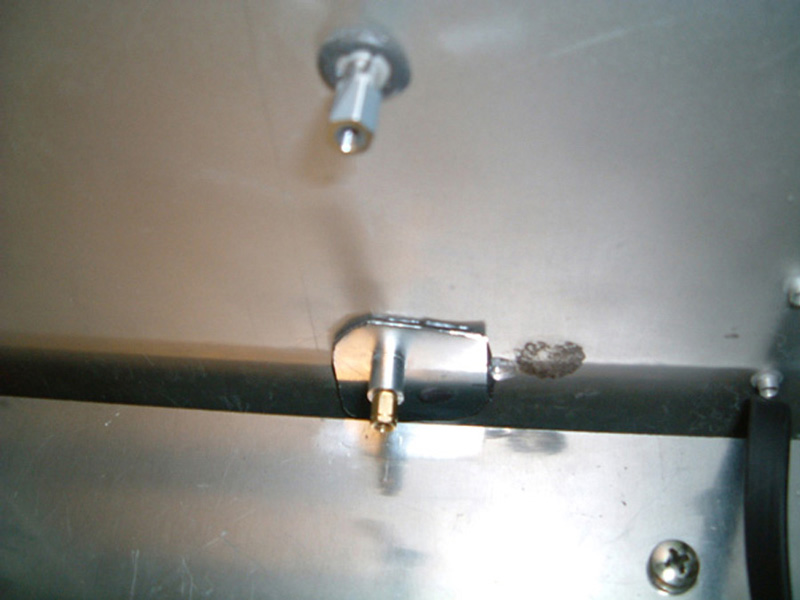

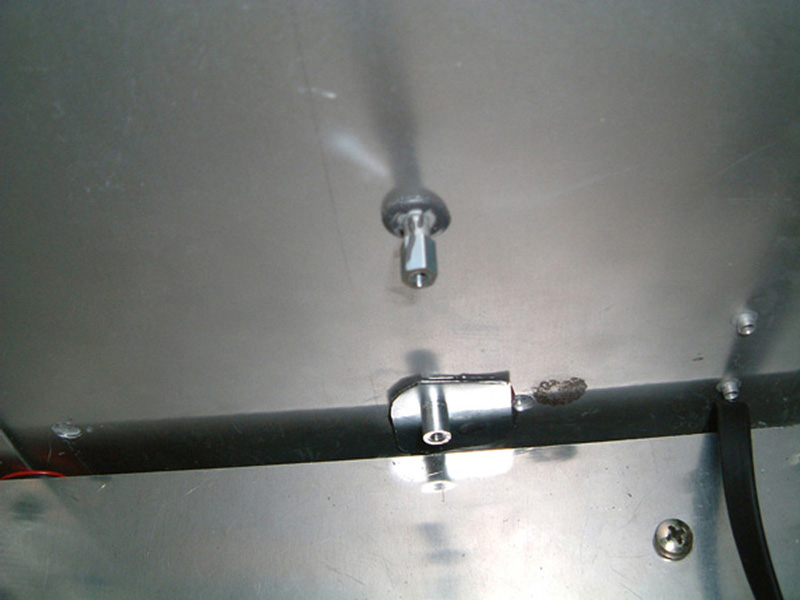

3. Fixing the new standoffs with JB Weld. Fortunately it´s available now in Europe

Attached File  DSCF0048.jpg   230.54KB   335 downloads Attached File  DSCF0049.jpg   173.34KB   488 downloads Attached File  DSCF0052.jpg   174.53KB   169 downloads

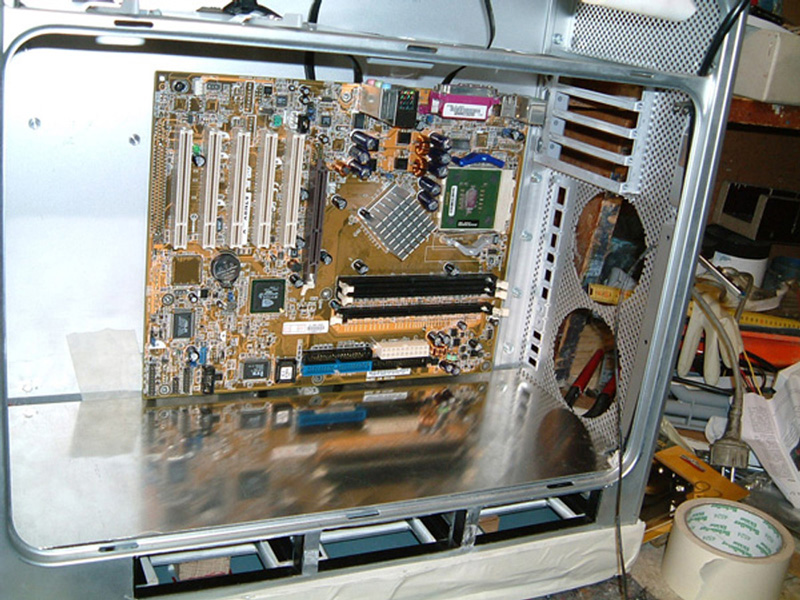

1. First test with my old amd board

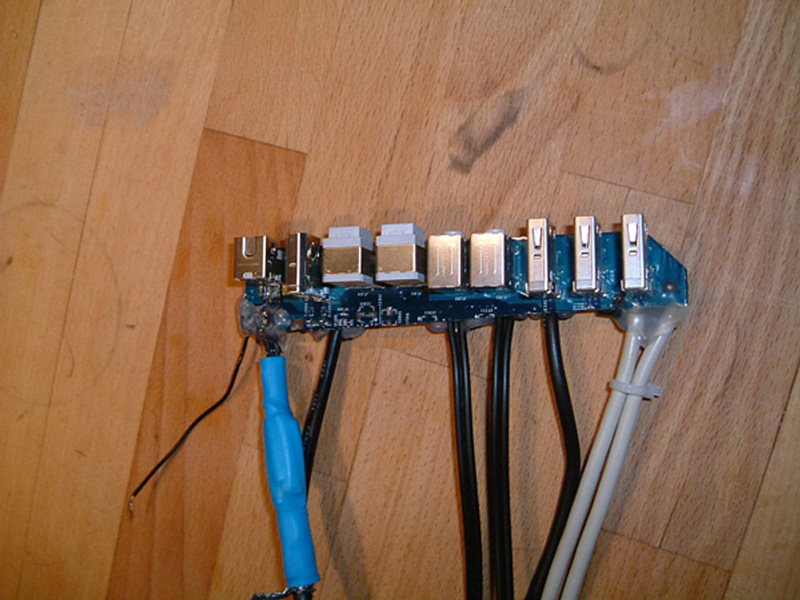

2. Wiring/soldering of the original back panel, which I did cut off the old logic board. I decided not to connect the optical connections because I will use later on an usb sound stick and a firewire interface. The biggest succes was soldering the firewire 800 pins with a lot of patience and a magnifying glass. Looking for the right wire, the solution was straight ahead, using the old ide cable of the dvd drive.
3. Making it possible to remove everything was very tricky(to have the option to remove the hd cage easy in case I have to replace the fans). Therefore I made the lowest standoffs in two parts and made this part to close the end of the bottom and to protect the power cable in the corner.

Attached File  DSCF0053.jpg   151.62KB   139 downloadsAttached File  DSCF0058.jpg   105.06KB   125 downloadsAttached File  DSCF0059.jpg   93.65KB   119 downloads

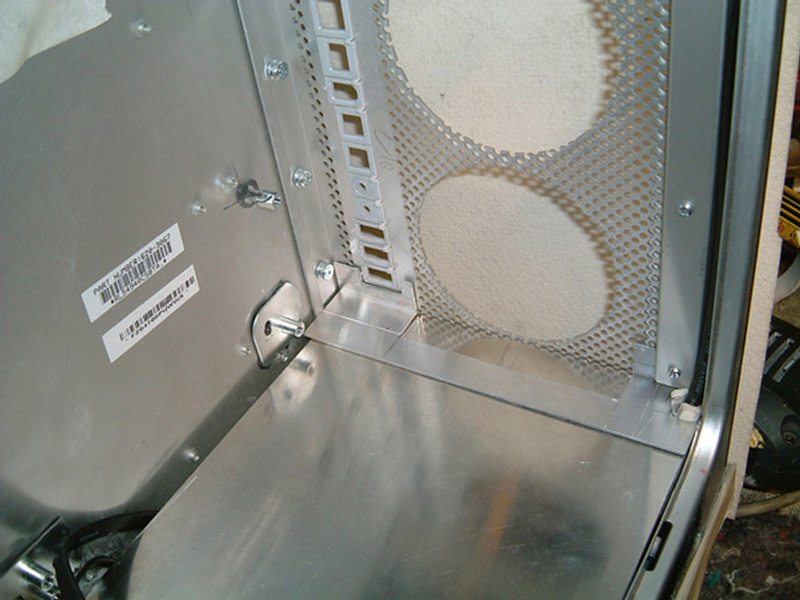

1. The cover and the standoffs

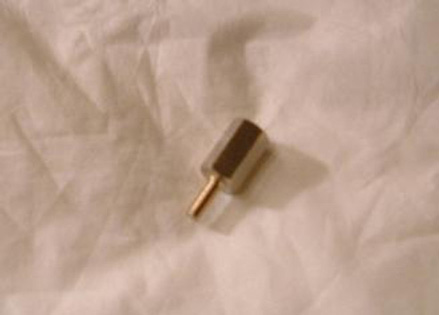

2. The standoffs without the extensions
3. As you can see you it´s possible to cut the frame that you can see in the first pic inside the apple case and use it for a standoff construction. An advantage is the bigger surface to glue them and to use regular atx standoffs as extensions.

Attached File  DSCF0060.jpg   173.53KB   125 downloads Attached File  DSCF0061.jpg   184.79KB   100 downloads Attached File  DSCF0071.jpg   148.37KB   113 downloads

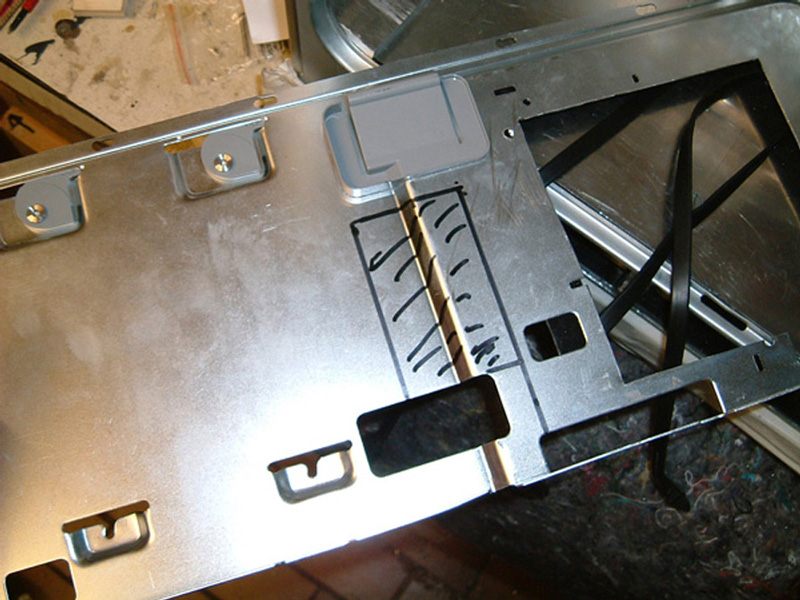

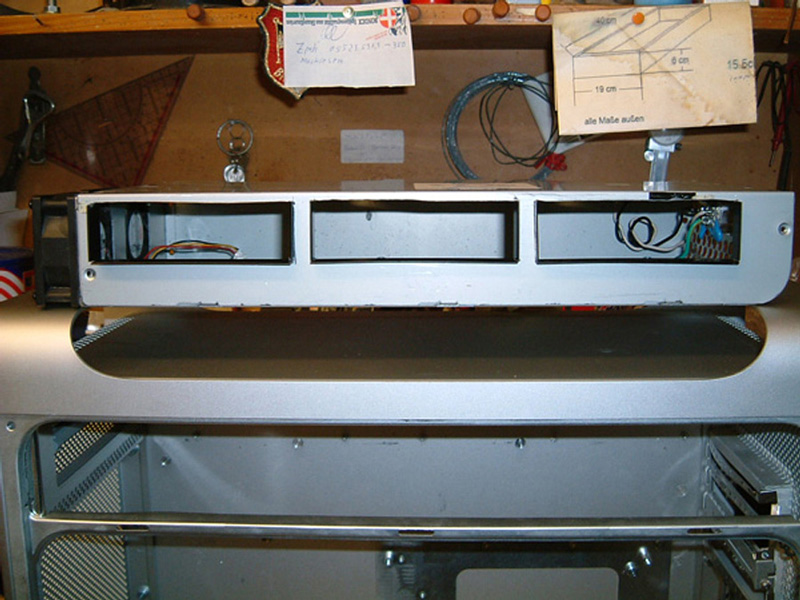

1. Marking the whole for the dvi plugs - because I will rotate the mainboard 90 degrees to the left and fit it in like a regular server board I need more space for the plugs

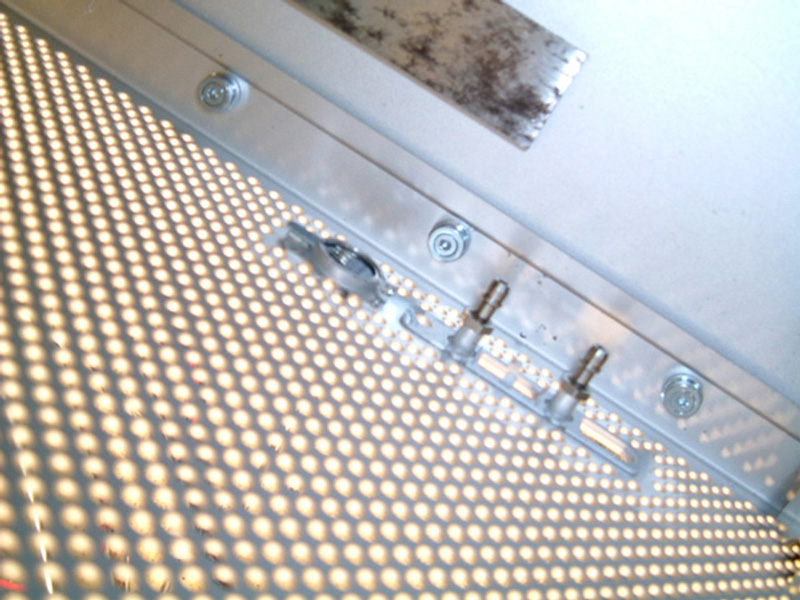

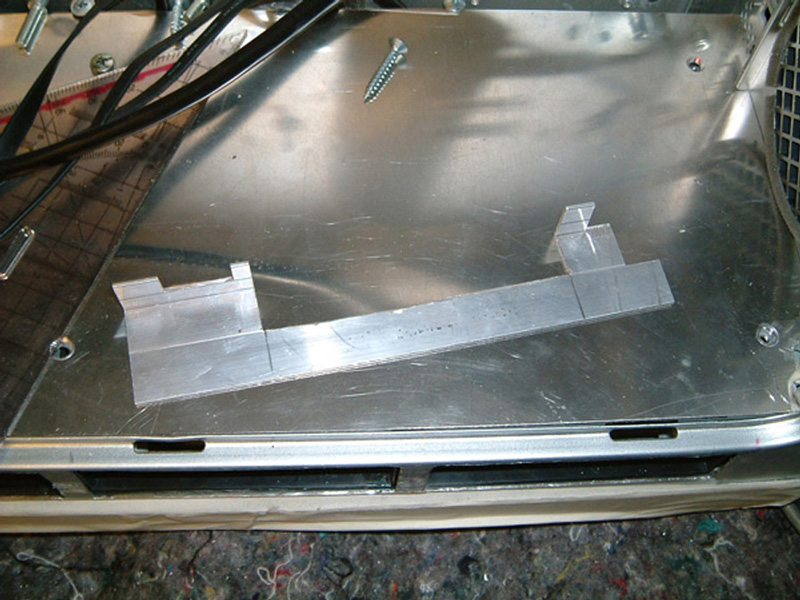

2. An other trick to clamp the rad later at the bottom. on top there will be an angle that holds it.

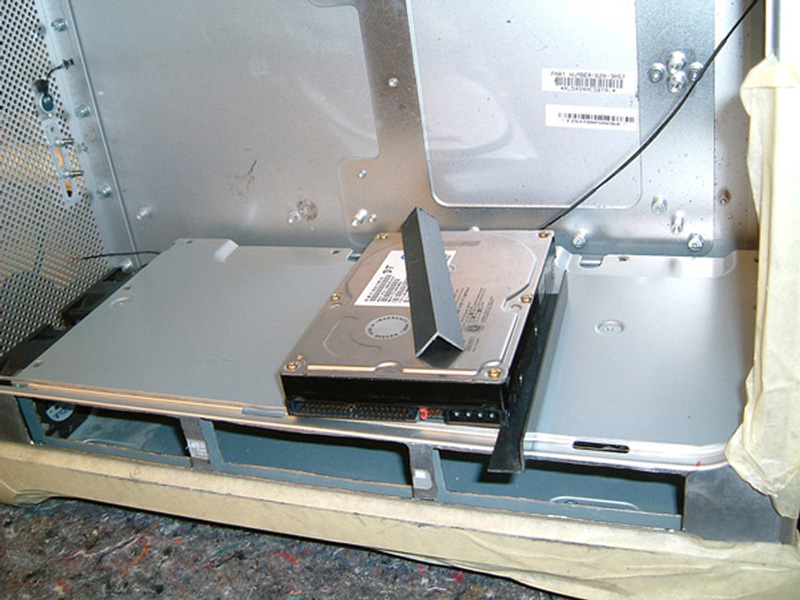

3. Because i will use an other two hd´s inside the case I decided to make an other hot swap cage construction. Primarily I wanted to use the apple hd cage - but I noticed that it will take too much place in that build.

Attached File  DSCF0072.jpg   187.48KB   180 downloads Attached File  DSCF0075.jpg   188.04KB   136 downloads Attached File  DSCF0078.jpg   126.06KB   111 downloads

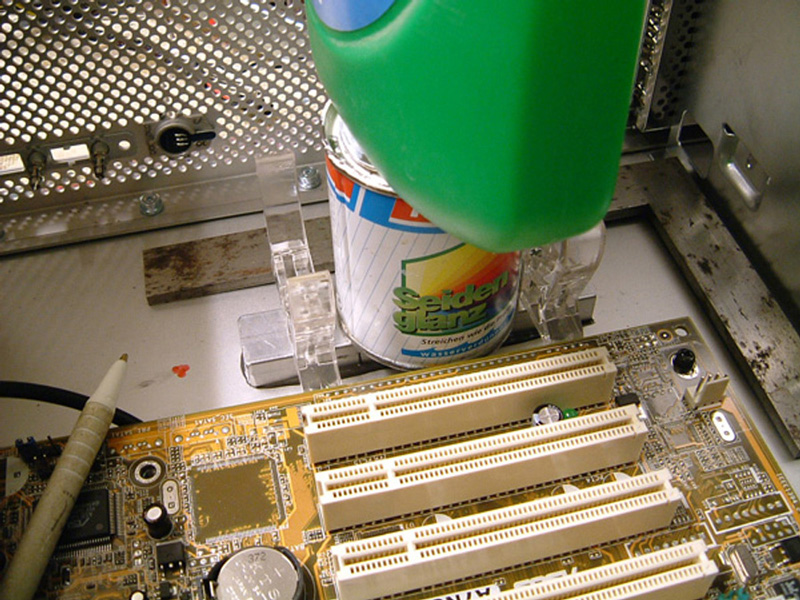

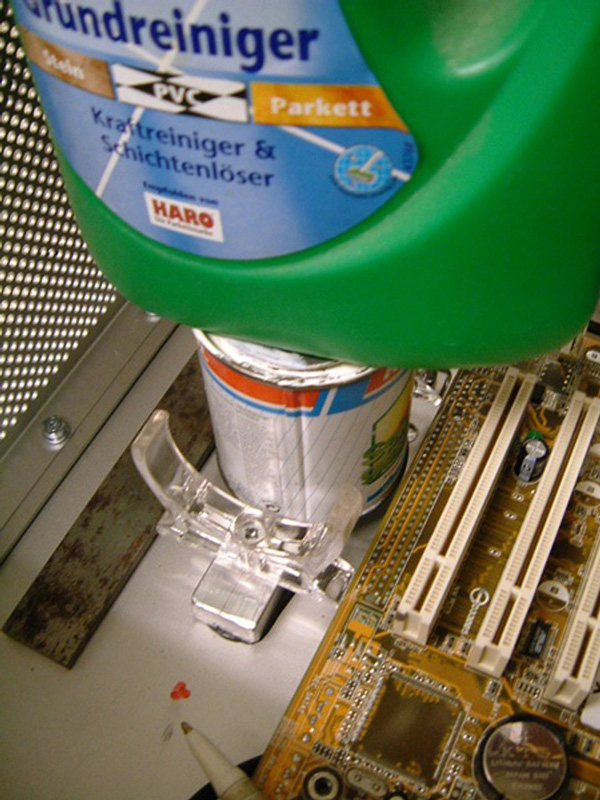

1. Glueing the holder for the tank with jb weld.
2. Be careful wit the frontpanel hd/led connector. as you can see here it was damaged and torn off. later I soldered it again.
3. This will be the holder for the pci cards in upright position.

Attached File  DSCF0081.jpg   136.93KB   193 downloadsAttached File  DSCF0086.jpg   136.39KB   218 downloads Attached File  DSCF0087.jpg   202.07KB   170 downloads

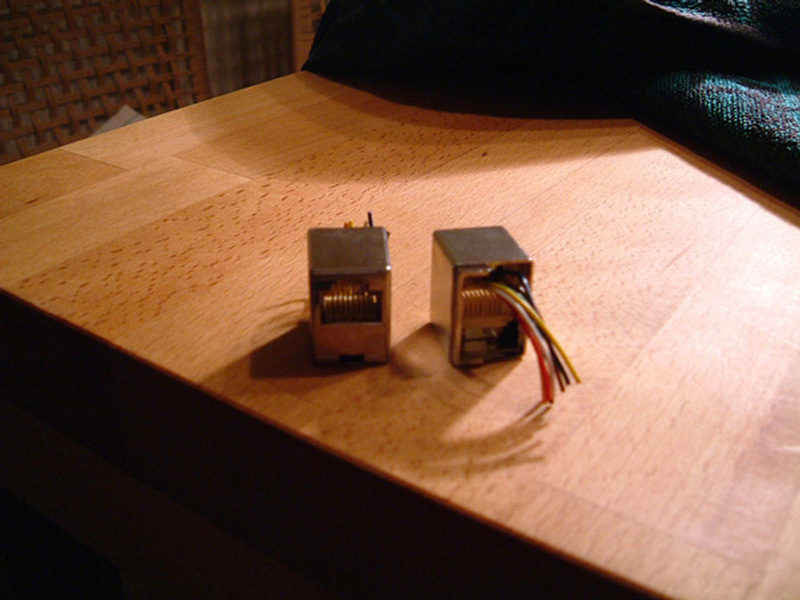

1. Because for some reason the backpanel rj-45 network connectors didn´t work, I bought this very sipmle connector (ususally to connect two network cables). if you twist it in the middle it seperates in two parts.

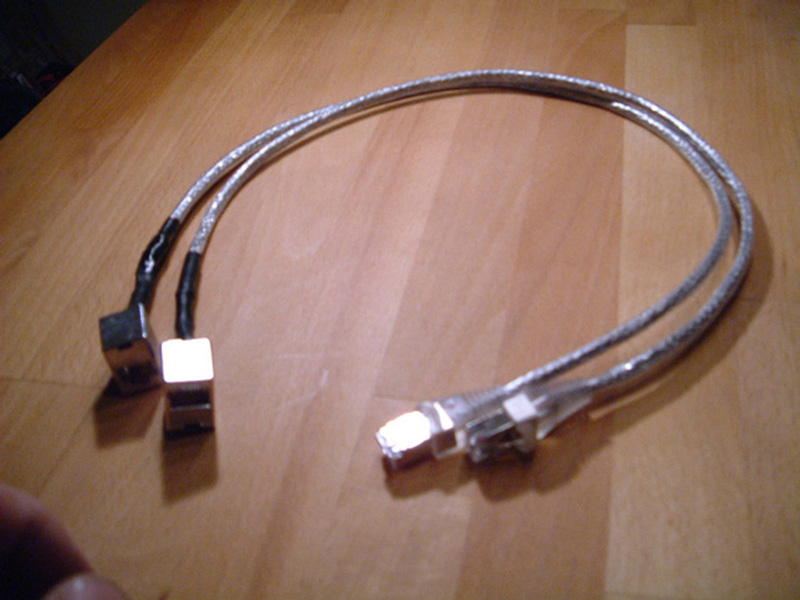

2. I made the connections a little bit longer to have enough tolerance to plug them into the mainboard.
3. The finished top cover

Attached File  DSCF0089.jpg   220.11KB   235 downloads Attached File  DSCF0095.jpg   102.64KB   162 downloads Attached File  DSCF0100.jpg   225.53KB   223 downloads

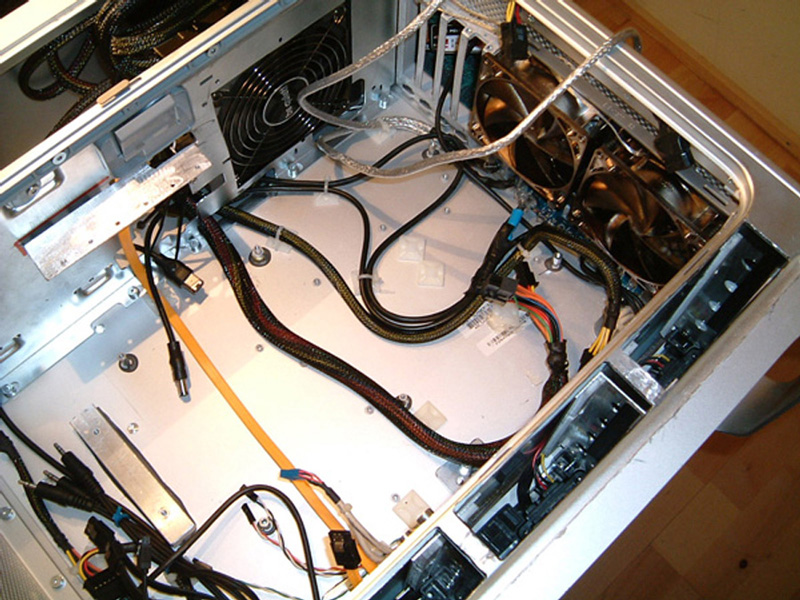

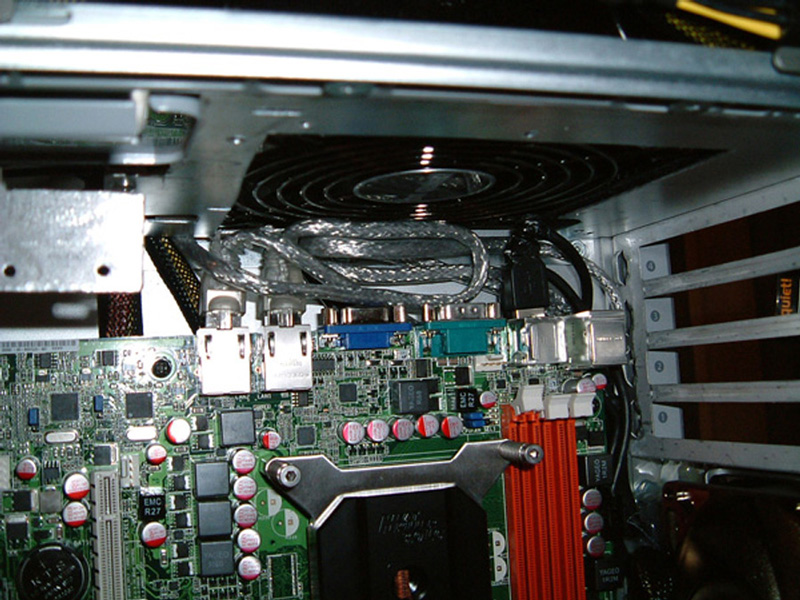

1. The wiring behind the board

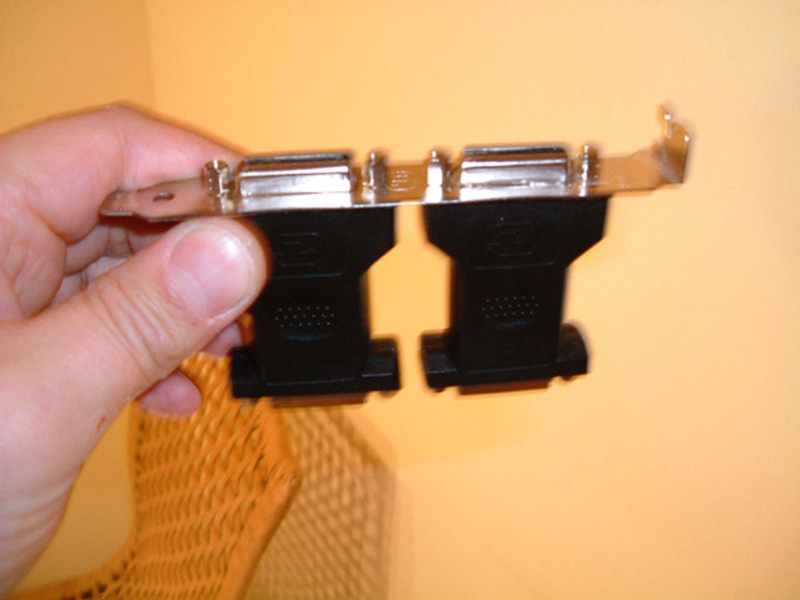

2. The dvi connectors for the back
3. Later I had to change the wiring like this

Attached File  DSCF0101.jpg   202.11KB   244 downloadsAttached File  screw.jpg   23.82KB   106 downloadsAttached File  DSCF0102.jpg   210.67KB   363 downloads

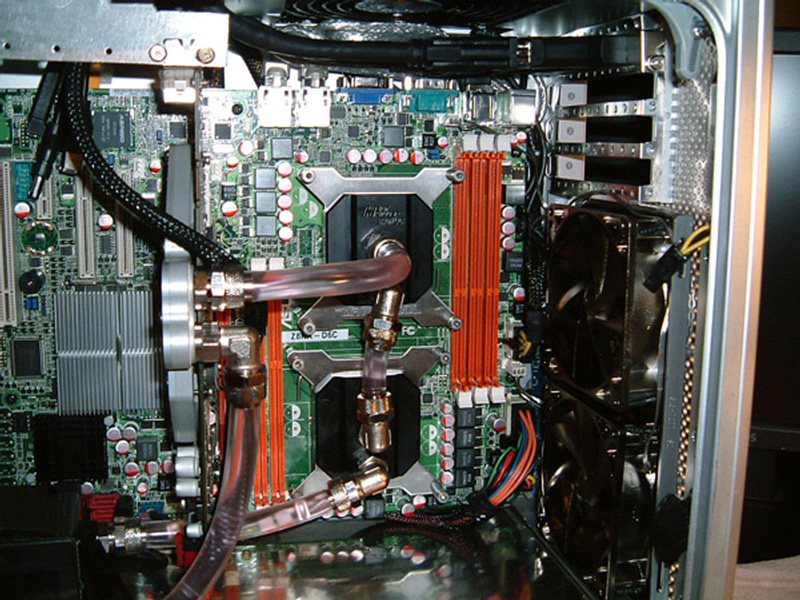

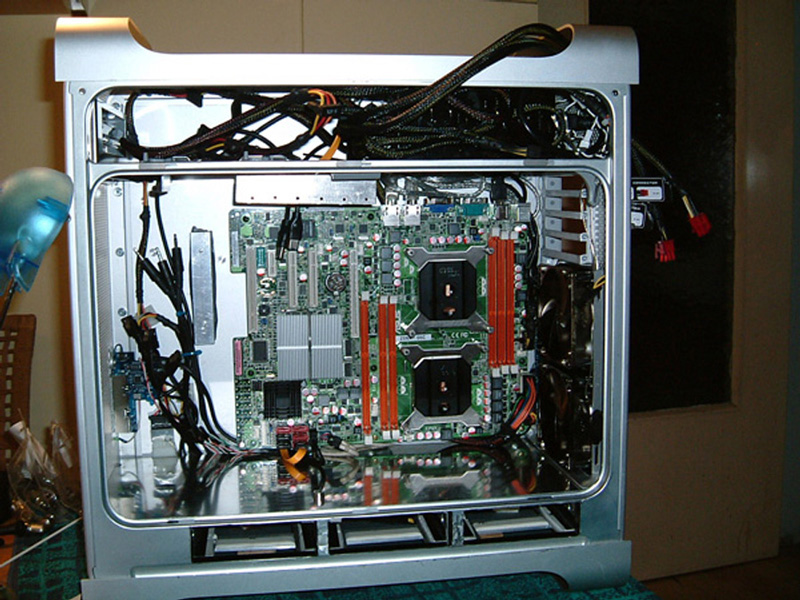

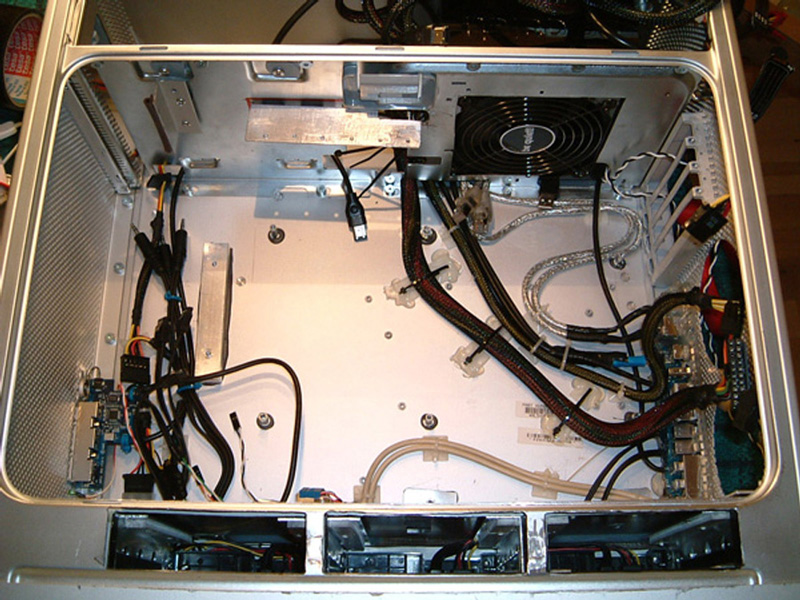

1. The connected manboard in the case - below the watercool heatkiller.
2. To install the heatkiller I had to reduce the screw threads from m4 to m3. the 1366 serverboards have a backplate that has only m3 wholes instead of standard m4 as other 1366 boards - for no reason......ooohh...excuse me - makin more money with the intel xeon coolers :(
3.Fixed the two rear silenX 92mm fans - amazing quiet!

Attached File  DSCF0104.jpg   243.44KB   254 downloads Attached File  DSCF0107.jpg   209.78KB   282 downloads

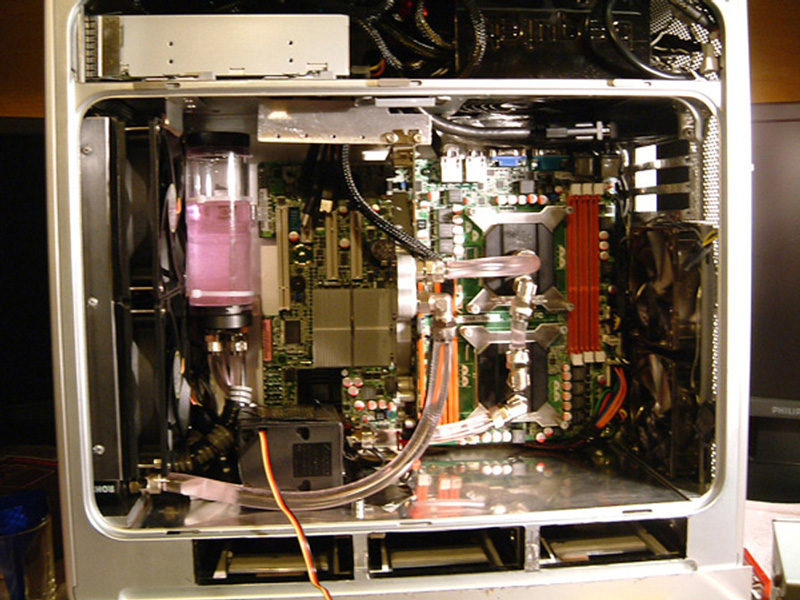

The baby in action with two Heatkillers, a Danger Den CX pro, MagiCool slim dual rad and two Scythes. Because it is pretty sure that the chipsets will get some heat problems in this config, I´m working now on a watercooling solution.
looks like one manufacturer is willing to make a prototype for the Asus Z8NA.

My shoemaker nextdoor is making the straps for the hotswaps :)

The next days I will add how to install snow leo on this board. First of all - it was the easiest install I did ever. if you consider to buy this board - do it! it works flawless :)

Attached Files



#2
animani

animani

    InsanelyMac Protégé

  • Members
  • PipPip
  • 73 posts
Awesome setup. I was thinking on doing this as well but first I need to fix "something" in my installation then I will thnk about it.

But deffo this is very inspiring....

Thanks man.

#3
peach-os

peach-os

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,286 posts
  • Location:lago di constanza
of course - first fix your first install. this is a lot of more work -_-

I disassambled the machine again to work on a cooling solution for the chipset. it was hard , but Marc from Liquid Extasy - http://www.liquid-extasy.de/ - did it !

look at this baby:

Posted Image
Posted Image
Posted Image

this guy is top notch! he created this fantastic prototype for me and the first availble watercooling solution for the Asus Z8NA series / X58

tomorrow I will assamble it again and share more pics :)

#4
manual123

manual123

    InsanelyMac Protégé

  • Donators
  • 14 posts
  • Gender:Male
  • Location:Bellevue Nebreska
This is excellent man!!

#5
Master Chief

Master Chief

    Just Chief

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,176 posts
  • Gender:Male
Nice work. What about a geekbench score? And are you using i7 920's on it or the 5520's?

#6
peach-os

peach-os

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,286 posts
  • Location:lago di constanza

Nice work. What about a geekbench score? And are you using i7 920's on it or the 5520's?


you have to use xeon´s - 5520 in this case

the first geekbenchs have been around 11000 with some slow disks. let´s see the next days after setting up a raid
and some fine tuning. will post the final pics and more results.

#7
Master Chief

Master Chief

    Just Chief

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,176 posts
  • Gender:Male

you have to use xeon´s - 5520 in this case

Too bad. Probably just a missing option in the BIOS. I wonder if we can fix this, with or without help from Asus, because that would instantly change my mind about this board.

Now. I had a quick look at the on-line manual and I can't find anything related to overclocking. I take it that can't be done in the BIOS. Can it?

the first geekbenchs have been around 11000 with some slow disks. let´s see the next days after setting up a raid
and some fine tuning. will post the final pics and more results.

Cool. I also like the water cooling. Maybe I go for this board for my next project. First a few more questions, if you don't mind me asking:

1) Both LAN ports work?
2) Audio also works?
3) What kexts are you using?
4) How many revs do you see at boot time (under the Apple logo)?
5) What power supply are you using?
- I have a spare Corsair 850 (80 Silver edition)
6) OS X still works when you remove one CPU?

p.s. I take it this is the number 3 machine – missing in your signature.

#8
peach-os

peach-os

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,286 posts
  • Location:lago di constanza
afaik only the xeon cpus are able to coop with an other cpu, hence no way to change that with bios mods.
also there are no dual cpu boards (serverboards) that are overclockable. I guess that´s because of a possible instability.

1.both LAN are working after editing the Device ID´s
2.there is no audio onboard if you don´t buy the extra Asus MIO soundcard. I don´t need it because I´m using a firewire interface.
3. fakesmc, evoreboot, IOAHCINlockstorageinjector - at the moment working on dsdt to get rid of some more
4. funny question. 7-10 - but that´s not a good measure. with dsdt the boot time is long. trying to find a solution for that.
5. using a be quiet 650W PS
6. I didn´try, but according to other posts os x doesn´t work with only one cpu.

no - it´s my my fifth machine, beside a toshiba qosmio f45 and an acer 6292. the forum rules don´t allow that much lines in the signature ;)

@manual123: thanks - it was a lot of work, but also a lot of fun :)
