Mark-i (SL only) interesting tool to read yout sensors from MB


  • Please log in to reply
18 replies to this topic

#1
mitch_de

mitch_de

    InsanelyMacaholic

  • Local Moderators
  • 2,879 posts
  • Gender:Male
  • Location:Stuttgart / Germany
http://www.projectos...?...c=546&st=20

Seems to read (try) out all sensors on the mainboard (normally shown in bios or Win Tools) like fan speed, mb temp, Volts....
But (if i understand it) you must know your type of sensor ( Winbound,.....) perhaps and config it in the .plist of the .kext / the app.
Sorry, but i only can tell things about that very global, not detailed (russian needed).


Posted Image

#2
FKA

FKA

    are we there yet?

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,626 posts
  • Gender:Male
It does look rather useful

#3
Volcacius

Volcacius

    InsanelyMac Sage

  • Donators
  • 461 posts
  • Gender:Male
  • Location:BG, Italy
Nice, will try.

#4
MadGhost

MadGhost

    Floating around

  • Donators
  • 309 posts
  • Gender:Male

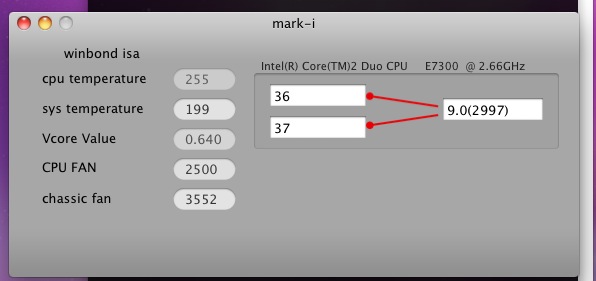

Hello
Posted Image

The last RPM value i think there a problem or this hardware is very fast
And if it's possible to localize in English it would be great.
I tried to edit but nib is compressed so it's impossible.
But it's a great job congratulations to iMark and thank you.

PS: Hardware monitor works in SL but there's not all values of the sensors.

#5
quinielascom

quinielascom

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 749 posts
  • Location:M�xico
Mark-i available now with customs labels:

http://www.projectos...?...post&p=3051

Download: http://webfile.ru/3973096
Mirror: http://www.mediafire.com/?dm1mw4gtef7

Thanks to Mark for this customizable release.

#6
mitch_de

mitch_de

    InsanelyMacaholic

  • Local Moderators
  • 2,879 posts
  • Gender:Male
  • Location:Stuttgart / Germany
Thanks for that news ! I thanked mark for his new work.
PS:
The last RPM (10000+) value i think there a problem or this hardware is very fast
Perhaps not when you OC an Quad Intel CPU to 5+ GHz :) :)


#7
MadGhost

MadGhost

    Floating around

  • Donators
  • 309 posts
  • Gender:Male
I never OC any of my components

New version crash at start on my rig

Edit: Thanks cVaD and mark this version work

#8
cVaD

cVaD

    InsanelyMac Geek

  • Coders
  • 217 posts
  • Gender:Male

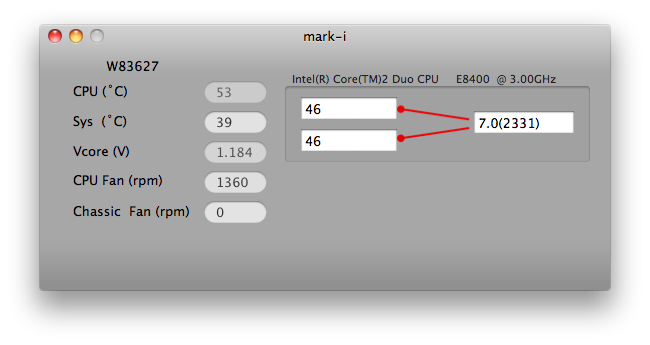

Attached File  Screen_2009_10_03____15.09.58.PNG   42.81KB   244 downloads

Attached File  mark_i_custom.w.kext.zip   302.46KB   251 downloads

Please test with nehalem the next ver and report here.

Attached File  mark_i.force_nehalem.zip   299.51KB   86 downloads

#9
mitch_de

mitch_de

    InsanelyMacaholic

  • Local Moderators
  • 2,879 posts
  • Gender:Male
  • Location:Stuttgart / Germany
Thanks cVaD for supporting (with informations + DL Links) also this engl. forum with the great new russian developments for OSX86 !

With your dl i get this (i think i must look in win which sensor chip i have, dont know Ep35-DS3)
The right side is correct, left not (sensor sure other type).

Attached Files



#10
cVaD

cVaD

    InsanelyMac Geek

  • Coders
  • 217 posts
  • Gender:Male
Unfortunately, currently only two chips supported.

Winbond:
W83667HG-A/B 0xa51 (P5Q Pro, etc.)
W83627 0xa02 (P5B/Deluxe, P5K, etc.)


You can try to identify your chip with:

Attached File  mar_i.probing.chip.zip   24.81KB   169 downloads

#11
Arial

Arial

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 176 posts
thanks for English version :unsure:

#12
jinnggoff

jinnggoff

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 133 posts
  • Gender:Male
  • Location:hackintosh
anyone can translate this version to leopard and for 32 bit proccesor ?
....so everyone can use this nice app as universally :unsure:

#13
mitch_de

mitch_de

    InsanelyMacaholic

  • Local Moderators
  • 2,879 posts
  • Gender:Male
  • Location:Stuttgart / Germany

Unfortunately, currently only two chips supported. You can try to identify your chip with:Attached File  mar_i.probing.chip.zip   24.81KB   169 downloads

Thanks i get this with EP35-DS3:
bash-3.2# /Users/amisnow/Desktop/probing_generic
....
Probing for ITE Super I/O (init=standard) at 0x2e...
Found ITE IT8718F (id=0x8718, rev=0x4) at 0x2e

Probing for ITE Super I/O (init=it8761e) at 0x2e...
Failed. Returned data: id=0xffff, rev=0xf
...rest failed..

I found some C linux source code for ITE IT8718F here - perhaps useful (also GA 965 Boards use that):
http://tracker.coreb...rio/ite/it8718f

Perhaps someone can try to add also that device ?
Here for compare to already working+supported winbond type devices:
http://tracker.coreb...superio/winbond

#14
verdant

verdant

    InsanelyMac V.I.P.

  • Gurus
  • 5,527 posts
  • Gender:Male
  • Interests:At home, I have the following computers......
    >
    >
    >
If you can afford €8.33 you can get Hardware Monitor......features of v4.8.....it works in Tiger, Leopard and Snow Leopard.....

#15
mitch_de

mitch_de

    InsanelyMacaholic

  • Local Moderators
  • 2,879 posts
  • Gender:Male
  • Location:Stuttgart / Germany

If you can afford €8.33 you can get Hardware Monitor......features of v4.8.....it works in Tiger, Leopard and Snow Leopard.....

Not useful for PCs (OSX86) cant read out any FAN RPM and the othet things that OSX86 tool can read.

#16
morfy

morfy

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 890 posts

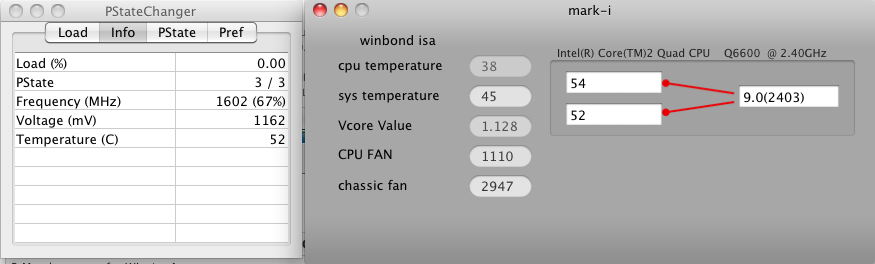

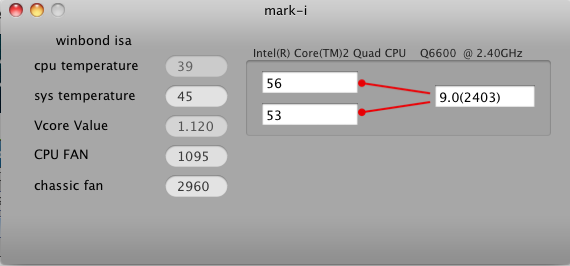

Work on my system in signature (q6600).
Attached File  Schermata_2009_10_05_a_19.39.44.png   27.44KB   83 downloads

Mark, however, only 2 core.

Comparison between the 2 programs give 2 different vcore
Attached File  Schermata_2009_10_05_a_19.42.45.png   44.42KB   133 downloads

#17
ironduke

ironduke

    InsanelyMac Protégé

  • Members
  • Pip
  • 20 posts
doesnt work on my p5k deluxe running 10.5.8 :rolleyes:

#18
cVaD

cVaD

    InsanelyMac Geek

  • Coders
  • 217 posts
  • Gender:Male
Attached File  RingAccess.kext_10.5.zip   14.33KB   64 downloads

#19
mitch_de

mitch_de

    InsanelyMacaholic

  • Local Moderators
  • 2,879 posts
  • Gender:Male
  • Location:Stuttgart / Germany
Any news !
I now there was an ITE version but i missed the download.
Does someone has that version ?
