Force Snow Leo to boot in 32 Bit Mode?


  • Please log in to reply
12 replies to this topic

#1
macmatt79

macmatt79

    InsanelyMac Protégé

  • Just Joined
  • Pip
  • 4 posts
How do I get SL to boot into 32bit mode? I have it installed but cant get my sound or lan to work on my P43-ES3G motherboard with 8111C LAN. SL keeps booting into 64 bit mode and I tried to hold down 32 while booting and this does not work. I think the reason my sound and LAN don't work is due to their not being any 64bit Kexts available. I am using Chameleon R2 as my bootloader via a USB flash drive per Lifehackers method.

Any Ideas on where I should start?

Chipset
North Bridge: Intel® P43 Express Chipset
South Bridge: Intel® ICH10

Memory
4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR2 1200/1066/800/667 MHz
memory modules
(Go to GIGABYTE's website for the latest memory support list.)

Audio
Realtek ALC888 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Support for CD In
LAN
Realtek 8111C chip (10/100/1000 Mbit)

#2
sunkid

sunkid

    InsanelyMac Protégé

  • Members
  • Pip
  • 41 posts
Use -x32 as a kernel flag when booting. You can put this into your com.apple.Boot.plist:

<key>Kernel Flags</key>
	<string>-x32</string>


#3
kamikaze

kamikaze

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 218 posts
  • Gender:Male
  • Location:Paris, FR
For some reasons the flag doesn't change anything... I can still see that kext are 64 bits

Actually that brings an interesting question, how do yo know if you kernel is 32 or 64?

I figure it out by checking the kext type in About my Mac...


Use -x32 as a kernel flag when booting. You can put this into your com.apple.Boot.plist:

<key>Kernel Flags</key>
	<string>-x32</string>



#4
sunkid

sunkid

    InsanelyMac Protégé

  • Members
  • Pip
  • 41 posts

For some reasons the flag doesn't change anything... I can still see that kext are 64 bits

Actually that brings an interesting question, how do yo know if you kernel is 32 or 64?

I figure it out by checking the kext type in About my Mac...


System Profiler -> Software

#5
kamikaze

kamikaze

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 218 posts
  • Gender:Male
  • Location:Paris, FR

System Profiler -> Software



Thanks, I figured but wanted confirmation.

So.. I am kind of trapped in 64 bits mode.

Let me summarize my install: Chameleon RC3 + EFI Partition.
boom.plist on EFI partition with flags -x32 -v -arch=i368

Still.. it boots 64 bits !!

#6
Jingu

Jingu

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 124 posts
You're not the only one,

Since using Chameleon RC3, it doesn't read the 32-bit kernel flags. It always boots 64-bit.

What I do is when the chameleon GUI shows up, I hit Tab, that brings me to the Darwin bootloader. From there, I select the Snow Leopard partition and type at the promt arch=i386. That gets me to boot in 32-bit.

#7
dylanj52

dylanj52

    InsanelyMac Protégé

  • Just Joined
  • Pip
  • 3 posts

You're not the only one,

Since using Chameleon RC3, it doesn't read the 32-bit kernel flags. It always boots 64-bit.

What I do is when the chameleon GUI shows up, I hit Tab, that brings me to the Darwin bootloader. From there, I select the Snow Leopard partition and type at the promt arch=i386. That gets me to boot in 32-bit.


I am having exact same issue -- anyone found a more permanent solution?

#8
rosumella

rosumella

    InsanelyMac Protégé

  • Members
  • PipPip
  • 65 posts

I am having exact same issue -- anyone found a more permanent solution?

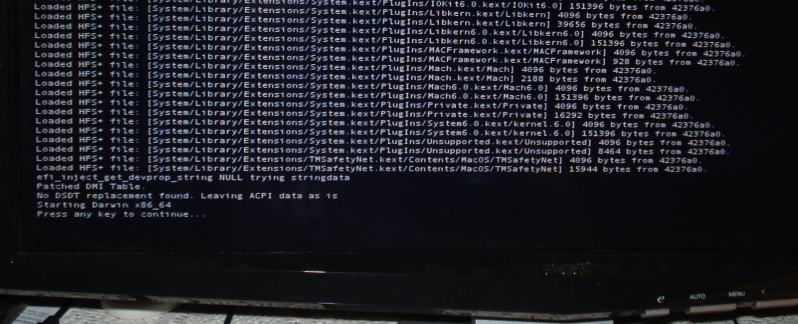

same issue with Chameleon RC2, here's an image of boot process with -v flag:

Attached File  uno.png   489.86KB   203 downloads

#9
rosumella

rosumella

    InsanelyMac Protégé

  • Members
  • PipPip
  • 65 posts

same issue with Chameleon RC2, here's an image of boot process with -v flag:

Attached File  uno.png   489.86KB   203 downloads


I found this thread:

http://www.insanelym...p...181209&st=0

it seems someone got it to work

#10
coolio2004

coolio2004

    InsanelyMac Protégé

  • Members
  • PipPip
  • 96 posts
I have permanent 32 bit booting with boot argument arch=i386 -x32 and not -arch=i386 -x32 plist. with RC3.

#11
rosumella

rosumella

    InsanelyMac Protégé

  • Members
  • PipPip
  • 65 posts

I have permanent 32 bit booting with boot argument arch=i386 -x32 and not -arch=i386 -x32 plist. with RC3.


So you put both flags arch=i386 and -x32 in com.apple.Boot.plist?

#12
imacken

imacken

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 435 posts

So you put both flags arch=i386 and -x32 in com.apple.Boot.plist?

For RC3, you just put arch=i386.

#13
d-track

d-track

    InsanelyMac Protégé

  • Members
  • PipPip
  • 83 posts

For RC3, you just put arch=i386.


i am in the same boat.

snow leo 10.6.3 installed with chameleon 2 rc4
i cant find any com.apple.Boot.plist file on my hdd
not even with hidden files enabled
where is that?
should i create one?
