Snow Leopard on Acer Aspire 5930G


  • Please log in to reply
17 replies to this topic

#1
razvizion

razvizion

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts
  • Location:Poland
Like in the title :D GFX -QE/CI works(no string, patched DSDT) and audio whitout Mic, but: speakers, line out/in works. Ethernet on USB (Dell DUB-E100) and replaced WiFi (Dell DW 1390).

I've used chameleon v1012, kexts and modified boot file from teknojunkie's tutorial and netkas fix for USB, modified appleHDA from gigabyte mobo and DSDT from ugokind tutorial (udoking You are big! THX for that guide).

I still try to figure out how to make that internal camera work.

#2
Mettiu

Mettiu

    InsanelyMac Protégé

  • Members
  • PipPip
  • 80 posts
Are you booting with vanilla kernel?

I have an Acer Aspire 5720G (in which I have installed 10.5.7 - with everything working except intel wireless) and I have found a workaround for the Crystal Eye webcam: I found that the application CamTwist is able to activate it!!
So for example, in order to use it with skype, I first run CamTwist, then Skype (choosing in the preferences to use the webcam called "camtwist") and I can make videocalls!

I guess it can work for you too.

#3
ugokind

ugokind

    InsanelyMac Deity

  • Donators
  • 1,713 posts
  • Gender:Male
  • Location:10100
  • Interests:Apicoltura
    Mac
    Linux
    Homebrew
    Australia
    Spremermilcervello

Like in the title :P GFX -QE/CI works(no string, patched DSDT) and audio whitout Mic, but: speakers, line out/in works. Ethernet on USB (Dell DUB-E100) and replaced WiFi (Dell DW 1390).

I've used chameleon v1012, kexts and modified boot file from teknojunkie's tutorial and netkas fix for USB, modified appleHDA from gigabyte mobo and DSDT from ugokind tutorial (udoking You are big! THX for that guide).

I still try to figure out how to make that internal camera work.



merci.. ful..LOL

btw, you're introducing a news!! why don't write with BOLD words?? are you running with a AppleHDA modded different from last century's topics?? ?

so.. talk about it.. i'm really REALLY interested.. ok?

please..

ciao

.. and that's because actually my dsdt replace the hdaenabler.. but It's a remind of leo noob1x mod... not using voodoohda but applehda mod+acer plist hda+efi.. the efi is injected in dsdt and ok.. leo is working.. but:

in snow the leo's kext audio modded are not working and the snow applehda original cause a crash. so the only way I play now is to use the same dsdt (which is .. dirty -> HDEF with audio pinconfig) but using voodoohda for snow.

your solution.. can you add some zips? in order -for me- to add them to the big guide??



...ah ps.. respect tecnoijunkie.. i'm using MBR not GUID

#4
ugokind

ugokind

    InsanelyMac Deity

  • Donators
  • 1,713 posts
  • Gender:Male
  • Location:10100
  • Interests:Apicoltura
    Mac
    Linux
    Homebrew
    Australia
    Spremermilcervello
I've updated my guide.. thanks!

it works!!!!!!!

#5
razvizion

razvizion

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts
  • Location:Poland
I've combined Your AcerAlc888S, dsdt and that weird AppleHDA from gigabyte post I've linked in the first post. Thats all . VoodooHDA didn't worked for me. I get also PS2 working from a dell 630 kext pack. Touchpad whit tapping and keyboard loading on every boot ;)

Interesting thing for me is how to boot from eSATA, I tried everything :/ Using EasyBCD(and also replacing that .efi file whit chameleon 2 boot file), writing in the bootloader the rd=*PCI... or rd=drive..., no bios option for eSATA ;)

The reason I want to do this is that eSATA is a SATA II connection so i can reach full speed on my external seagate HD, on USB it's not possible.

Ohh and a complete guide will be here soon. With all needed files in zip ;).

PS. there are missing usb internal(cam twist doesn't help) adapters: acer hd cam and finger sensor, idon't know how i done it but when i first(with KP on startup and after few minutes) installed snow leopard all usb adapter were on their place. :/ confusing. Even the camera worked better than on 10.5, but only once :P

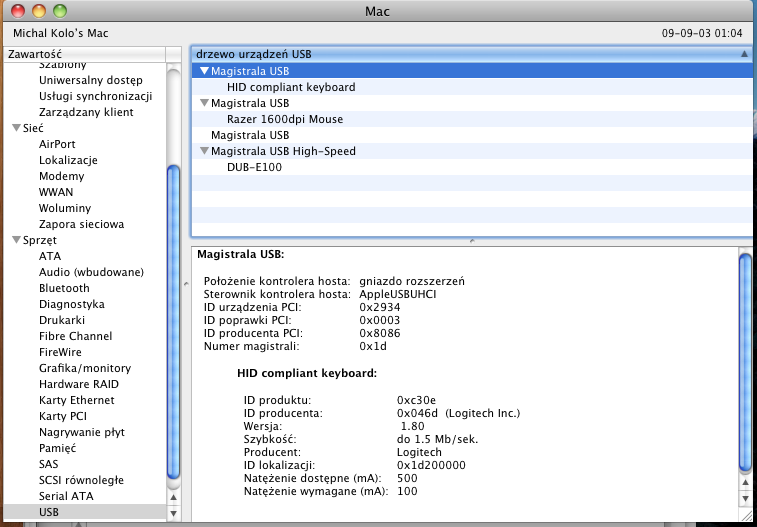

PS2. I've got great news ;) with a little bit of luck and few hours of work iI created a modified IOUSBFamily.kext that is supporting Acer Crystal HD :D and maybe will solve problems and KP's in other laptops

IOUSBFamily.kext

Attached Files



#6
ugokind

ugokind

    InsanelyMac Deity

  • Donators
  • 1,713 posts
  • Gender:Male
  • Location:10100
  • Interests:Apicoltura
    Mac
    Linux
    Homebrew
    Australia
    Spremermilcervello
ah.. wonderful
mee too.. esata won't boot directly from bios.. but if you install a boot loader.. and you have on the internal sata a boot loader too.. the chamel also see that in esata pen drive you've the snow ready to start!
really.. is the best speed/quality effort!

thanks for iousb .. but after the SAFE BOOT mod into appleusbuhci kext yesterday the boot stops after the setting of bradcom wlan.. booting in -v made me see nothing of easily solvable!

#7
razvizion

razvizion

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts
  • Location:Poland
Yes my fault, it solved camera issue but generated another - hang and no audio, after another ten tries i got strange thing - audio and camera together :( Now i don't want to power off my laptop, because now I have all.

Here is what You need for a clean vanilla install, installing on MBR partition is easy. There is a guide on youtube where it is described how to modify osintall.mpkg

KEXT PACK

Kexts in extra put into extra/extensions and generate mkext using kext utility,
Kexts in library put into system/library/extensions (using OS X tools) and use kext utility after all.

Best is to do all steps in -x32 -x mode. Remember if you get a hang or kernel panic use -x32 -x and use kext utility. (I've got an error using manual kext cache repair in -x32 -s mode : Jmicron… bla bla bla)

Don't start with -f flag, better start with -v flag.
And don't use Kext Helper it only causes problems.

#8
ugokind

ugokind

    InsanelyMac Deity

  • Donators
  • 1,713 posts
  • Gender:Male
  • Location:10100
  • Interests:Apicoltura
    Mac
    Linux
    Homebrew
    Australia
    Spremermilcervello
ok but.. -x is safe boot.. it's a not good way to work.. or is a way to do some trick and reboot normally?

until yesterday I had a fine boot into 64bit.. I had some crashes. . i.e. when I opened ntfs for mac.. that is not running in snow. i tried to relaunc preperences in 32bit (now snow have an automatic way to launch even internally 32bit applets) but .. crash

and crash when I tried to launch newer snow perian prefpane..

snow is not enough stable.

ps you've a disabler into extra.. is not needed with my dsdt and you use hpet and applecpupowermanagement

what wee need is a goos battery measure in snow

#9
razvizion

razvizion

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts
  • Location:Poland
There is no other way to repair caches believe me :( I've tried all other methods.
You are brave ;) using ntsf drivers like ntfs-3g or paragon may only erase your data on ntfs partition, be careful. I read this on other osx forum


So... better to delete the disabler ? ... Edit - I've deleted it and still working :P , but the audio is freaking me off :/ now when snow is booting in 32 and 64(Camera works) normally I don't have any audio.

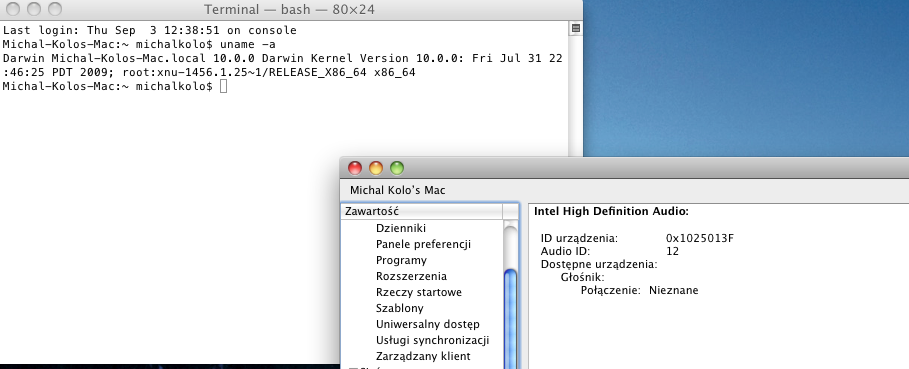

This is what i get under -x64 and -x32 :

Attached Files



#10
ugokind

ugokind

    InsanelyMac Deity

  • Donators
  • 1,713 posts
  • Gender:Male
  • Location:10100
  • Interests:Apicoltura
    Mac
    Linux
    Homebrew
    Australia
    Spremermilcervello
ah interesting. so what about voodoo instead of your audio? when you test those things.. i'm at office.this evening i'll test yours. and we cross test our platforms.

another consideration: yes the nullcpu and the disabler are not useful with a true hpet and speedstep active.
this is a goal for me.. but also the internal mike

#11
razvizion

razvizion

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts
  • Location:Poland
You're using stock AppleHDA with VoodooHDA for 64 bit kernel and DSDT in root / ?

#12
ugokind

ugokind

    InsanelyMac Deity

  • Donators
  • 1,713 posts
  • Gender:Male
  • Location:10100
  • Interests:Apicoltura
    Mac
    Linux
    Homebrew
    Australia
    Spremermilcervello
no no
it's obvious that we can use voodoo+hdaenabler (or dsdt injection and no hdaenabler) OR hda stock

I meant that since yesterday I used the voodoo method and I want to try yours this evening

#13
razvizion

razvizion

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts
  • Location:Poland
So I get my audio back, how ? Weird, I've deleted the HDAenabler.kext from that patched AppleHDA and putted into extra/extensions folder, patched appleHDA.kext without enabler into library/extension.

Oh and my IOUSBFamily is an original vanilla with netkas fix (Safe Boot) no other mods to prevent from hangs on boot.

For this boot i have my Acer camera and audio... but for how long ;/

And how i transformed "line in" into a "mic in" ;) as You may know Line In don't have an AMP. Megaphone app for iPhone solved that with a jack-jack cable.

Attached Files



#14
ugokind

ugokind

    InsanelyMac Deity

  • Donators
  • 1,713 posts
  • Gender:Male
  • Location:10100
  • Interests:Apicoltura
    Mac
    Linux
    Homebrew
    Australia
    Spremermilcervello
ok i never understood the fact to reset my boot stops.. using -x -x32 one time

yes it's running thanks

now.. rebooting normally.. all is fine

i've tested your appleps2controller+ps2nub.. ok

but removing hdaenabler and voodoohda and put acer888s and applehda inside your package.. no soud.. all is grey

I use (as I wrote) no disabler, no nullcpu
and I suppose that your iousbfamily is equal to mine.. = retail snow iousb + netkas mod.

camera is ok.

bye

#15
razvizion

razvizion

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts
  • Location:Poland
Sorry to fast :rolleyes: I'm running on 32 bit mode so i think that is why i get sound this method.

All kext that are connected whit sound I've used:
1. Your DSDT in root :hysterical:
2. AcerALC in Extra
3. HDAEnabler in Extra, that i cut off from AppleHDA - gigabyte mobo thread in first post
4. AppleHDA in library/extensions - gigabyte mobo thread in first post

I didn't used voodoo :hysterical:
PS. If You have DSDT without sound injection I will be glad to have it and test with voodooHDA :hysterical:

I'm gray in changing modding this DSDT tables.

#16
ugokind

ugokind

    InsanelyMac Deity

  • Donators
  • 1,713 posts
  • Gender:Male
  • Location:10100
  • Interests:Apicoltura
    Mac
    Linux
    Homebrew
    Australia
    Spremermilcervello
ok.. i'll prepare it this evening.. but is very easy.. believe me.
i'll cut the _STA method from device (HDEF)..
stay in touch

ciao

#17
ugokind

ugokind

    InsanelyMac Deity

  • Donators
  • 1,713 posts
  • Gender:Male
  • Location:10100
  • Interests:Apicoltura
    Mac
    Linux
    Homebrew
    Australia
    Spremermilcervello
here you are
let me know..

#18
ZOleg

ZOleg

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 104 posts
  • Gender:Male
  • Location:Russia

Sorry to fast :o I'm running on 32 bit mode so i think that is why i get sound this method.

All kext that are connected whit sound I've used:
1. Your DSDT in root :censored2:
2. AcerALC in Extra
3. HDAEnabler in Extra, that i cut off from AppleHDA - gigabyte mobo thread in first post
4. AppleHDA in library/extensions - gigabyte mobo thread in first post

I didn't used voodoo :censored2:
PS. If You have DSDT without sound injection I will be glad to have it and test with voodooHDA :censored2:

I'm gray in changing modding this DSDT tables.


Please help make working 10.6.5 ApleHDA for Acer Aspire 5930 with ALC888S codec.

With VoodooHDA 2.7.2 output works, but the microphone does not work.
I'm already tired of experimenting, it does not work - help me please!

Please post your:
1. DSDT
2. AcerALC
3. HDAEnabler
4. AppleHDA

Thanks in advance!
