PCIe Bus addressing issues in Snow Leopard...


  • Please log in to reply
51 replies to this topic

#1
quinielascom

quinielascom

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 749 posts
  • Location:M�xico
Hi, somebody knows if is available IOPCIFamily.kext for Snow Leopard ?
I need it because solve pci addressing and others related problems, in leopard my Network and Wireless cards only works after install the IOPCIFamily.kext patched by chun-nan.

I think that many laptops models will need it:

Acer Aspire 4320/4720z/5920/4710/4715/2920
HP Compaq 6720s/C500/C700 and others that not remember now.

Edit: the latest IOPCMCIAFamily.kext patched for Chun-Nan for 10.5.6 works in Snow Leopard but only in 32 bits, boot with arch=i386.

Download here: http://download189.m...Family.kext.zip

Or here: IOPCMCIAFamily.kext.zip ( 140.25K )

Edit: New patch for Snow 10.6.x 32 & 64 bits available here: http://www.insanelym...p...t&p=1460172

Or direct download: http://www.mediafire.com/?5vifkyljzgk

#2
pippo choi

pippo choi

    InsanelyMac Protégé

  • Members
  • Pip
  • 28 posts
And , Acer 3272/5572/5580 will need it

#3
lastowl

lastowl

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 214 posts
  • Gender:Male
  • Location:dev prison
i also need it i'm looking into editing the dev ids ect in the dsdt.aml will post if any hope

#4
millie

millie

    InsanelyMac Protégé

  • Members
  • Pip
  • 20 posts
I am also looking for this kext as snow leopard fails to notice my pci express wifi card, i was using chun nan's kext on leopard that worked a charm

Cheers for your help

#5
millie

millie

    InsanelyMac Protégé

  • Members
  • Pip
  • 20 posts
I have a bcm4311 card, so i am wondering what info you changed in your dsdt if you talk me through it i can test to see if i can get my card working. It works nativley under leopard i just need chun nan's patch to make leopard recognise the pci device


Many thanks

On second thoughts i still have my old version of leopard 10.5.6 with fully working wifi, could i not copy any info from this operating system and put it into snow leopard

Just a thought

Many thanks

#6
Volcacius

Volcacius

    InsanelyMac Sage

  • Donators
  • 461 posts
  • Gender:Male
  • Location:BG, Italy
Adding (_SUN, 0x03) to your PCI devices will just make them show under PCI in your system profile, it's just cosmetic.

#7
millie

millie

    InsanelyMac Protégé

  • Members
  • Pip
  • 20 posts
Hello there, i don't really understand what you are saying, i have no previous experience with messing with aml files but i am willing to give it a shot. I assume i can edit the .aml file with TextEdit

Now how do i locate the file from within Snow leopard,

Then how do i get my PCI field value

then i don't understand this "and for the Network Card i only add Name (_SUN, 0x03) and OperationRegion (P3CE, PCI .."

however i am more than willing to try it out for you

Many thanks

#8
Romil

Romil

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts
quinielascom, Please post the IOPCIFamily.kext by chunnan for me, I can't download it at http://www.mediafire.com/chunnan.
thanks a lot.

#9
quinielascom

quinielascom

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 749 posts
  • Location:M�xico
Here is:

Attached File  IOPCMCIAFamily.kext.zip   140.25KB   1656 downloads

#10
BugsB

BugsB

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,513 posts
  • Gender:Male
  • Location:Kauai, Hawai'i
PCMCIA does not load here in Snow (worked in Leo) - "bad bridge mapping"

#11
BugsB

BugsB

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,513 posts
  • Gender:Male
  • Location:Kauai, Hawai'i
hm, have done.

Two questions to you:

1. do you have the IOPCMCIAFamily.kext in /Extra or in S/L/E?

2. have you kept or deleted Snow Leo's IOPCIFamily.kext in S/L/E?

Thanks,
Bugs

#12
BugsB

BugsB

    InsanelyMac Deity

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,513 posts
  • Gender:Male
  • Location:Kauai, Hawai'i
thanks, issue remains, bad bridge mapping. I think that can be corrected in the DSDT. Just don't know how.

#13
lastowl

lastowl

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 214 posts
  • Gender:Male
  • Location:dev prison
i'm trying slices kext for it ill report on progress

#14
oldnapalm

oldnapalm

    InsanelyMac V.I.P.

  • Moderators
  • 6,858 posts
  • Gender:Male
  • Location:Brazil
Slice's kext doesn't help.

@BugsB
you don't need IOPCMCIAFamily, just IOPCIFamily (extract from IOPCMCIAFamily.kext/Contents/PlugIns/)
works in /S/L/E or /E/E (you will see warnings in log if you leave the original in /S/L/E and put Chun-Nan's in /E/E)
only works in 32 bit.

#15
quinielascom

quinielascom

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 749 posts
  • Location:M�xico
IOPCMCIAFamily.kext (32 bits) works fine in /S/L/E and you not need erase IOPCIFamily.kext (32/64 bits stock) and at least in my laptop i can boot in 64 bits mode but without PCIe devices recognized.

#16
oldnapalm

oldnapalm

    InsanelyMac V.I.P.

  • Moderators
  • 6,858 posts
  • Gender:Male
  • Location:Brazil
What happened to Chun-Nan?

I would like to add his 10.5.6 patches to IOPCIFamily-113 and see if it works in 64 bit. Tried to apply rev8 fixes but it doesn't work, 10.5.6 must have a different fix, but source isn't available.

All other versions I tried didn't work (Slice, AnV, previous Chun-Nan).

Acer Aspire 5920

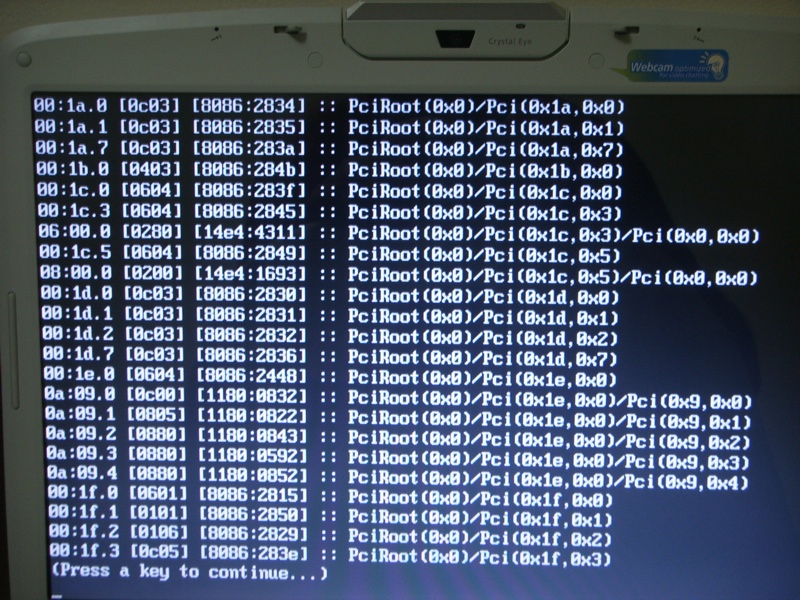

lspci diff ("<" = using Chun-Nan's 10.5.6, ">" = using original 10.6.2 IOPCIFamily)
20,21c20,21
< 01:00.0 Ethernet controller [0200]: Broadcom Corporation NetLink BCM5787M Gigabit Ethernet PCI Express [14e4:1693] (rev 02)
< 02:00.0 Network controller [0280]: Broadcom Corporation BCM4311 802.11b/g WLAN [14e4:4311] (rev 01)
---
> 06:00.0 Network controller [0280]: Broadcom Corporation BCM4311 802.11b/g WLAN [14e4:4311] (rev 01)
> 08:00.0 Ethernet controller [0200]: Broadcom Corporation NetLink BCM5787M Gigabit Ethernet PCI Express [14e4:1693] (rev 02)

ioreg diff
1997c1995<     | |   +-o RP04@1C,3  <class IOPCIDevice, id 0x0, registered, matched, active, busy 0 (573 ms), retain 9>--->     | |   +-o RP04@1C,3  <class IOPCIDevice, id 0x0, registered, matched, active, busy 0 (659 ms), retain 27>1999c1997<     | |   | |   "AAPL,slot-name" = <"PCI Slot">--->     | |   | |   "IOInterruptSpecifiers" = (<1300000007000000>)2001d1998<     | |   | |   "IOInterruptSpecifiers" = (<1300000007000000>,<0300000000000100>)2013c2010<     | |   | |   "IOInterruptControllers" = ("io-apic-0","IOPCIMessagedInterruptController")--->     | |   | |   "IOInterruptControllers" = ("io-apic-0")2019c2016<     | |   | |   "IODTPersist" = <2c966f2e90966f2e>--->     | |   | |   "IODTPersist" = <a2f1542ea200552e>2023c2020<     | |   | |   "ranges" = <0000008200000000000020800000008200000000000020800000000000001000>--->     | |   | |   "ranges" = <000000c20000000000000000000000c2000000000000000000000000000010000000008100000000000000000000008100000000000000000000000000100000>2026c2023<     | |   | +-o IOPCI2PCIBridge  <class IOPCI2PCIBridge, id 0x0, registered, matched, active, busy 0 (525 ms), retain 7>--->     | |   | +-o IOPCI2PCIBridge  <class IOPCI2PCIBridge, id 0x0, registered, matched, active, busy 0 (445 ms), retain 7>2032c2029<     | |   |   |   "Bridge Memory Ranges" = (18446744071564181504,18446744071565213695,18446744073708503040,1048575)--->     | |   |   |   "Bridge Memory Ranges" = (0,1048575)2036c2033<     | |   |   |   "Bridge IO Ranges" = (61440,4095)--->     | |   |   |   "Bridge IO Ranges" = (0,4095)2039,2153c2036,2059<     | |   |   +-o network@0  <class IOPCIDevice, id 0x0, registered, matched, active, busy 0 (525 ms), retain 9><     | |   |     | {<     | |   |     |   "built-in" = <00><     | |   |     |   "IODeviceMemory" = (({"address"=18446744071564165120,"length"=16384}))<     | |   |     |   "device-id" = <11430000><     | |   |     |   "IOChildIndex" = 1<     | |   |     |   "name" = "network"<     | |   |     |   "IOName" = "network"<     | |   |     |   "vendor-id" = <e4140000><     | |   |     |   "revision-id" = <01000000><     | |   |     |   "acpi-wake-type" = 2<     | |   |     |   "IOPCIResourced" = Yes<     | |   |     |   "subsystem-vendor-id" = <3c100000><     | |   |     |   "IOInterruptControllers" = ("io-apic-0","IOPCIMessagedInterruptController")<     | |   |     |   "IOPCIExpressLinkCapabilities" = 222225<     | |   |     |   "IOPCIExpressLinkStatus" = 4113<     | |   |     |   "IOPowerManagement" = {"ChildrenPowerState"=2,"CurrentPowerState"=2}<     | |   |     |   "class-code" = <00800200><     | |   |     |   "IOPCIMSIMode" = Yes<     | |   |     |   "compatible" = <"pci103c,1363","pci14e4,4311","pciclass,028000"><     | |   |     |   "subsystem-id" = <63130000><     | |   |     |   "assigned-addresses" = <1000028200000000000020800000000000400000><     | |   |     |   "IOPCIExpressASPMDefault" = 1<     | |   |     |   "reg" = <00000200000000000000000000000000000000001000020200000000000000000000000000400000><     | |   |     |   "IOInterruptSpecifiers" = (<1300000007000000>,<0600000000000100>)<     | |   |     | }<     | |   |     | <     | |   |     +-o AirPort_Brcm43xx  <class AirPort_Brcm43xx, id 0x0, registered, matched, active, busy 0 (9 ms), retain 9><     | |   |       | {<     | |   |       |   "IONameMatch" = ("pci106b,4e","pci14e4,4311","pci14e4,4312","pci14e4,4313","pci14e4,4318","pci14e4,4319","pci14e4,431a","pci14e4,4320","pci14e4,4324","pci14e4,4325","pci14e4,4328","pci14e4,432b","pci14e4,432c","pci14e4,432d")<     | |   |       |   "IOFeatures" = 8<     | |   |       |   "IOMediumDictionary" = {"00000080"={"Flags"=0,"Index"=0,"Speed"=11000000,"Type"=128}}<     | |   |       |   "IOMatchCategory" = "IODefaultMatchCategory"<     | |   |       |   "CFBundleIdentifier" = "com.apple.driver.AirPortBrcm43xx"<     | |   |       |   "IOMinPacketSize" = 64<     | |   |       |   "IOPacketFilters" = {"IONetworkFilterGroup"=275,"IOEthernetWakeOnLANFilterGroup"=0}<     | |   |       |   "IOModel" = "Wireless Network Adapter (802.11 b/g)"<     | |   |       |   "IOFirmwareVersion" = "Broadcom BCM43xx 1.0 (5.10.91.26)"<     | |   |       |   "IONameMatched" = "pci14e4,4311"<     | |   |       |   "IOVendor" = "Unknown"<     | |   |       |   "IOLinkStatus" = 3<     | |   |       |   "APChipRev" = 1<     | |   |       |   "TruePowerOff" = Yes<     | |   |       |   "IOProbeScore" = 0<     | |   |       |   "IOGeneralInterest" = "IOCommand is not serializable"<     | |   |       |   "IOMaxPacketSize" = 1518<     | |   |       |   "IOClass" = "AirPort_Brcm43xx"<     | |   |       |   "IOProviderClass" = "IOPCIDevice"<     | |   |       |   "IOSelectedMedium" = "00000080"<     | |   |       |   "IOMACAddress" = <001a73530970><     | |   |       |   "IOPowerManagement" = {"CurrentPowerState"=2}<     | |   |       |   "IOLinkSpeed" = 54000000<     | |   |       |   "APFeatures" = 1<     | |   |       |   "IOActiveMedium" = "00000080"<     | |   |       | }<     | |   |       | <     | |   |       +-o AirPort_Brcm43xxInterface  <class AirPort_Brcm43xxInterface, id 0x0, registered, matched, active, busy 0 (8 ms), retain 10><     | |   |         | {<     | |   |         |   "IONetworkData" = {"IOEthernetStatsKey"={"Data"=<000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000>,"Access Types"=9,"Size"=216},"IONetworkStatsKey"={"Data"=<3100000000000000790000000000000000000000>,"Access Types"=9,"Size"=20},"IOOutputQueueStatsKey"={"Data"=<0001000000000000000000000000000000000000000000000000000000000000000000000000000000000000>,"Access Types"=9,"Size"=44}}<     | |   |         |   "IOInterfaceState" = 3<     | |   |         |   "IO80211DriverVersion" = "Broadcom BCM43xx 1.0 (5.10.91.26)"<     | |   |         |   "IOInterfaceUnit" = 1<     | |   |         |   "IOActivePacketFilters" = {"IONetworkFilterGroup"=19,"IOEthernetWakeOnLANFilterGroup"=0}<     | |   |         |   "IOInterfaceType" = 6<     | |   |         |   "IO80211Locale" = "FCC"<     | |   |         |   "IOMulticastAddressList" = <01005e0000fb3333000000fb01005e0000013333f8cdf8033333000000013333ff530970010393df0b92><     | |   |         |   "IOLocation" = ""<     | |   |         |   "IOInterfaceNamePrefix" = "en"<     | |   |         |   "IOInterfaceFlags" = 34915<     | |   |         |   "IOInterfaceExtraFlags" = 1073744192<     | |   |         |   "IO80211CountryCode" = "US"<     | |   |         |   "IOControllerEnabled" = Yes<     | |   |         |   "IO80211SSID" = "outlawcowboy"<     | |   |         |   "IO80211BSSID" = <001cf039ebe7><     | |   |         |   "IO80211RSNDone" = Yes<     | |   |         |   "BSD Name" = "en1"<     | |   |         |   "IOMediaHeaderLength" = 14<     | |   |         |   "IOBuiltin" = Yes<     | |   |         |   "IO80211Channel" = 6<     | |   |         |   "IOMaxTransferUnit" = 1500<     | |   |         |   "IORequiredPacketFilters" = {"IONetworkFilterGroup"=19,"IOEthernetWakeOnLANFilterGroup"=0}<     | |   |         |   "IOMediaAddressLength" = 6<     | |   |         |   "IO80211Band" = "2.4 GHz"<     | |   |         |   "IO80211HardwareVersion" = "vendorid: 0x14e4< deviceid: 0x4311< radiorev: 0x22050000< chipnum: 0x4311< chiprev: 0x1< corerev: 0xa< boardid: 0x1363< boardvendor: 0x103c< boardrev: 0x42< driverrev: 0x50a5b1a< ucoderev: 0x1fc0506< bus: 0x1< "<     | |   |         |   "IOPrimaryInterface" = No<     | |   |         | }<     | |   |         | <     | |   |         +-o IONetworkStack  <class IONetworkStack, id 0x0, registered, matched, active, busy 0 (3 ms), retain 9><     | |   |           | {<     | |   |           |   "IOResourceMatch" = "IOBSD"<     | |   |           |   "IOMatchCategory" = "IONetworkStack"<     | |   |           |   "CFBundleIdentifier" = "com.apple.iokit.IONetworkingFamily"<     | |   |           |   "IOProbeScore" = 0<     | |   |           |   "IOClass" = "IONetworkStack"<     | |   |           |   "IOProviderClass" = "IOResources"<     | |   |           | }<     | |   |           | <     | |   |           +-o IONetworkStackUserClient  <class IONetworkStackUserClient, id 0x0, !registered, !matched, active, busy 0, retain 5><     | |   |               {<     | |   |                 "IOUserClientCreator" = "pid 15, configd"<     | |   |               }<     | |   |               <     | |   +-o RP06@1C,5  <class IOPCIDevice, id 0x0, registered, matched, active, busy 0 (184 ms), retain 9>--->     | |   |   +-o pci14e4,4311@0  <class IOPCIDevice, id 0x0, registered, matched, active, busy 0 (445 ms), retain 26>>     | |   |       {>     | |   |         "device-id" = <11430000>>     | |   |         "vendor-id" = <e4140000>>     | |   |         "IOName" = "pci14e4,4311">     | |   |         "subsystem-vendor-id" = <3c100000>>     | |   |         "IOPCIExpressLinkStatus" = 4113>     | |   |         "revision-id" = <01000000>>     | |   |         "reg" = <00000600000000000000000000000000000000001000060200000000000000000000000000400000>>     | |   |         "acpi-wake-type" = 2>     | |   |         "IOPCIResourced" = Yes>     | |   |         "IOInterruptControllers" = ("io-apic-0","IOPCIMessagedInterruptController")>     | |   |         "class-code" = <00800200>>     | |   |         "subsystem-id" = <63130000>>     | |   |         "IOChildIndex" = 1>     | |   |         "compatible" = <"pci103c,1363","pci14e4,4311","pciclass,028000">>     | |   |         "IOInterruptSpecifiers" = (<1300000007000000>,<0300000000000100>)>     | |   |         "IOPCIExpressASPMDefault" = 1>     | |   |         "name" = "pci14e4,4311">     | |   |         "IOPCIExpressLinkCapabilities" = 222225>     | |   |         "IOPowerManagement" = {"CurrentPowerState"=2}>     | |   |       }>     | |   |       >     | |   +-o RP06@1C,5  <class IOPCIDevice, id 0x0, registered, matched, active, busy 0 (221 ms), retain 27>

Any idea if/how this can be fixed in DSDT?
Device (RP04)            {                Name (_ADR, 0x001C0003)                OperationRegion (PXCS, PCI_Config, 0x40, 0xC0)                Field (PXCS, AnyAcc, NoLock, WriteAsZeros)                {                            Offset (0x10),                         ,   4,                     LKDS,   1,                             Offset (0x12),                         ,   13,                     LASX,   1,                             Offset (0x1A),                     ABPX,   1,                         ,   2,                     PDCX,   1,                         ,   2,                     PDSX,   1,                             Offset (0x1B),                     LSCX,   1,                             Offset (0x20),                             Offset (0x22),                     PSPX,   1,                             Offset (0x98),                         ,   30,                     HPEX,   1,                     PMEX,   1,                         ,   30,                     HPSX,   1,                     PMSX,   1                }                Method (_PRT, 0, NotSerialized)                {                    If (\GPIC)                    {                        Return (Package (0x04)                        {                            Package (0x04)                            {                                0xFFFF,                                 0x00,                                 0x00,                                 0x13                            },                             Package (0x04)                            {                                0xFFFF,                                 0x01,                                 0x00,                                 0x10                            },                             Package (0x04)                            {                                0xFFFF,                                 0x02,                                 0x00,                                 0x11                            },                             Package (0x04)                            {                                0xFFFF,                                 0x03,                                 0x00,                                 0x12                            }                        })                    }                    Else                    {                        Return (Package (0x04)                        {                            Package (0x04)                            {                                0xFFFF,                                 0x00,                                 \_SB.PCI0.LPCB.LNKD,                                 0x00                            },                             Package (0x04)                            {                                0xFFFF,                                 0x01,                                 \_SB.PCI0.LPCB.LNKA,                                 0x00                            },                             Package (0x04)                            {                                0xFFFF,                                 0x02,                                 \_SB.PCI0.LPCB.LNKB,                                 0x00                            },                             Package (0x04)                            {                                0xFFFF,                                 0x03,                                 \_SB.PCI0.LPCB.LNKC,                                 0x00                            }                        })                    }                }            }

Thanks.

#17
quinielascom

quinielascom

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 749 posts
  • Location:M�xico
and IRQs not assigned the main problem, i think ...

#18
lastowl

lastowl

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 214 posts
  • Gender:Male
  • Location:dev prison
i would recreate the kext if i new what was done in in the first place as x64 mode is kind of the point in SL but its possible using rc4 boot and correct dsdt setting that it may be able to boot using stock kexts but i dont do dsdt

#19
ergosteur

ergosteur

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 275 posts
  • Gender:Male
  • Location:Brampton, Ontario, Canada
Hey, same here, Aspire 5570Z and trying to install Snow Leopard.... Anyone have any luck?

#20
quinielascom

quinielascom

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 749 posts
  • Location:M�xico
Some related info/issue: http://www.projectos...?..., anyway still not solution for 64 bits.
