G5 case conversion


  • Please log in to reply
10 replies to this topic

#1
gaving

gaving

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts
Been a long time lurker, thought I would show my G5 conversion thats almost finished.

I was going to ebay my old G5 Dual 2.0 but found it wouldn't start up anymore so I decided to gut it and try to install a new system inside. I wanted the new X58 system and couldn't find a M-ATX board at the time so I went with full ATX and cut out some of the back of the case and used the motherboard tray from my old Coolermaster case.

The parts used are Gigabyte EX58-Extreme mobo, Core i7 920 cpu, 6gb Corsair Dominator Tri-Channel ram, Asus 9800GTX+ TOP, a couple of Samsung Spinpoint F1 drives (1Tb each) in raid0, and Linksys 300n wireless card.

For cooling I am using the MCR220 radiator, MCP655 pump, MCRES Micro R2 reservoir, EK 9800GTX full cover GPU, EK Supreme CPU and the northbridge block that came with the motherboard, looped with 8/10mm tubing and compression fittings.

I originally purchased a Swiftech Apex Ultima kit but didn't end up using half of it. The Apogee GTZ block didn't come with the 1366 bracket and after several ignored emails to them asking to supply it I gave up and went with the EK Supreme, and the EK full cover for the GPU as I felt the memory was getting far too hot using the Swiftech MCW60 block. The whole point of me using watercooling is to keep the computer nice and cool without fans all over the place and if I were to have a fan blowing on the GPU I may as well have just stuck to using the half decent air cooler provided with the card.

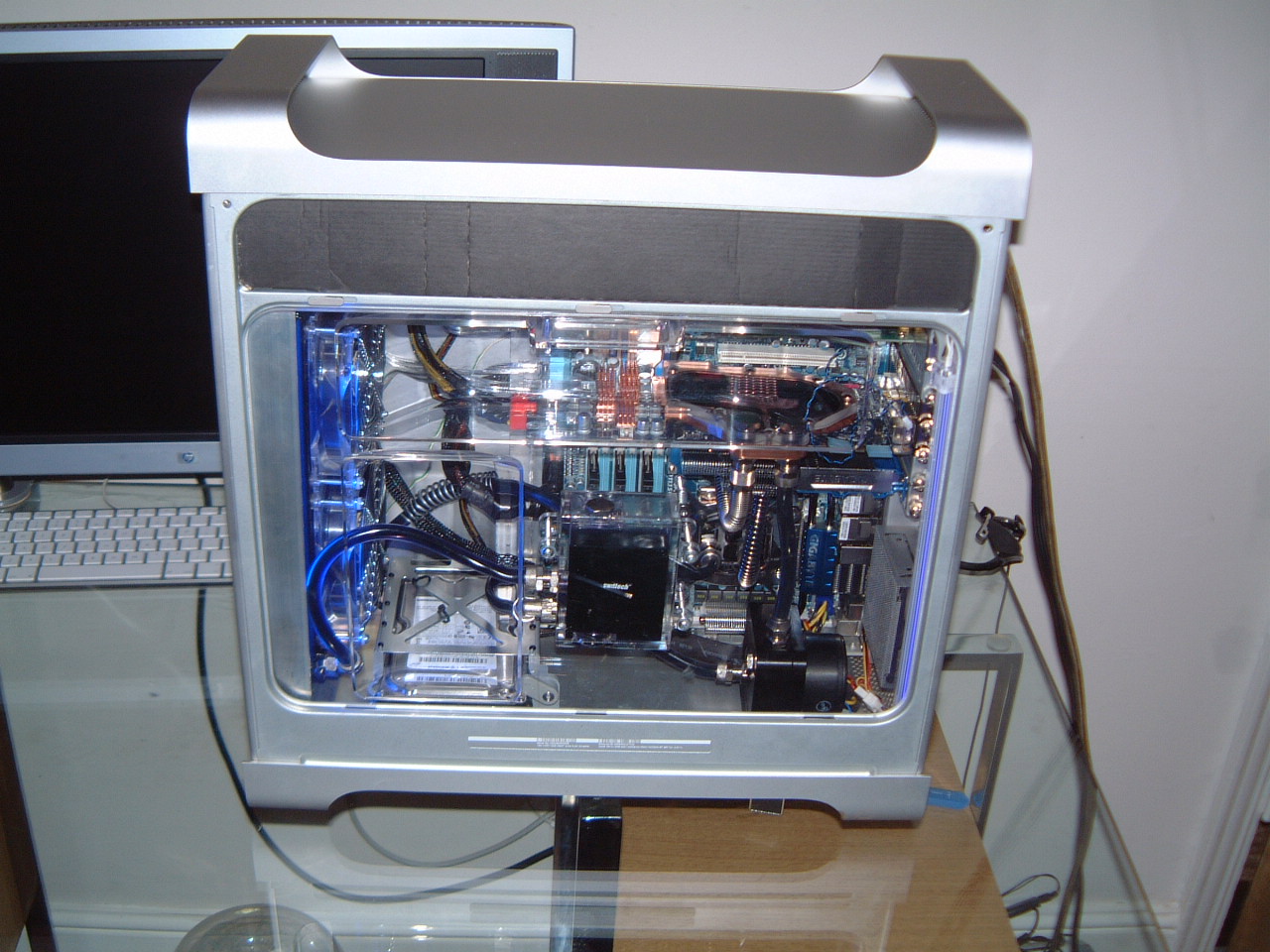

The PSU is at the top of the case where the drives used to be, I plan to replace the temporary black card in the top section with aluminium.

Attached File  DSCF0054.jpg   301.41KB   458 downloads

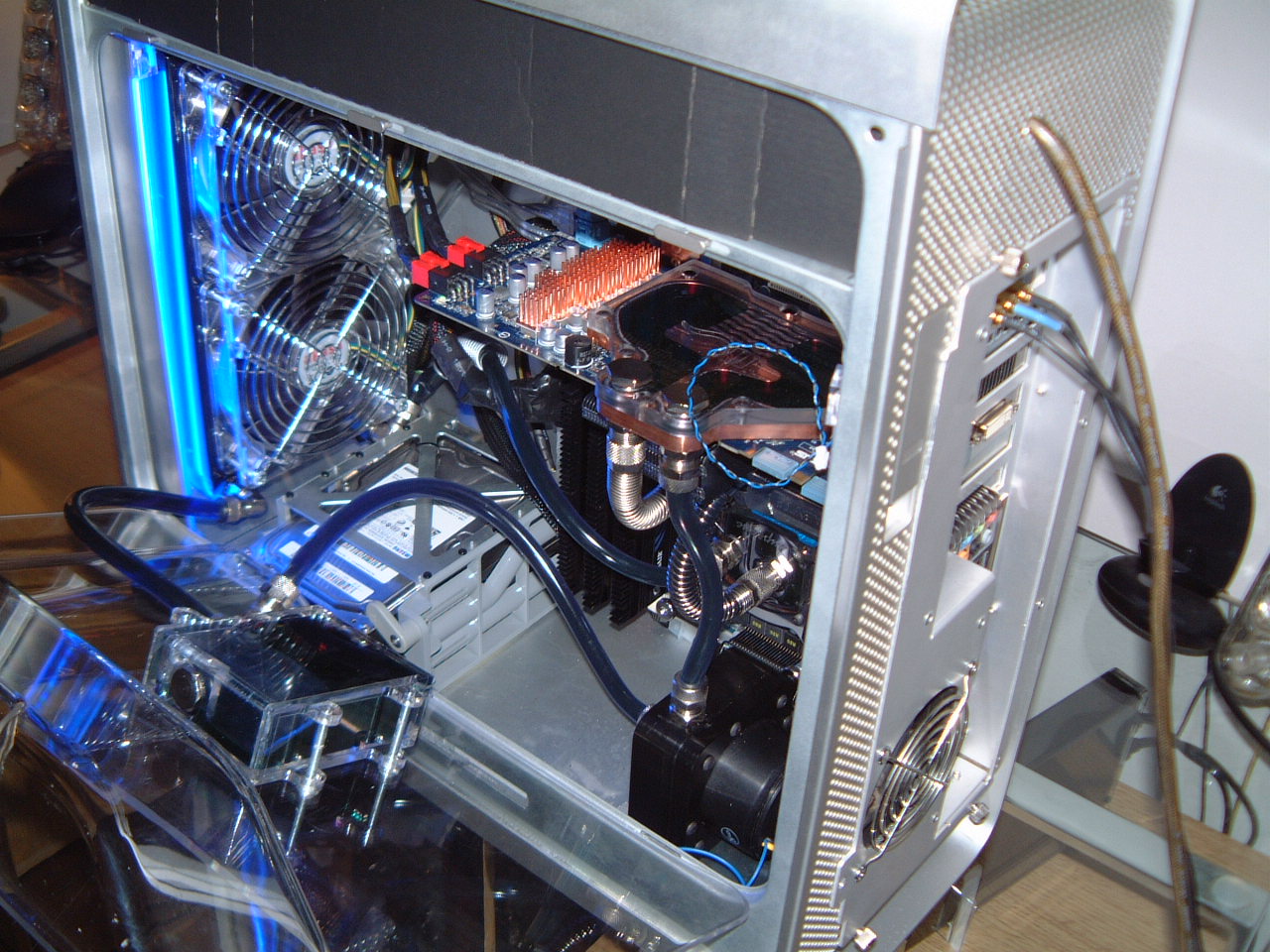

The hard drive carrier is now at the bottom just in front of the radiator where the drives get plenty of cool air from the 120mm fans.

Attached File  sidepanel1.jpg   306.03KB   422 downloads

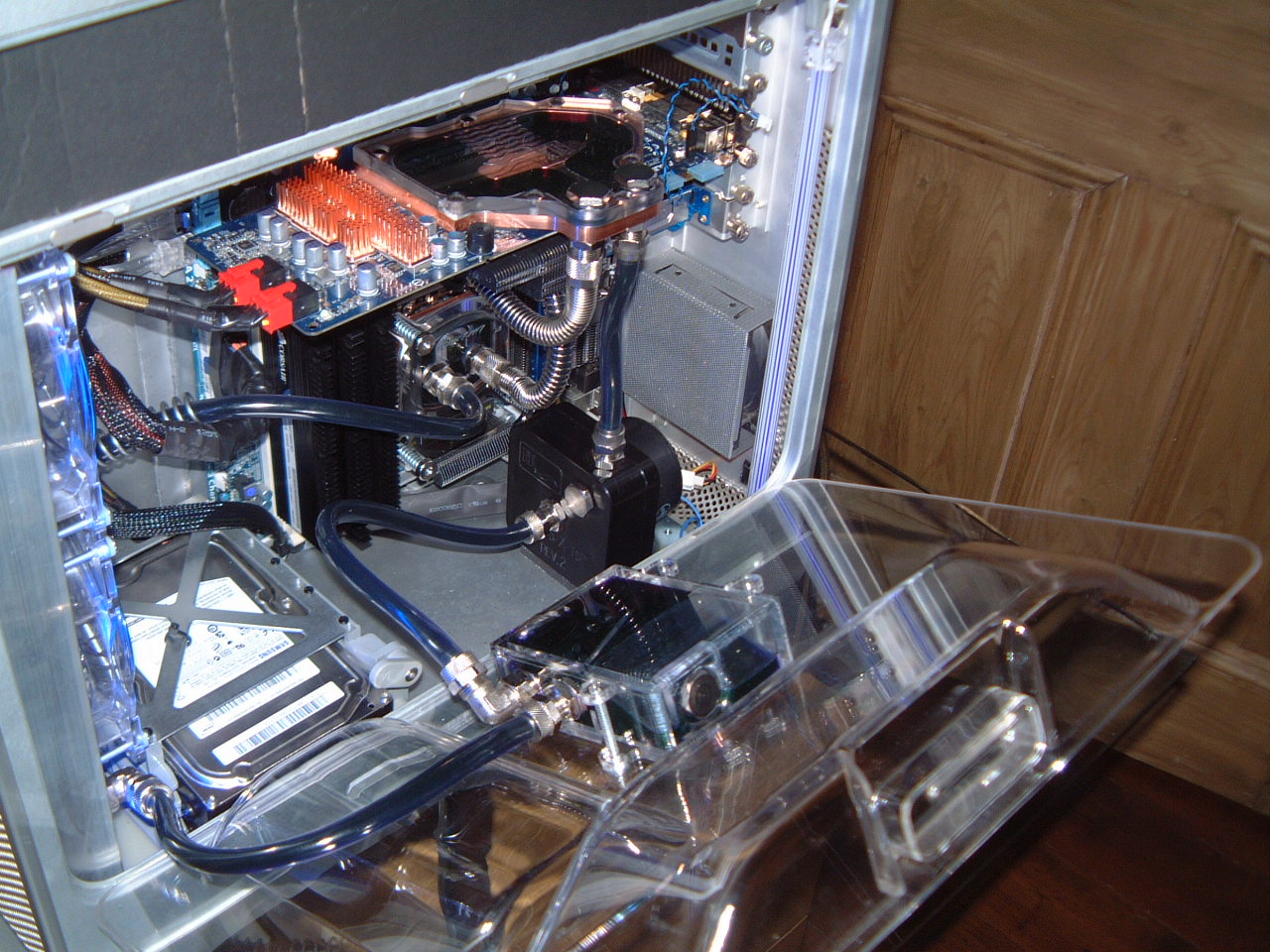

The reservoir has been screwed to the perspex baffle which makes it easy to fill/bleed. I will also create some kind of panel to cover the radiator/fans/hard drive area.

Attached File  sidepanel2.jpg   300.49KB   287 downloads

Still to do: Fabricate some panels for the PSU/DVD area and the radiator/fans area, front USB/Firewire/Headphone connections.

I currently have it overclocked at 3.8Ghz (190x20). I haven't had much luck getting to 200 bus just yet, need to play with the voltages in the bios a bit more. :(

Cinebench
Rendering (Single CPU): 4703 CB-CPU
Rendering (Multiple CPU): 20041 CB-CPU
Multiprocessor Speedup: 4.26
Shading (OpenGL Standard): 9297 CB-GFX

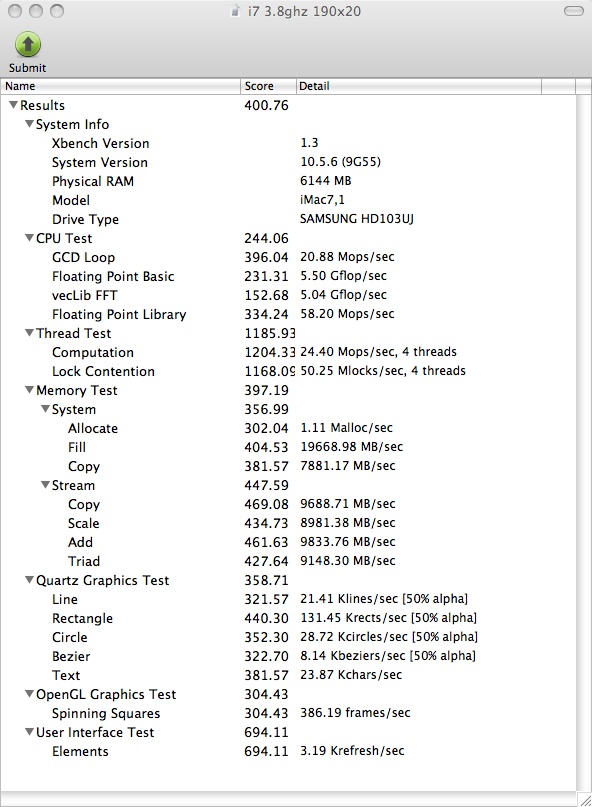

Xbench
Attached File  xbench_400.76.jpg   140.79KB   179 downloads

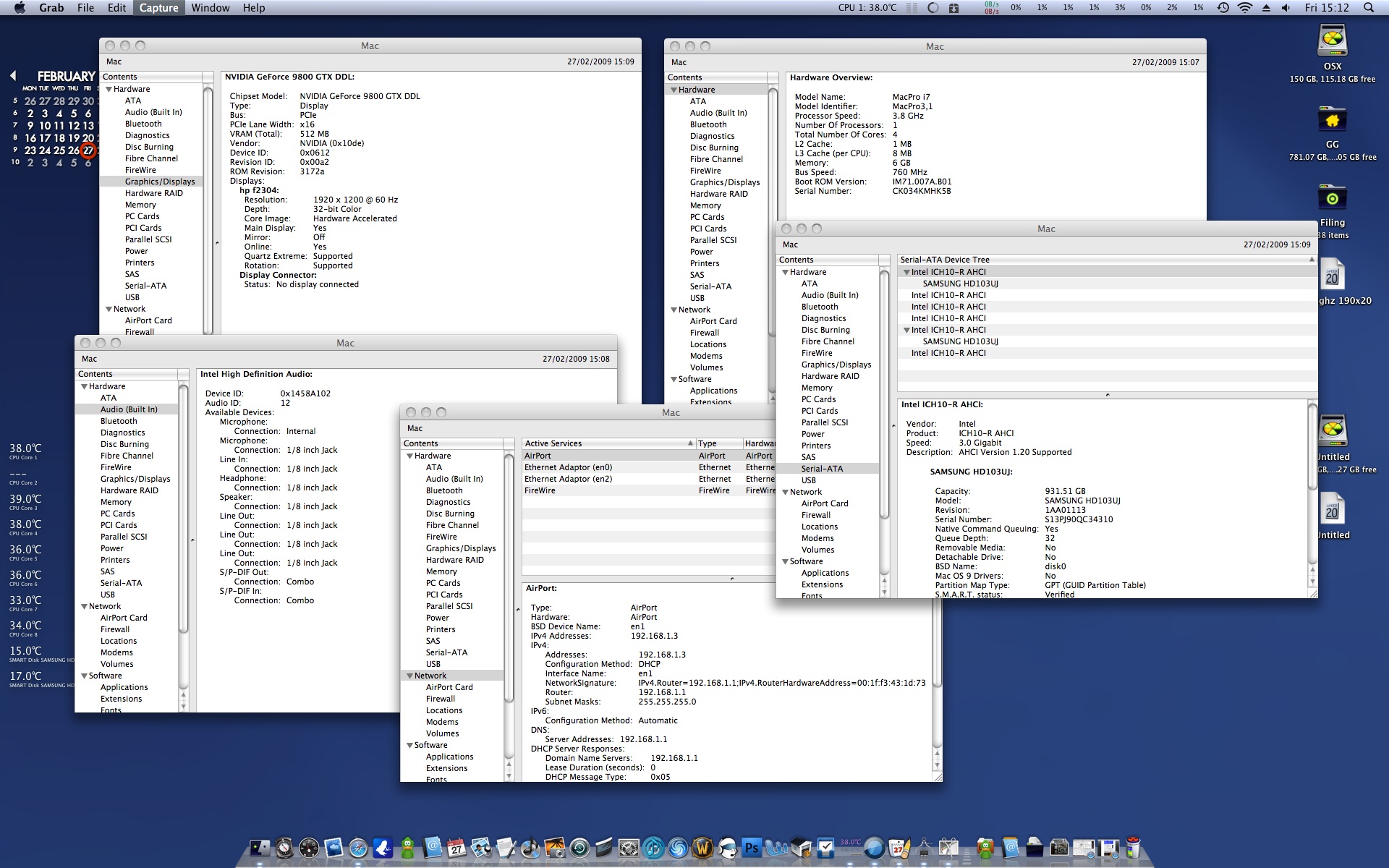

Profile screens
Attached File  sp_all.jpg   565.07KB   191 downloads

#2
spclffred

spclffred

    Spclffred

  • Members
  • PipPipPip
  • 150 posts
  • Gender:Male
  • Location:Right Behind YOU!
that is one of the sexyiest computers ive ever seen. :unsure: :D

#3
loregori63

loregori63

    InsanelyMac Protégé

  • Members
  • Pip
  • 30 posts
:( Very Fast... I have an Hackintosh with core quad q6600 and 4Gb of ram, and my xbench results is 191...
I have a question about the case an the motherboard compatibility... is standard ATX ready?

#4
SticMAC™

SticMAC™

    "Nobody likes a SmartASS"

  • Members
  • PipPipPipPipPipPipPipPipPipPipPip
  • 2,590 posts
  • Gender:Male
  • Location:Da Bathroom!!
It looked so GOOD, until....

I saw the power cord inlet, I hope you're going to fix THAT!?

SticMAC

What's hiding behind the black cardboard, show us, or "are ye chick'n!?"

#5
Baudouin

Baudouin

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 409 posts
  • Gender:Male
  • Location:Brussels, Belgium
gaving you can try from this :

Posted Image

to this with a piece of mesh panel bended to change your black cardboard

Posted Image

I have done also for a MacPro case :

Posted Image

:)

#6
gaving

gaving

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts
loregori63: The existing motherboard standoffs in the case were no good for ATX, you could break them off and epoxy them in the right places for ATX or just go the easy route and use a motherboard tray (Lian Li for example).

SticMAC: Well possibly. I used a modular PSU which did fit perfectly in that area but it had a 120m fan in it that made so much noise once it warmed up a but so I removed the outer casing and the fan :o. I'm waiting a bit to decide if I will replace the PSU until I cut the case more, but yes I will attach the PSU plug to the case properly eventually.

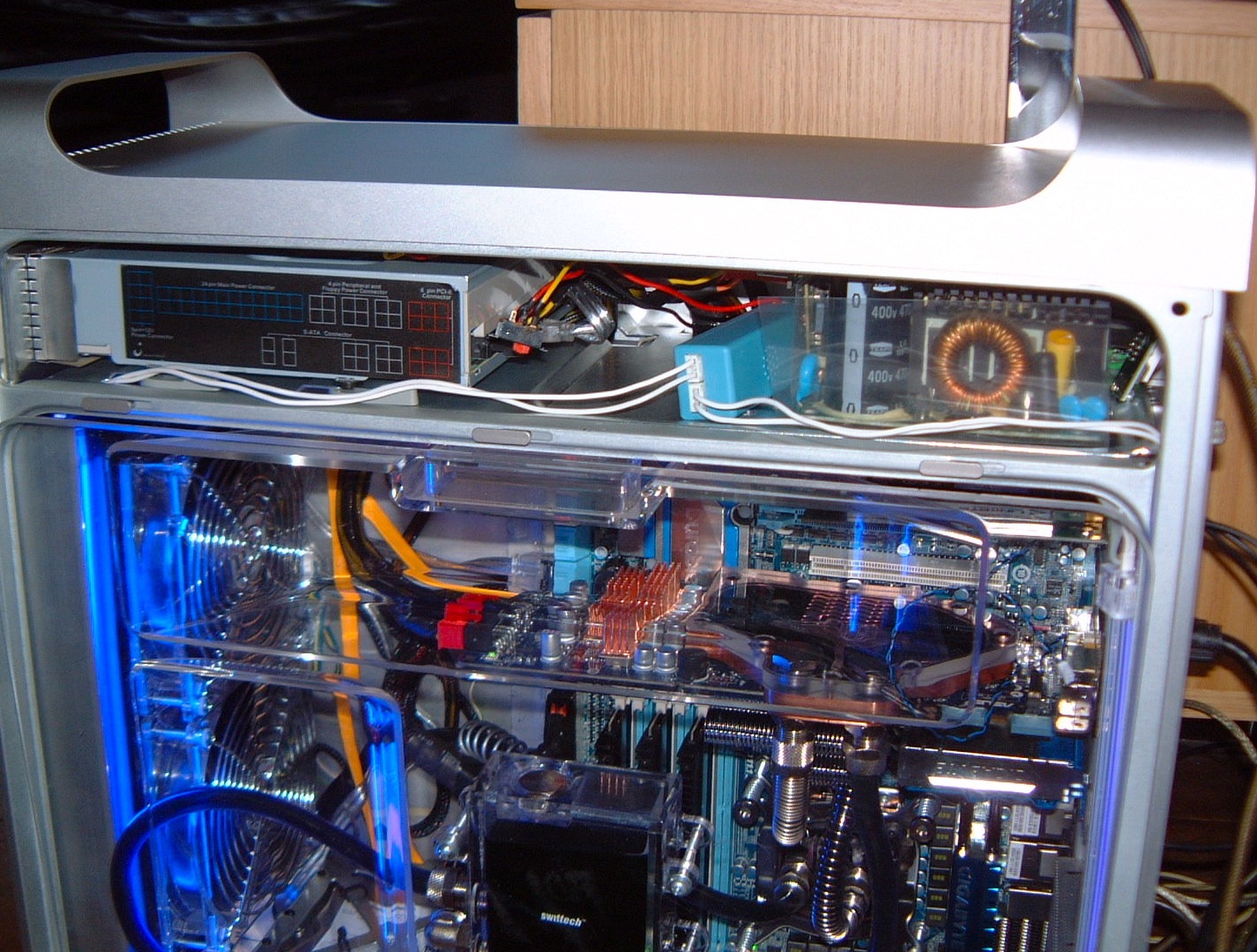

This is the top section. The bare PSU :D, the DVD and some messy wires.
Attached File  topsection.jpg   505.72KB   161 downloads

Baudouin: thats a nice idea, I might just do that instead of cutting up my old coolermaster side panel. It wouldn't really matter as the real side panel covers that area but I kinda like having just the baffle on to show the nice insides :star_smile:

#7
Baudouin

Baudouin

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 409 posts
  • Gender:Male
  • Location:Brussels, Belgium

Baudouin: thats a nice idea, I might just do that instead of cutting up my old coolermaster side panel. It wouldn't really matter as the real side panel covers that area but I kinda like having just the baffle on to show the nice insides :(


In my thread I am showing how to bend the mesh panel by using a rubber hammer and the hands. :blink:

#8
Tony Conte

Tony Conte

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 213 posts
  • Gender:Male
  • Interests:Aikido, Music, Drawing and Mac :)
Wow good! :unsure:

#9
dark4181

dark4181

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 571 posts
  • Gender:Male
  • Location:Tenn
  • Interests:cars and computers
Very nice build here. I bet you're excited for 10.5.7, since it will bring Core i7 and x58 native drivers to OSX. Be sure to let us know how your Xbench improves after the drivers are put into a distro

#10
gaving

gaving

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts
Yeh can't wait to see how 10.5.7 changes things. I noticed when booted with my recovery USB stick with iDebeb 10.5.5 on it that the xBench score was even higher, 425 or something - the lock contention and something else were way higher than my real install using voodoo kernel.

The comp is in bits again at the moment whilst I give the case a paintjob and polish. I'll also fix the PSU's plug to the back of the case properly. I'll post some pics in a few days.

#11
pirloui

pirloui

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 402 posts
Looks very nice, congratulations ;)
Nice benches you got too. 20000 in cinebench is the same as a new octo mac pro.
