sony vaio VGN-NR180E video question


aldo77
 Share

2 posts in this topic

Recommended Posts

hey guys, what's up..



i'm doing this laptop for my friend and i'm getting troubles with the video



it is running Kalyway 10.5.1 10.5.2 didn't wanna load at all



i have been looking around for about a week now in the forums and google and i got confused with all about it



some video card specs:



the lspci from linux says:

Display controller: Intel Corporation Mobile GM965/GL960 Integrated Graphics Controller (rev 0c)



the Darwin prompt says:

VESA v3.0 7MB (Intel ® GM965/PM965/GL960 Graphics Accelerated VGA BIOS)







the system profiler of Leo says:



Display:



Type: Display

Bus: Built-In

VRAM (Total): 64 MB of shared system memory

Vendor: Intel (0x8086)

Device ID: 0x2a02

Revision ID: 0x000c

Kernel Extension Info: No Kext Loaded

Displays:

Display:

Resolution: 1024 x 768

Depth: 32-bit Color

Core Image: Software

Main Display: Yes

Mirror: Off

Online: Yes

Quartz Extreme: Not Supported







is it GM965 or GMA x3100 ?



is it GM965 = GMA x3100 ?



the AppleIntelGMAX3100.kext bundle don't seem to work (or i don't know how)



wen i first install, the boot freezes at the apple screen, ALWAYS, so i have to boot with -x -v or -x weel or -s and get rid of the AppleIntelGMAX3100.kext

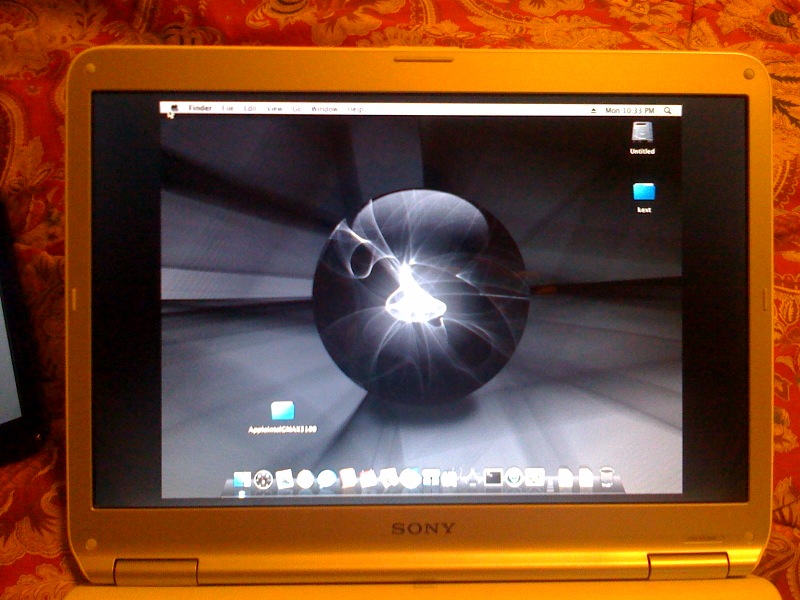

and then does not freezes any more. but... i get this small screen (please see attached picture)

every since the installation starts, i get this small screen. (so i mean with or w/o the kext)



does the AppleIntelGMAX3100.kext info.plist needs to be edited? i was looking at it and it says GM965 in one of the <key> thing,

do i have to put the nomber like 0x2a02 in some were?



is the small screen due to the kexts? or some thing else?



i got confused also with the "boot in VESA mode" (sorry) is it just bear bones? no drivers?





ofcourse, no wireless, no ethernet

i have managed to get the audio working!!

with the rest i'll deal latter...



this is not my first hackintosh, i got two of them. Dell dimention 9150 desktop with a NVIDIA 7900 fully working!

and a HP pavilion laptop dv5 that was a pain in the a** to get the sound and wireless working, no video GMA4500 ;)











this is the full lspci for it:



00:00.0 Host bridge: Intel Corporation Mobile PM965/GM965/GL960 Memory Controller Hub (rev 0c)

00:02.0 VGA compatible controller: Intel Corporation Mobile GM965/GL960 Integrated Graphics Controller (rev 0c)

00:02.1 Display controller: Intel Corporation Mobile GM965/GL960 Integrated Graphics Controller (rev 0c)

00:1a.0 USB Controller: Intel Corporation 82801H (ICH8 Family) USB UHCI Controller #4 (rev 03)

00:1a.1 USB Controller: Intel Corporation 82801H (ICH8 Family) USB UHCI Controller #5 (rev 03)

00:1a.7 USB Controller: Intel Corporation 82801H (ICH8 Family) USB2 EHCI Controller #2 (rev 03)

00:1b.0 Audio device: Intel Corporation 82801H (ICH8 Family) HD Audio Controller (rev 03)

00:1c.0 PCI bridge: Intel Corporation 82801H (ICH8 Family) PCI Express Port 1 (rev 03)

00:1c.1 PCI bridge: Intel Corporation 82801H (ICH8 Family) PCI Express Port 2 (rev 03)

00:1c.2 PCI bridge: Intel Corporation 82801H (ICH8 Family) PCI Express Port 3 (rev 03)

00:1d.0 USB Controller: Intel Corporation 82801H (ICH8 Family) USB UHCI Controller #1 (rev 03)

00:1d.1 USB Controller: Intel Corporation 82801H (ICH8 Family) USB UHCI Controller #2 (rev 03)

00:1d.2 USB Controller: Intel Corporation 82801H (ICH8 Family) USB UHCI Controller #3 (rev 03)

00:1d.7 USB Controller: Intel Corporation 82801H (ICH8 Family) USB2 EHCI Controller #1 (rev 03)

00:1e.0 PCI bridge: Intel Corporation 82801 Mobile PCI Bridge (rev f3)

00:1f.0 ISA bridge: Intel Corporation 82801HEM (ICH8M) LPC Interface Controller (rev 03)

00:1f.1 IDE interface: Intel Corporation 82801HBM/HEM (ICH8M/ICH8M-E) IDE Controller (rev 03)

00:1f.2 SATA controller: Intel Corporation 82801HBM/HEM (ICH8M/ICH8M-E) SATA AHCI Controller (rev 03)

00:1f.3 SMBus: Intel Corporation 82801H (ICH8 Family) SMBus Controller (rev 03)

02:00.0 Ethernet controller: Marvell Technology Group Ltd. 88E8039 PCI-E Fast Ethernet Controller (rev 14)

06:00.0 Network controller: Intel Corporation PRO/Wireless 3945ABG Network Connection (rev 02)

08:03.0 CardBus bridge: Texas Instruments PCIxx12 Cardbus Controller

08:03.1 FireWire (IEEE 1394): Texas Instruments PCIxx12 OHCI Compliant IEEE 1394 Host Controller

08:03.2 Mass storage controller: Texas Instruments 5-in-1 Multimedia Card Reader (SD/MMC/MS/MS PRO/xD)







if i'm missing some thing, please let me know



thank you guys!

Al







[uPDATE]



Reading around, i've installed Leopard graphics update.

now i get a complete scrambled screen, the two black lines from the picture go to the center right, and from there can't do nothing.

the system is alive, but i don't even see the mouse pointer

i'm almost sure that i have to edit the info.plist for the AppleIntelGMAX3100.kext

but.. i don't know what..



thanks!

Al





[uPDATE]



did not mention before that the Leopard graphics update didn't wanna install, so i have upgraded to 10.5.5

now.. the Leopard graphics update still does not wanna install, so i have installed with Pacifist and still get the scrambled "complete" screen



i've downloaded this kexts from here:

http://xtremevenomuk.co.uk/download.php?list.15



that i got the info from here, on post #6

http://forum.insanelymac.com/index.php?showtopic=146148



i know it is for 10.5.6, but i decided to give it a shoot

any ways... with that one i get the blue screen with the small screen (like in the picture)



keep you updated!!

thanks..

Al
