Did anybody have success with this graphics?
It should be supported since the new MBP has one!
NVinject of course doesnt work... Maybe I'll try GFX-Strings soon...

Thanks in advance
PacmanMCE

#2
hascosx

hascosx

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 151 posts

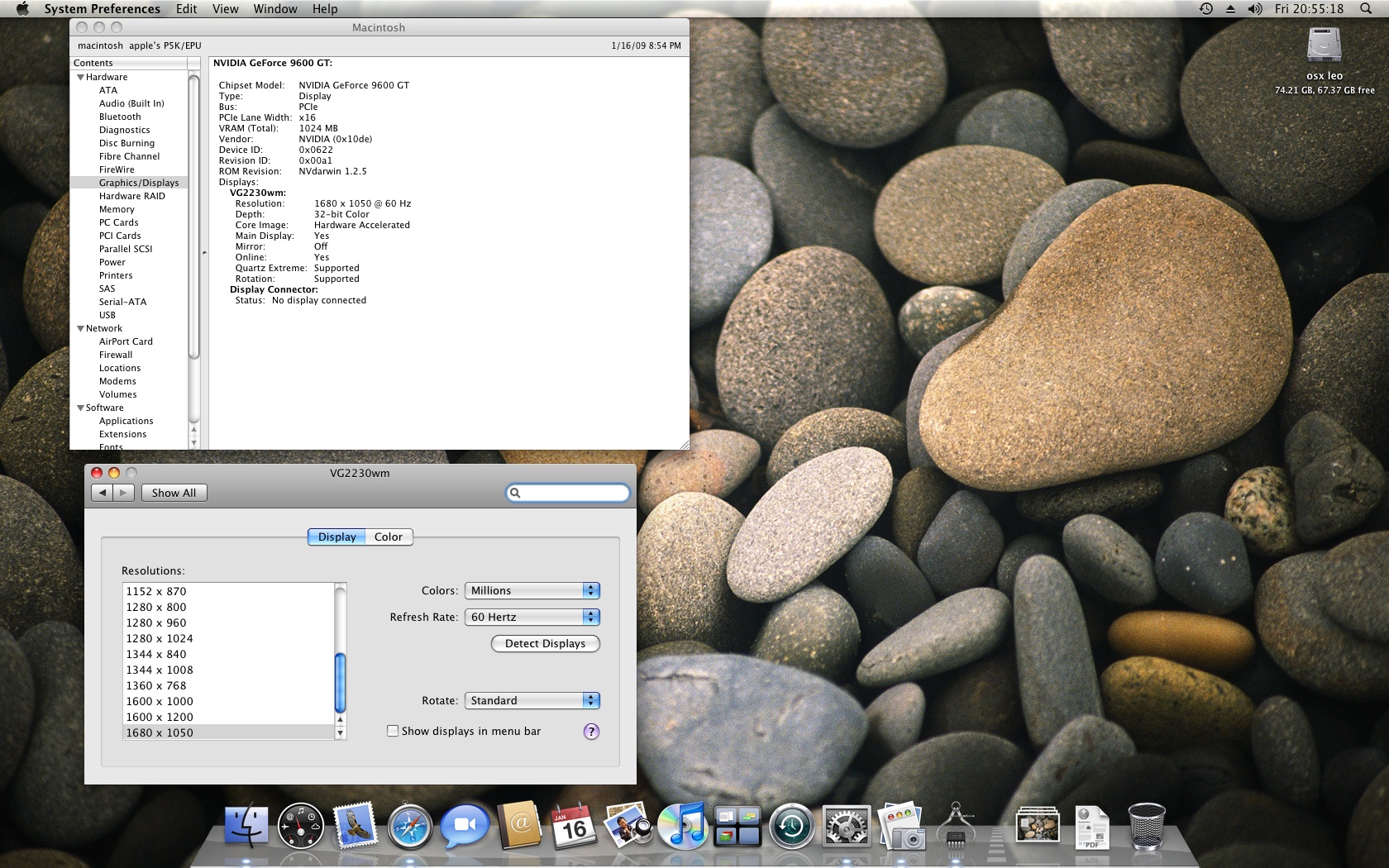

now success with this graphics nvdia 9600 gt sonic 1024mb (1g ddr3) :D


Attached File  keren.jpg   676.38KB   1016 downloads

#3
tank6b

tank6b

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
Any News on this

I Also have the 9600M GT too, and I can't make it to work

Please Help!

thanks in advanced

#4
Aranius

Aranius

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 143 posts
  • Location:Germany
NVDarwin as well as DSDTPatch enabled my 9600M GT 512mb

#5
tank6b

tank6b

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts

NVDarwin as well as DSDTPatch enabled my 9600M GT 512mb


Can you explain? I have tried both and no work: NVDarwin give me a black screen, and DSDT does nothing

thanks in advanced

#6
koolkiwikat

koolkiwikat

    InsanelyMac Protégé

  • Members
  • PipPip
  • 62 posts
I have my 9600m GT up and running except via internal LCD which Im still working on...I used iPC 10.5.6 and selected ONLY NVDarwin 512mb for the graphic options, both my HDMI and VGA have full hw support etc...now just need to get my internal working

I run a Toshiba Qosmio G50

#7
tank6b

tank6b

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
@koolkiwikat

I have no Other Monitor laying around (only laptops) but I guess then my current installation is working cause my LCD is black after boot,

I have a Vaio VGN-AW11S with iDeneb 10.5.6

#8
ugokind

ugokind

    InsanelyMac Deity

  • Donators
  • 1,713 posts
  • Gender:Male
  • Location:10100
  • Interests:Apicoltura
    Mac
    Linux
    Homebrew
    Australia
    Spremermilcervello
ok.. it have been 2 weeks since I tried to do the same!

the results:
NON EFI:
drivers:
GEFORCE.
NVDANV50Hal.
NVDARESMAN.
(those drivers are good in 10.5.5 package or 10.5.6.. -> 1.5.34 or 1.5.36 versions)
you MUST override the PCImatch section with the number of the beast.. 0x0649010de

injector:
nvkush (KO)
nvdarwin (ok but no qe/ci )
nvinject (ok but no qe/ci 0.2.1 or 0.2.0)
nvresolv (ko)
nvinjectgo (0.2.0 OK with QE/CI but crash in system profiles in video section and cannot see lcd data..
you have at best 1280x800)
you can put nvcap with the ROM IN ATTACHED overriding the nvcap data in the injector.. but the result .. i'll test this evening.. if I have all the output working fine..

GFX EFI:
At today.. I haven't found any efi method to extrapolate from win/linux/mac the good efi of my card.. the only efi founded is the EFI of 9600GT 512mb.. which is QUITE different!!!
then.. with efi string the system start.. but no QE/CI


i tried also to replace IOGraphicsfamily.kext from 1.6.1 (10.5.5) to 1.7.1 (10.5.6) and a patched one 1.7.2..

i tried also to use drivers of Snow..

i tried also to use those drivers:
n9000 v1
n9000 v2
xdarwin 1.1
nvinstaller v 41
nvinstaller v52
nvinstaller v 1.2.1
nvinstaller v 1.2.3
nvinstaller v 1.2.5
acquamac
0-9f23 installer

without any real difference between native drivers and a good injector.. but most of them put injector that you must change inside!! if not.. you can see:

black screen..
strange screen
no screen (not black .. only text boot and no start of windowserver)
screen with thousand of crash and slow without the possibility of move.. ( nvdarwin with xdarwin .. .in ascade!)

bye

#9
tank6b

tank6b

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
@ugokind

Yours is running with your native LCD Resolution now? That's the only thing I want, my 1920x1080 resolution to use X-Code

I also have tested a lot of Drivers and Injectors, pretty much the same as ugokind and nothing help :angry:

#10
ugokind

ugokind

    InsanelyMac Deity

  • Donators
  • 1,713 posts
  • Gender:Male
  • Location:10100
  • Interests:Apicoltura
    Mac
    Linux
    Homebrew
    Australia
    Spremermilcervello
bah.. no! the maximun osx shows is the 1280.. nothing else. with a 9600gt efi it depends ONLY from the fLAG into the com.apple.boot.. ... if you write 1024 you see in 1024 and the pref display show only 1024.. etc..

but i'm using an injector.. and I never seen any 1900 ... how can you reached that??

#11
tank6b

tank6b

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
So, that means there is no way to get the 9660M GT to work under OSx86?

#12
ugokind

ugokind

    InsanelyMac Deity

  • Donators
  • 1,713 posts
  • Gender:Male
  • Location:10100
  • Interests:Apicoltura
    Mac
    Linux
    Homebrew
    Australia
    Spremermilcervello
for me actually .. i'm satisfied with this conf.. but I know that is not the best!
let me see if next days i can do some more experience about ..

#13
koolkiwikat

koolkiwikat

    InsanelyMac Protégé

  • Members
  • PipPip
  • 62 posts
If only I can extract the 9600m Rom...then I could get the nvcap info sorted!, Ive tried to extract on a Sony AW17, AW25, AW27...cannot read the bios info

#14
tank6b

tank6b

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts

If only I can extract the 9600m Rom...then I could get the nvcap info sorted!, Ive tried to extract on a Sony AW17, AW25, AW27...cannot read the bios info


If you point me to how to do it maybe I can try on my AW11S though, also the very same card is used on the last MacBook Pros.

thanks for help

#15
ugokind

ugokind

    InsanelyMac Deity

  • Donators
  • 1,713 posts
  • Gender:Male
  • Location:10100
  • Interests:Apicoltura
    Mac
    Linux
    Homebrew
    Australia
    Spremermilcervello
i can give you my nvcap.. or the rom.. if you prefer.. but only this evening!

#16
ugokind

ugokind

    InsanelyMac Deity

  • Donators
  • 1,713 posts
  • Gender:Male
  • Location:10100
  • Interests:Apicoltura
    Mac
    Linux
    Homebrew
    Australia
    Spremermilcervello
here I am..

this is my
nvinjectgo.kext/contents/info.plist part with nvcap..
i've erased my hex data.. and put

<key>NVCAP</key>
<data>
0400000000000d00400000000000000700000000
</data>

#17
tank6b

tank6b

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
Let me know if this one works, please,

Thanks!

#18
Laqk

Laqk

    InsanelyMac Protégé

  • Members
  • Pip
  • 18 posts
I Have an HP Pavillon DV5-1157ca with a NVIDIA 9600M GT card with 512 Mb memory. It works perfectly on a Leopard 10.5.6 installation with the vanilla kexts. No modification necessary. QE/CI, both laptop and external HDMI port working, rotate, mirror, etc. I haven't tested the VGA port but I suspect it would work also.

I used to use NVdarwin, but now I use an EFI GFX string made from the following in xml format:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com...yList-1.0.dtd">
<plist version="1.0">
<dict>
<key>PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)</key>
<dict>
<key>@0,AAPL,boot-display</key>
<data>
</data>
<key>@0,built-in</key>
<data>
</data>
<key>@0,compatible</key>
<string>NVDA,NVMac</string>
<key>@0,device_type</key>
<string>display</string>
<key>@0,name</key>
<string>NVDA,Display-A</string>
<key>@0,use-backlight-blanking</key>
<data>
</data>
<key>@1,can-hot-plug</key>
<data>
</data>
<key>@1,compatible</key>
<string>NVDA,NVMac</string>
<key>@1,device_type</key>
<string>display</string>
<key>@1,name</key>
<string>NVDA,Display-B</string>
<key>NVCAP</key>
<data>
BQEAAAAAAQAGAAAAAAABCwAAAAA=
</data>
<key>VRAM,totalsize</key>
<data>
AAAAIA==
</data>
<key>device_type</key>
<string>NVDA,parent</string>
<key>model</key>
<string>NVIDIA GeForce 9600M GT</string>
<key>rom-revision</key>
<string>test</string>
</dict>
</dict>
</plist>

Hope that helps.

(Of course you'll have to check to pciroot for your machine and adjust the VRAM,totalsize parameter to reflect your card. As for the rom-revision parameter, what you write there is irrelevant, but it is what's going to appear in system information)

#19
tank6b

tank6b

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
I have tested this plist with my PCIRoot and VRAM size but didn't work... I still getting the "blank screen" when I boot with the string.

Any help will be very appreciated

#20
ugokind

ugokind

    InsanelyMac Deity

  • Donators
  • 1,713 posts
  • Gender:Male
  • Location:10100
  • Interests:Apicoltura
    Mac
    Linux
    Homebrew
    Australia
    Spremermilcervello
maybe I think it's caused by these typical situations:

-do you have other injector? if so--> remove it and leave only nvdarwin.. if you want to test it!
-in the 3 files.. geforce.. nvdanv50 and nvresolver did you check about correct id of the card?


PLEASE: could you give me the output of:

kextstat

?? It's a good start.
