EEEPC 1000H ALC269 Driver (MSI WIND)


  • Please log in to reply
45 replies to this topic

#1
comatron

comatron

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 145 posts
hi there,

i just bought an eeepc 1000h for 429euro. after doin a biosflash (for the right acpi table) (check http://osrom.net/biosmod/), installing ideneb v1.1, adding the kextpackage from MaDaCo (respect mang! - http://www.maceee.co...compatches.zip) and installing the RALINK driver (http://www.ralinktec..._2008_03_13.dmg):

... i got everything working except sound. i searched google and the forums for hours but cant find a solution. as the ALC269 is build into many new nettops, i guess you guys out there do want that driver as much as i do. taruga disappeared from scene - so i need guys like diego or maybe YOU to get this working. at the moment i cant provide a linux codec dump cause i dont have a usb-dvd anymore. maybe we should start with that. please post this dump someone so that other guys can compare it with 268 (which is working) or other 269-similar structures. would be damn nice to get it working fully.

lets get to work :) what i can do? nothing ;) just testing it hardcore and give directly chat responses :)

#2
atad6

atad6

    InsanelyMac Protégé

  • Members
  • Pip
  • 10 posts
Here's the codec dump for the ALC269. It was posted on Taruga's wiki. It's currently unsupported with the patch utility.


[codebox]Codec: Realtek ALC269 Address: 0 Vendor Id: 0x10ec0269 Subsystem Id:
0x1043831a Revision Id: 0x100004 No Modem Function Group found Default
PCM: rates 0x5f0: 32000 44100 48000 88200 96000 192000 bits 0xe: 16 20
24 formats 0x1: PCM Default Amp-In caps: N/A Default Amp-Out caps: N/A
GPIO: io=0, o=0, i=0, unsolicited=0, wake=0 Node 0x02 Audio Output wcaps
0x1d: Stereo Amp-Out Amp-Out caps: ofs=0x3f, nsteps=0x40, stepsize=0x03,
mute=0 Amp-Out vals: 0x28 0x28 Converter: stream=0, channel=0 PCM: rates
0x560: 44100 48000 96000 192000 bits 0xe: 16 20 24 formats 0x1: PCM Node
0x03 Audio Output wcaps 0x1d: Stereo Amp-Out Amp-Out caps: ofs=0x3f,
nsteps=0x40, stepsize=0x03, mute=0 Amp-Out vals: 0x00 0x00 Converter:
stream=0, channel=0 PCM: rates 0x560: 44100 48000 96000 192000 bits 0xe:
16 20 24 formats 0x1: PCM Node 0x04 Vendor Defined Widget wcaps
0xf00000: Mono Node 0x05 Vendor Defined Widget wcaps 0xf00000: Mono Node
0x06 Audio Output wcaps 0x211: Stereo Digital Converter: stream=0,
channel=0 Digital: Digital category: 0x0 PCM: rates 0x5f0: 32000 44100
48000 88200 96000 192000 bits 0xe: 16 20 24 formats 0x1: PCM Node 0x07
Audio Input wcaps 0x10011b: Stereo Amp-In Amp-In caps: ofs=0x11,
nsteps=0x2e, stepsize=0x03, mute=1 Amp-In vals: 0x00 0x00 Converter:
stream=0, channel=0 SDI-Select: 0 PCM: rates 0x160: 44100 48000 96000
bits 0xe: 16 20 24 formats 0x1: PCM Connection: 1 0x24 Node 0x08 Audio
Input wcaps 0x10011b: Stereo Amp-In Amp-In caps: ofs=0x11, nsteps=0x2e,
stepsize=0x03, mute=1 Amp-In vals: 0x17 0x17 Converter: stream=0,
channel=0 SDI-Select: 0 PCM: rates 0x160: 44100 48000 96000 bits 0xe: 16
20 24 formats 0x1: PCM Connection: 1 0x23 Node 0x09 Vendor Defined
Widget wcaps 0xf00000: Mono Node 0x0a Vendor Defined Widget wcaps
0xf00000: Mono Node 0x0b Audio Mixer wcaps 0x20010b: Stereo Amp-In
Amp-In caps: ofs=0x17, nsteps=0x1f, stepsize=0x05, mute=1 Amp-In vals:
0x80 0x80 0x80 0x80 0x80 0x80 0x80 0x80 0x80 0x80 Connection: 5 0x18
0x19 0x1a 0x1b 0x1d Node 0x0c Audio Mixer wcaps 0x20010b: Stereo Amp-In
Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals:
0x00 0x00 0x00 0x00 Connection: 2 0x02 0x0b Node 0x0d Audio Mixer wcaps
0x20010b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x00,
stepsize=0x00, mute=1 Amp-In vals: 0x00 0x00 0x00 0x00 Connection: 2
0x03 0x0b Node 0x0e Audio Mixer wcaps 0x20010a: Mono Amp-In Amp-In caps:
ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: 0x00 0x00
Connection: 2 0x0c 0x0d Node 0x0f Vendor Defined Widget wcaps 0xf00000:
Mono Node 0x10 Audio Output wcaps 0x211: Stereo Digital Converter:
stream=0, channel=0 Digital: Digital category: 0x0 PCM: rates 0x5f0:
32000 44100 48000 88200 96000 192000 bits 0xe: 16 20 24 formats 0x1: PCM
Node 0x11 Pin Complex wcaps 0x400380: Mono Digital Pincap 0x0814: OUT
Detect Pin Default 0x411111f0: N/A Speaker at Ext Rear Conn = 1/8, Color
= Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE
Pin-ctls: 0x40: OUT Unsolicited: tag=00, enabled=0 Connection: 1 0x10
Node 0x12 Pin Complex wcaps 0x400001: Stereo Pincap 0x0820: IN Pin
Default 0x99a30920: Fixed Mic at Int ATAPI Conn = ATAPI, Color = Unknown
DefAssociation = 0x2, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x20:
IN Node 0x13 Vendor Defined Widget wcaps 0xf00000: Mono Node 0x14 Pin
Complex wcaps 0x40010d: Stereo Amp-Out Amp-Out caps: ofs=0x00,
nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: 0x00 0x00 Pincap
0x0810050: OUT EAPD Balanced EAPD 0x2: EAPD Pin Default 0x99130110:
Fixed Speaker at Int ATAPI Conn = ATAPI, Color = Unknown DefAssociation
= 0x1, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x40: OUT Connection:
2 0x0c* 0x0d Node 0x15 Pin Complex wcaps 0x40018d: Stereo Amp-Out
Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals:
0x00 0x00 Pincap 0x081001c: OUT HP EAPD Detect EAPD 0x2: EAPD Pin
Default 0x0121401f: Jack HP Out at Ext Rear Conn = 1/8, Color = Green
DefAssociation = 0x1, Sequence = 0xf Pin-ctls: 0xc0: OUT HP Unsolicited:
tag=04, enabled=1 Connection: 2 0x0c* 0x0d Node 0x16 Pin Complex wcaps
0x40010c: Mono Amp-Out Amp-Out caps: ofs=0x00, nsteps=0x00,
stepsize=0x00, mute=1 Amp-Out vals: 0x80 Pincap 0x0810: OUT Pin Default
0x411111f0: N/A Speaker at Ext Rear Conn = 1/8, Color = Black
DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x40:
OUT Connection: 1 0x0e Node 0x17 Vendor Defined Widget wcaps 0xf00000:
Mono Node 0x18 Pin Complex wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In
caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: 0x00
0x00 0x00 0x00 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00,
mute=1 Amp-Out vals: 0x80 0x80 Pincap 0x083734: IN OUT Detect Vref caps:
HIZ 50 GRD 80 100 Pin Default 0x01a19830: Jack Mic at Ext Rear Conn =
1/8, Color = Pink DefAssociation = 0x3, Sequence = 0x0 Pin-ctls: 0x24:
IN VREF_80 Unsolicited: tag=00, enabled=0 Connection: 2 0x0c* 0x0d Node
0x19 Pin Complex wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps:
ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: 0x00 0x00 0x00
0x00 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out
vals: 0x80 0x80 Pincap 0x083734: IN OUT Detect Vref caps: HIZ 50 GRD 80
100 Pin Default 0x411111f0: N/A Speaker at Ext Rear Conn = 1/8, Color =
Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls:
0x24: IN VREF_80 Unsolicited: tag=00, enabled=0 Connection: 2 0x0c* 0x0d
Node 0x1a Pin Complex wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps:
ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: 0x00 0x00 0x00
0x00 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out
vals: 0x80 0x80 Pincap 0x08373c: IN OUT HP Detect Vref caps: HIZ 50 GRD
80 100 Pin Default 0x411111f0: N/A Speaker at Ext Rear Conn = 1/8, Color
= Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE
Pin-ctls: 0x20: IN VREF_HIZ Unsolicited: tag=00, enabled=0 Connection: 2
0x0c* 0x0d Node 0x1b Pin Complex wcaps 0x40018f: Stereo Amp-In Amp-Out
Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals:
0x00 0x00 0x00 0x00 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00,
mute=1 Amp-Out vals: 0x80 0x80 Pincap 0x083734: IN OUT Detect Vref caps:
HIZ 50 GRD 80 100 Pin Default 0x411111f0: N/A Speaker at Ext Rear Conn =
1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc =
NO_PRESENCE Pin-ctls: 0x20: IN VREF_HIZ Unsolicited: tag=00, enabled=0
Connection: 2 0x0c* 0x0d Node 0x1c Vendor Defined Widget wcaps 0xf00000:
Mono Node 0x1d Pin Complex wcaps 0x400000: Mono Pincap 0x0820: IN Pin
Default 0x4005822d: N/A Line Out at Ext N/A Conn = Optical, Color =
Purple DefAssociation = 0x2, Sequence = 0xd Pin-ctls: 0x20: IN Node 0x1e
Pin Complex wcaps 0x400380: Mono Digital Pincap 0x0814: OUT Detect Pin
Default 0x411111f0: N/A Speaker at Ext Rear Conn = 1/8, Color = Black
DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x40:
OUT Unsolicited: tag=00, enabled=0 Connection: 1 0x06 Node 0x1f Vendor
Defined Widget wcaps 0xf00000: Mono Node 0x20 Vendor Defined Widget
wcaps 0xf00040: Mono Processing caps: benign=0, ncoeff=33 Node 0x21
Vendor Defined Widget wcaps 0xf00000: Mono Node 0x22 Vendor Defined
Widget wcaps 0xf00000: Mono Node 0x23 Audio Selector wcaps 0x300101:
Stereo Connection: 7 0x18 0x19 0x1a 0x1b 0x1d 0x12* 0x0b Node 0x24 Audio
Mixer wcaps 0x20010b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x00,
stepsize=0x00, mute=1 Amp-In vals: 0x00 0x00 0x80 0x80 0x80 0x80 0x80
0x80 0x80 0x80 0x80 0x80 Connection: 6 0x18 0x19 0x1a 0x1b 0x1d 0x0b[/codebox]

#3
comatron

comatron

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 145 posts
thank you - yeah i remebered that i seen it somewhere. but tarugas page is often down :D so any of the "audiodriverguys": is this codec similar to any other ALC so there could be a modified kext or sth? or does the subsystem do the rest of the pain? i hope this chip will get runnin soon - there are many nettop users waiting for it. im willing to donate - what about you guys?

#4
comatron

comatron

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 145 posts

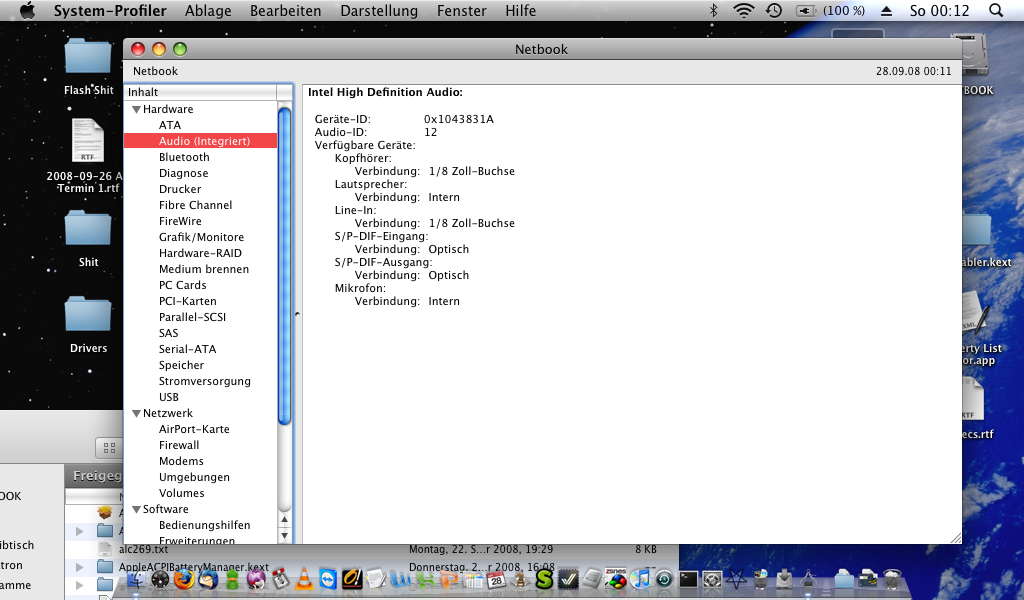

i just installed the latest azalia kext and the system configuration/sound says : HD Audio Output. but it wont work. would be nice to get at least speakers working in the netbooks. kext in attachment.

Attached Files



#5
enzomusic

enzomusic

    InsanelyMac Protégé

  • Members
  • Pip
  • 43 posts
  • Location:Germany
  • Interests:Music, Chicks, Beer 'n' OSX. ;)
Maybe I can help too. I am on a eee PC 901 @Vista.
Here are the pinouts and values from regedit I get:


[codebox]Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000]
"Driver"="HdAudio.sys"
"DisableSetupDiChangeState"=hex:00,00,00,00
"InfPath"="hdaudio.inf"
"IncludedInfs"=hex(7):6b,00,73,00,2e,00,69,00,6e,00,66,00,00,00,77,00,64,00,6d,\
00,61,00,75,00,64,00,69,00,6f,00,2e,00,69,00,6e,00,66,00,00,00,00,00
"InfSection"="HdAudModel"
"ProviderName"="Microsoft"
"DriverDateData"=hex:00,80,8c,a3,c5,94,c6,01
"DriverDate"="6-21-2006"
"DriverVersion"="6.0.6000.16386"
"MatchingDeviceId"="hdaudio\\func_01"
"DriverDesc"="High Definition Audio Device"

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\Drivers]
"SubClasses"="wave,midi,mixer,aux"

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\Drivers\aux]

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\Drivers\aux\wdmaud.drv]
"Driver"="wdmaud.drv"
"Description"="Microsoft 1.1 UAA Function Driver for High Definition Audio"
"Alias"="aux"

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\Drivers\midi]

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\Drivers\midi\wdmaud.drv]
"Driver"="wdmaud.drv"
"Description"="Microsoft 1.1 UAA Function Driver for High Definition Audio"
"Alias"="midi"

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\Drivers\mixer]

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\Drivers\mixer\wdmaud.drv]
"Driver"="wdmaud.drv"
"Description"="Microsoft 1.1 UAA Function Driver for High Definition Audio"
"Alias"="mixer"

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\Drivers\wave]

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\Drivers\wave\wdmaud.drv]
"Driver"="wdmaud.drv"
"Description"="Microsoft 1.1 UAA Function Driver for High Definition Audio"
"Alias"="wave"

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\GlobalSettings]
"DcOffsetWorkaround"=hex:01,00,00,00
"ResetAudioFgOnStart"=hex:01,00,00,00
"SysAudioTopoMiniportWorkaround"=hex:01,00,00,00
"ValidateCodecWrites"=hex:00,00,00,00
"SendFakePcxCfgDefVerbs"=hex:00,00,00,00
"SpdifOutputEchosRearRenderWhenNoAc3"=hex:01,00,00,00
"HpShutsOffRearSpeaker"=hex:00,00,00,00
"HpMode"=hex:01,00,00,00
"EnableDynamicDevices"=hex:01,00,00,00
"SetSpdifVCfg"=hex:01,00,00,00
"EnableWaveRT"=hex:01,00,00,00

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\GlobalSettings\SpdifIn]
"SpdifInputBitDepth"=hex:00,00,00,00
"SpdifInputSampleRate"=hex:01,00,00,00

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\GlobalSettings\SpdifOut]
"ExternalSpdifReceiverSupportedSampleRates44100"=hex:00,00,00,00
"ExternalSpdifReceiverSupportedSampleRates48000"=hex:01,00,00,00
"ExternalSpdifReceiverSupportedSampleRates96000"=hex:00,00,00,00
"ExternalSpdifReceiverSupportedBitDepths16"=hex:01,00,00,00
"ExternalSpdifReceiverSupportedBitDepths20"=hex:00,00,00,00
"ExternalSpdifReceiverSupportedBitDepths24"=hex:00,00,00,00
"ExternalSpdifReceiverSupportedBitDepths32"=hex:00,00,00,00

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\MixerSettings]

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\MixerSettings\eMicInTopo]

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\MixerSettings\eMicInTopo\PrimaryNode000]
"Chan000"=dword:001d0000
"Chan001"=dword:001d0000

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\MixerSettings\eMicInTopo\PrimaryNode001]
"Chan000"=dword:00000000
"Chan001"=dword:00000000

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\MixerSettings\eSlavedHpSpeakerTopo]

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\MixerSettings\eSlavedHpSpeakerTopo\PrimaryNode000]
"Chan000"=dword:00010000
"Chan001"=dword:00010000

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\MixerSettings\eSlavedHpSpeakerTopo\PrimaryNode001]
"Chan000"=dword:00000000
"Chan001"=dword:00000000

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\MixerSettings\eSlavedHpSpeakerTopo\SlavedNode000]
"Chan000"=dword:fff30000
"Chan001"=dword:fff30000

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\MixerSettings\eSlavedHpSpeakerTopo\SlavedNode001]
"Chan000"=dword:00000000
"Chan001"=dword:00000000

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\PinConfigOverrideVerbs]
"0000"=hex:f0,1c,17,01
"0001"=hex:11,1d,17,01
"0002"=hex:11,1e,17,01
"0003"=hex:41,1f,17,01
"0004"=hex:20,1c,27,01
"0005"=hex:09,1d,27,01
"0006"=hex:a3,1e,27,01
"0007"=hex:99,1f,27,01
"0008"=hex:10,1c,47,01
"0009"=hex:01,1d,47,01
"0010"=hex:13,1e,47,01
"0011"=hex:99,1f,47,01
"0012"=hex:1f,1c,57,01
"0013"=hex:40,1d,57,01
"0014"=hex:21,1e,57,01
"0015"=hex:01,1f,57,01
"0016"=hex:f0,1c,67,01
"0017"=hex:11,1d,67,01
"0018"=hex:11,1e,67,01
"0019"=hex:41,1f,67,01
"0020"=hex:30,1c,87,01
"0021"=hex:98,1d,87,01
"0022"=hex:a1,1e,87,01
"0023"=hex:01,1f,87,01
"0024"=hex:f0,1c,97,01
"0025"=hex:11,1d,97,01
"0026"=hex:11,1e,97,01
"0027"=hex:41,1f,97,01
"0028"=hex:f0,1c,a7,01
"0029"=hex:11,1d,a7,01
"0030"=hex:11,1e,a7,01
"0031"=hex:41,1f,a7,01
"0032"=hex:f0,1c,b7,01
"0033"=hex:11,1d,b7,01
"0034"=hex:11,1e,b7,01
"0035"=hex:41,1f,b7,01
"0036"=hex:2d,1c,d7,01
"0037"=hex:82,1d,d7,01
"0038"=hex:05,1e,d7,01
"0039"=hex:40,1f,d7,01
"0040"=hex:f0,1c,e7,01
"0041"=hex:11,1d,e7,01
"0042"=hex:11,1e,e7,01
"0043"=hex:41,1f,e7,01
"NumVerbs"=hex:2c,00,00,00

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\PowerSettings]
"ConservationIdleTime"=hex:1e,00,00,00
"PerformanceIdleTime"=hex:00,00,00,00
"IdlePowerState"=hex:03,00,00,00

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\WaveportSettings]

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}000\WaveportSettings\eSlavedHpSpeakerWave]
"ActiveSpeakerPositions"=hex:03,00,00,00

[/codebox]

I hope this can help.

Greetz
eNZO

#6
idoc

idoc

    InsanelyMac Protégé

  • Members
  • PipPip
  • 77 posts
Thanks Enzo - fantastic!
I've never heard of regedit (the problem with only using OSX and linux), I've been looking for these numbers.
I'm slowly making my way through
http://download.micr...Config_Test.doc
and it explains (I think) how to hook the config data up to get the codec working. When you look at HDAController.kext the apple configdata is in the same format.
What would be really helpful would be if someone could check on a macbook/macbook pro to see if the configdata in the HDAController.kext matches the regedit data in windows - it should.
Very interesting.
Steve

#7
comatron

comatron

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 145 posts
heres a regedit file from an 2,16 c2d macbook (2007 version) - the regfile is the complete key from:

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E96C-E325-11CE-BFC1-08002BE10318}XXX]

http://pastebin.com/f418cc013

i hope this will help

#8
comatron

comatron

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 145 posts
btw. im just trying THIS one - im stuck with finding 3 node ids and what to do with it ... im also confused about deleting paths cause so the numbers will change ... damn

http://forum.insanel...rt=#entry899407

see the result:


but sound not working ... i messed up sth

Attached Files



#9
idoc

idoc

    InsanelyMac Protégé

  • Members
  • PipPip
  • 77 posts
Thanks Comatron,
Are you running Vista (you don't seem to be using the HdAudio.sys driver)?

#10
comatron

comatron

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 145 posts
i can get lineout running by installing:

HDAEnabler.kext
AzaliaAudio.pkg

one step forward ...

no im not runnin vista or xp - i got the information from a friend

#11
idoc

idoc

    InsanelyMac Protégé

  • Members
  • PipPip
  • 77 posts
Great news!
can you post the kexts that you are using?
And how did you do it?

#12
comatron

comatron

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 145 posts
here the kexts

Attached Files



#13
idoc

idoc

    InsanelyMac Protégé

  • Members
  • PipPip
  • 77 posts
Thanks comatron,
First restart after installing the kext and i had sound through headphones ;)
But since then no matter what I do I can't get it back :unsure:
Could you tell me what kexts you have loaded by doing kextstat in terminal
This has me a bit confused :)

#14
miglo

miglo

    InsanelyMac Protégé

  • Members
  • Pip
  • 24 posts
The S10 community would love to get the ALC269 working as well. keep up the good work!

#15
comatron

comatron

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 145 posts
it should work all the time - this are my kexts:

Index Refs Address Size Wired Name (Version) <Linked Against>
1 1 0x0 0x0 0x0 com.apple.kernel (9.4.0)
2 29 0x0 0x0 0x0 com.apple.kpi.bsd (9.4.0)
3 3 0x0 0x0 0x0 com.apple.kpi.dsep (9.4.0)
4 45 0x0 0x0 0x0 com.apple.kpi.iokit (9.4.0)
5 47 0x0 0x0 0x0 com.apple.kpi.libkern (9.4.0)
6 43 0x0 0x0 0x0 com.apple.kpi.mach (9.4.0)
7 29 0x0 0x0 0x0 com.apple.kpi.unsupported (9.4.0)
8 1 0x0 0x0 0x0 com.apple.iokit.IONVRAMFamily (9.4.0)
9 1 0x0 0x0 0x0 com.apple.driver.AppleNMI (9.4.0)
10 1 0x0 0x0 0x0 com.apple.iokit.IOSystemManagementFamily (9.4.0)
11 1 0x0 0x0 0x0 com.apple.iokit.ApplePlatformFamily (9.4.0)
12 18 0x0 0x0 0x0 com.apple.kernel.6.0 (7.9.9)
13 1 0x0 0x0 0x0 com.apple.kernel.bsd (7.9.9)
14 1 0x0 0x0 0x0 com.apple.kernel.iokit (7.9.9)
15 1 0x0 0x0 0x0 com.apple.kernel.libkern (7.9.9)
16 1 0x0 0x0 0x0 com.apple.kernel.mach (7.9.9)
17 13 0x1ab20000 0x10000 0xf000 com.apple.iokit.IOPCIFamily (2.4.1) <7 6 5 4>
18 11 0x1ab36000 0x4000 0x3000 com.apple.iokit.IOACPIFamily (1.2.0) <12>
19 5 0x1ab84000 0x3d000 0x3c000 com.apple.driver.AppleACPIPlatform (1.1.0) <18 17 12 7 4>
20 0 0x1ac17000 0x5000 0x4000 com.apple.BootCache (30) <7 6 5 4 2>
21 4 0x1acdb000 0x39000 0x38000 com.apple.iokit.IOHIDFamily (1.5.2) <7 6 5 4 2>
22 0 0x1ad46000 0x3000 0x2000 com.apple.security.TMSafetyNet (3) <7 6 5 3 2>
23 0 0x1ad60000 0x8000 0x7000 com.apple.nke.applicationfirewall (1.0.77) <7 6 5 4 2>
24 0 0x1ada0000 0x18000 0x17000 com.apple.security.seatbelt (107.1) <7 6 5 3 2>
25 0 0x207aa000 0x3000 0x2000 com.apple.driver.AppleAPIC (1.2.0) <12>
26 0 0x207c0000 0x5000 0x4000 com.apple.driver.AppleSMBIOS (1.0.13) <12>
28 0 0x20933000 0x5000 0x4000 com.apple.driver.AppleRTC (1.0.5) <18 6 5 4 2>
29 0 0x2082d000 0x2000 0x1000 org.tgwbd.driver.ACPIPS2Nub (1.0.0d1) <19 18 12>
30 2 0x20a96000 0x5000 0x4000 com.apple.driver.ApplePS2Controller (1.1.0) <12>
31 0 0x20c70000 0x3000 0x2000 com.apple.driver.ApplePS2Keyboard (1.1.0) <30 21 12>
32 1 0x20c1f000 0x3000 0x2000 com.apple.iokit.IOSMBusFamily (1.1) <6 5 4>
33 0 0x20c28000 0x5000 0x4000 com.apple.driver.AppleACPIEC (1.1.0) <32 19 18 12>
34 0 0x20e2f000 0x4000 0x3000 com.apple.driver.AppleACPIButtons (1.1.0) <21 19 18 7 6 5 4 2>
35 0 0x20e41000 0x3000 0x2000 com.apple.driver.AppleEFIRuntime (1.1.0) <7 5 4>
36 0 0x20eec000 0x3000 0x2000 com.apple.driver.AppleACPIPCI (1.1.0) <19 18 17 12>
37 0 0x20f2b000 0x3000 0x2000 com.apple.driver.AppleHPET (1.1) <18 7 6 5 4>
38 0 0x20f8e000 0x5000 0x4000 com.apple.driver.AppleACPIBatteryManager (1.0.14) <18 6 5 4 2>
40 7 0x21063000 0x28000 0x27000 com.apple.iokit.IOUSBFamily (3.1.5) <7 6 5 4>
41 0 0x210bc000 0xe000 0xd000 com.apple.driver.AppleUSBUHCI (3.1.5) <40 17 7 6 5 4>
42 0 0x21161000 0x12000 0x11000 com.apple.driver.AppleUSBEHCI (3.1.5) <40 17 7 6 5 4>
43 2 0x211e5000 0xd000 0xc000 com.apple.iokit.IOATAFamily (1.7.3f1) <6 5 4 2>
44 0 0x2120b000 0x9000 0x8000 com.apple.driver.AppleIntelPIIXATA (2.0.0) <43 17 6 5 4>
45 3 0x21277000 0x18000 0x17000 com.apple.iokit.IOStorageFamily (1.5.2) <7 6 5 4 2>
47 0 0x212e2000 0x2000 0x1000 com.apple.iokit.IOUSBUserClient (3.0.7) <40 6 5 4>
48 0 0x21371000 0xb000 0xa000 com.apple.driver.AppleUSBHub (3.1.5) <40 6 5 4>
49 0 0x21413000 0x19000 0x18000 com.apple.iokit.IOSCSIArchitectureModelFamily (2.0.3) <6 5 4 2>
51 0 0x214cd000 0xe000 0xd000 com.apple.iokit.IOATABlockStorage (2.0.0) <45 43 6 5 4 2>
52 0 0x2153b000 0x5000 0x4000 com.apple.driver.XsanFilter (2.7.91) <45 12>
53 0 0x21592000 0x4000 0x3000 com.apple.driver.AppleUSBComposite (3.0.0) <40 5 4>
54 1 0x216ee000 0x37000 0x36000 com.apple.iokit.IOBluetoothFamily (2.1f17) <7 6 5 4 2>
55 0 0x21731000 0x7000 0x6000 com.apple.driver.AppleUSBBluetoothHCIController (2.1f17) <54 40 12>
56 4 0x1ad68000 0x1c000 0x1b000 com.apple.iokit.IOGraphicsFamily (1.5.2) <17 7 6 5 4>
57 0 0x1ac65000 0x12000 0x11000 com.apple.driver.AppleIntelIntegratedFramebuffer (5.1.6) <56 18 17 12 7 6 5 4 2>
58 0 0x1ad49000 0x5000 0x4000 com.apple.iokit.IOUSBHIDDriver (3.1.0) <40 21 6 5 4>
59 1 0x20a11000 0xe000 0xd000 com.apple.iokit.IONDRVSupport (1.5.2) <56 17 7 6 5 4>
60 0 0x1ad14000 0x3000 0x2000 com.apple.driver.AppleLPC (1.2.2) <17 6 5 4>
62 0 0x1ad4e000 0x4000 0x3000 com.apple.driver.AppleACPIThermal (1.0.5) <19 18 12>
63 2 0x20a1f000 0x16000 0x15000 com.apple.iokit.IONetworkingFamily (1.6.0) <7 6 5 4 2>
64 1 0x20a35000 0x1e000 0x1d000 com.apple.iokit.IO80211Family (200.7) <63 7 6 5 4 2>
65 0 0x2b515000 0x118000 0x117000 com.apple.driver.AirPortBrcm43xx (305.25.82) <64 63 17 7 6 5 4 2>
66 1 0x1adf1000 0x3000 0x2000 com.apple.kext.OSvKernDSPLib (1.1) <6 5>
67 2 0x20a53000 0x17000 0x16000 com.apple.iokit.IOAudioFamily (1.6.4b7) <66 6 5 4 2>
68 0 0x207af000 0x4000 0x3000 com.apple.driver.AudioIPCDriver (1.0.4) <67 6 5 4 2>
70 0 0x20a9b000 0x36000 0x35000 com.apple.driver.AppleIntelGMA950 (5.2.4) <59 56 17 12 6 5 4 2>
73 2 0x208ad000 0x5000 0x4000 com.apple.iokit.IOHDAudioFamily (1.0.0d1) <6 5 4 2>
74 0 0x208b2000 0x6000 0x5000 com.apple.driver.AppleAzaliaController (1.0.0d1) <73 17 6 5 4 2>
75 1 0x20a6a000 0x9000 0x8000 com.apple.driver.AppleSMC (2.0.1d2) <18 7 6 5 4>
76 0 0x208f8000 0x3000 0x2000 com.apple.Dont_Steal_Mac_OS_X (6.0.2) <75 7 5 4 2>
77 0 0x208fb000 0x3000 0x2000 com.apple.driver.ApplePS2Mouse (1.1.0) <30 21 12>
79 0 0x20a73000 0xc000 0xb000 com.apple.driver.AppleAzaliaAudio (1.0.0d1) <73 67 6 5 4 2>
80 0 0x1ac5d000 0x2000 0x1000 com.apple.dsmos (1.0.0d1) <7 5 4 2>
81 0 0x20a7f000 0x10000 0xf000 com.apple.driver.DiskImages (195) <45 7 6 5 4 2>
82 0 0x2093b000 0x3000 0x2000 com.x86dev.driver.lspcidrv (1.0) <12>
83 1 0x20bc5000 0x9000 0x8000 com.apple.iokit.IOSerialFamily (9.1) <7 6 5 4 2>
84 0 0x20bce000 0x9000 0x8000 com.apple.iokit.IOBluetoothSerialManager (2.1f17) <83 12>
85 0 0x21791000 0xb000 0xa000 com.apple.filesystems.autofs (2.0.1) <7 6 5 4 2>
87 0 0x1aa6d000 0x2000 0x1000 com.superhai.driver.ClamshellDisplay (1.0.1) <56 17 7 6 5 4>


@miglo: i know - the alc269 may get the widest sprad mobile chip ever. so we need to get this to run ...

#16
mattrb

mattrb

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 318 posts
  • Location:Chicago, IL
tested on 1000h and it didnt work period, tried to remove appleac97 kext to see if that helped but it didnt. Did I need that kext.

#17
Jokerchris

Jokerchris

    InsanelyMac Protégé

  • Members
  • PipPip
  • 61 posts
Hi..

I also installed the HDAEnabler.kext and the AzaliaAudio.pkg which are linked above on my EeePC 1000H but I have no sound...

Here is a Image of my System Profiler.

If you need more information than please let me know.

Attached File  systemprofiler.tiff   39.33KB   148 downloads

#18
comatron

comatron

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 145 posts
@jokerchris: i have the same in my profiler. but in my system controlls i have "hd audio output" and the line is working tight. even after restarts. check my loaded kexts and install the 2 kexts i have in atttachment some posts earlier ... this should work. i got an usual eeepc 1000h with alc 269.

#19
Jokerchris

Jokerchris

    InsanelyMac Protégé

  • Members
  • PipPip
  • 61 posts
Here are my loaded kexts... Its pretty much the same like you have.
The only thing that is different is the Adress of for example AzaliaAudio... Is this important?

sh-3.2# kextstat
Index Refs Address Size Wired Name (Version) <Linked Against>
1 1 0x0 0x0 0x0 com.apple.kernel (9.4.0)
2 28 0x0 0x0 0x0 com.apple.kpi.bsd (9.4.0)
3 3 0x0 0x0 0x0 com.apple.kpi.dsep (9.4.0)
4 44 0x0 0x0 0x0 com.apple.kpi.iokit (9.4.0)
5 47 0x0 0x0 0x0 com.apple.kpi.libkern (9.4.0)
6 43 0x0 0x0 0x0 com.apple.kpi.mach (9.4.0)
7 28 0x0 0x0 0x0 com.apple.kpi.unsupported (9.4.0)
8 1 0x0 0x0 0x0 com.apple.iokit.IONVRAMFamily (9.4.0)
9 1 0x0 0x0 0x0 com.apple.driver.AppleNMI (9.4.0)
10 1 0x0 0x0 0x0 com.apple.iokit.IOSystemManagementFamily (9.4.0)
11 1 0x0 0x0 0x0 com.apple.iokit.ApplePlatformFamily (9.4.0)
12 20 0x0 0x0 0x0 com.apple.kernel.6.0 (7.9.9)
13 1 0x0 0x0 0x0 com.apple.kernel.bsd (7.9.9)
14 1 0x0 0x0 0x0 com.apple.kernel.iokit (7.9.9)
15 1 0x0 0x0 0x0 com.apple.kernel.libkern (7.9.9)
16 1 0x0 0x0 0x0 com.apple.kernel.mach (7.9.9)
17 13 0x1ab20000 0x10000 0xf000 com.apple.iokit.IOPCIFamily (2.4.1) <7 6 5 4>
18 11 0x1ab36000 0x4000 0x3000 com.apple.iokit.IOACPIFamily (1.2.0) <12>
19 5 0x1ab84000 0x3d000 0x3c000 com.apple.driver.AppleACPIPlatform (1.1.0) <18 17 12 7 4>
20 0 0x1ac13000 0x5000 0x4000 com.apple.BootCache (30) <7 6 5 4 2>
21 4 0x1acd9000 0x39000 0x38000 com.apple.iokit.IOHIDFamily (1.5.2) <7 6 5 4 2>
22 0 0x1ad44000 0x3000 0x2000 com.apple.security.TMSafetyNet (3) <7 6 5 3 2>
23 0 0x1ad5e000 0x8000 0x7000 com.apple.nke.applicationfirewall (1.0.77) <7 6 5 4 2>
24 0 0x1ad9e000 0x18000 0x17000 com.apple.security.seatbelt (107.1) <7 6 5 3 2>
25 0 0x1adfc000 0x3000 0x2000 com.apple.driver.AppleAPIC (1.2.0) <12>
26 0 0x207be000 0x5000 0x4000 com.apple.driver.AppleSMBIOS (1.0.14) <12>
28 0 0x209de000 0x4000 0x3000 com.apple.driver.AppleACPIButtons (1.1.0) <21 19 18 7 6 5 4 2>
29 0 0x20a21000 0x5000 0x4000 com.apple.driver.AppleRTC (1.0.5) <18 6 5 4 2>
30 0 0x20885000 0x2000 0x1000 org.tgwbd.driver.ACPIPS2Nub (1.0.0d1) <19 18 12>
31 2 0x20b84000 0x5000 0x4000 com.apple.driver.ApplePS2Controller (1.1.0) <12>
32 0 0x20d60000 0x3000 0x2000 com.apple.driver.ApplePS2Keyboard (1.1.0) <31 21 12>
33 0 0x20cf5000 0x3000 0x2000 com.superhai.driver.ACPIBattery (1.0.6) <18 12 6 5 4>
34 0 0x20e58000 0x3000 0x2000 com.apple.driver.AppleACPIPCI (1.1.0) <19 18 17 12>
35 0 0x20e69000 0x3000 0x2000 com.apple.driver.AppleEFIRuntime (1.1.0) <7 5 4>
36 1 0x20ecf000 0x3000 0x2000 com.apple.iokit.IOSMBusFamily (1.1) <6 5 4>
37 0 0x20f2b000 0x5000 0x4000 com.apple.driver.AppleACPIEC (1.1.0) <36 19 18 12>
38 0 0x20f6c000 0x3000 0x2000 com.apple.driver.AppleHPET (1.1) <18 7 6 5 4>
39 3 0x20fd3000 0x18000 0x17000 com.apple.iokit.IOStorageFamily (1.5.2) <7 6 5 4 2>
41 7 0x2109f000 0x28000 0x27000 com.apple.iokit.IOUSBFamily (3.1.5) <7 6 5 4>
42 0 0x210f8000 0xe000 0xd000 com.apple.driver.AppleUSBUHCI (3.1.5) <41 17 7 6 5 4>
43 2 0x21176000 0xd000 0xc000 com.apple.iokit.IOATAFamily (1.7.3f1) <6 5 4 2>
44 0 0x2119c000 0x9000 0x8000 com.apple.driver.AppleIntelPIIXATA (2.0.0) <43 17 6 5 4>
46 0 0x21260000 0x12000 0x11000 com.apple.driver.AppleUSBEHCI (3.1.5) <41 17 7 6 5 4>
47 0 0x212bf000 0x2000 0x1000 com.apple.iokit.IOUSBUserClient (3.0.7) <41 6 5 4>
48 0 0x21328000 0xb000 0xa000 com.apple.driver.AppleUSBHub (3.1.5) <41 6 5 4>
49 0 0x213db000 0x19000 0x18000 com.apple.iokit.IOSCSIArchitectureModelFamily (2.0.3) <6 5 4 2>
51 0 0x214aa000 0xe000 0xd000 com.apple.iokit.IOATABlockStorage (2.0.0) <43 39 6 5 4 2>
52 0 0x21518000 0x5000 0x4000 com.apple.driver.XsanFilter (2.7.91) <39 12>
53 0 0x2156f000 0x4000 0x3000 com.apple.driver.AppleUSBComposite (3.0.0) <41 5 4>
54 1 0x216cb000 0x37000 0x36000 com.apple.iokit.IOBluetoothFamily (2.1f17) <7 6 5 4 2>
55 0 0x2170e000 0x7000 0x6000 com.apple.driver.AppleUSBBluetoothHCIController (2.1f17) <54 41 12>
56 4 0x1aa59000 0x1c000 0x1b000 com.apple.iokit.IOGraphicsFamily (1.5.2) <17 7 6 5 4>
57 1 0x1aa75000 0xe000 0xd000 com.apple.iokit.IONDRVSupport (1.5.2) <56 17 7 6 5 4>
59 0 0x1aa8b000 0x5000 0x4000 com.apple.iokit.IOUSBHIDDriver (3.1.0) <41 21 6 5 4>
60 0 0x1aa90000 0x3000 0x2000 com.apple.driver.AppleLPC (1.2.2) <17 6 5 4>
62 1 0x1aa93000 0x16000 0x15000 com.apple.iokit.IONetworkingFamily (1.6.0) <7 6 5 4 2>
63 0 0x1ac18000 0x40000 0x3f000 com.Ralink.driver.RT2860WirelessDriver (1.0.1) <62 17 6 5 4 2>
64 0 0x20b61000 0x4000 0x3000 com.apple.driver.AppleACPIThermal (1.0.5) <19 18 12>
65 0 0x21013000 0x12000 0x11000 com.apple.driver.AppleIntelIntegratedFramebuffer (5.1.6) <56 18 17 12 7 6 5 4 2>
66 1 0x21025000 0x3000 0x2000 com.apple.kext.OSvKernDSPLib (1.1) <6 5>
67 2 0x21028000 0x17000 0x16000 com.apple.iokit.IOAudioFamily (1.6.4b7) <66 6 5 4 2>
68 0 0x2103f000 0x4000 0x3000 com.apple.driver.AudioIPCDriver (1.0.4) <67 6 5 4 2>
70 0 0x21053000 0x3000 0x2000 com.apple.driver.ApplePS2Mouse (1.1.0) <31 21 12>
72 2 0x21126000 0x5000 0x4000 com.apple.iokit.IOHDAudioFamily (1.0.0d1) <6 5 4 2>
73 0 0x2112b000 0x6000 0x5000 com.apple.driver.AppleAzaliaController (1.0.0d1) <72 17 6 5 4 2>
74 0 0x21333000 0x36000 0x35000 com.apple.driver.AppleIntelGMA950 (5.2.4) <57 56 17 12 6 5 4 2>
75 1 0x211a5000 0x9000 0x8000 com.apple.driver.AppleSMC (2.0.1d2) <18 7 6 5 4>
76 0 0x20b9d000 0x3000 0x2000 com.apple.Dont_Steal_Mac_OS_X (6.0.2) <75 7 5 4 2>
77 0 0x211dd000 0xc000 0xb000 com.apple.driver.AppleAzaliaAudio (1.0.0d1) <72 67 6 5 4 2>
79 0 0x211d4000 0x2000 0x1000 com.apple.dsmos (1.0.0d1) <7 5 4 2>
80 0 0x212c1000 0x10000 0xf000 com.apple.driver.DiskImages (195) <39 7 6 5 4 2>
81 0 0x21369000 0xb000 0xa000 com.apple.filesystems.autofs (2.0.1) <7 6 5 4 2>
82 0 0x211d6000 0x3000 0x2000 com.x86dev.driver.lspcidrv (1.0) <12>
83 1 0x214b8000 0x9000 0x8000 com.apple.iokit.IOSerialFamily (9.1) <7 6 5 4 2>
84 0 0x21520000 0x9000 0x8000 com.apple.iokit.IOBluetoothSerialManager (2.1f17) <83 12>
86 0 0x3972d000 0x1b000 0x1a000 com.apple.filesystems.ntfs (2.1) <7 6 5 2>
87 0 0x2105f000 0x2000 0x1000 com.superhai.driver.ClamshellDisplay (1.0.1) <56 17 7 6 5 4>
88 0 0x211e9000 0x3000 0x2000 com.bresink.driver.BRESINKx86Monitoring (3.0) <12>


i also installed the hdaenabler and the azalia audio package again but it does not function...

do you have audio through the speakers or only through the headphones??


greets

#20
comatron

comatron

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 145 posts
mhh ... strange ... i dont get it ... i have sound thru lineout only (headphones) but it works like a charm :thumbsup_anim: damn - i dont get it





0 user(s) are reading this topic

0 members, 0 guests, 0 anonymous users

© 2014 InsanelyMac  |   News  |   Forum  |   Downloads  |   OSx86 Wiki  |   Mac Netbook  |   Web hosting by CatN  |   Designed by Ed Gain  |   Logo by irfan  |   Privacy Policy
